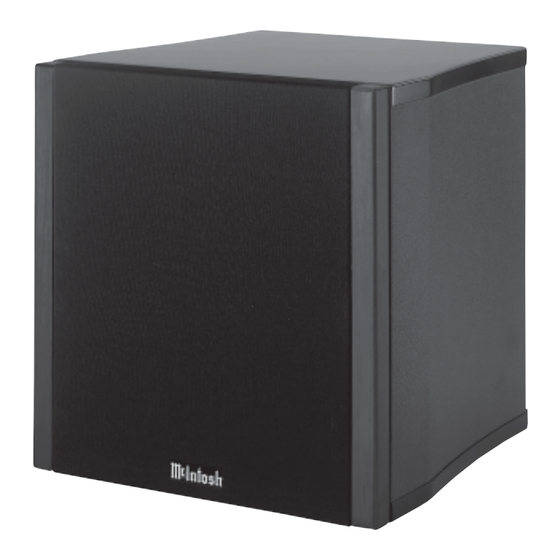

Mcintosh powered subwoofer owner's manual model xls112

Advertisement

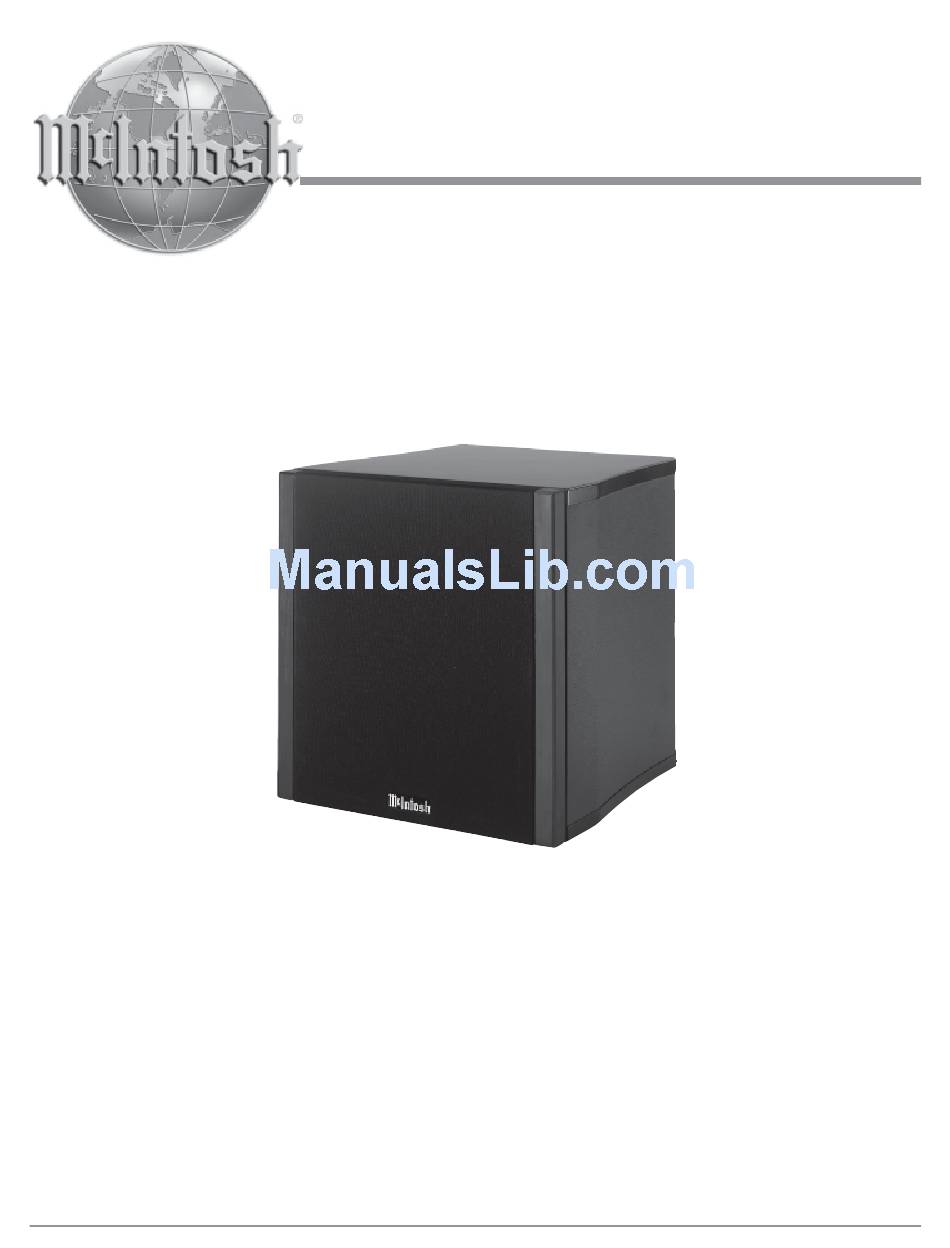

Powered Subwoofer
XLS112
Owner's Manual
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLS112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for McIntosh XLS112

  • Page 1 Powered Subwoofer XLS112 Owner’s Manual McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
  • Page 2: Important Safety Instructions

    The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO...
  • Page 3: Table Of Contents

    Phone: 607-723-1545 Fax: 607-772-3308 Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc.
  • Page 4: Important Information

    2. For additional connection information, refer to the owner’s manual(s) for any component(s) connected to the XLS112. 3. In the event that the XLS112 over heats, due to improper ventilation and/or high ambient temperature, the protection circuit will activate placing it in the Standby Mode. The Rear Panel Status LED Indicator will illuminate Red and the audio will be muted.
  • Page 5: Performance Features

    Loudspeaker Element to prevent interference. • High Power and Low Distortion The XLS112’s 400 Watt Amplifier has very Low Total Har- monic Distortion (THD). This 0.07% THD rating com- bined with the low distortion of the McIntosh LD/HP Driver provides exceptionally smooth and clean low fre- quency response.
  • Page 6: Dimensions

    Front View of XLS112 with Grille Removed Rear View of XLS112 Note: The XLS112 is supplied with optional adjustable feet, four Tiptoes and four Glides. If they are used with the XLS112 please allow for the added height. " -1/8 38.42cm...
  • Page 7 Top View of XLS112 Side View of XLS112 -5/8 Bottom View of XLS112 26.99cm " -7/8 7.30cm 15" 38.10cm " -1/4 5.72cm " " -1/8 25.72cm Dimensions " -1/10 33.27cm 2" 5.08cm " -1/10 23.11cm...
  • Page 8: Installation

    XLS112 Powered Subwoofer are non-directional and will sound best located toward the front of the room and away from corners. It is not neces- sary to aim the front of the XLS112 directly at the listener. Refer to figure 2. Figure 2...
  • Page 9: Rear Panel Connections

    STATUS LED Indicator illuminates RED when the XLS112 is in the Standby Mode, GRN (Green) LOW PASS Filter selects when Power is ON and ORN (Orange) during the the low frequencies sent time the Power Guard Circuit has activated to the XLS112’s Power...
  • Page 10: How To Connect

    Jacks. This will increase the input gain of the XLS112 by 6dB. 4. Attach to the Front Panel the supplied Loudspeaker Grille. 5. Connect the XLS112 power cord to an active AC out- let. McIntosh A/V Control Center McIntosh Seven Channel Power Amplifier...
  • Page 11 How to Connect To AC Outlet...
  • Page 12: How To Operate

    Refer to figure 4. Phase The PHASE Switch sets the acoustic output phase of the XLS112 to either 0 or 180 degrees relative to its input. This switch is to help avoid phase cancellation (characterized by a loss of bass information) between the XLS112 and any other low frequency producing speaker in the system.
  • Page 13 Notes...
  • Page 14: Specifications

    Specifications Driver Complement 12 inch LD/HP Woofer Frequency Response 35Hz to 200Hz (±3dB) Maximum Sound Pressure Level 115dB Power Output 400 Watts Sine Wave Continuous Power Total Harmonic Distortion (Power Ampfier) Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is 0.07% Input Sensitivity 0.4V for Rated Output A-Weighted Signal To Noise Ratio...
  • Page 15: Packing Instruction

    Use the original shipping carton and parts only if they are in good serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Laboratory. Please see the Part List for the correct part numbers. Packing Instructions...
  • Page 16 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A. McIntosh Part No. 04092800...
