Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
1- -800- -554- -6723
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.mccullochpower.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias
e instrucciones de seguridad. El no hacerlo puede resultar en
lesiones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
McCulloch
9335 Harris Corners
Charlotte, NC 28269
Instruction Manual
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115376827 Rev. 1
McCulloch
5/1/10 BRW
Advertisement
Table of Contents
Related Manuals for McCulloch 115376827
Summary of Contents for McCulloch 115376827
- Page 1 Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. McCulloch 9335 Harris Corners Charlotte, NC 28269 115376827 Rev. 1 McCulloch 850 Matheson Blvd. West Mississauga, Ontario L5V 0B4 5/1/10 BRW...
- Page 2 Never use blades, flailing devices, wire, rope, string, etc. This attachment is designed for line trimmer use only. Failure to follow these instruc- tions may result in serious injury. WARNING: This unit can be dangerous! Careless or improper use can cause serious injury.
- Page 3 IDENTIFICATION OF SAFETY SYMBOLS Never allow children to operate this unit. Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replacement parts. Always stop unit and disconnect spark plug before clean- ing or servicing.
-
Page 4: Operator Safety
Never use flailing devices with any attachment. This unit (when used with supplied line trimmer attachment) is designed for line trimmer use only. Use of any other ac- cessories or attachments with line trimmer at- tachment will increase the risk of injury. -
Page 5: Fuel Safety
Look for and repair fuel leaks before use. Keep in good working condition. S Replace trimmer head parts that are chipped, cracked, broken, or damaged in any other way before using the unit. S Maintain unit according to recommended procedures. -
Page 6: Edger Safety
Blade can thrust violently away from material it does not cut. Blade thrust can cause amputation of arms or legs. WARNING: Do not use trimmer head as a fastening device for the blade. WARNING: The blade continues to spin after the trigger is released or engine is turned off. -
Page 7: Hedge Trimmer Safety
The tines become very sharp from use. S Do not run unit at high speed unless cultivating. HEDGE TRIMMER SAFETY DANGER: RISK OF CUT; KEEP HANDS AWAY FROM BLADE - - Blade moves momentarily after the trigger is released or en- gine is turned off. - Page 8 WARNING: To prevent serious injury, do not use more than one boom extension with a pole pruner attachment. WARNING: Keep the pruner away from power lines or electrical wires. S Only use for pruning limbs or branches overhead up to 6 inches (15 cm) in diameter. S Do not operate the unit faster than the speed needed to prune.
-
Page 9: Adjusting The Handle

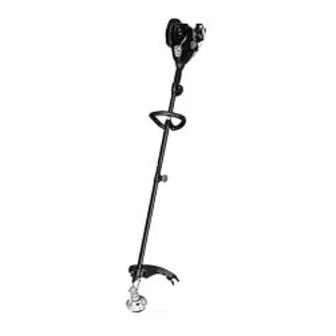

LOOSEN Knob TIGHTEN 2. Remove shipping protector from coupler. 3. Remove the shaft cap from the trimmer at- tachment (if present). 4. Position locking/release button of attach- ment into guide recess of coupler. 5. Push the attachment into the coupler until the locking/release button snaps into the primary hole. - Page 10 KNOW YOUR UNIT READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Trimmer Shaft Head Shield...
-
Page 11: Starting A Cold Engine
IMPORTANT Use of alcohol blended fuels (called gasohol or using ethanol or methanol) can cause major en- gine performance and durability problems. WARNING: Alternative fuels (not gas- oline) such as E- -15 (15% alcohol), E- -20 (20% alcohol), E- -85 (85% alcohol) are NOT classified as gasoline and are NOT approved for use in 2- -stroke gasoline engines. -
Page 12: Operating Position
Heavy shoes Cut only from your left to your right. WARNING: Always wear eye protec- tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. - Page 13 3 inches (8 cm) above ground unwanted vegetation down to the ground. Hold the bottom of the trimmer head about 3 in. (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc.
- Page 14 MAINTENANCE WARNING: Disconnect the spark plug before performing maintenance except for carburetor adjustments. HELPFUL TIP IMPORTANT: Have all repairs other than the rec- ommended maintenance described in the instruction manual performed by an authorized service dealer. If any dealer other than an authorized service dealer performs work on the product, we may not pay for repairs un- der warranty.
-
Page 15: Replacing The Line
Wear your protective equipment and observe all safe- ty precautions. After making adjustments, the trimmer head, blade or any optional attachment must not move/spin at idle speed. The carburetor has been carefully set at the factory. - Page 16 STORAGE WARNING: Perform the following steps after each use: S Allow engine to cool before storing or trans- porting. S Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
- Page 17 WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.
-
Page 18: Your Warranty Rights And Obligations
This is a limited warranty within the meaning of that term as defined in the Magnuson- -Moss Act of 1975. The policy of McCulloch is to continuously im- prove its products. Therefore, McCulloch re- serves the right to change, modify, or discon-... - Page 19 PARTS: The use of add- -on or modified parts can be grounds for disallowing a warranty claim. McCulloch is not liable to cover failures of warranted parts caused by the use of add- -on or modified parts. HOW TO FILE A CLAIM: If you...
