McCulloch FG7000MAUD-C Service Spare Parts List

McCulloch FG7000MAUD-C Service Spare Parts List

13 hp generator
Hide thumbs

Advertisement

Table of Contents

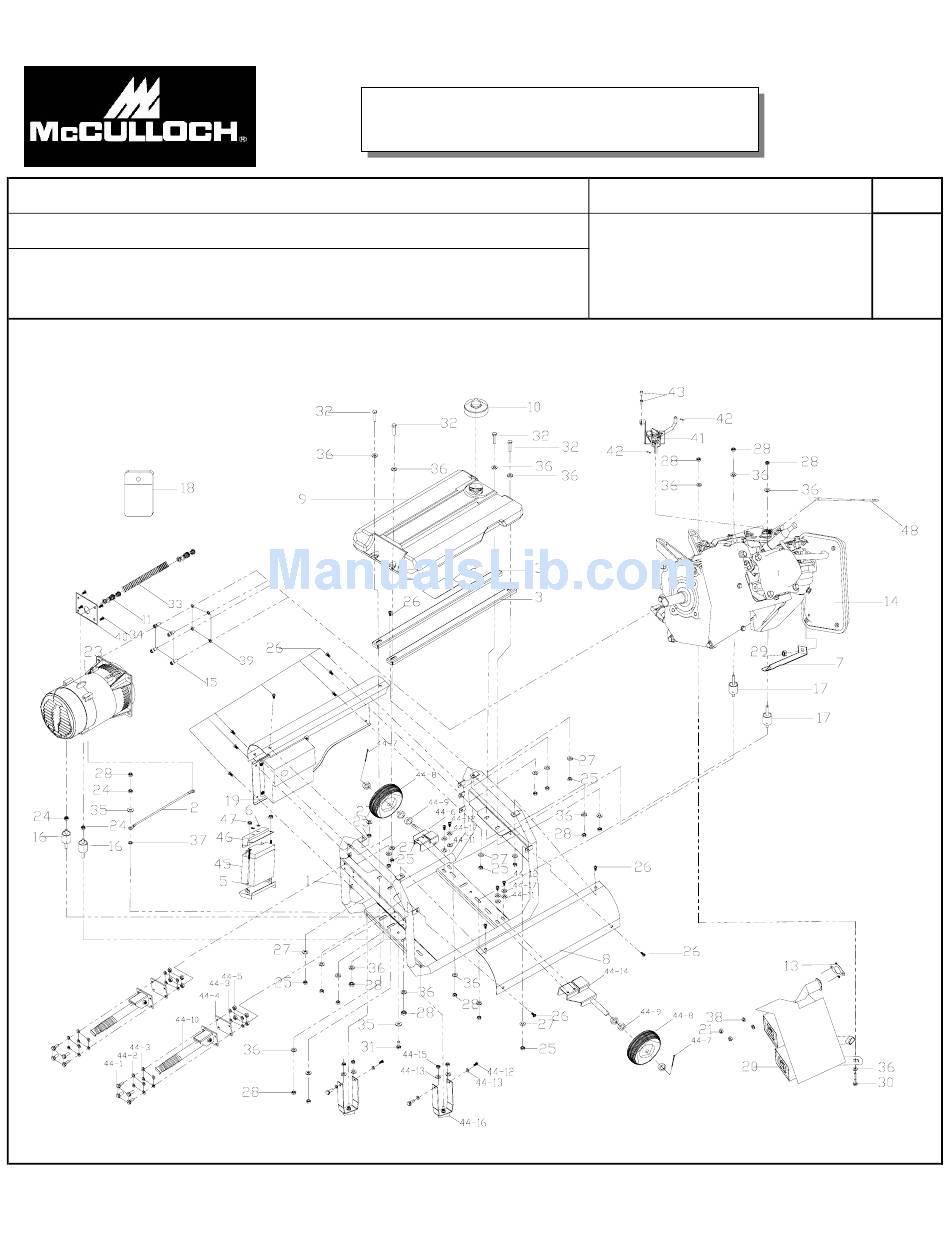

SERVICE SPARE PARTS LIST
13HP FG7000MA
REVISED
SPECIFY MODEL NO. WHEN ORDERING PARTS
DATE
DATE
13 HP GENERATOR
27-Feb-06
JENN FENG MODEL NO.
FG7000MAUD-C
MCCULLOCH MODEL NO.
FG7000MA
1 / 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG7000MAUD-C and is the answer not in the manual?

Questions and answers

Related Manuals for McCulloch FG7000MAUD-C

Summary of Contents for McCulloch FG7000MAUD-C

  • Page 1 SERVICE SPARE PARTS LIST 13HP FG7000MA REVISED SPECIFY MODEL NO. WHEN ORDERING PARTS DATE DATE 13 HP GENERATOR 27-Feb-06 JENN FENG MODEL NO. FG7000MAUD-C MCCULLOCH MODEL NO. FG7000MA 1 / 13...
  • Page 2 SPECIFY MODEL NO. WHEN ORDERING PARTS 13 HP GENERATOR JENN FENG MODEL NO. MCCULLOCH MODEL NO. Parts No. Description 7005-FG7003 GENERATOR FRAME 7010-FG3008 GROUNDING STRAP 7012-FG5701 TANK SUPPORT BAR 7214-FG6001 SCREW 7013-FG6002 RUBBER PLUG 7043-FG5702 SUPPORT BRACE 7043-FG6001 COVER PANEL...
  • Page 3 SPECIFY MODEL NO. WHEN ORDERING PARTS ALTERNATOR MODEL NO. Parts No. Description 7NAZ-08 7040-EG7001 FLANGE 7169-EG7001 7275-EG7001 ROTOR 7204-EG7001 DIODE 7155-EG7001 BEARING 7067-EG7001 DRIVE END BRACKET 7WSC-08-QJ SPRING WASHER 7SACZ-08-30 SCREW 7002-EG7001 ENCLOSING BAND 7267-EG7001 STATOR 7067-EG7002 NON DRIVE END BRACKET 7191-EG7001 SCREW 7WSZ-08...

  • Page 4: Control Panel Group

    SPECIFY MODEL NO. WHEN ORDERING PARTS CONTROL PANEL GROUP MODEL NO. Parts No. Description 7017-FG6001 CONTROL BOX 7SVAZ-05-20 SCREW 7022-FG6003 SWITCH 7077-AT1401 DUSTPROOF COVER 7SGAZ-04-12 SCREW 7028-FG6008 CONTROL PANEL COVER 7030-AT1403 CIRCUIT BREAKER 7029-FG7051 CIRCUIT BREAKER 7141-FG5701 120V DUPLEX SOCKET 7141-FG5702 240V DUPLEX SOCKET WASHER...
  • Page 5 SERVICE SPARE PARTS LIST SPECIFY MODEL NO. WHEN ORDERING PARTS ENGINE MODEL NO. Parts No. Description 0QJ188FPH01 CRANKCASE ASSEMBLY 0QJ188FPH02 CYLINDER HEAD ASSEMBLY 0QJ188FPH03 CAMSHAFT & VALVES 0QJ182QDP03 CRANKSHAFT ASSEMBLY 0QJ188FPH04 CONNECTING ROD & PISTON 0QJ182QDP05 GOVERNOR COMPONENTS 0QJ182QDP06 IGNITION SYSTEM 13HP FG7000MA 7099-EG7008 5 / 13...

  • Page 6: Crankcase Assembly

    SPARE PARTS LIST 13HP FG7000MA Parts No. Description 014206Q01F000 BUSH, LOCATING 026203J01F000 OIL DRAIN SEAL 026202J01F000 OIL DRAIN PLUG 026208G03F000 DOWEL PIN 0B01070601262 BOLT M6x12 026350Q01F000 FLOAT ASSEMBLY-LOW OIL LEVEL 015230J03F000 014000Q10F000 COVER, CRANKCASE 8 & 16 0B12016620750 BEARING 6207 026132K07F000 SEAL-OIL FILL PLUG 026131K07F000 OIL FILL PLUG 0B01070804062...

  • Page 7: Crankshaft Assembly

    SPARE PARTS LIST 13HP FG7000MA Parts No. 0030201Q01F000 EXHAUST VALVE 030105Q01F000 030101Q01F930 030106Q01F000 030214Q01F000 030303Q01F000 030301Q01F000 030313Q01F000 030302Q01F930 030203Q01F000 030230Q01F000 030231Q01F000 030103Q01F000 030312Q01F000 030605Q01F000 030608Q01F000 030611Q01F000 030612Q01F000 15-23 030607Q01F000 030609Q01F000 030401Q02F000 030600Q01F000 030613Q01F000 CAN'T BUY NO. 15-23 SOLELY. (PLS PURCHASE NO. 24) 030400Q02F000 Parts No.

  • Page 8: Connecting Rod

    SPARE PARTS LIST 13HP FG7000MA Parts No. 015100Q02FF10 015103Q02F000 015104Q02F000 CAN'T BUY NO. 2-3 SOLELY. (PLS PURCHASE NO. 4) 015300Q02F000 015130Q02F000 015106Q01F930 015130Q01F000 CAN'T BUY NO. 8-10 SOLELY. (PLS PURCHASE NO. 7) 015131Q01F000 015132Q01F000 015133Q01F930 Parts No. 017594Q01F920 017593Q01F000 017581Q01F920 017592Q01F000 0B04070600062 017584Q01F930...

  • Page 9: Ignition System

    SPARE PARTS LIST 13HP FG7000MA Parts No. 034301Q01F000 034351Q01F000 NOT SHOWN 030506Q01F910 Parts No. 017159Q01F000 017160Q01F000 017152Q01F000 017155Q01F000 017162Q01F000 017180Q01F000 017157Q01F000 017158Q01F000 017404Q01F000 017165Q01F000 017170Q10F000 CAN'T BUY NO. 1-6, 11-15 SOLELY. (PURCHASE NO. 18) 017163Q10F000 0B01090601264 017445Q01F000 020401Q01F000 017179Q01F000 0B01090608064 034500K14F000 Parts No.

  • Page 10: Carburetor Assembly

    SPARE PARTS LIST 13HP FG7000MA Parts No. Description 032600Q02F000 CARBURETOR ASSY CAN'T BUY NO. 3-4 SOLELY. (PLS PURCHASE NO. 1) 032623H03F000 CLIP 032624Q03F000 HOSE Φ5×Φ8.5×145 032103Q02F000 CARBURETOR MOUNTING GASKET 032707K14F000 FUEL FILTER, INLINE 032725Q03F000 HOSE Φ5×Φ12×65 032716K14F000 FUEL SHUTOFF VALVE Parts No.

  • Page 11: Muffler Assembly

    SPARE PARTS LIST 13HP FG7000MA Parts No. 7082-FG6001 7WSC-08-QJ 030521Q01F000 7296-ES8001 7082-FG6002 7NHC-08-QJ 7301-FG6001 7104-ES8001 036100Q03F000 Parts No. 030713Q01F000 030718Q01F000 032850Q01F000 CAN'T BUY NO. 4-13, 15 SOLELY. ( PLS PURCHASE NO. 3 ) 032851Q01F000 032853Q01F000 032852Q01F000 032861Q01F000 030548Q02F000 032854Q01F000 032860Q01F000 032855Q01F000 032855Q01F00B 032856Q01F000...
  • Page 12 SPECIFY MODEL NO. WHEN ORDERING PARTS STARTER RECOIL ASSEMBLY MODEL NO. Parts No. Description 7228-FG6046 STARTER ASSY, RECOIL CAN'T BUY NO. 2-12 SOLELY. (PLS PURCHASE NO. 1) 017170Q10F000 CASE COMP, RECOIL 017155Q01F000 PULLEY, RECOIL STARTER 017158Q01F000 RATCHET, STARTER 017404Q01F000 SPRING, FRICTION 017152Q01F000 SPRING, STARTER RETURN SERVICE SPARE PARTS LIST SERVICE SPARE PARTS LIST...
  • Page 13 SPECIFY MODEL NO. WHEN ORDERING PARTS WHEEL AND HANDLE ASS'Y MODEL NO. Parts No. Description 7228-FG6053 HANDLE ASS'Y 7228-FG6054 SUPPORT LEG SERVICE SPARE PARTS LIST 13HP FG7000MA 7228-FG6018 13 / 13 DATE 27-Feb-06 Parts No. Description 7228-FG6055 WHEEL ASS'Y, (L) 7228-FG6056 WHEEL ASS'Y, (R) REVISED DATE...
