1
3
2
(1) SCREW
(2) FILTER
(3) BODY
(1) SCHRAUBE
(2) FILTER
(3) GEHÄUSE
(1) VIS
(2) FILTRE
(3) CORPS
(1) SCHROEF
(1) TORNILLO
(2) FILTER
(2) FILTRO
(3) CUERPO
(3) HUISSTE AFBEELDING
INFORMACIONES GENERALES
Transporte
Desconexión del cable de bujía. Vacíese el depósito de gasolina y, si se trata de transporte público,
también el de aceite.
ALGEMENE NFORMATIE
Vervoer
De bougiekabel losmaken. Ledig de benzinetank. Bij openbaar vervoer dienen zowel olie-als benzinetank
geledigd te worden.
INFORMAZIONI GENERALI
Transporto
Staccare il cavo d'accensione dalla candela. Svuotare il serbatoio della benzina. In caso di transporto
su mezzi pubblici, si deve svuotare sia la benzina che l'olio.
532 19 83-27 Rev. 2
06.27.06 BY

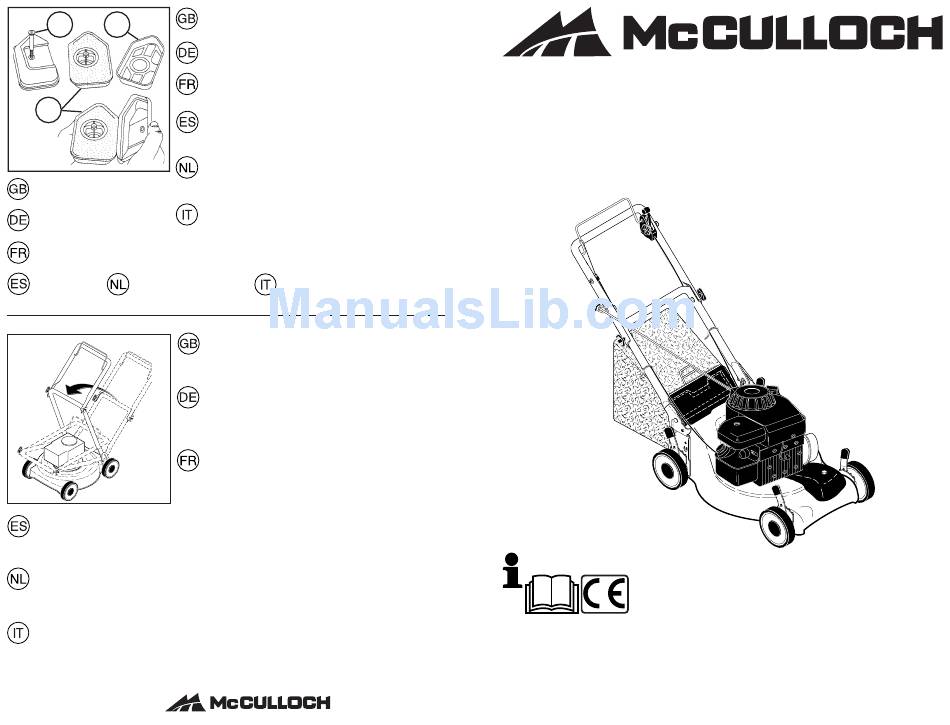

Cleaning of air fi lter. Slacken the screw, remove the lid and re-
move the fi lter cartridge. Cleanse the fi l ter in kerosene. Add 2-3
spoonfuls of oil and spread it evenly through out the fi lter.
Reinigung des Luftfi lters. Schrauben lösen, Deckel abnehmen
und Filtereinsatz herausnehmen.
Nettoyage du fi ltre à air. Desserez la vis, enlevez le capot et retirez
la cartouche fi ltrante. Nettoyez le fi ltre à l'essence. Ajoutez 2 à 3
cuillerées à soupe d'huile et répandez-la bien sur la fi ltre.
Limpieza del fi ltro de aire. Soltar el tornillo, quitar la tapa y extraer
el elemento fi ltrante. Limpiar el fi ltro con petróleo. Añadir 2-3
cucharadas soperas de aceite, que se distribuirán uniformemente
por el fi ltro.
Het schoonmaken van het luchfi lter. Draai de schroef los, ver-
wijder de deksel en haal het fi lter eruit. Maak deze schoon in
petroleum. Doe er daarna 2-3 eetlepels olie in en verdeel deze
goed in het fi lter.
Pulizia del fi ltro. Allentare la vite, togliere il coperchio ed estrarre
il fi ltro. Pulire il fi ltro in bagno di petrolio. Aggiungere 2-3 cucchiai
di olio che verra distribuito uniformemente su tutto il fi ltro.
(1) VITE
(2) FILTRO
(3) SEDE
GENERAL INFORMATION
Transport
Remove spark plug lead. Empty the petrol tank. Before public
trans port ing, engine oil and petrol must be removed.
ALGEMEINE ERLÄUTERUNGEN
Transport
Zienhen Sie das Zündkerzenkabel ab. Entleeren Sie den
Benzintank. Bei Transport mit öffentlichen Verkehrsmittein ist
der Benzin und Öltank zu entleeren.
RENSEIGNEMENTS GENERAUX
Transport
Débranchez la bougie. Videz le réservoir d'essence. En cas
de transport par un service public, il faut vider et l'essence et
l'huile.
www.mcculloch.biz
Instruction manual
Please read these in struc tions care ful ly
and make sure you un der stand them
before using this ma chine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen sorg-
fältig durch und vergewissern Sie sich,
Printed
daß Sie diese verstehen, bevor Sie die
in U.S.A.
Maschine in Betrieb nehmen.
4051CM
Manuel d'instructions
Instructieboekje
Lisez très attentivement et soyez
Lees deze instructies aandachtig
certain de comprende ces in struc -
en zorg dat u ze begrijpt voordat
tions avant d'utiliser cette machine.
u deze machine gebruikt.
Manual de las
Manuale di istruzioni
instrucciones
Prima di utilizzare la macchina
Por favor lea cuidadosamente y
leggete queste istruzioni con at-
comprenda estas intrucciones antes
tenzione ed accertatevi di averle
de usar esta maquina.
comprese bene.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4051CM and is the answer not in the manual?

Questions and answers

Summary of Contents for McCulloch 4051CM

  • Page 1 Sie sich, Printed daß Sie diese verstehen, bevor Sie die in U.S.A. Maschine in Betrieb nehmen. 4051CM Manuel d’instructions Instructieboekje Lisez très attentivement et soyez Lees deze instructies aandachtig certain de comprende ces in struc - en zorg dat u ze begrijpt voordat tions avant d’utiliser cette machine.
  • Page 2 CONTENTS INDICE SAFETY RULES ... PAGE 3-8 REGLAS DE SEGURIDAD...SIVU 3-8 TECHNICAL DATA ... 9 ESPECIFICACIONES TÉCNICAS... 9 OVERVIEW ... 10 SUMARIO ... 10 ASSEMBLY... 11-13 MONTAJE ... 11-13 ADJUSTMENTS ... 14 REGULACIÓN ... 14 START AND STOP ... 15-16 ARRANQUE Y PARADA ...
  • Page 3 Maintenance Always remove the spark plug lead before repair, cleaning or main te nance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up. Wartung Ziehen Sie immer das Zündkerzenkabel ab, bevor Sie mit der Reparatur, Reinigung oder mit Wartungsarbeiten beginnen.
  • Page 4: Betrieb

    Sicherheitsvorkehrungen für Handgeführte Rasenmäher mit Rotationsklinge WICHTIG: Diese mähmaschine kann hände und füsse abtrennen und gegenstände mit hoher geschwin- digkeit schleudern. Nichtbeachtung der folgenden sicherheitsvorschriften könnte schwere oder tödliche verletzungen zur folge haben. I. Schulung • Die Anleitungen sorgfältig durchlesen. Mit den Bedien- •...
  • Page 5 Starten en Stoppen Zet de maaier op een vlakke ondergrond. Niet op een grindpad of iets dergelijks. Vul de benzinetank met ben zine, geen oliemengsel. U kunt zowel loodvrije als lood houdende benzine gebruiken. Nooit benzinetank vullen terwijl de motor draait. •...
  • Page 6: Operación

    Normas de funcionamiento seguro para cortacéspedes giratorios de pie IMPORTANTE: Esta maquina cortadora es capaz de amputar las manos y los pies y de lanzar objetos. Si no se observan las instrucciones de seguridad siguientes se pueden producir lesiones graves o la muerte. I.
  • Page 7 Adjustment The mower can be set to different cutting levels. Adjust to de- sired cutting level by means of the lever at each wheel. Move the lever towards the wheel and set the cutting level. All wheels must be in the same height positions. Otherwise uneven cut- ting will result.
  • Page 8 Misure operative di sicurezza per rasaerba ATTENZIONE: Questo trattorino tosaerba ha una potenza suffi ciente ad amputare mani e piedi e a scagliare oggetti. La mancata osservanza delle seguenti istruzioni antinfortunistiche potrebbe causare lesioni gravi e persino il decesso della vittima. I.
  • Page 9 • Put grass catcher frame into grass bag with stiff part of bag on the bottom. • Slip vinyl bindings over frame. • The grass catcher is secured to the lawn mower housing when the rear door is low ered onto the grass catcher frame. Zusammensetzung und Montage des Grasfang- beutels •...
  • Page 10: Montage

    ASSEMBLING Handle Pull up the handle in direction of the arrow. With the handle in up-turned position, tighten the wing-nuts. MONTAGE Griff Griff in Pfeilrichtung hochklappen. Anschließend Flügelmuttern anziehen. MONTAGE Manche Déployez le manche dans la direction de la fl èche. Une fois le manche déployé, serrez les écrous à...
