GUARD & FAN BLADE ASSEMBLY
1. Take the spinner from the bag. Then remove the plastic nut by turn-
ing it counterclockwise. Place the rear guard to the head unit and
make sure the handle is facing upwards. Screw on the plastic nut
(clockwise), securing the fan guard on the head unit. (See Fig. 7)
2. Discard the small plastic sleeve located on the motor shaft. Install the
fan blade onto the motor shaft. Make sure the fan blade slot fits into
the retaining pin of the motor shaft. Attach the spinner to the motor
shaft by turning it counterclockwise to secure the fan blade. (See Fig. 8)
3. Secure both guards firmly by tightening the fan guard, then fasten
with screws. (See Fig. 9)

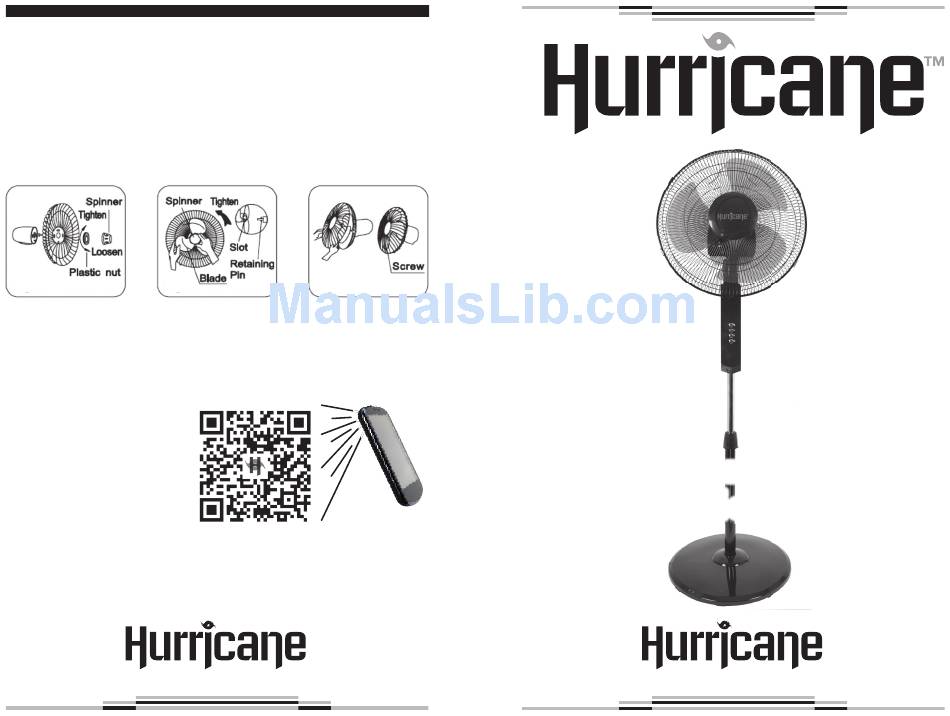

Fig. 7
Fig. 8
Use a "QR Code App" on
your smart phone to access
our website and browse our
entire product offering or go
to: www.hurricane-fans.com
www.hurricane-fans.com
Fig. 9
™

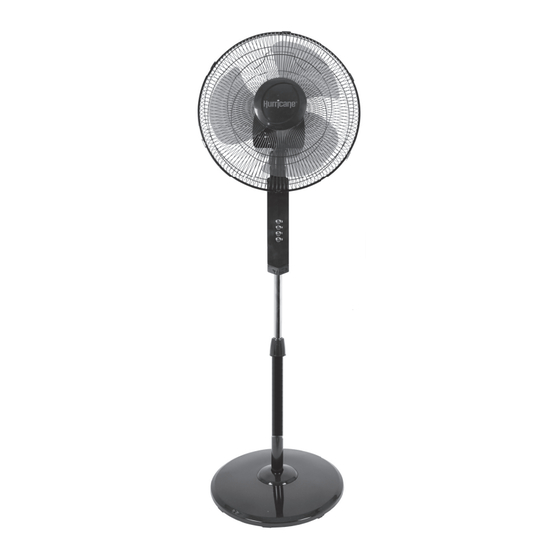

W Stand Fan
Instruction Guide
