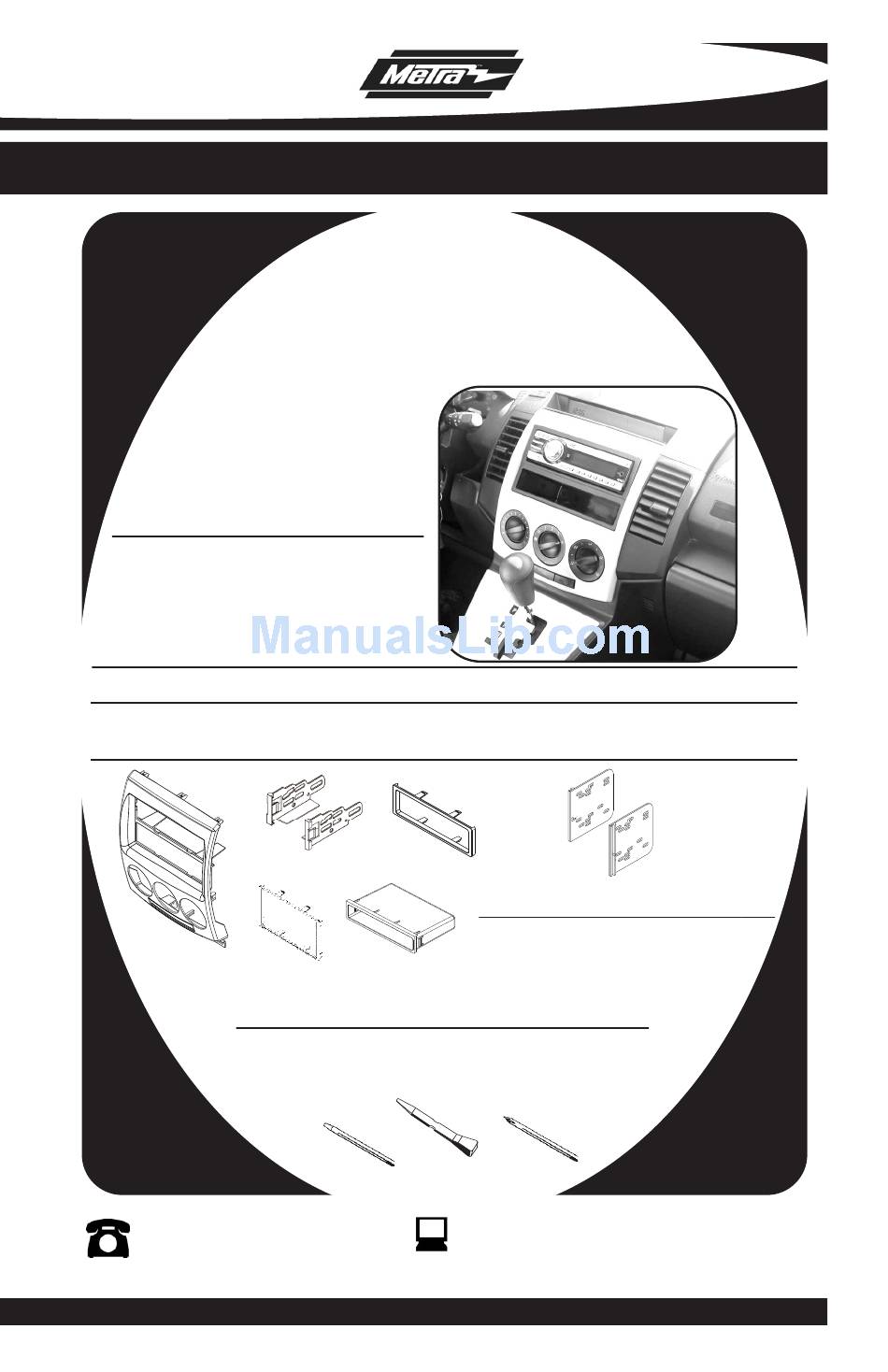

INSTALLATION INSTRUCTIONS FOR PART 99-7509
99-7509
KIT FEATURES
• Painted To Match Factory Dash
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Snap In Pocket
A
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
Mazda 5 2006-2010
B
C
F
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
D
Wiring & Antenna Connections (sold separately)
70-7903 - Mazda Harness 01-up
www.metraonline.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mazda 99-7509
Summary of Contents for Mazda 99-7509
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7509 Mazda 5 2006-2010 99-7509 KIT FEATURES • Painted To Match Factory Dash • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Radio Housing •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Dash Disassembly - Mazda 5 2006-2010 ......1,2 Kit Assembly - DIN Radio Provision with Pocket . -
Page 3: Mazda 5 2006-2010
(Figure A) Remove (2) Phillips screws exposed below shift lever trim panel. (Figure B) Unclip and remove the center console side trim panels then remove (1) Phillips screw per side behind panels. (Figure C,D) Continued on page 2. 99-7509 DASH DISASSEMBLY... -
Page 4: Mazda 5 2006-2010
Remove (2) Phillips screws at the bot- tom of the radio trim panel then unclip the panel including the factory radio. Unplug and remove the panel. Note: The climate controls do not come out with the panel. (Figure F,G) Continue to kit assembly. 99-7509 DASH DISASSEMBLY... -
Page 5: Din Radio Provision With Pocket
Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Snap the pocket into the radio housing. (Figure C) Continue to final assembly. 99-7509 KIT ASSEMBLY... -
Page 6: Iso Mount Radio Provision With Pocket
Slide the radio into the Radio Housing until it snaps into place. (Figure B) Snap the Trim Plate onto the front of the Radio Housing. (Figure C) Snap the pocket into the Radio Housing. (Figure D) Continue to final assembly. 99-7509 KIT ASSEMBLY... -
Page 7: Double Din/Stacked Iso Units Provision
Double DIN or stacked ISO unit(s) to the assembly using the screws supplied with the unit(s). (Figure C) Snap the Double DIN Trim Plate onto the front of the Radio Housing. (Figure C) Continue to final assembly. 99-7509 KIT ASSEMBLY... -
Page 8: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7509 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 9 99-7509 NOTES...
- Page 10 99-7509 NOTES...
- Page 11 99-7509 NOTES...
- Page 12 99-7509 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/23/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7509...
