Page 3 Mazda product. Important Notes About This Manual Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
Page 4: How To Use This Manual
Illustrations complement the words of the manual to best explain how to enjoy your Mazda. By reading your manual, you can find out about the features, important safety information, and driving under various road conditions.
Page 5: Table Of Contents
Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts.
Page 7: Your Vehicle At A Glance
Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Dashboard and Interior Overview ... 1-2 Exterior Overview ... 1-4...
Page 8 Your Vehicle at a Glance Dashboard and Interior Overview Power window lock switch ... page 3-26 Power window switches ... page 3-23 Power door lock switch ... page 3-9 The equipment and installation position varies by vehicle *Refer to Navigation System at the end of the manual (if equipped).
Page 9 Your Vehicle at a Glance Dashboard and Interior Overview Dashboard illumination ... page 5-34 TCS-OFF switch ... page 5-22 Headlight leveling switch ... page 5-48 Lighting control/Turn signals ... page 5-47 Audio control switch ... page 6-42 Instrument cluster ... page 5-31 Air bags ...
Page 10: Exterior Overview
Your Vehicle at a Glance Exterior Overview Sedan/5-Door The equipment and installation position varies by vehicle...
Page 11 Your Vehicle at a Glance Exterior Overview Trunk lid ... page 3-19 Hatch ... page 3-10 Antenna ... page 6-14 Rear window defroster ... page 5-52 Power windows ... page 3-22 Tires ... page 8-33 Light bulbs ... page 8-38 Hood ...
Page 12 Your Vehicle at a Glance Exterior Overview Sport Wagon The equipment and installation position varies by vehicle...
Page 13 Your Vehicle at a Glance Exterior Overview Liftgate ... page 3-13 Antenna ... page 6-14 Rear window defroster ... page 5-52 Power windows ... page 3-22 Tires ... page 8-33 Light bulbs ... page 8-38 Hood ... page 3-30 Windshield wiper blades ... page 8-28 Moonroof ...
Page 15: Essential Safety Equipment
Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Seats ... 2-2 Front Seats (Manually Operated Seats) ... 2-2 Front Seats (Electrically Operated Seats) ... 2-5 Rear Seat ... 2-9 Seat Belt Systems ... 2-15 Seat Belt Precautions ...
Page 16: Seats
Such modifications could damage the supplemental restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats. Do not drive with damaged front seats: Driving with damaged front seats is dangerous.
Page 17 qSeat Recline WARNING Do not drive with the seats reclined: Sitting in a reclined position while the vehicle is moving is dangerous because you don't get the full protection from seat belts. During sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries.
Page 18 Essential Safety Equipment Seats CAUTION When returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your other hand while operating the lever. If the seatback is not supported, it will flip forward suddenly and could cause injury. qHeight Adjustment (Driver's Seat) By moving the seat lever up or down, the seat bottom height can be adjusted.
Page 19: Front Seats (Manually Operated Seats)
Such modifications could damage the supplemental restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats. Do not drive with damaged front seats: Driving with damaged front seats is dangerous.
Page 20 Essential Safety Equipment Seats CAUTION Ø The seat-bottom power adjustment is operated by motors. Avoid extended operation because excessive use can damage the motors. Ø To prevent the battery from running down, avoid using the power adjustment when the engine is stopped. The adjuster uses a large amount of electrical power.
Page 21 Change the seatback angle by pressing the front or rear side of the reclining switch. Release the switch at the desired position. qHeight Adjustment (Driver's Seat) The seat height can be adjusted by moving the switch up or down. Essential Safety Equipment qLumbar Support Adjustment (Driver's Seat) The amount of lumber support can be...
Page 22 Essential Safety Equipment Seats To raise a head restraint, pull it up to the desired position. To lower the head restraint, press the stop- catch release, then push the head restraint down. Adjust the head restraint so that the top is even with the top of the passenger's ears, never the passenger's neck to prevent injury.
Page 23: Rear Seat
Rear Seat WARNING Do not stack cargo higher than the seatbacks or place articles on the rear package tray or on the luggage compartment cover: Stacking luggage or other cargo higher than the seatbacks, and placing articles on the rear package tray or on the luggage compartment cover is dangerous.
Page 24 Essential Safety Equipment Seats NOTE When returning a rear seat to its original position, also replace the seat belt to its normal position. Verify that the seat belt pulls out and retracts. qSplit-Folding Rear Seatback (Sedan) The seatbacks can be folded down to provide more space in the trunk.
Page 25 2. After checking that the rear seats are clear, open the trunk and pull the remote handle levers on the left and right side of the trunk. To return the seatbacks to the upright position 1. Lift the seatbacks upright. 2.
Page 26 Essential Safety Equipment Seats To fold down the rear seatbacks and slide forward seat bottoms WARNING Always remove the child-restraint system from the rear seat before operating the remote handle levers for the rear seat: Operating the remote handle levers while a rear-facing child-restraint system is in the rear seat is dangerous.
Page 27 When using the rear seatback knobs: CAUTION When operating the rear seatback knob, make sure you support the seatback with your hand. If the seatback is not supported with your hand, it will flip forward suddenly and could cause injury to the finger that pushes the rear seatback knob down.
Page 28 Essential Safety Equipment Seats qHead Restraint (5-Door/Sport Wagon) WARNING Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted: Driving with the head restraints adjusted too low or removed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.
Page 29: Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts. All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when not in use.
Page 30 Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.
Page 31 CAUTION Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to “Cleaning the Lap/Shoulder Belt Webbing” (page 8-58). qPregnant Women and Persons with Serious Medical Conditions Pregnant women should always wear seat belts.
Page 32 Essential Safety Equipment Seat Belt Systems qAutomatic Locking Mode Always use the automatic locking mode to keep the child-restraint system from shifting to an unsafe position in the event of an accident. To enable seat belt automatic locking mode, pull it all the way out and connect it as instructed on the child-restraint system. It will retract down to the child-restraint system and stay locked on it.
Page 33: Seat Belt (Except Center-Rear Position)
Seat Belt (Except Center- Rear Position) NOTE When using the center-rear seat belt, refer to “Center-Rear Position Seat Belt” (page 2-23). qFastening the Seat Belts 1. Grasp the tongue. 2. Slowly pull out the lap/shoulder belt. 3. Insert the tongue into the buckle until you hear a click.
Page 34 Button NOTE If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer. í 2-20 Some models. qShoulder Belt Adjuster Adjust the height of the shoulder belt if the seat belt touches your neck, or if it crosses your arm instead of your shoulder.
Page 35: Front Seat Belt Pretensioner And Load Limiting Systems
Even if the pretensioners have not fired, the load limiting function must be checked by an Authorized Mazda Dealer. Essential Safety Equipment Seat Belt Systems WARNING Wear seat belts only as recommended...
Page 36 If the seat belt pretensioners are not replaced, the risk of injury in a collision will increase. Always have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags after any collision. Expended seat belt pretensioners and air bags must be replaced after any collision which caused them to deploy.
Page 37: Center-Rear Position Seat Belt
ON position. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not work in an accident.
Page 38 If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer. qUnfastening the Lap Portion of the Seat Belt Insert a small object such as a key in the...
Page 39 CAUTION Always unfasten the lap portion of the belt before folding the left-rear seatback. Leaving the lap portion of the belt fastened could cause damage to the seat belt, buckle and seatback. NOTE To encourage rear seat passengers to wear their seat belts, we suggest leaving the center- rear lap position of the belt fastened at all times except when folding the rear seat...
Page 40: Seat Belt Extender
When ordering an extender, only order one that provides the necessary additional length to fasten the seat belt properly. Please contact your Authorized Mazda Dealer for more information.
Page 41 WARNING Do not use a seat belt extender unless it is necessary: Using a seat belt extender when not necessary is dangerous. The seat belt will be too long and not fit properly. In an accident, the seat belt will not provide adequate protection and you could be seriously injured.
Page 42: Seat Belt Warning Light/Beep
Essential Safety Equipment Seat Belt Systems Seat Belt Warning Light/Beep The seat belt warning light illuminates and a beep sound will be heard if the driver's seat belt is not fastened when the ignition switch is turned to the ON position.
Page 43: Child Restraint
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be properly restrained and child-restraint systems of all kinds are properly secured on the rear seats which are the best place for children.
Page 44 Essential Safety Equipment Child Restraint WARNING Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size. If not, the child could be seriously injured or even killed in an accident. Follow the manufacturer's instructions and always keep the child-restraint system buckled down: An unsecured child-restraint system is dangerous.
Page 45 Seating a child in a child-restraint system on the front passenger seat is dangerous: Vehicles equipped with front passenger seat weight sensors are also equipped with a front passenger air bag deactivation indicator light (page 2-37). Even with the front passenger seat weight sensors, if you must use the front passenger seat for children, seating a child in a child-restraint system on the front passenger seat under the following conditions increases the danger of the front passenger air bag deploying...
Page 46 NOTE Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. When using these anchors to secure a child-restraint system, refer to “LATCH Child-Restraint Systems” (page 2-40).
Page 47: Installing Child-Restraint Systems
Some child-restraint systems now come with tethers and therefore must be installed on the seats that take tethers to be effective. In your Mazda, tethered child-restraint systems can only be accommodated in the three positions on the rear seat.
Page 48 Essential Safety Equipment Child Restraint 4. Push the child-restraint system firmly into the vehicle seat. Be sure the belt retracts as snugly as possible. Clicking from the retractor will be heard during retraction if the system is in the automatic locking mode. If the belt does not lock the seat down tight, repeat this step.
Page 49 Tether strap position (5-Door/Sport Wagon) Route between head restraint upright. Tether strap WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or damage the tether or tether anchor and result in injury.
Page 50: For Children
NOTE To check if your front seats have side air bags: Mazda vehicles equipped with side air bag will have a “SRS AIRBAG” tag on the outboard shoulder of the front seats. To check if your vehicle has curtain air...
Page 51 WARNING Always move the front passenger seat as far back as possible if installing a front-facing child-restraint system on it is unavoidable: As your vehicle has front air bags and doubly so if your vehicle has side air bags, a front-facing child- restraint system should be put on the front passenger seat only when it is unavoidable.
Page 52 Essential Safety Equipment Child Restraint 2. Secure the child-restraint system with the lap portion of the lap/shoulder belt. See the manufacturer's instructions on the child-restraint system for belt routing instructions. 3. To get the retractor into the automatic locking mode, pull the shoulder belt portion of the seat belt until the entire length of the belt is out of the retractor.
Page 53 Authorized Mazda Dealer as soon as possible. Essential Safety Equipment Child Restraint 2-39...
Page 54: Latch Child-Restraint Systems
Child Restraint LATCH Child-Restraint Systems Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. Both anchors must be used, otherwise the seat will bounce around and put the child in danger. Most LATCH child-restraint systems must also be used in conjunction with a tether to be effective.
Page 55 qLATCH Child-Restraint System Installation Procedure (Rear Outboard Seats) 1. Make sure the seatback is securely latched by pushing it back until it is fully locked. 2. Expand the area between the seat bottom and the seatback slightly to verify the locations of the LATCH lower anchors.
Page 56 Essential Safety Equipment Child Restraint Tether strap position (5-Door/Sport Wagon) Route between head restraint upright. Tether strap WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous.
Page 57 WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or damage the tether or tether anchor and result in injury. Always attach the tether strap to the correct tether anchor position: Attaching the tether strap to the...
Page 58 Essential Safety Equipment Child Restraint Anchor bracket location and tether strap position (5-Door) Anchor Tether strap bracket Anchor bracket location and tether strap position (Sport Wagon) Anchor Tether strap bracket 2-44...
Page 59: Srs Air Bags
Supplemental Restraint Systems (SRS) Precautions The front and side supplemental restraint systems (SRS) include up to 6 air bags. Please verify which kinds of air bags are equipped on your vehicle by locating the “SRS AIRBAG” location indicators. These indicators are visible in the area where the air bags are installed.
Page 60 Essential Safety Equipment SRS Air Bags WARNING Seat belts must be worn in air bag equipped vehicles: Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inflate only in the first collision with frontal, near frontal or side forces that are at least moderate.
Page 61 Sit in the center of the seat and wear seat belts properly: Sitting too close to the side air bag modules or placing hands on them is extremely dangerous. The side air bags inflate with great force and speed directly out of the outboard side of the front seat and expand along the front door on the side the car is hit.
Page 62 Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.
Page 63: Supplemental Restraint System Components
Supplemental Restraint System Components The supplemental restraint systems (SRS) have two basic subsystems: The air bag system with inflators and air bags. The electrical system with crash sensors and diagnostic module. The air bags are mounted in the following locations: The steering wheel hub The front passenger dashboard The outboard sides of the front seatbacks...
Page 64 Essential Safety Equipment SRS Air Bags qFront Air Bag System Components (11) (10) (1) Driver seat slide position sensor (page 2-52) (2) Front seats (3) Air bag/front seat belt pretensioner system warning light (page 2-60) (4) Front dual stage inflators and air bags (5) Front air bag sensor (6) Front passenger air bag deactivation indicator light (page 2-52) (7) Front seat belt pretensioner and load limiting systems (page 2-21)
Page 65 qSide and Curtain Air Bag System Components Sedan/5-Door Sport Wagon (1) Side and curtain inflators and air bags (2) Front seats (3) Crash sensors and diagnostic module (SAS unit) (4) Side crash sensor Essential Safety Equipment SRS Air Bags 2-51...
Page 66: How The Air Bags Work
The front air bags will function only once. After that, the front air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the system components. The front, dual stage air bags control air bag inflation in two energy stages. During an impact of moderate severity the front air bags deploy with lesser energy, whereas during more severe impacts, they deploy with more energy.
Page 67 Front passenger seat weight sensors Your vehicle is equipped with the front passenger seat weight sensors (page 2-37). These sensors are located under both of the front passenger seat rails. These sensors determine the total seated weight on the front passenger seat. The SAS unit is designed to prevent the front passenger front and side air bags and seat belt pretensioner system from deploying if the total seated weight is less than approximately 30 kg (66 lb).
Page 68 ON position and does not illuminate as indicated in the above chart, do not allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work properly in an accident.
Page 69 Do not increase the total seated weight on the front passenger seat: When an infant or small child sits on the front passenger seat, increasing the total seated weight on the front passenger seat from the total seated weight of approximately 30 kg (66 lb) is dangerous.
Page 70 The side and curtain air bags will function only once. After that, the side and curtain air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the systems. 2-56...
Page 71 qAir Bag Activation/Deactivation NOTE If the front passenger seat weight sensors detect a total seated weight on the front passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side air bags and seat belt pretensioner may not deploy (page 2-52), but the curtain air bags may deploy.
Page 72 Essential Safety Equipment SRS Air Bags Frontal offset impact to the vehicle may not provide the stopping force necessary for air bag deployment. Rear-ending or running under a truck's tail gate may not provide the stopping force necessary for air bag deployment. Non-activation of front air bags Front air bags will not normally inflate in the following cases:...
Page 73 Side impacts involving trees or poles can cause severe cosmetic damage but may not have enough impact force to activate the side and curtain air bags. Vehicle roll-over may not provide enough side force to deploy the side and curtain air bags. Side impacts with two-wheeled vehicles may not provide enough force to deploy the side and curtain air bags.
Page 74 ON position. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not work in an accident.
Page 75 Unless all safety procedures are followed, injury can result. Ask an Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air bag equipped vehicle.
Page 76 2-62...
Page 77: Knowing Your Mazda
Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts. Doors and Locks ... 3-2 Keys ... 3-2 Keyless Entry System ... 3-3 Door Locks ... 3-7 Hatch (5-Door) ... 3-10 Liftgate (Sport Wagon) ... 3-13 Trunk Lid (Sedan) ...
Page 78: Doors And Locks
Write down the code number and keep it in a separate safe and convenient place, but not in the vehicle. If your key is lost, consult your Authorized Mazda Dealer and have your code number ready. Key extend/retract method (Retractable type key) To extend the key, press the release button.
Page 79: Keyless Entry System

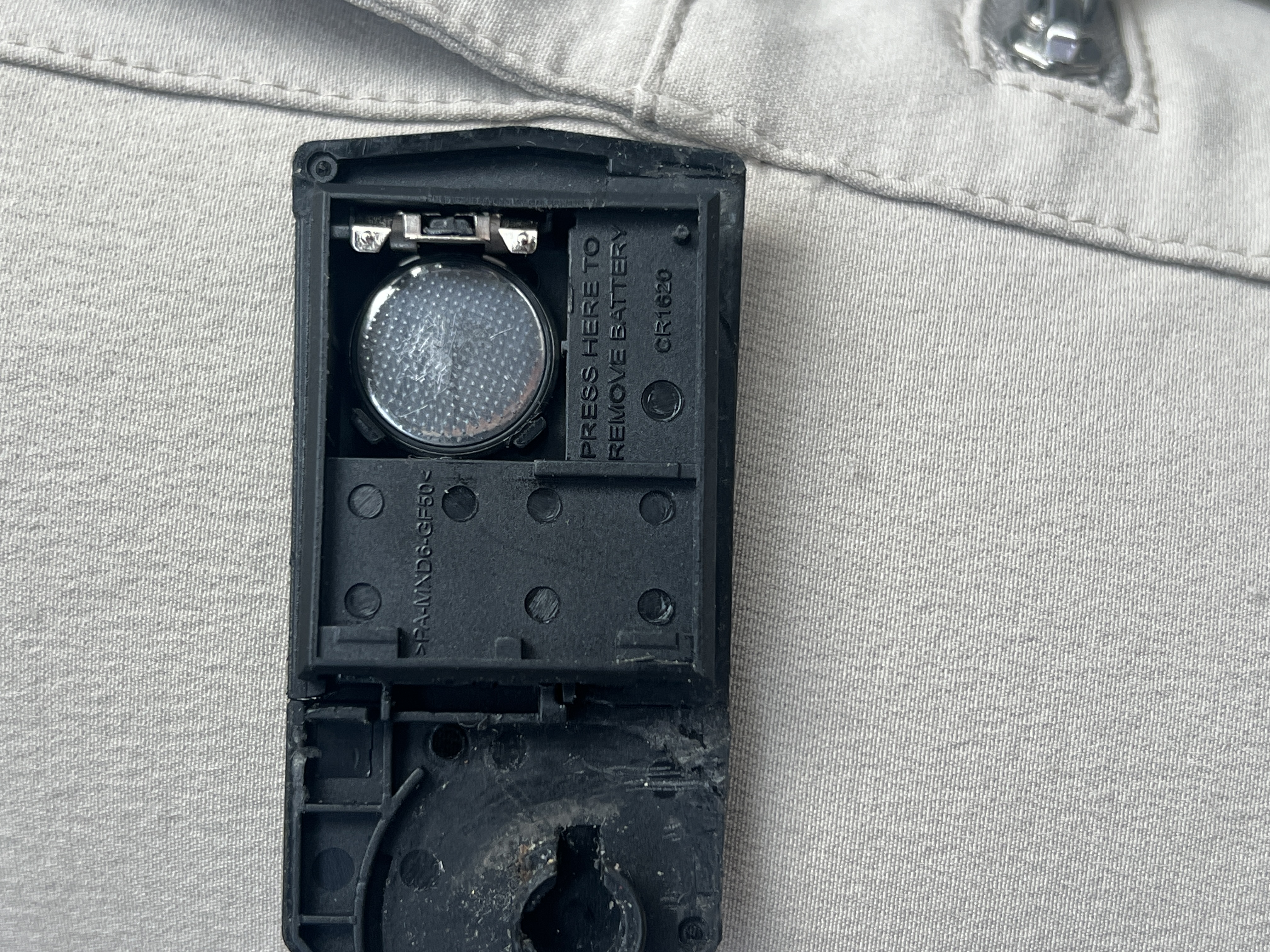

To install a new battery, refer to Maintenance (page 3-5). Additional transmitters can be obtained at an Authorized Mazda Dealer. Up to 3 transmitters can be used with the keyless entry system per vehicle. Bring all transmitters to an Authorized Mazda Dealer when additional transmitters are required.
Page 80 Knowing Your Mazda Doors and Locks 5-Door/Sport Wagon Lock button Operation indicator light Panic button NOTE (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
Page 81 Insulate the plus and minus terminals of the battery using cellophane or equivalent tape. Ø Never disassemble. Ø Never throw the battery into fire and/or water. Ø Never deform or crush. Replacing the transmitter battery 1. Unfold the key (page 3-2). Knowing Your Mazda...
Page 82 If you have a problem with the keyless entry system, consult an Authorized Mazda Dealer. If your transmitter is lost or stolen, bring all remaining transmitters to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen transmitter inoperative.
Page 83: Door Locks
Keep all doors locked when driving: Unlocked doors in a moving vehicle are dangerous. Passengers can fall out if a door is accidentally opened and can more easily be thrown out in an accident. Knowing Your Mazda...
Page 84 Knowing Your Mazda Doors and Locks Always close all the windows, lock the doors and take the key with you when leaving your vehicle unattended: (Except sedan) Leaving your vehicle unlocked is dangerous as children could lock themselves in a hot vehicle, which could result in death.
Page 85 Locking, unlocking with door-lock switch All doors and the hatch/liftgate lock automatically when LOCK is pushed. They all unlock when the unmarked part of the door-lock switch is pushed. Knowing Your Mazda Unlock Lock...
Page 86: Hatch (5-Door)
Knowing Your Mazda Doors and Locks qRear Door Child Safety Locks These locks are intended to help prevent children from accidentally opening the rear doors. Use them both whenever a child rides in the vehicle. If you slide the child safety lock to the lock position before closing that door, the door cannot be opened from the inside.
Page 87 Lever After performing this emergency measure, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. To close, use both hands to push the hatch down until the lock snaps shut. Do not slam it. Pull up on the hatch to make sure it is secure.
Page 88 Knowing Your Mazda Doors and Locks qLuggage Strap The luggage compartment can be accessed by opening the hatch when the straps are attached to the sides of the hatch. qLuggage Compartment Cover WARNING Don't place anything on top of the...
Page 89: Liftgate (Sport Wagon)
Unlocking with Door- Lock Switch The liftgate can be locked/unlocked by operating the door-lock switch, refer to Power Door Locks (page 3-9). qOpening and Closing the Liftgate Opening the liftgate Pull up on the handle. Knowing Your Mazda 3-13...
Page 90 Lever After performing this emergency measure, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. Closing the liftgate Use both hands to push the liftgate down until the lock snaps shut. Do not slam it.
Page 91 The luggage compartment net can be used as a compartment separator or to keep animals in the back. CAUTION Make sure the net is firmly secured. If it is not firmly secured, it could unexpectedly disengage resulting in injury. Knowing Your Mazda Button 3-15...
Page 92 Knowing Your Mazda Doors and Locks NOTE The width of the net anchors can be shortened by pushing both sides inward. Net anchor 3-16 Dividing the luggage compartment from the rear seat WARNING Do not use the luggage compartment net to secure objects in the luggage...
Page 93 The retainer bar must be removed from the back of the seatbacks before raising the seatbacks. To install the net: 1. Fold down the rear seatback (page 2-11). Knowing Your Mazda Doors and Locks 3-17...
Page 94 Knowing Your Mazda Doors and Locks 2. Remove the retainer bar from the rear seatback position. 3. Insert the retainer bar anchors into the left side of each rear seatback retainer (back of the seatback). Retainer bar Rear seat 4. Slide the retainer bar in the direction indicated in the figure, and engage the anchors into the seatback retainers.
Page 95: Trunk Lid (Sedan)
For vehicles equipped with a rear spoiler, do not lift the trunk lid by the spoiler. Lifting up the trunk lid by the rear spoiler could cause damage to the rear spoiler and the trunk lid. Knowing Your Mazda 3-19...
Page 96 Knowing Your Mazda Doors and Locks Opening the trunk lid with the key Insert the key into the slot and turn it clockwise. Open Opening the trunk lid with the transmitter The trunk lid can be opened by operating the keyless entry system transmitter, refer to Keyless Entry System (page 3-3).
Page 97: Inside Trunk Release Lever (Sedan)
Do not leave your children or pets alone in a car at any time. Do not leave the car, the rear folding seats or the trunk unlocked. Knowing Your Mazda 3-21...
Page 98: Power Windows
Knowing Your Mazda Doors and Locks qOpening the Trunk Lid from the Inside Slide the inside trunk release lever in the direction of the arrow. The lever is made of material that will glow for hours in the darkness of the trunk following a brief exposure to ambient light.
Page 99 To fully close the power window automatically, pull the switch completely To stop the power window partway, pull or press the switch in the opposite direction and then release it. Knowing Your Mazda Front passenger's window 3-23...
Page 100 Knowing Your Mazda Doors and Locks NOTE (POWER WINDOW INITIALIZATION PROCEDURE) If the battery was disconnected during vehicle maintenance, or for other reasons such as a switch continues to be operated after the window is fully open/close, the power windows will not fully open and close automatically.
Page 101 LOCK position and proceed from the beginning. If you are unable to cancel the function despite carrying out the cancellation procedure, consult an Authorized Mazda Dealer. Restoring the two-step down function With the two-step down function in the canceled state, repeat the previous procedure for canceling the function on each door switch and it will be restored.
Page 102 Knowing Your Mazda Doors and Locks qOperating the Rear Power Windows The power windows may be operated when the power window lock switch on the driver's door is in the unlocked position. The rear power windows may be opened or closed using the power window master control switches on the driver's door.
Page 103 The key is inserted into the ignition switch. Opening Because nobody likes getting into a very hot car, Mazda has introduced a way to open the two front windows as you approach the vehicle to get the air moving before you get in.
Page 104 Knowing Your Mazda Doors and Locks 5-Door/Sport Wagon Lock button Unlock button Panic button NOTE The unlock button does not operate unless it is pressed twice sequentially. The lock button cannot be used to close the power windows. With key 1.
Page 105: Fuel-Filler Lid And Cap
CAUTION Always use only a genuine Mazda fuel cap or an approved equivalent, available at an Authorized Mazda Dealer. The wrong cap can result in a serious malfunction of the fuel and emission control systems.
Page 106: Hood
(even after you have tightened the cap securely, driven, and restarted the engine several times), it may indicate a different problem. Contact an Authorized Mazda Dealer as soon as possible. 3-30 Hood WARNING Always check that the hood is closed...
Page 107: Moonroof Í
NOTE After washing your Mazda or after it rains, wipe the water off the moonroof before operating it to avoid water penetration which could cause rust and water damage to your headliner.
Page 108 Knowing Your Mazda Doors and Locks qTilt Operation The rear of the moonroof can be tilted open to provide more ventilation. To tilt, push the rear of the tilt switch. To close, push the front of the tilt switch. Tilt up...
Page 109: Security System
Ø Expose the key to high temperatures on places such as the dashboard or hood, under direct sunlight. Knowing Your Mazda Security System CAUTION When starting the engine do not allow the following, as the engine may not start due to the electronic signal from the ignition key not being transmitted correctly.
Page 110 If the security indicator light flashes continuously while you are driving, don't shut off the engine. Go to an Authorized Mazda Dealer and have it checked. If you shut off the engine while the light is flashing you won't be able to restart it.
Page 111: Theft-Deterrent System Í
Always keep a spare key, in case one is lost. If a key is lost, contact an Authorized Mazda Dealer as soon as possible. If you lose a key, an Authorized Mazda Dealer will reset the electronic codes of your remaining keys and immobilizer system.
Page 112 The engine is started with the ignition key or the start knob. NOTE If you have any problem with the theft- deterrent system, consult an Authorized Mazda Dealer. qTheft-Deterrent Labels A label indicating that your vehicle is equipped with a Theft-Deterrent System is...
Page 113 Knowing Your Mazda Security System Mazda recommends that you affix it to the lower rear corner of a front door window. 3-37...
Page 114: Steering Wheel And Mirrors
Knowing Your Mazda Steering Wheel and Mirrors Steering Wheel WARNING Never adjust the steering wheel while the vehicle is moving: Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very easily cause the driver to abruptly turn to the left or right.
Page 115 Auto-dimming mirror The auto-dimming mirror automatically reduces glare of headlights from cars at the rear when the ignition switch is in the ON position. í Some models. Knowing Your Mazda Day/Night lever Night 3-39...
Page 116 Knowing Your Mazda Steering Wheel and Mirrors Press the OFF button ( ) to cancel the automatic dimming function. The indicator light will go off. To reactivate the automatic dimming function, press the ON button ( indicator light will illuminate.
Page 117: Before Driving Your Mazda
Before Driving Your Mazda Important information about driving your Mazda. Fuel and Engine Exhaust Precautions ... 4-2 Fuel Requirements ... 4-2 Emission Control System ... 4-3 Engine Exhaust (Carbon Monoxide) ... 4-4 Before Starting the Engine ... 4-5 Before Getting In ... 4-5 After Getting In ...
Page 118: Fuel And Engine Exhaust Precautions
Ø Never add fuel system additives. Never add cleaning agents other than those specified by Mazda. Other cleaning agents and additives may damage the system. Consult an Authorized Mazda Dealer. Gasoline blended with oxygenates such as alcohol or ether compounds are generally referred to as oxygenated fuels.
Page 119: Emission Control System
Ø USE ONLY UNLEADED FUEL. Ø Don't drive your Mazda with any sign of engine malfunction. Ø Don't coast with the ignition switch turned off. Ø Don't descend steep grades in gear with the ignition switch turned off.
Page 120: Engine Exhaust (Carbon Monoxide)
When inhaled, it can cause loss of consciousness and death. If you smell exhaust gas inside your vehicle, keep all windows fully open and contact an Authorized Mazda Dealer immediately. Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous.
Page 121: Before Starting The Engine
NOTE Engine oil, engine coolant, brake/clutch fluid, washer fluid, and other fluid levels should be inspected. See Maintenance, Section 8. Before Driving Your Mazda Before Starting the Engine After Getting In Are all doors closed and locked? Is the seat adjusted properly?
Page 122: Driving Tips
No special break-in is necessary, but a few precautions in the first 1,000 km (600 miles) may add to the performance, economy, and life of your Mazda. Don't race the engine. Don't maintain one constant speed, either slow or fast, for a long period of time.
Page 123: Hazardous Driving
(ABS) on page 5-7. If you get stuck, select a lower gear and accelerate slowly. Do not spin the front wheels. Before Driving Your Mazda Driving Tips For more traction in starting on slippery surfaces, use sand, rock salt, carpeting, or other nonslip material...
Page 124: Rocking The Vehicle
Winter Driving Carry emergency gear, window scraper, flares, a small shovel, jumper cables, and a small bag of sand or salt. Ask an Authorized Mazda Dealer to perform the following precautions: Have the proper ratio of antifreeze in the radiator.
Page 125: Driving In Flooded Area
5-29). qTire Chains This vehicle cannot be operated with tire chains because it could cause interference with the vehicle body and scratching. Before Driving Your Mazda Driving Tips Driving In Flooded Area WARNING Dry wet brakes by driving very slowly...
Page 126: Overloading
Before Driving Your Mazda Driving Tips Overloading WARNING Be careful not to overload your vehicle: The gross axle weight rating (GAWR) and the gross vehicle weight rating (GVWR) of your vehicle are on the Motor Vehicle Safety Standard Label on the driver's door frame. Exceeding these ratings can cause an accident or vehicle damage.
Page 127: Towing
Before Driving Your Mazda Towing Trailer Towing The Mazda6 is not designed for towing. Never tow a trailer with your Mazda6. 4-11...
Page 128 4-12...
Page 129 Driving Your Mazda Explanation of instruments and controls. Starting and Driving ... 5-2 Ignition Switch ... 5-2 Starting the Engine ... 5-4 Brake System ... 5-5 Manual Transaxle Operation ... 5-9 Automatic Transaxle Controls ... 5-12 Power Steering ... 5-18 Cruise Control ...
Page 130: Starting And Driving
Driving Your Mazda Starting and Driving Ignition Switch qIgnition Switch Positions LOCK The steering wheel locks to protect against theft. Only in this position can the key be removed. Manual transaxle To turn the key from the ACC to the...
Page 131 (page 5-35). qIgnition Key Reminder If the ignition switch is in the LOCK or ACC position with the key inserted, a continuous beep sound will be heard when the driver's door is opened. Driving Your Mazda...
Page 132: Starting The Engine
Driving Your Mazda Starting and Driving Starting the Engine NOTE Engine-starting is controlled by the spark ignition system. This system meets all Canadian Interference- Causing Equipment Standard requirements regulating the impulse electrical field strength of radio noise. 1. Occupants should fasten their seat belts.
Page 133: Brake System
Brake System qFoot Brake Your Mazda has power-assisted brakes that adjust automatically through normal use. Should power-assist fail, you can stop by applying greater force than normal to the brake pedal. But the distance required to stop will be greater than usual.
Page 134 Driving Your Mazda Starting and Driving CAUTION Driving with the parking brake on will cause excessive wear of the brake linings or pads. NOTE For parking in snow, refer to Winter Driving (page 4-8) regarding parking brake use. Setting the parking brake...
Page 135 Authorized Mazda Dealer. NOTE Having to add brake fluid is sometimes an indicator of leakage. Consult an Authorized Mazda Dealer as soon as possible even if the brake light is no longer illuminated. WARNING Do not drive with the brake system warning light illuminated.
Page 136 ABS. Should this happen, consult an Authorized Mazda Dealer as soon as possible. NOTE When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS warning light comes on.
Page 137: Manual Transaxle Operation
This causes a screeching noise to warn that the pads should be replaced. When you hear this noise, consult an Authorized Mazda Dealer as soon as possible. WARNING Do not drive with worn disc pads: Driving with worn disc pads is dangerous.
Page 138 Driving Your Mazda Starting and Driving WARNING Do not use sudden engine braking on slippery road surfaces or at high speeds: Shifting down while driving on wet, snowy, or frozen roads, or while driving at high speeds causes sudden engine braking, which is dangerous.
Page 139 Driving Your Mazda Starting and Driving Downshifting When you must slow down in heavy traffic or on a steep upgrade, downshift before the engine starts to overwork. This reduces the chance of stalling and gives better acceleration when you need more speed.
Page 140: Automatic Transaxle Controls
Driving Your Mazda Starting and Driving Automatic Transaxle Controls Various Lockouts: Indicates that you must depress the brake pedal to shift (The ignition switch must be in the ACC or ON position). Indicates the shift lever can be shifted freely into any position.
Page 141 5-gear/6-gear * 3.0-liter engine model M (Manual) M is the manual shift mode position. Gears can be shifted up or down by operating the shift lever. Refer to Manual Shift Mode (page 5-14). Driving Your Mazda sequence. 5-13...
Page 142 Driving Your Mazda Starting and Driving qShift-Lock System The shift-lock system prevents shifting out of P unless the brake pedal is depressed. To shift from P: 1. Depress and hold the brake pedal. 2. Start the engine. 3. Move the shift lever.
Page 143 Manually Shifting down →M5→M4→M3→M2→M1) To shift down to a lower gear, tap the shift lever forward ( ) once. * 3.0-liter engine model Driving Your Mazda Starting and Driving 5-15...
Page 144 Driving Your Mazda Starting and Driving WARNING Do not use sudden engine braking on slippery road surfaces or at high speeds: Shifting down while driving on wet, snowy, or frozen roads, or while driving at high speeds causes sudden engine braking, which is dangerous.
Page 145 The transaxle will shift to a lower gear, depending on vehicle speed. Climbing steep grades from a stop To climb a steep grade from a stopped position: 1. Depress the brake pedal. Driving Your Mazda 5-17...
Page 146: Power Steering
Driving Your Mazda Starting and Driving 2. Shift to D or M1, depending on the load weight and grade steepness. 3. Release the brake pedal while gradually accelerating. Descending steep grades When descending a steep grade, shift to lower gears, depending on load weight and grade steepness.
Page 147: Cruise Control
Set Speed 1. Activate the cruise control system by pressing the ON/OFF switch. 2. Accelerate to the desired speed, which must be more than 30 km/h (19 mph). Driving Your Mazda 5-19...
Page 148 Driving Your Mazda Starting and Driving 3. Press the SET/COAST button and release it at the speed you want. Release the accelerator at the same time. Don't continue to hold in the button. Until you release it, speed will continue to drop (unless you continue to accelerate) and you'll miss the desired speed.
Page 149 (19 mph) and press the RES/ ACCEL button. qTo Cancel To cancel the system, use one of these methods: Press the ON/OFF switch. Slightly depress the brake pedal. Depress the clutch pedal (Manual transaxle only). Driving Your Mazda 5-21...
Page 150: Traction Control System (Tcs)
Driving Your Mazda Starting and Driving Press the CANCEL button. The system is off when the ignition is off. NOTE Cruise control will cancel at about 15 km/h (9 mph) below the preset speed (such as may happen when climbing a long, steep grade) or below 30 km/h (19 mph).
Page 151 TCS is switched off. Starting and Driving If the light stays on when the TCS is not switched off, take your vehicle to an Authorized Mazda Dealer. The TCS may have a malfunction. NOTE (3.0-liter engine model)
Page 152 Driving Your Mazda Starting and Driving NOTE When TCS is on and you attempt to free the vehicle when it is stuck, or drive it out of freshly fallen snow, the TCS will activate. Depressing the accelerator will not increase engine power and freeing the vehicle may be difficult.
Page 153: Tire Pressure Monitoring System
Driving Your Mazda Starting and Driving í Tire Pressure Monitoring System The tire pressure monitoring system (TPMS) monitors the pressure for each tire. If tire pressure is too low in one or more tires, the system will inform the driver via the warning light in the instrument panel and by the warning beep sound.
Page 154 Driving Your Mazda Starting and Driving CAUTION Ø Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a...
Page 155 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Page 156 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your...
Page 157 The signal code must be registered with the TPMS before it can work. The easiest way to do it is to have an Authorized Mazda Dealer change your tire and complete ID signal code registration. When having tires changed at an...
Page 158 Replacing tires and wheels CAUTION Ø When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Ø The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 159: Instrument Cluster And Indicators
Driving Your Mazda Instrument Cluster and Indicators Meters and Gauges (Black-out meter) When the ignition switch is in the ON position, the dashboard gauges illuminate. Speedometer ... page 5-32 Odometer, Trip Meter and Trip Meter Selector ... page 5-32 Tachometer ... page 5-33 Engine Coolant Temperature Gauge ...
Page 160 Driving Your Mazda Instrument Cluster and Indicators qSpeedometer The speedometer indicates the speed of the vehicle. qOdometer, Trip Meter and Trip Meter Selector The display mode can be changed between trip meter A and trip meter B by pressing the selector while one of them is displayed.
Page 161 The engine coolant temperature gauge shows the temperature of the engine coolant. If the needle is near H, it indicates overheating. CAUTION Red zone Driving with an overheated engine can cause serious engine damage (page 7-14). Driving Your Mazda 5-33...
Page 162 Driving Your Mazda Instrument Cluster and Indicators qFuel Gauge The fuel gauge shows approximately how much fuel is in the tank. We recommend keeping the tank over 1/4 full. When the low fuel warning light illuminates or when the needle is near E, refuel as soon as possible.
Page 163: Warning/Indicator Lights And Beep Sounds
Engine Oil Pressure Warning Light Check Engine Light ABS Warning Light Air Bag/Front Seat Belt Pretensioner System Warning Light Low Fuel Warning Light Warning/Indicator lights will appear in any of the highlighted areas Warning/Indicator Lights Driving Your Mazda Page 5-37 5-38 5-38 5-39 5-37...
Page 164 Driving Your Mazda Warning/Indicator Lights and Beep Sounds Signal Seat Belt Warning Light/Beep Door-Ajar Warning Light Low Washer Fluid Level Warning Light Automatic Transaxle Warning Light Tire Pressure Monitoring System Warning Light Security Indicator Light Headlight High-Beam Indicator Light Shift Position Indicator Light...
Page 165 NOTE Having to add brake fluid is sometimes an indicator of leakage. Consult an Authorized Mazda Dealer as soon as possible even if the brake light is no longer illuminated. Do not drive with the brake system warning light illuminated. Contact an...
Page 166 WARNING Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving when the brake system warning light and ABS warning light are illuminated at the same time is dangerous.
Page 167 If the check engine light remains on or flashes continuously, do not drive at high speeds and consult an Authorized Mazda Dealer as soon as possible. qAir Bag/Front Seat Belt If the air bag/front seat belt pretensioner...
Page 168 Belt minder NOTE The belt minder can be deactivated. Consult an Authorized Mazda Dealer to deactivate and restore the seat belt minder. The belt minder is a supplemental warning to the seat belt warning function. If the driver's seat belt is not fastened...
Page 169 CAUTION If the automatic transaxle warning light illuminates, the transaxle has an electrical problem. Continuing to drive your Mazda in this condition could cause damage to your transaxle. Consult an Authorized Mazda Dealer as soon as possible. (TPMS) Warning Light í...
Page 170 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Page 171 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.
Page 172 Driving Your Mazda Warning/Indicator Lights and Beep Sounds qHeadlight High-Beam Indicator Light This light indicates one of two things: The high-beam headlights are on. The turn signal lever is in the flash-to- pass position. qShift Position Indicator Light (Automatic Transaxle)
Page 173 It also comes on when the TCS OFF switch is pressed and TCS is switched off. If the light stays on when the TCS is not switched off, take your vehicle to an Authorized Mazda Dealer. The TCS may have a malfunction. NOTE (3.0-liter engine model)
Page 174: Beep Sounds
Driving Your Mazda Warning/Indicator Lights and Beep Sounds NOTE If an indicator light remains illuminated (does not flash) or if it flashes abnormally, one of the turn signal bulbs may be burned out. í 5-46 Some models. Beep Sounds qSeat Belt Warning Beep...
Page 175: Switches And Controls
Consult an Authorized Mazda Dealer when the replacement is necessary. NOTE If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is necessary.
Page 176 Driving Your Mazda Switches and Controls qFlashing the Headlights To flash the headlights, pull the lever fully toward you. The headlight switch does not need to be on, and the lever will return to the normal position when released. í...
Page 177: Turn And Lane-Change Signals
To turn them off, rotate the fog light switch to the OFF position or turn the headlight switch to the position. NOTE The fog lights will turn off when the headlights are set at high beam. í Some models. Driving Your Mazda í position. or OFF 5-49...
Page 178: Windshield Wipers And Washer
After 5 minutes, turn on the switch and the blades should operate normally. If they don't resume functioning, consult an Authorized Mazda Dealer as soon as possible. Drive to the side of the road and park off the right-of- way. Wait until the weather clears before trying to drive with the wipers inoperative.
Page 179: Rear Window Wiper And Washer Í
If the washer doesn't work, inspect the fluid level (page 8-26). If it's OK, consult an Authorized Mazda Dealer. Switches and Controls Rear Window Wiper and Washer The ignition switch must be in the ON position.
Page 180: Rear Window Defroster
Driving Your Mazda Switches and Controls Rear Window Defroster The rear window defroster clears frost, fog, and thin ice from the rear window. The ignition switch must be in the ON position. Press the switch to turn on the rear window defroster.
Page 181: Horn
The turn signals do not work when the hazard warning lights are on. Check local regulations about the use of hazard warning lights while the vehicle is being towed to verify that it is not in violation of the law. Driving Your Mazda 5-53...
Page 182: Homelink Wireless Control System Í
Driving Your Mazda Switches and Controls HomeLink Wireless í Control System NOTE HomeLink and HomeLink house are registered trademarks of Johnson Controls. The HomeLink system replaces up to 3 hand-held transmitters with a single built- in component in the auto-dimming mirror.
Page 183 HomeLink and hand-held transmitter buttons. NOTE If the HomeLink indicator light does not change to a rapidly blinking light, contact HomeLink at www.homelink.com or call 1- 800-355-3515 for assistance. Driving Your Mazda 5-55...
Page 184 Driving Your Mazda Switches and Controls 5. Press and hold the just-trained HomeLink button and observe the indicator light. If the indicator light stays on constantly, programming is complete and your device should activate when the HomeLink button is pressed and released.
Page 185 ( on the auto-dimming mirror until the HomeLink indicator light begins to flash after approximately 20 seconds. Verify that the programming has been erased when you resell the vehicle. Switches and Controls Driving Your Mazda 5-57...
Page 186 5-58...
Page 187: Interior Comfort
Interior Comfort Use of various features for drive comfort, including air-conditioning and audio system. Climate Control System ... 6-2 Operating Tips ... 6-2 Vent Operation ... 6-3 Types of the Climate Control System ... 6-5 Manual Type ... 6-6 Fully Automatic Type ... 6-10 Audio System ...
Page 188 Have the air conditioner checked before the weather gets hot. Lack of refrigerant may make the air conditioner less efficient. Consult an Authorized Mazda Dealer for refrigerant inspection. The air conditioner is filled with HFC134a (R134a), a refrigerant that will not damage the ozone layer.
Page 189: Climate Control System
qAdjusting the Vents Directing airflow 1. Press the upper part of the air vent to open it. Climate Control System Vent Operation 2. Rotate the air vent left and right to adjust the direction of airflow. NOTE When using the air conditioner, mist may come out from the vents.
Page 190 Interior Comfort Climate Control System qSelecting the Airflow Mode Dashboard Vents Dashboard and Floor Vents Floor Vents Defroster and Floor Vents Defroster Vents...
Page 191: Types Of The Climate Control System
Interior Comfort Climate Control System Types of the Climate Control System Manual type and fully automatic type climate control systems are explained separately. Check your vehicle's climate control type and read the appropriate pages. Manual Type ... page 6-6 Fully Automatic Type ... page 6-10...
Page 192: Manual Type
Interior Comfort Climate Control System A/C Switch Temperature control dial qControl Switches Temperature control dial Cold This dial controls temperature. Turn it clockwise for hot and counterclockwise for cold. Manual Type Air intake selector Fan control dial Fan control dial This dial allows variable fan speeds.
Page 193 Mode selector dial Turn the mode selector dial to select airflow mode (page 6-4). A/C switch Push the A/C switch to turn the air conditioner on. The indicator light on the switch will illuminate when the fan control dial is set at position 1, 2, 3, or 4. Push the switch once again to turn the air conditioner off.
Page 194 Interior Comfort Climate Control System 4. Set the fan control dial to the desired speed. 5. If dehumidified heating is desired, turn on the air conditioner. NOTE If the windshield fogs up easily, set the mode selector dial to the If cooler air is desired at face level, set the mode selector dial at the adjust the temperature control dial to...
Page 195 WARNING Do not defog the windshield using the position with the temperature control set to the cold position: Using the position with the temperature control set to the cold position is dangerous as it will cause the outside of the windshield to fog up.
Page 196: Fully Automatic Type
Interior Comfort Climate Control System Climate control information is displayed on the information display. Fan control dial OFF switch qControl Switches AUTO switch By pressing the AUTO switch the following functions will be automatically controlled in accordance with the set temperature: Airflow temperature Amount of airflow...
Page 197 OFF switch Pressing the OFF switch shuts off the climate control system. Temperature control dial Cold This dial controls temperature.Turn it clockwise for hot and counterclockwise for cold. Fan control dial Slow The fan has seven speeds. The selected speed will be displayed. Mode selector switch The desired airflow mode can be selected (page 6-4).
Page 198 Interior Comfort Climate Control System Air intake selector Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air positions. Recirculated air position ( Use this position when going through tunnels, driving in congested traffic (high engine exhaust areas) or when quick cooling is desired.
Page 199 qWindshield Defrosting and Defogging Press the windshield defroster switch. In this position, the automatically selected, and the air conditioner automatically turns on (however, the indicator light does not illuminate). The air conditioner will directly dehumidify the air to the front windshield and side windows (page 6-4).
Page 200: Audio System
Interior Comfort Audio System Antenna qDetachable Type To remove the antenna, turn it counterclockwise. To install the antenna, turn it clockwise. Make sure the antenna is securely installed. Remove Install CAUTION Ø To prevent damage to the antenna, remove it before entering a car wash facility or passing beneath a low overhead clearance.
Page 201 qRadio Reception AM characteristics AM signals bend around such things as buildings or mountains and bounce off the ionosphere. Therefore, they can reach longer distances than FM signals. Because of this, two stations may sometimes be picked up on the same frequency at the same time.
Page 202 Interior Comfort Audio System Flutter/Skip noise Signals from an FM transmitter move in straight lines and become weak in valleys between tall buildings, mountains, and other obstacles. When a vehicle passes through such an area, the reception conditions may change suddenly, resulting in annoying noise.
Page 203 Use a good quality head- cleaning tape or a liquid cleaner cassette tape to remove it. Should the unit not operate normally, consult an Authorized Mazda Dealer. Never attempt to repair it or insert a screwdriver or anything else. Handling the cassette tape player The following precautions should be observed.
Page 204 Interior Comfort Audio System qOperating Tips for CD Player/In- Dash CD Changer Condensation phenomenon Immediately after turning on the heater when the vehicle is cold, the CD or optical components (prism and lens) in the CD player/In-dash CD changer may become clouded with condensation.
Page 205 A new CD may have rough edges on its inner and outer perimeters. If a disc with rough edges is used, proper setting will not be possible and the CD player/In-dash CD changer will not play the CD. In addition, the disc may not eject resulting in a malfunction.
Page 206 Interior Comfort Audio System Do not use record sprays, antistatic agents, or household spray cleaners. Volatile chemicals such as benzine and thinner can also damage the surface of the CD and must not be used. Anything that can damage, warp, or fog plastic should never be used to clean CDs.
Page 207 qOperating tips for MP3 NOTE Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue- generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via the Internet, intranets and/or other networks or in other...
Page 208 Interior Comfort Audio System About folders and files The order of hierarchy for MP3 files and folders during playback or other functions is from shallow to deep. The arrangement and playing order of a recorded disc containing MP3 files is as follows: File number A numerical file number is assigned...
Page 209 About ID3 Tag display This unit can only display ID3 Tag album, track and artist names that have been input using Ver.1.0/1.1/2.2/2.3 formats. Any other data that may have been input cannot be displayed. This unit can only display English (including numerals) one-byte characters.
Page 210 MEMO 6-24...
Page 211: Audio Set
Audio information is displayed on the information display. There are two types of In-dash CD changers. Check which In-dash CD changer your vehicle is equipped with. CD Player Cassette Tape Player Power/Volume/Sound Controls ... page 6-26 Operating the Radio ... page 6-28 Operating the Cassette Tape Player ...
Page 212 Interior Comfort Audio System qPower/Volume/Sound Controls Power/Volume dial Power ON/OFF Turn the ignition switch to the ACC or ON position. Press the power/volume dial to turn the audio system on. Press the power/volume dial again to turn the audio system off. NOTE To prevent the battery from being discharged, do not leave the audio system on for a long...
Page 213 2. Turn the audio control dial to adjust the selected functions as follows: Indication Turn Left Turn Right Decrease bass Decrease treble Shift the sound to the front Shift the sound to the NOTE About 5 seconds after selecting any mode, the volume function will be automatically selected.
Page 214 Interior Comfort Audio System qOperating the Radio Band selector buttons Seek tuning button Radio ON Press a band selector button ( to turn the radio on. Band selection Choose AM by pressing the AM button ) and FM by pressing the FM1/2 button ( The selected mode will be indicated.
Page 215 NOTE If you continue to press and hold the button, the frequency will continue changing without stopping. Scan tuning Press the scan button ( automatically sample strong stations. Scanning stops at each station for about 5 seconds. To hold a station, press the scan button ( ) again during this interval.
Page 216 Interior Comfort Audio System 1221 Avenue Of The Americas New York, NY 10020 Attention: Customer Care Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for complete satellite radio activation procedures and information on how to display the ESN#.
Page 217 MEMO 6-31...
Page 218 Interior Comfort Audio System qOperating the Cassette Tape Player APC button: (next program) (one being played) Dolby NR button Cassette tape insert Insert the cassette tape into the slot, open edge to the right and cassette tape will begin play, and “TAPE PLAY” will be displayed.
Page 219 Fast-forward/Rewind Press the fast-forward button ( fast-forward. Press the rewind button ( To stop this operation and play the cassette tape, press the button again. NOTE When the cassette tape ends during fast- forward or rewind, it automatically stops and starts playing.
Page 220 Interior Comfort Audio System qOperating the Compact Disc (CD) Player Load button Track up button Track down button Type Playable data Music CD player · Music data (CD-DA) (non-MP3 compatible) Inserting the CD Insert the CD into the slot, label-side up. The auto-loading mechanism will set the CD and begin play.
Page 221 CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service. ) during ) again to ) during...
Page 222 Interior Comfort Audio System qOperating the In-Dash CD Changer Music CD player (non-MP3 compatible) Music CD/MP3 CD player (MP3 compatible) Load button Track up button Track down button Disc down/Folder down button Disc up/Folder up button There are two types of In-dash CD changers.
Page 223 Normal insertion 1. Press the load button ( 2. When “IN” is displayed, insert the CD. Inserting CDs into desired tray number 1. Press and hold the load button ( for about 2 seconds until a beep sound is heard. 2.
Page 224 Interior Comfort Audio System Playback Press the CD play button ( play when a CD is in the unit. If a CD is not in the unit when the CD ) is pressed, “NO DISC” play button ( will flash on and off. Fast-forward/Reverse Press and hold the fast-forward button ) to advance through a track at high...
Page 225 During music CD playback 1. Press the random button ( playback to play the tracks in the CD randomly. “RDM” is displayed. 2. Press the button again to cancel the random playback. During MP3 CD playback (Folder random) 1. Press the random button ( playback to play the tracks in the folder randomly.
Page 226 If “CHECK CD” is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service. 6-40...
Page 227 Indications If you see an error indication on the display, find the cause in the chart. If you cannot clear the error indication, take the vehicle to an Authorized Mazda Dealer. Indication CD is inserted upside down CHECK CD...
Page 228: Audio Control Switch Operation (Steering Wheel) Í
“NAVIGATION SYSTEM”. NOTE The VOICE button is operable with the audio unit turned off. Mazda has installed this system to prevent distraction while driving the vehicle and using audio controls on the dashboard. Always make safe driving your first priority.
Page 229 qChanging the Source Press the mode switch ( the audio source (FM1 radio> FM2 radio> AM radio> CD player or CD changer> Cassette tape player> SIRIUS1> SIRIUS2> SIRIUS3> cyclical). NOTE Cassette tape, CD, CD changer, and SIRIUS digital satellite radio modes cannot be selected in the following cases: ·...
Page 230 Interior Comfort Audio System qMute Switch Press the mute switch ( ) once to mute audio, press it again to resume audio output. NOTE If the ignition switch is turned to the LOCK position with the audio muted, the mute will be canceled.
Page 231: Safety Certification
Ø This CD player should not be adjusted or repaired by anyone except qualified service personnel. If servicing is required, contact an Authorized Mazda Dealer. Ø Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser exposure. Never operate the CD player with the top case of the unit removed.
Page 232: Interior Equipment
Interior Comfort Interior Equipment Sunvisors When you need a sunvisor, lower it for use in front or swing it to the side. Sunvisor qVanity Mirrors To use the vanity mirror, lower the sunvisor. The vanity mirror light will illuminate when you open the cover. 6-46 Interior Lights qIlluminated Entry System...
Page 233 qOverhead Lights Front Switch Front Overhead Lights Position Light off Light is on when any door is open Light is on or off when the illuminated entry system is on Rear Switch Rear Overhead Lights Position Light off Light is on when any door is open Light is on or off when the illuminated entry system is on Interior Equipment...
Page 234 Interior Comfort Interior Equipment qLuggage Compartment Light 5-Door Switch Luggage Compartment Light Position Light off Light on when the hatch is open Sport Wagon Switch Luggage Compartment Light Position Light off Light on when the liftgate is open 6-48 qCourtesy Lights Turns on when any door is open or the illuminated entry system is on.
Page 235: Information Display
qInformation Display Functions The information display has the following functions: Clock Ambient Temperature Display (Outside Temperature Display) Climate Control Display Audio Display Information Display OPEN/CLOSE switch (with navigation system) AMB switch (with outside temperature display ) TILT switch (with navigation system) CLOCK/CLK switch SET switch Interior Comfort...
Page 236 Interior Comfort Interior Equipment qClock When the ignition switch is in the ACC or ON position, the time is displayed. Time setting 1. Press the CLOCK/CLK switch until a beep sounds, and “12Hr” and “24Hr” will be displayed. 2. Press the SET switch to switch between “12Hr”...
Page 237: Cup Holder
NOTE Under the following conditions, the ambient temperature display may differ from the actual ambient temperature depending on the surroundings and vehicle conditions: Significantly cold or hot temperatures. Sudden changes in ambient temperature. The vehicle is parked. The vehicle is driven at low speeds. Press the AMB switch a few seconds or more to switch the display from Fahrenheit to Centigrade or vice versa.
Page 238: Bottle Holder
Interior Comfort Interior Equipment qFront To use the cup holder, open the center console by pressing the lower center part of its cover. qRear The rear cup holder is on the rear center armrest. 6-52 Bottle Holder Bottle holders are on the inside of the front doors.
Page 239: Storage Compartments
Storage Compartments WARNING Keep storage boxes closed when driving: Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving. CAUTION Do not leave lighters or eyeglasses in the storage boxes while parked under the sun.
Page 240 Interior Comfort Interior Equipment qGlove Box To open the glove box, pull the latch toward you. Insert the key and turn it clockwise to lock, counterclockwise to unlock. Unlock qCenter Console To open, pull the lower release latch. 6-54 Small items can be placed in the tray of the center console lid.
Page 241 Luggage compartment, left side Knob qCargo Securing Loops (5-Door/ Sport Wagon) WARNING Make sure luggage and cargo is secured before driving: Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.
Page 242: Accessory Sockets
Interior Comfort Interior Equipment Accessory Sockets The ignition switch must be in the ACC or ON position. Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 10 A). Front Rear 6-56 CAUTION...
Page 243: In Case Of An Emergency
In Case of an Emergency Helpful information on what to do in an emergency. Parking in an Emergency ... 7-2 Parking in an Emergency ... 7-2 Flat Tire ... 7-3 Spare Tire and Tool Storage ... 7-3 Changing a Flat Tire ... 7-8 Overheating ...
Page 244: Parking In An Emergency
In Case of an Emergency Parking in an Emergency Parking in an Emergency The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution when near it.
Page 245: Flat Tire
In Case of an Emergency Flat Tire Spare Tire and Tool Storage Spare tire and tools are stored in the locations illustrated in the diagram. Sedan/5-door Spare tire Jack With sub-woofer Tire hold-down bolt Sedan 5-door (Gold) Lug wrench Sport Wagon Lug wrench Spare tire With sub-woofer...
Page 246 In Case of an Emergency Flat Tire qJack To remove the jack (Sedan) 1. Remove the jack container lid. 2. Turn the wing bolt and jack screw counterclockwise. Wing bolt Jack screw (5-Door/Sport Wagon) 1. Turn the knob and remove the cover. 2.
Page 247 Make sure the jack screw is sufficiently tightened. qSpare Tire Your Mazda has a temporary spare tire. The temporary spare tire is lighter and smaller than a conventional tire, and is designed only for emergency use and should be used only for VERY short periods.
Page 248 In Case of an Emergency Flat Tire NOTE (With Tire Pressure Monitoring System) A tire pressure sensor is not installed to the temporary spare tire. The warning light will flash continuously while the temporary spare tire is being used (page 5-27). To remove the spare tire (Sedan) 1.
Page 249 3. For vehicles equipped with a sub- woofer, loosen the wing bolt and remove the woofer and spare tire. Lock washer For vehicles not equipped with a sub- woofer, loosen the hold-down bolt and remove the spare tire. (Sport Wagon) 1.
Page 250: Changing A Flat Tire
(With Tire Pressure Monitoring System) The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors. Do not use non-genuine wheels, otherwise it may not be possible to install the tire pressure sensors.
Page 251 NOTE Make sure the jack is well lubricated before using it. (With Tire Pressure Monitoring System) Be sure to register the tire pressure sensor ID signal code whenever tires or wheels are changed (page 5-29). 1. Park on a level surface off the right-of- way and firmly set the parking brake.
Page 252 Use only the jack provided with your Mazda: Using a jack that is not designed for your Mazda is dangerous. The vehicle could slip off the jack and seriously injure someone. Never place objects under the jack: Jacking the vehicle with an object under the jack is dangerous.
Page 253 Before removing the lug nuts, make sure your Mazda is firmly in position and that it cannot slip or move. 6. Remove the lug nuts by turning them counterclockwise;...
Page 254 In Case of an Emergency Flat Tire To install the nut 1. Place the key on top of the nut, and be sure to hold the key square to it. If you hold the key at an angle, you may damage both key and nut.
Page 255 Because the wheel studs and lug nuts on your Mazda have metric threads, using a non-metric nut is dangerous. On a metric stud, it would not secure the wheel and would damage the stud, which could cause the wheel to slip off and cause an accident.
Page 256: Overheating
If the cooling fan does not operate while the engine is running, the engine temperature will increase. Stop the engine and call an Authorized Mazda Dealer. 6. Make sure the cooling fan is operating, then turn off the engine after the temperature has decreased.
Page 257 Carefully add coolant as required (page 8-20). CAUTION If the engine continues to overheat or frequently overheats, have the cooling system inspected. The engine could be seriously damaged unless repairs are made. Consult an Authorized Mazda Dealer. In Case of an Emergency Overheating 7-15...
Page 258: Emergency Starting
4. If the engine fails to start, crank it without depressing the accelerator―for up to 10 seconds. If the engine still does not start using the above procedure, have your vehicle inspected by an Authorized Mazda Dealer. 7-16...
Page 259: Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel unsure about jump-starting, we strongly recommend that you have a competent service technician do the work. WARNING Always wear eye protection when working near the battery: Working without eye protection is dangerous.
Page 260 In Case of an Emergency Emergency Starting Route the jumper cables away from parts that will be moving: Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The cable could get caught when the engine starts and cause serious injury. CAUTION Use only a 12 V booster system.
Page 261: Push-Starting
Push-Starting Do not push-start your Mazda. WARNING Never tow a vehicle to start it: Towing a vehicle to start it is dangerous. The vehicle being towed could surge forward when its engine starts, causing the two vehicles to collide. The occupants could be injured.
Page 262: Emergency Towing
In Case of an Emergency Emergency Towing Towing Description We recommend that towing be done only by an Authorized Mazda Dealer or a commercial tow-truck service. Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.
Page 263: Recreational Towing
CAUTION Do not use the hooks under the rear bumper for towing and tying down, as they cannot hold the load and it will damage the bumper. Hooks In Case of an Emergency Emergency Towing Recreational Towing An example of “recreational towing” is towing your vehicle behind a motorhome.
Page 264 7-22...
Page 265: Maintenance And Care
Maintenance and Care How to keep your Mazda in top condition. Introduction ... 8-2 Introduction ... 8-2 Scheduled Maintenance ... 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ... 8-3 Scheduled Maintenance (Mexico) ... 8-8 Owner Maintenance ... 8-15 Owner Maintenance Schedule ... 8-15 Owner Maintenance Precautions ...
Page 266: Introduction
Claims against the warranty resulting from lack of maintenance, as opposed to defective materials or authorized Mazda workmanship, will not be honored. Any auto repair shop using parts equivalent to your Mazda's original equipment may perform maintenance. But we recommend that it always be done by an Authorized...
Page 267: Scheduled Maintenance
Scheduled Maintenance (USA, Canada, and Puerto Rico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are being used Driving on rough or muddy roads Extended periods of idling or low-speed operation Driving for long periods in cold temperatures or extremely humid climates...
Page 268 Maintenance and Care Scheduled Maintenance qSchedule 1 Maintenance Interval ENGINE Drive belts (tension) Engine valve clearance (for 2.3-liter engine) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission IGNITION SYSTEM Spark plugs CHASSIS and BODY...
Page 269 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 270 Maintenance and Care Scheduled Maintenance qSchedule 2 Maintenance Interval ENGINE Drive belts (tension) Engine valve clearance (for 2.3-liter engine) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission IGNITION SYSTEM Spark plugs...
Page 271 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 272: Scheduled Maintenance (Mexico)
Maintenance and Care Scheduled Maintenance Scheduled Maintenance (Mexico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are being used Driving on rough or muddy roads Extended periods of idling or low-speed operation Driving for long periods in cold temperatures or extremely humid climates...
Page 273 qSchedule 1 Maintenance Interval ENGINE Drive belts (tension) Engine valve clearance (for 2.3-liter engine) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs CHASSIS and BODY...
Page 274 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 275 qSchedule 2 Maintenance Interval ENGINE Drive belts (tension) Engine valve clearance (for 2.3-liter engine) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs...
Page 276 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 277 (Cont.) Maintenance Interval ENGINE Drive belts (tension) Engine valve clearance (for 2.3-liter engine) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs...
Page 278 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 279: Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the indicated intervals to ensure safe and dependable operation. Bring any problem to the attention of an Authorized Mazda Dealer or qualified service technician as soon as possible.
Page 280: Owner Maintenance Precautions
Improper owner maintenance during the warranty period may affect warranty coverage. For details, read the separate Mazda Warranty statement provided with the vehicle. If you're unsure about any servicing or maintenance procedure, have it done by an Authorized Mazda Dealer.
Page 281: Engine Compartment Overview
Engine Compartment Overview 2.3-liter engine Engine oil-filler cap Windshield washer fluid reservoir Power steering fluid reservoir Engine oil dipstick Engine coolant reservoir 3.0-liter engine Cooling system cap Engine coolant reservoir Windshield washer fluid reservoir Engine oil dipstick Engine oil-filler cap Automatic transaxle fluid-level dipstick (only for automatic transaxle) Cooling system cap...
Page 282: Engine Oil
Maintenance and Care Owner Maintenance Engine Oil NOTE Changing the engine oil should be done by an Authorized Mazda Dealer. qRecommended Oil Use SAE 5W-20 engine oil. Oil container labels provide important information. A chief contribution this type of oil makes...
Page 283 The quality designation SM, or ILSAC must be on the label. –30 –10 –20 –20 5W-20 qInspecting Engine Oil Level 1. Be sure the vehicle is on a level surface. 2. Warm up the engine to normal operating temperature. 3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.
Page 284: Engine Coolant
NOTE Changing the coolant should be done by an Authorized Mazda Dealer. 8-20 Inspect the antifreeze protection and coolant level in the coolant reservoir at least once a year―at the beginning of the winter season―and before traveling...
Page 285 (page 8-3). If the coolant reservoir is empty or new coolant is required frequently, consult an Authorized Mazda Dealer. Maintenance and Care 8-21...
Page 286: Brake/Clutch Fluid
Ø Using nonspecified brake and clutch fluids (page 10-4) will damage the systems. Mixing different fluids will also damage them. If the brake/clutch system frequently requires new fluid, consult an Authorized Mazda Dealer.
Page 287: Power Steering Fluid
MAX. Visually examine the lines and hoses for leaks and damage. If new fluid is required frequently, consult an Authorized Mazda Dealer. Owner Maintenance 3.0-liter engine Inspect the fluid level at each engine oil change. Add fluid if necessary; it does not require periodic changing.
Page 288: Automatic Transaxle Fluid (Atf)
Maintenance and Care Owner Maintenance Automatic Transaxle Fluid (ATF) qInspecting Automatic Transaxle Fluid Level The automatic transaxle fluid level should be inspected regularly. Measure it as described below. 2.3-liter engine CAUTION Ø Always check the automatic transaxle fluid level according to the following procedure.
Page 289 3.0-liter engine The volume of fluid changes with temperature. Fluid must be checked while idling the engine without driving at normal operating temperature. CAUTION Ø Low fluid level causes transaxle slippage. Overfilling can cause foaming, loss of fluid, and transaxle malfunction. Ø...
Page 290: Washer Fluid
Maintenance and Care Owner Maintenance Fully insert the dipstick. When adding fluid, inspect with the dipstick to make sure it doesn't pass full. NOTE Inspect the fluid on both sides of the dipstick in a well lit area for an accurate reading. 8-26 Washer Fluid qInspecting Washer Fluid Level...
Page 291: Body Lubrication
Inspect fluid level in the washer fluid reservoir; add fluid if necessary. Use plain water if washer fluid is unavailable. But use only washer fluid in cold weather to prevent it from freezing. Owner Maintenance Body Lubrication All moving points of the body, such as door and hood hinges and locks, should be lubricated each time the engine oil is changed.
Page 292: Wiper Blades
Maintenance and Care Owner Maintenance Wiper Blades CAUTION Ø Hot waxes applied by automatic car washers have been known to affect the wiper's ability to clean windows. Ø To prevent damage to the wiper blades, don't use gasoline, kerosene, paint thinner, or other solvents on or near them.
Page 293 3. Remove the metal stiffeners from each blade rubber and install them in the new blade. CAUTION Ø Don't bend or discard the stiffeners. You need to use them again. Ø If the metal stiffeners are switched, the blade's wiping efficiency could be reduced.
Page 294 Maintenance and Care Owner Maintenance (5-Door) 1. Raise the wiper arm and turn the blade assembly to expose the plastic locking clip. Compress the clip and slide the assembly downward; then lift it off the arm. Plastic locking clip CAUTION To prevent damage to the rear window, don't let the wiper arm fall on it.
Page 295 (Sport Wagon) 1. Raise the wiper arm and rotate the wiper blade to the right until it unlocks, then remove the blade. CAUTION To prevent damage to the rear window, don't let the wiper arm fall on it. 2. Pull down the blade rubber and slide it out of the blade holder.
Page 296: Battery
Maintenance and Care Owner Maintenance WARNING Wash hands after handling the battery and related accessories: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Always wear eye protection when working near the battery: Working without eye protection is dangerous.
Page 297: Tires
(radial, bias-belted, bias-type) on all four wheels. Using Wrong-Sized Tires: Using any other tire size than what is specified for your Mazda (page 10-7) is dangerous. It could seriously affect ride, handling, ground clearance, tire clearance, and speedometer calibration.
Page 298 Maintenance and Care Owner Maintenance The Tire Pressure Monitoring System does not alleviate the need to check the tire condition every day, including whether the tires all look inflated properly. Inspect all tire pressure monthly (including the spare) when the tires are cold.
Page 299 CAUTION (With Tire Pressure Monitoring System) When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Owner Maintenance NOTE (With Tire Pressure Monitoring System)
Page 300 Maintenance and Care Owner Maintenance qTemporary Spare Tire Inspect the temporary spare tire at least monthly to make sure it's properly inflated and stored. NOTE The temporary spare tire condition gradually deteriorates even if it has not been used. The temporary spare tire is easier to handle because of its construction which is lighter and smaller than a conventional tire.
Page 301 Ø (With Tire Pressure Monitoring System) Ø When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Ø The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 302: Light Bulbs
Maintenance and Care Owner Maintenance Sedan/5-Door Overhead light/ Map lights Headlights (Low beam) Fog lights Headlights (High beam) Parking lights Side-marker lights Front turn signal lights License plate lights High-mount brake light (Hatchback) Sport Wagon Overhead light/ Map lights Headlights (Low beam) Fog lights Headlights...
Page 303 Replacing the headlight, and parking light bulbs Due to the complexity and difficulty of the procedure, the bulbs should be replaced by an Authorized Mazda Dealer. Owner Maintenance Fog lights 1. If you are changing the left fog light bulb, start the engine, turn the steering wheel all the way to the right, and turn off the engine.
Page 304 To replace the bulb, contact an Authorized Mazda Dealer. Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.
Page 305 3. Turn the center section of the plastic retainers counterclockwise and remove them, and partially peel back the mudguard. Removal Installation 4. Turn the socket and bulb assembly counterclockwise and remove it. 5. Disconnect the bulb from the socket. 6. Install the new bulb in the reverse order of removal.
Page 306 Owner Maintenance Rear turn signal lights 4. Install the new bulb in the reverse order of removal. NOTE To replace the bulb, contact an Authorized Mazda Dealer. (5-Door) 1. Turn the knob and remove the cover. Left side Right side 8-42 2.
Page 307 5. Install the new bulb in the reverse order of removal. NOTE To replace the bulb, contact an Authorized Mazda Dealer. (Sport Wagon) 1. Turn the knob and remove the cover. Left side Right side 2. Pull the strap and remove the cover.
Page 308 Maintenance and Care Owner Maintenance 3. Disconnect the bulb from the socket. Reverse lights Taillights 4. Install the new bulb in the reverse order of removal. (5-Door/Sport Wagon) 1. Remove the cover. 2. Turn the socket and bulb assembly counterclockwise and remove it. 3.
Page 309 (Sport Wagon) 1. Remove the liftgate upper trim and high-mount brake light component. 2. Turn the socket and bulb assembly counterclockwise and remove it. 3. Disconnect the bulb from the socket. 4. Install the new bulb in the reverse order of removal.
Page 310 Maintenance and Care Owner Maintenance 4. Disconnect the bulb from the socket. 5. Install the new bulb in the reverse order of removal. Overhead light/Map lights (Without overhead console) 1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the trim and gently insert it in the overhead light as shown in the figure, and then remove the overhead light unit.
Page 311 Vanity mirror lights (Type A) Vanity mirror lights (Type B) Edge Luggage compartment light (5-Door) Luggage compartment light (Sport Wagon) Edge 3. Install the new bulb in the reverse order of removal. Trunk light (Sedan) 1. Press both sides of the lens cap to remove it.
Page 312: Fuses
If a fuse has blown, the inside element will be melted. If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible. qFuse Replacement Replacing the fuses on the driver's side kick-panel...
Page 313 3. If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating. Normal Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement: Blown Maintenance and Care Owner Maintenance...
Page 314 Maintenance and Care Owner Maintenance qFuse Panel Description Fuse block (Engine compartment) DESCRIPTION SPARE SPARE SPARE M.DEF ― ENG BAR ―*1 ENG BB HEAD LR HEAD LL HEAD HL HEAD HR HAZARD STOP í 8-50 Some models. FUSE PROTECTED COMPONENT RATING ―...
Page 315 DESCRIPTION ENG+B FUEL PUMP IG KEY1 P.WIND ― ― BLOWER IG KEY2 DEFOG AD FAN FAN2 FAN1 TAIL ILLUMI AUDIO P.SEAT OPENER ― ―*1 MAIN *1 2.3-liter engine *2 3.0-liter engine FUSE PROTECTED COMPONENT RATING 7.5A PCM, TCM Fuel pump Engine control unit, Lighter Power window ―...
Page 316 Maintenance and Care Owner Maintenance Fuse block (Driver's side kick-panel) DESCRIPTION CIGAR ENGINE IG MIRROR SEAT METER ACC METER IG R.WIP D.LOCK R.CIGAR WIPER ROOM SPARE SPARE SPARE í 8-52 Some models. FUSE PROTECTED COMPONENT RATING 15 A Accessory socket 15 A Engine control system 10 A...
Page 317: Appearance Care
Prevention It is necessary to have your Mazda washed and waxed to preserve its finish according to the instructions in this section. This should be done as soon as possible.
Page 318 This increases the chance of paint chipping. Chipped paint can lead to rust forming on your Mazda. Before this happens, repair the damage by using Mazda touch-up paint according to the instructions in this section. Failure to repair the affected area could lead to serious rusting and expensive repairs.
Page 319: Exterior Care
Cleansers or wax containing abrasives are used. NOTE Mazda is not responsible for scratches caused by automatic car washes or improper washing. Scratches are more noticeable on vehicles with darker paint finishes.
Page 320 Exposed metal quickly rusts and can lead to major repairs. CAUTION If your Mazda is damaged and needs metal parts repaired or replaced, make sure the body shop applies anti-corrosion materials to all parts, both repaired and new. This will prevent them from rusting.
Page 321 qUnderbody Maintenance Road chemicals and salt used for ice and snow removal and solvents used for dust control may collect on the underbody. If not removed, they will speed up rusting and deterioration of such underbody parts as fuel lines, frame, floor pan, and exhaust system, even though these parts may be coated with anti-corrosive material.
Page 322: Interior Care
After cleaning the belts, thoroughly dry the belt webbing and make sure there is no remaining moisture before retracting them. WARNING Have an Authorized Mazda Dealer replace damaged seat belts immediately: Using damaged seat belts is dangerous. In a collision, damaged belts cannot provide adequate protection.
Page 323: Customer Information And Reporting Safety Defects
Mazda Importer/Distributors ... 9-10 Importer/Distributor ... 9-10 Distributor in Each Area ... 9-10 Warranty ... 9-12 Warranties for Your Mazda ... 9-12 Outside the United States ... 9-13 Outside Canada ... 9-14 Registering Your Vehicle in A Foreign Country (Except United States and Canada) ...
Page 324: Customer Assistance
1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 325 3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4. Purchase date and current mileage 5. Your dealer's name and location 6. Your question(s) If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Page 326: Customer Assistance (Canada)
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In our experience, any questions, problems, or complaints regarding the operation of your Mazda or any other general service transactions are most effectively resolved by your dealer.
Page 327 If a specific item of concern arises, where a solution cannot be reached between an owner, Mazda, and/or one of it's dealers (that all parties cannot agree upon), the owner may wish to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 328 Provincial Administrators may be reached locally as listed below: Province/Territory British Columbia & Yukon Territories Alberta & Northwest Territories Saskatchewan Atlantic Canada qRegional Offices REGIONAL OFFICES MAZDA CANADA INC. WESTERN REGION 8171 ACKROYD ROAD SUITE 2000 RICHMOND B.C. V6X 3K1 (604) 303-5670 MAZDA CANADA INC.
Page 329: Customer Assistance (Puerto Rico)
1 Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 330: Customer Assistance (Mexico)
1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 331 Customer Information and Reporting Safety Defects Customer Assistance In order to serve you efficiently and effectively, please help us by providing the following information: 1. Your name, address, and telephone number 2. Year and model of vehicle 3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4.
Page 332: Mazda Importer/Distributors
55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Canada TEL: 1 (800) 263-4680 (in Canada) (905) 787-7000 (outside Canada) qPUERTO RICO/U.S. Virgin Island Plaza Motors Corp. (Mazda de Puerto Rico) P.O. Box 362722, San Juan, Puerto Rico 00936-2722 TEL: (787) 641-9300...
Page 333 Customer Information and Reporting Safety Defects Mazda Importer/Distributors Triple J Saipan, Inc. (d.b.a. Triple J Motors) P.O. Box 500487 Saipan, MP 96950-0487 TEL: (670) 234-7133/3051 qAMERICAN SAMOA Polynesia Motors, Inc. P.O. Box 1120, Pago Pago, American Samoa 96799 TEL: (684) 699-9347...
Page 334: Warranty
Federal Emission Control Warranty (U.S.A. only) Emission Defect Warranty Emission Performance Warranty California Emission Control Warranty (U.S.A. only) Emission Control Warranty (Canada only) Replacement Parts and Accessories Limited Warranty Tire Warranty NOTE Detailed warranty information is provided with your Mazda. 9-12...
Page 335: Outside The United States
We strongly recommend that you NOT take your Mazda outside the United States. However, in the event that you are moving to Canada permanently, Mazda vehicles built for use in the United States could be eligible for exportation to Canada with specific vehicle modifications to comply with the Canadian Motor Vehicle Safety requirements (CMVSS).
Page 336: Outside Canada
We strongly recommend that you NOT take your Mazda outside Canada. However, in the event that you are moving to the United States permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the United States with specific vehicle modifications to comply with the United States Federal Motor Vehicle Safety Standards (FMVSS).
Page 337: Registering Your Vehicle In A Foreign Country (Except United States And Canada)
Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be unavailable. There might not be an Authorized Mazda Dealer in the country you plan to take your vehicle. The Mazda warranty is valid only in certain countries.
Page 338: Add-On Non-Genuine Parts And Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores. These may fit your vehicle, but they are not approved by Mazda for use with Mazda vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's performance or safety systems;...
Page 339: Cell Phones
WARNING Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a number on a cell phone while driving also ties-up the driver's hands.
Page 340: Type Approval Of Equipment
Customer Information and Reporting Safety Defects Type Approval of Equipment Type Approval of Equipment Immobilizer system 9-18...
Page 341 Customer Information and Reporting Safety Defects Type Approval of Equipment Keyless entry system 9-19...
Page 342: Uniform Tire Quality Grading System (Utqgs)
Customer Information and Reporting Safety Defects Uniform Tire Quality Grading System (UTQGS) Uniform Tire Quality Grading System (UTQGS) This information relates to the tire grading system developed by the U.S. National Highway Traffic Safety Administration for grading tires by tread wear, traction, and temperature performance.
Page 343 These grades will be added to the sidewalls of passenger vehicle tires over the next several years according to a schedule established by the NHTSA and the tire manufacturers. The grade of tires available as standard or optional equipment on Mazda vehicles may vary with respect to grade.
Page 344: Tire Information (U.s.a.)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Labeling Federal law requires tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a tire identification number for safety standard certification and in case of a recall.
Page 345 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) 11. Tread wear, traction and temperature grades 12. Max. permissible inflation pressure 13. SAFETY WARNING P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation of the various components of that tire size and load index rating.
Page 346 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) “H” is the speed rating. The speed rating denotes the maximum speed for which the use of the tire is rated. Letter Rating * For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR. For tires with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.
Page 347 Tread Wear, Traction and Temperature Grades Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 348 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qInformation on Temporary Tires Please refer to the diagram below. 1. Temporary tires 2. Nominal width of tire in millimeters 3. Ratio of height to width (aspect ratio) 4. Diagonal 5. Rim diameter code 6.
Page 349 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) “70” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width. “D” is the tire construction symbol. D indicates “diagonal ply construction”. “16” is the wheel rim diameter in inches. “90”...
Page 350: Location Of The Tire Label (Placard)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Location of the Tire Label (Placard) You will find the tire label containing tire inflation pressure by tire size and other important information on the driver's side B-pillar or on the edge of the driver's door frame. SAMPLE qRecommended Tire Inflation Pressure On the tire label you will find the recommended tire inflation pressure in both kPa and psi...
Page 351 WARNING Always check the tire inflation pressures on a regular basis according to the recommended tire inflation pressure on the tire label and in conjunction with the information in this owner's manual: Driving your vehicle with under-inflated tires is dangerous. Under-inflation is the most common cause of failures in any kind of tire and may result in severe cracking, tread separation or “blowout”, with unexpected loss of vehicle control and increased risk of injury.
Page 352 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qGlossary of Terms Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and the maximum weight the vehicle can carry. Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size, and date of manufacture.
Page 353: Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are some important maintenance points: qTire Inflation Pressure Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain recommended pressures for the best ride, top handling, and minimum tire wear. Use the pressures specified on the vehicle tire information placard or tire label for optimum service.
Page 354 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) CAUTION Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs only from front to rear, not from side to side. Tire performance will be weakened if rotated from side to side. (With limited-slip differential) Don't use the following: Ø...
Page 355 qSafety Practices The way you drive has a great deal to do with your tire mileage and safety. So cultivate good driving habits for your own benefit. Observe posted speed limits Avoid fast starts, stops and turns Avoid potholes and objects on the road Do no run over curbs or hit the tire against the curb when parking CAUTION If you feel a sudden vibration or ride disturbance while driving or you suspect your...
Page 356: Vehicle Loading
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to tow a trailer and doing so will affect the drive system which could result in vehicle damage.
Page 357 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Base Curb Weight is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your dealer plus any aftermarket equipment.
Page 358 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE CARGO Cargo Weight includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight.
Page 359 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849 lbs) for the “combination weight of occupants and cargo should never exceed”: The cargo weight limit with one occupant is 385 kg (849 lbs) _ 68 kg (150 lbs) = 317 kg (699 lbs) The cargo weight limit with two occupants is 385 kg (849 lbs) _ (68 ×...
Page 360 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE WARNING Exceeding Axle Weight Rating Limits: Exceeding the Safety Certification Label axle weight rating limits is dangerous and could result in death or serious injury as a result of substandard vehicle handling, performance, engine, transmission and/or structural damage, serious damage to the vehicle, or loss of control.
Page 361 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can handle without risking damage.
Page 362 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Exceeding GVWR or GAWR Specifications: Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding any vehicle rating limitation could result in a serious accident, injury, or damage to the vehicle.
Page 363: Steps For Determining The Correct Load Limit
Steps for Determining the Correct Load Limit: Steps for Determining Correct Load Limit: (1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle's placard. (2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 364: Reporting Safety Defects
7755 Irvine Center Drive Irvine, California 92618-2922 P.O. Box 19734 Irvine, CA 92623-9734 Customer Assistance Center or toll free at 1 (800) 222-5500 If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-10) in this booklet. 9-42...
Page 365: Reporting Safety Defects (Canada)
Customer Information and Reporting Safety Defects Reporting Safety Defects Reporting Safety Defects (Canada) Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330 Sparks Street, Ottawa ON K1A 0N5.
Page 366: Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do some of their own maintenance and repair. When requesting any of our publications through an Authorized Mazda Dealer, refer to the chart below. If they don't have what you need in stock, they can order it for you.
Page 367 Specifications Technical information about your Mazda. Identification Numbers ... 10-2 Vehicle Information Labels ... 10-2 Specifications ... 10-4 Specifications ... 10-4 10-1...
Page 368: Identification Numbers
Identification Numbers Vehicle Information Labels qVehicle Identification Number The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the left top side of the dashboard. This plate can easily be seen through the windshield. qMotor Vehicle Safety Standard Label 10-2 qVehicle Emission Control...
Page 369 Identification Numbers 3.0-liter engine Forward 10-3...
Page 370: Specifications
*1 ex factory *2 Verify the spark plug type from the spark plug itself. If the spark plug type cannot be determined, consult an Authorized Mazda Dealer. CAUTION When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.
Page 371 qCapacities (Approximate Quantities) 2.3-liter engine Engine oil 3.0-liter engine 2.3-liter engine Coolant 3.0-liter engine 2.3-liter engine Manual transaxle oil 3.0-liter engine 2.3-liter engine Automatic transaxle fluid 3.0-liter engine Fuel tank Check oil and fluid levels with dipsticks or reservoir gauges. qDimensions Item Sedan...
Page 372 Specifications qWeights Specification GVWR (Gross Vehicle Weight Rating) 2.3-liter engine GAWR (Gross Axle Weight Rating) GVWR (Gross Vehicle Weight Rating) 3.0-liter engine GAWR (Gross Axle Weight Rating) qAir Conditioner Item Refrigerant Type qLight Bulbs Exterior light Light bulb High beam Headlights Low beam Front turn signal lights...
Page 373 NOTE The tires have been optimally matched with the chassis of your vehicle. When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer. Check the tire pressure label for tire size and inflation pressure.
Page 374 Specifications Temporary spare tire Tire size Inflation pressure T115/70D16 420 kPa (60 psi) qFuses Refer to the fuse rating on page 8-48. 10-8...
Page 375: Index
Index 11-1...
Page 376 Index Add-On Non-Genuine Parts and Accessories ... 9-16 Air Bag Systems ... 2-45 Ambient Temperature Display ... 6-50 Antenna ... 6-14 Anti-Lock Brake System (ABS) ... 5-7 Warning light ... 5-8 Appearance Care ... 8-53 Audio System ... 6-14 Audio control switch ... 6-42 Audio set ...
Page 377 Defroster Rear window ... 5-52 Dimensions ... 10-5 Door Locks ... 3-7 Driving In Flooded Area ... 4-9 Driving Tips ... 4-6 Automatic transaxle ... 5-17 Break-in period ... 4-6 Driving in flooded area ... 4-9 Hazardous driving ... 4-7 Money-saving suggestions ...
Page 378 Index Headlights Control ... 5-47 Flashing ... 5-48 High-low beam ... 5-47 Leveling ... 5-48 HomeLink Wireless Control System ... 5-54 Hood Release ... 3-30 Horn ... 5-53 Ignition Keys ... 3-2 Switch ... 5-2 Illuminated Entry System ... 6-46 Immobilizer System ...
Page 379 Odometer and Trip Meter ... 5-32 Outside Mirrors ... 3-38 Overhead Console ... 6-53 Overhead Lights ... 6-47 Overheating ... 7-14 Overloading ... 4-10 Paint Damage ... 8-53 Parking Brake ... 5-5 Parking in an Emergency ... 7-2 Power Door Locks ... 3-9 Power Steering ...
Page 380 Index Storage Compartments ... 6-53 Cargo securing loops ... 6-55 Cargo sub-compartment ... 6-55 Center box ... 6-53 Center console ... 6-54 Glove box ... 6-54 Overhead console ... 6-53 Storage box ... 6-54 Storage pocket ... 6-53 Storage Pocket ... 6-53 Sunshade ...
Page 381 Washer Fluid ... 8-26 Weights ... 10-6 Wheel Replacement ... 8-36 Windows Power windows ... 3-22 Windshield Washer ... 5-51 Windshield Wipers ... 5-50 Blades replacement ... 8-28 Winter Driving ... 4-8 Index 11-7...
Page 382 11-8...
Page 383: Before Use
NAVIGATION SYSTEM Preparation See page for specific information. Immediate use See page for specific information. Advanced use See page for specific information. If necessary See page for specific information. Before Use Getting started Routing Address Book Voice Recognition Volume Adjustment necessary...
Page 384: Accessories
Accessories Please contact an Authorized Mazda Dealer if you are missing the following accessory. lMap Disc CAUTION: THIS PRODUCT IS A CLASS I LASER PRODUCT. HOWEVER THIS PRODUCT USES A VISIBLE/ INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
Page 385 MEMO...
Page 386: Contents
Contents Preparation Before Use Accessories... 2 Laser products: ... 2 Contents ... 4 Safety Information ... 6 Introduction ... 8 (Use This Product Safety), (Navigation System), (Screens), (LCD (Liquid crystal display)) Names and Functions ... 10 Immediate use Getting started Activation...
Page 387 Advanced use Address Book Address Book ... 44 (Memory Point Storage), (Memory Point Confirmation and Modification), (Preset Destinations or Home storage), (Memory Point Deletion), (All Memory Point Deletion), (Displays Icons at Memory Points), (Avoid Area Storage), (Avoid Area Confirmation and Modification), (Avoid Area Deletion), (All Avoid Area Deletion), (Category Name Modification), (Previous Destination Deletion), (All Preset Destination Deletion) Voice Recognition...
Page 388: Safety Information
Expert dealer, we recommend an Authorized Mazda Dealer. Using the unit in an out-of-order condition may lead to accidents, fires, or electric shocks.
Page 389 This navigation system is designed exclusively for use in automobiles. This navigation system should only be installed in an automobile. Do not install it in a ship, aircraft, or any other vehicles except an automobile. Do not use it detached from the vehicle.
Page 390: Introduction
If the system does not operate thereafter, consult an Authorized Dealer, we recommend an Authorized Mazda Dealer. This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track and display your vehicle’s current position, and to guide you from your starting point to your...
Page 391 MEMO...
Page 392: Names And Functions
Names and Functions Joystick lSelects items ENTER by tilting it up, down, right, and left. lScrolls map. ZOOM key Changes the map scale. ZOOM page 27) RET key Returns to the previous screen. VOICE key lInitiates vocal guidance for route manoeuvres.
Page 393 POS (Position) key Displays your current position. ENTER key ENTER lExecutes a selected item. lDisplays pop up menu. MENU key Select a menu. MENU page 14) TALK Switch Use for switching to voice TALK recognition or canceling. Battery Inserting À Open the battery compartment...
Page 394: Activation
1 hour. Wipe the condensation off the map disc with a soft cloth. If the unit does not operate correctly after 1 hour, consult an Authorized Mazda Dealer. TILT TILT When the...
Page 395 Read CAUTION carefully, and select and press ENTER lThe Current Position screen appears. Note lYou can select the language by select selected language using Language Selection. ( lThe CAUTION screen remains on the display unless you select Removing the Map Disc When the ignition switch is in the ACC position and press EJECT Select the buttons by using Joystick and press...
Page 396: Menu
Menu Menu appears when pressing MENU Destination Entry and Route Search ( Address Book ( page 44) Cancel Guidance ( page 39) Route Options ( page 40) Volume ( page 50) Set Clock ( page 15) Navigation Set Up ( page 16) page 28)
Page 397: Set Clock
Set Clock The current time is set using this function. Since time notification is provided by a GPS satellite. Before Steps MENU Open the [SET CLOCK] screen Select for 12-hour display. Select and similarly, select hour. How to exit Note Minutes and seconds are adjusted by the GPS, however, it is necessary to adjust hours under the following conditions: lDriving across different time zones...
Page 398: Navigation Set Up
Navigation Set Up lYou can alter the map display conditions, the route guidance conditions and show the system information. Stop your vehicle before the following operations. Do not change the settings and destination locations while driving. Minimize the time spent viewing the monitor screen and listening to the voice guidance while driving. Warning Operating the system will distract the driver from looking ahead of the vehicle and may cause an accident.
Page 399: User Settings
Navigation Set Up MENU Before Steps ENTER Open the [USER SETTINGS] screen select ENTER select Map Color Select a screen color from Map Mode Auto : The display will automatically switch between Day and Night illumination mode when the headlights are turned off and on respectively.
Page 400 Navigation Set Up MENU Before Steps Open the [USER SETTINGS] screen select ENTER select ENTER Arrival Time The time which is displayed until reaching the destination or a way point can be set as an estimated arrival time or the remaining time.
Page 401: Quick Poi Selection
Navigation Set Up This function allows you set the categories on the area displayed when the (Point of Interest) menu is selected on the map. Quick POI enables you store up to six different kinds of categories which you use most regularly. MENU ENTER select...
Page 402 Navigation Set Up Language You can change the language of the menu and the voice guidance. select MENU ENTER ENTER Before Steps select ENTER ENTER Open the [LANGUAGE] screen Select your preferred language from the list.
Page 403: Map Screen
Navigation Set Up MENU Before Steps ENTER Open the [MAP CONFIGURATION] screen Map Configuration select ENTER select Map Screen Select single or dual map display. Single map Turn Guidance Turn Arrow (on first screen) While using route guidance, the directions for the next junction where you have to turn are shown as a Turn Arrow in the upper right.
Page 404 Navigation Set Up This function allows you to correct any error in the position or direction of your vehicle display. Before Steps MENU Adjusting Current Position and Direction select ENTER Open the [Calibrate Position] screen Distance This function automatically corrects any error in the display of the current position that might occur after tire replacement.
Page 405 select ENTER ENTER ENTER Map Version The map and software version numbers can be confirmed using this function. select ENTER ENTER Map and software versions are now displayed.
Page 406 Navigation Set Up This function replaces all the settings in the mobile navigation system with the initial default settings. Before Steps Open the [SYSTEM DEFAULTS] screen If you execute Restore System Defaults, all of your stored setting data will be deleted. [Default List] Item Menu names...
Page 407: Screen Names And Functions
Screen Names and Functions Screens Before Setting Route ENTER Returns after a few seconds. (1) Map Orientation control page 27) (2) GPS (Global Positioning System) marker page 52) (3) Clock Clock will be displayed when you set up Clock on Navigation Set Up On. (4) Vehicle marker Shows the current position and direction of your vehicle.
Page 408: Screen Adjustments And Settings
Display Menu screen will be shown when you press Note Display Menu screen will be disappeared when they have been unused during a few seconds. Adjusting the screen quality lAdjusts the screen brightness Select "ADJ", and then "BRIGHT". The screen will brighten when scrolling to the right, or darken when scrolling to the left.
Page 409: Screen Change
Screen change Do not keep your eyes fixed on the monitor screen or operate the system while driving Do not change the settings and destination locations while driving. Minimize the time Warning spent viewing the monitor screen and listening to the voice guidance while driving. Operating the system will distract the driver from looking ahead of the vehicle and may cause an accident.
Page 410: Destination Entry And Route Search
Destination Entry and Route Search lYou can set the destination using various methods provided by the system. Before Steps MENU Open the [DESTINATION ENTRY] Menu Change (Change Search Area) Open the [DESTINATION ENTRY] Menu Address select ENTER Select Select When narrowing down to city name Select When narrowing...
Page 411 Do not keep your eyes fixed on the monitor screen or operate the system while driving. Do not change the settings and destination locations while driving. Minimize the time spent viewing the monitor screen and listening to the voice guidance while driving. Operating the system Warnings will distract the driver from looking ahead of the vehicle and may cause an accident.
Page 412 Destination Entry and Route Search Open the [DESTINATION ENTRY] Menu Point of interest When entering Select the destination point directly Select When narrowing down to city name Select When narrowing down to category name Select When narrowing down to the nearest facility Select When narrowing...
Page 413 Cancel the city selection. Select the city name Displays list from the of 5 city list names nearest the current position. Enter the Select the city name city name Displays the and select from the city name list input screen. Select the category name from...
Page 414 Destination Entry and Route Search Select When stopped Displays the police station select screen. Displays the hospital select screen. Emergency When driving Sets the destination to the nearest police station automatically. Sets the destination to the nearest hospital automatically.
Page 415 Select the sort methods : Sorts the police station or the hospital by Distance. : Sorts the police station or the hospital by name. Select the name from Select the list...
Page 416 Destination Entry and Route Search Before Steps MENU Open the [DESTINATION Memory Point ENTRY] Menu Home Preset Destination Previous Destination Intersection Freeway On/ Off Ramp Coordinates Select from select ENTER Select Select Select Select Select Select Select Select...
Page 417 Select the desired Memory Point : Display up to five previous suggestions. : Display the five previous suggestions. : The order of the displayed list can be changed. Select the desired Preset Destination. Select the Previous Destination. Enter/Select the Enter/Select the 2nd 1st street name street name Enter/Select the...
Page 418: Quick Poi
Quick POI lYou can select one of the Six Categories on the menu or List Categories and then select the POI(s) to be displayed on the map. Before Steps ENTER Open the [QUICK POI] Displaying POI(s) on a Local Search Deleting Markers Displaying POI(s) on a Map (...
Page 419: Character Entry
Character Entry Select the first several characters on the screen. (Step 1) Select To enter the street name, city name, and : Move the cursor to the previous other. position and delete a character. : The list appears. Examples Street: CANAL Enter by selecting characters: Street: MAIN STREET Enter by selecting characters:...
Page 420: Direct Destination Input
Direct Destination Input Direct Destination Input Operate after Step 3 of [Direct Destination Input] Selecting Route Position the ENTER cursor on your destination on the map Scroll the map and change the map scale if necessary. ENTER Select ENTER Select Route calculation will be carried out and the entire route will be displayed on the map.
Page 421: Poi Icons On Maps / Delete Destination
Chinese Continental Fast Food French Italian Japanese Mexican Seafood Thai Other Restaurants Shopping Grocery Store Shopping Mall Automotive Automobile Club Gas Station Parking Auto Service & Maintenance Delete MENU destination ENTER Travel Bus Station Ferry Terminal Hotel Rental Car Agency...
Page 422: Route Options
Route Options Before Steps MENU Open the [ROUTE OPTIONS] Menu Route Preferences Modification Destination or Way Point Positions Deletion of Destination or Way Points Detour Turn List lDuring route guidance you can change the route options, stop or check the route. select ENTER Select...
Page 423 Do not keep your eyes fixed on the monitor screen or operate the system while driving Do not change the settings and destination locations while driving. Minimize the time spent viewing the monitor screen and listening to the voice guidance while driving. Operating the system Warning will distract the driver from looking ahead of the vehicle and may cause an accident.
Page 424 Route Options Before Steps MENU Open the [ROUTE OPTIONS] Menu Display Preview Route Preview select ENTER Select ENTER Select...
Page 425 Use the buttons displayed on-screen to carry out a simulation run. : Move the start point. : Carry out a simulation run in the direction of the start point. When the Simulation starts the button will be displayed as , and when selected, it will cause the Simulation to advance quickly. : Stop the simulation run.
Page 426: Address Book
Address Book Before Steps MENU Open the Memory Point [ADDRESS Storage BOOK] Memory Point Confirmation Modification Preset Destinations or Home storage Memory Point Deletion All Memory Point Deletion Displays Icons at Memory Points lYou can, edit, or delete any marked point. select ENTER Select...
Page 427 Set a memory point using your preferred method. Select a memory point to be modified Select a memory Allows the storage point to be stored category to be in Preset changed. Select the Destinations or button corresponding to the new category. Home.
Page 428: (All Avoid Area Deletion), (Category Name Modification)
Address Book Before Steps MENU Open the Avoid Area [ADDRESS Storage BOOK] Avoid Area Confirmation Modification Avoid Area Deletion All Avoid Area Deletion Category Name Modification Previous Destination Deletion All Preset Destination Deletion select ENTER Select Select...
Page 429 Select an avoid area using your preferred method. Select an avoid area to be modified. Select an avoid area to be deleted. Cancel the deletion. Select a destination to be deleted. : The order of the displayed list can be changed.
Page 430: Voice Recognition
Voice Recognition l Microphone surface Voice Recognition Structure Set up the language in advance. Select the Language Basic Usage Pattern Cancel Voice Recognition Note After the navigation system has been set, voice recognition needs approximately 2 minutes for activation on preparation. Wait momentarily. lVoice control can be carried out by simply Pressing Voice entry recognition.
Page 431 Right Map [Change to/Show] Heading Up [Mode] Right Map [Change Map] Direction [Show/Change to] Dual Map [Mode] [Show/Change to] Single Map [Mode] (Store/Mark) [This Point] POI Display Commands Automobile Club Gas Station/Gas Parking/Parking Lot/Parking Garage/Car Park Auto Service & Maintenance/Auto Service Bank Town Center/City Center...
Page 432: Volume Adjustment
Volume Adjustment You can adjust the volume control for the voice guidance. Before Steps Open the [VOLUME] screen select MENU ENTER Select the appropriate button to set the volume between (maximum). :Sound output will be muted. Press the current vehicle position screen. ENTER (minimum) and button to return to the...
Page 433: Precautions/System Performance
Precautions/System Performance The navigation system is just a support system for the driver. The driver should always pay attention to the traffic situation to safely make decisions. You may be unable at times to arrive at your destination due to out-of-date information Warnings on a map disc.
Page 434: Map Matching
lIf you are using the system for the first time, or if you have not used it for some time, it takes about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle’s position. GPS signal reception is poor in the following places In tunnels lThe GPS satellites are controlled by the U.S.
Page 435 Precautions/System Performance In the following situations, your vehicle position may not be displayed correctly on the map. But, as you keep driving, your vehicle position will be automatically corrected utilizing map matching and GPS data. Running on an Making a turn after elevated road driving on a long straight road...
Page 436 The navigation system is just a support system for the driver. The driver should always pay attention to the traffic situation to safely make decisions. You may be unable to arrive at your destination due to out-of-date information on a map disc. You should be especially careful Warning when selecting an urgent destination such as a hospital or a police station.
Page 437: Troubleshooting
There may be some problems due to operational errors or mistakes. Please read this manual again and verify that there really is a problem before calling an Expert Dealer, we recommend an Authorized Mazda Dealer to ask for repair services. Symptom No picture lCheck if a fuse has blown.
Page 438 Symptom No GPS symbols are displayed The vehicle position is not displayed No voice guidance Buttons on the remote control do not beep Check point lGPS signals may not be received because of obstructions. After moving the vehicle away from obstructions, the GPS signals can be received.
Page 439 Troubleshooting Error message lThe disc is not installed. Please insert a MAP DVD. MAP DVD-Read Error lThe disc is wet, dirty, scratched, or upside down, or the disc The disc installed is not a MAP DVD. Solution Check if the disk is installed. If installed, check if the installed disk is correct.
Page 440: Maintenance
Never use solvents such as benzene and thinners, they could mar the surface of the unit. Map disc If you require the latest map disc, consult an Expert Dealer, we recommend an Authorized Mazda Dealer. How to hold the disc lDo not touch the underside of the disc.

This manual is also suitable for:

6 2008

Mazda 2008 Mazda6 Owner's Manual

Table of Contents

2 Essential Safety Equipment

3 Knowing Your Mazda

4 Before Driving Your Mazda

5 Driving Your Mazda

6 Interior Comfort

7 In Case of an Emergency

8 Maintenance and Care

Customer Information and Reporting 9

Contents

Preparation

Table of Contents

Immediate Use

Advanced Use

If Necessary

Quick Links

Chapters

Related Manuals for Mazda 2008 Mazda6

Summary of Contents for Mazda 2008 Mazda6
