Maytag MGT3800TW0 Parts List

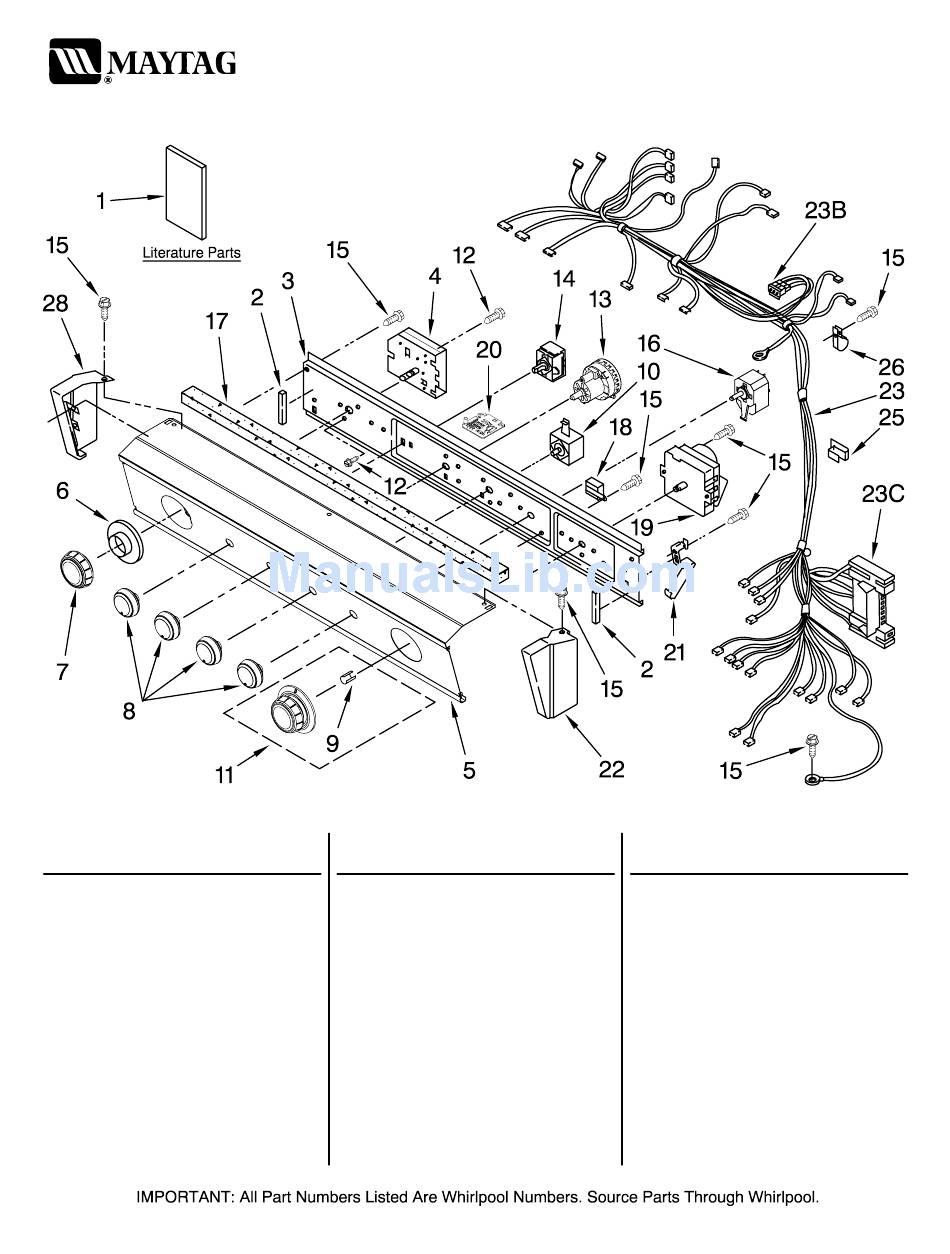

WASHER/DRYER CONTROL PANEL PARTS
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10118290 Installation
Instructions
W10117754 Use & Care Guide
W10117755 Sheet,
Cycle Feature
W10114285 Wiring Diagram
W10118319 Energy Guide
2 3390688 Spacer−
Foam Pad (2)
3 8528583 Bracket, Control
(Includes Illus. 2)
4 W10124193 Timer, Washer
5 W10124093 Panel, Control
6 W10112571 Dial, (Washer)
5−07 Litho in U.S.A. (LT)
For Model: MGT3800TW0
(White)
Illus. Part
No. No. DESCRIPTION
7 W10110033 Knob, Timer
(Washer)
8 W10112572 Knob, Control (3)
9 8536939 Spring−Clip Knob
10 3405156 Switch, Rotary
Push−To−Start
11 W10112573 Knob, Timer
(Dryer)
12 3400808 Screw,
10−32 x 5/16
13 W10112533 Switch, Pressure
14 W10114118 Switch,
Temperature
15 90767 Screw, 8−18 x 3/8
16 W10117655 Switch,
Push−To−Start
1
WASHER/DRYER
LAUNDRY SYSTEM
Illus. Part
No. No. DESCRIPTION
17 8521965 Gasket, Console
18 694419 Buzzer, Mini
19 W10113816 Timer, Dryer
20 8558178 Control,
C−Version
21 3389453 Bracket, Hinge (2)
22 3389456 End Cap (RH)
23 W10128117 Harness − Dryer
23B 2154470 Receptacle
23C 3395683 Connector,
(Motor−Dryer)
25 3390422 Clip, Harness (2)
26 3390604 Clamp, Harness
28 3389464 End Cap (LH)
Part No. W10128524 Rev. B
