Maytag MET3800TW2 Parts List

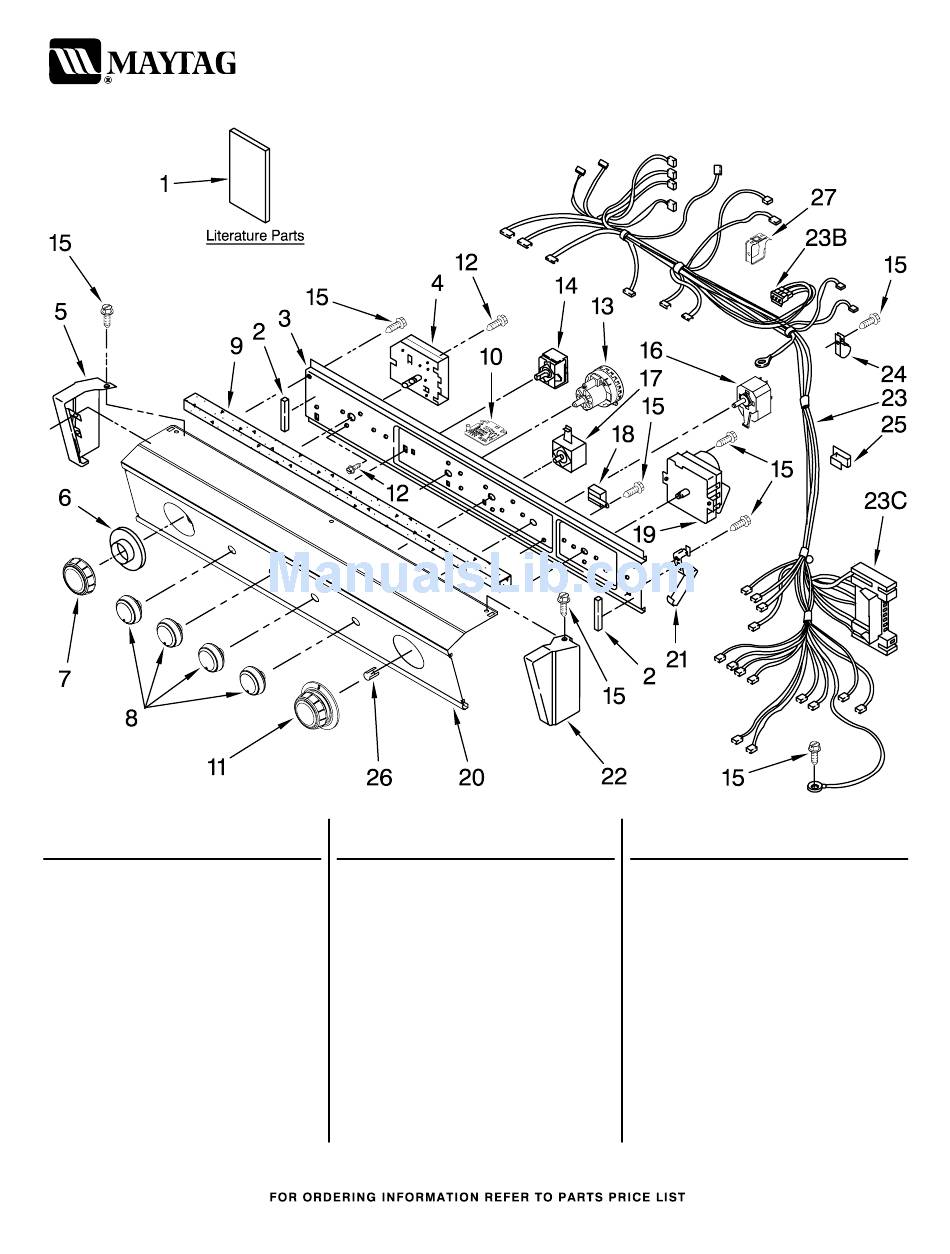

WASHER/DRYER CONTROL PANEL PARTS
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10222378 Installation
Instructions
W10196552 Use & Care Guide
W10117755 Sheet,
Cycle Feature
W10114285 Wire Diagram
2 3390688 Spacer
Foam Pad (2)
3 8528583 Bracket, Control
(Includes Illus. 2)
4 W10124193 Timer, Washer
5 3389464 Endcap (LH)
6 W10112571 Dial, (Washer)
01−09 Litho in U.S.A.(LT) (eeb)
For Model: MET3800TW2
(White)
Illus. Part
No. No. DESCRIPTION
7 W10110033 Knob, Timer
(Washer)
8 W10110035 Knob, Control (4)
9 8521965 Gasket, Console
10 8558178 Control,
C−Version
11 W10110036 Knob, Timer
(Dryer)
12 3400808 Screw,
10−32 x 5/16
13 W10112533 Switch, Pressure
14 W10114118 Switch,
Temperature
15 90767 Screw, 8−18 x 3/8
16 W10117655 Switch,
Push−To−Start
1
WASHER/DRYER
LAUNDRY SYSTEM
Illus. Part
No. No. DESCRIPTION
17 3405156 Switch, Rotary
18 694419 Buzzer, Mini
19 W10113816 Timer, Dryer
20 W10124093 Panel, Control
21 3389453 Bracket, Hinge (2)
22 3389456 End Cap (RH)
23 W10139465 Harness − Dryer
23B 2154470 Receptacle,
23C 3395683 Connector
(Motor−Dryer)
24 3390604 Clamp, Harness
25 3390422 Clip, Harness (2)
26 8536939 Spring, Clip
Knob
27 W10210799 Clip, Harness (2)
Part No. W10250564 Rev. A
