Maytag XHP1550VA0 Parts List

Maytag pedestal parts list.
Hide thumbs


Advertisement

For Models: XHP1550VW0, XHP1550VF0, XHP1550VJ0, XHP1550VB0, XHP1550VU0
For Models: XHP1550VA0, XHP1550VC0, XHP1550VE0, XHP1550VP0, XHP1550VM0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10198562 Installation
Instructions
2
Drawer Front
Assembly
W10172749 White
W10193241 Metallic Red
W10193242 Oxide
W10172759 Ebony
W10172756 Ultimate Silver
W10172760 Aspen
W10172761 Chestnut
W10189798 Ocean Sapphire
W10193243 Emerald Green
W10216396 Burgundy
1−09 Litho in U.S.A. (drd) (psw) (psw)

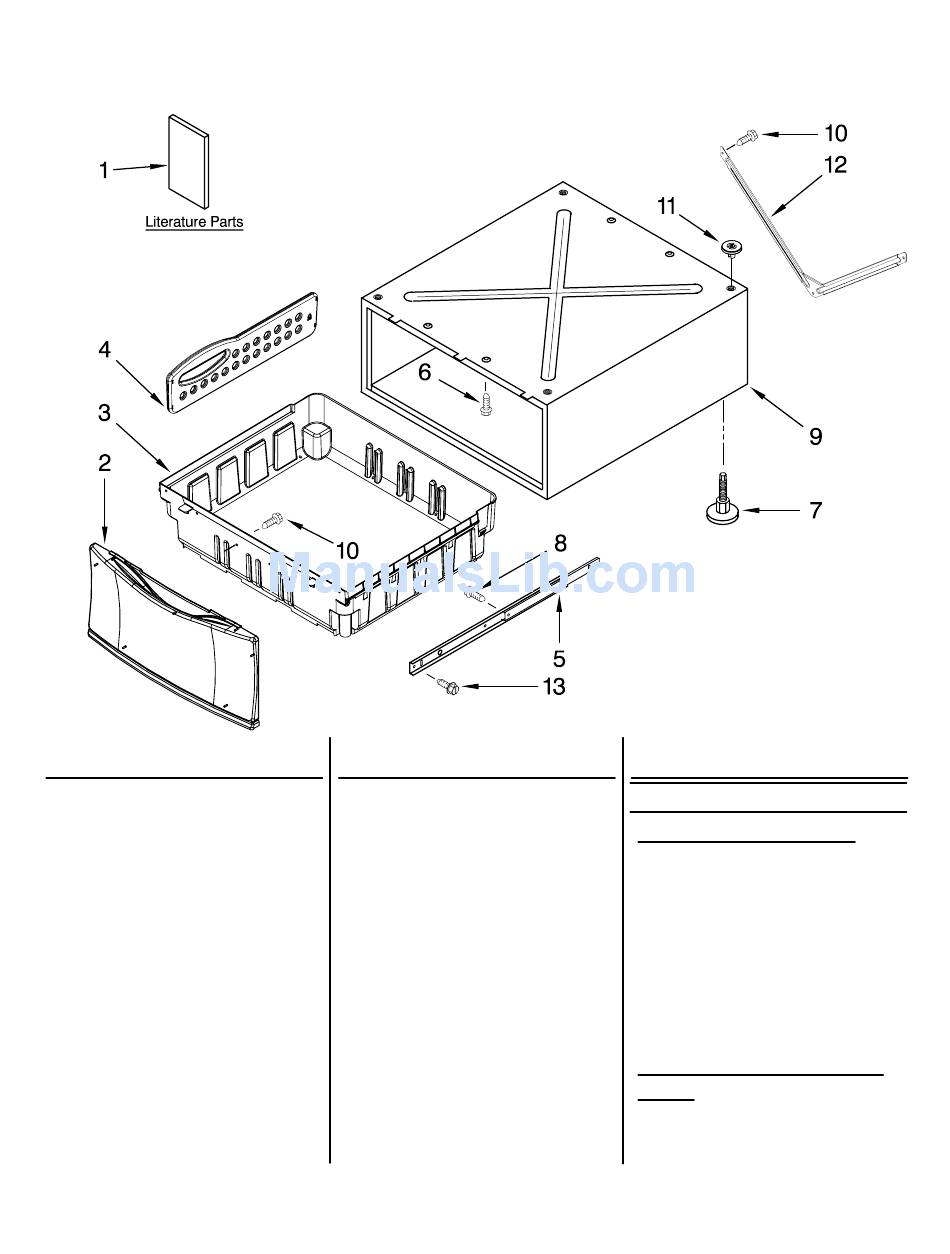

CABINET PARTS
(White)
(Metallic Red)
(Aspen)
(Chestnut) (Ocean Sapphire) (Emerald Green) (Burgundy)
Illus.
Part
No.
No.
DESCRIPTION
3 W10169635 Drawer Bin
4 W10189999 Divider, Drawer
5
8578394 Slide Assembly
6
3400111 Screw
7
8563585 Foot Assembly
8
3400639 Screw, 6−20 x 3/8
9
10
8533995 Screw, 8−18 x 1/2
11
8537982 Pad (4)
12 W10169550 Brace, Rear
13
9740849 Screw, 8−18 x 7/16
(Oxide)
(Black) (Ultimate Silver)
Illus.
No.
PAINT, TOUCH−UP (1/2oz.)
Cabinet
(Not Serviced)
PAINT, PRESSURIZED SPRAY
(12 oz.)
1
PEDESTAL
Part
No.
DESCRIPTION
Optional Parts Not Included
72017 White
W10218249 Red Gloss
W10202939 Oxide Metallic
72032 Black
8212605 Ultimate Silver
W10157756 Aspen
W10162090 Chestnut
W10202940 Ocean Sapphire
W10218248 Emerald Green
Metallic
W10218249 Evergreen Gloss
8212604 Burgundy
350930 White
285006 Black
350938 Primer, Gray
Part No. W10205677 Rev. B
