Page 1: Top And Cabinet Parts

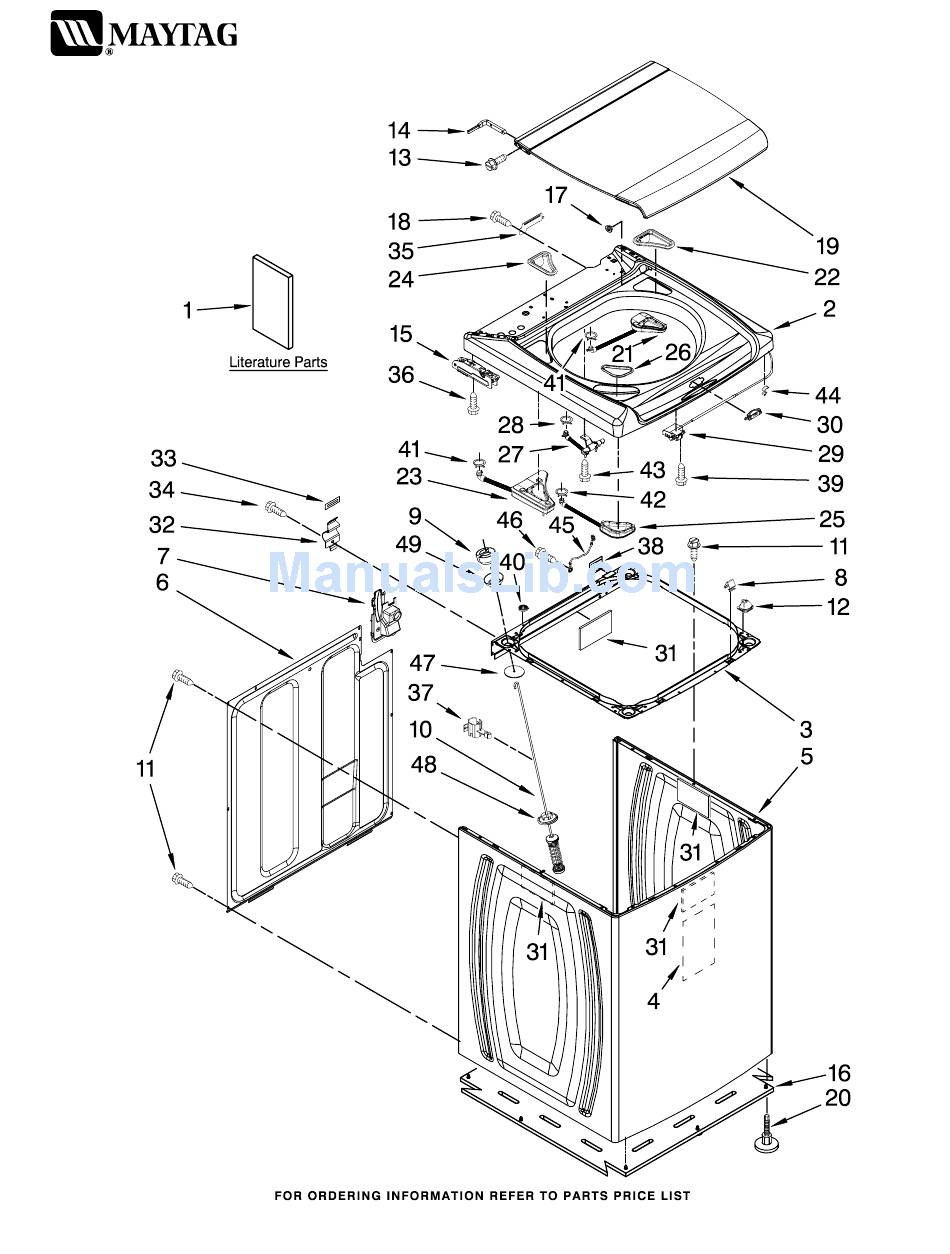

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MTW6700TQ1 (White) Part No. W10179001 Rev. A 1−08 Printed In U.S.A. (drd) - Page 2 Tub Suspension (Set Of 4−Includes Items 47, 48 & 49) 1157158 Screw, 8−18 x 3/8 12 W10042120 Locator, Top (2) 13 W10078270 Screw, Lid Hinge Mounting (4) For Model: MTW6700TQ1 (White) Illus. Part DESCRIPTION Hinge Wire (2) 8563965 (L.H.) 8572974 (R.H.)
-
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Model: MTW6700TQ1 (White) W10179001... - Page 4 CONTROL PANEL PARTS For Model: MTW6700TQ1 (White) Illus. Part DESCRIPTION 1 W10051176 Control Unit Assembly, Machine & Motor 2 W10130502 Gasket, Valve Tray 8565304 Tray Assembly, Console (Includes Items 2 & 4) 8565259 Gasket, Console/Tray 5 W10128457 Valve, Log Assembly...
- Page 5 MOTOR, BASKET AND TUB PARTS For Model: MTW6700TQ1 (White) W10179001...
- Page 6 MOTOR, BASKET AND TUB PARTS For Model: MTW6700TQ1 Illus. Part DESCRIPTION 1 W10106600 Cap, Impeller 2 W10076270 Screw & Washer Assembly 3 W10076260 Washer 4 W10130807 Tub Ring 8572540 Hose Pressure Switch 6 W10141017 Impeller (Washplate) 8533953 Screw, 8−16 x 1.000 (6) 8 W10118114 Hub, Basket−Driven...
-
Page 7: Pump Parts
W10179001 PUMP PARTS For Model: MTW6700TQ1 (White) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 2 W10128765 Hose, Drain 8543774 Hose, Recirc 4 W10049400 Pump Assembly, Recirc 5 W10004910 Screw, 12−16 x 1−1/8 370449 Clamp, Hose 8269146 Clamp, Hose 8317496 Clamp, Hose... -
Page 8: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: MTW6700TQ1 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) WATER SYSTEM PARTS 285442 Connector Kit, Plastic Drain...
