Maytag MTW6600TB0 Parts List

Maytag MTW6600TB0 Parts List

Maytag automatic washer parts list
Hide thumbs Also See for MTW6600TB0:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

See also: Use and Care Manual

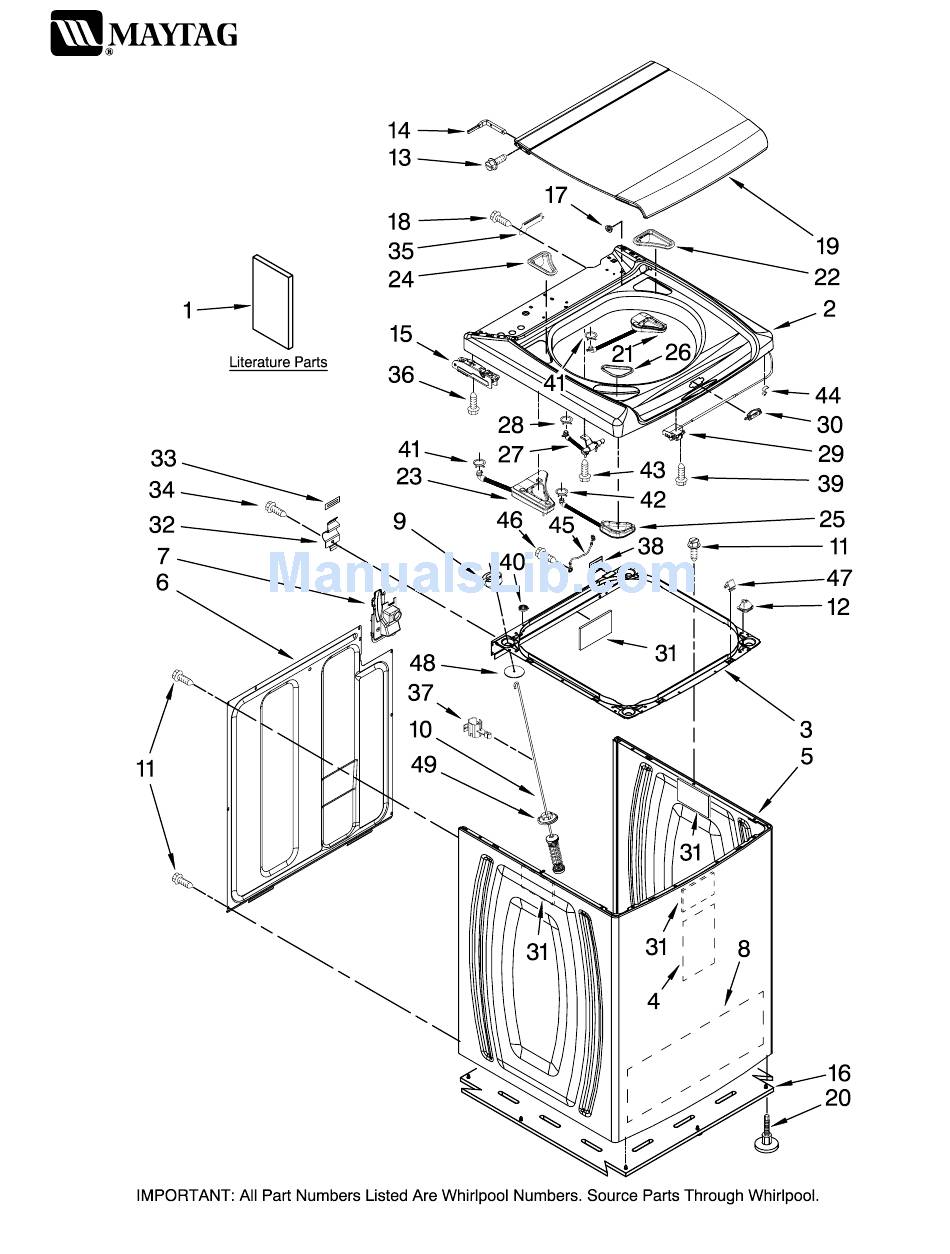

TOP AND CABINET PARTS

AUTOMATIC WASHER
For Models: MTW6600TQ0, MTW6600TB0
(White)
(Black)
2−07 Printed In U.S.A. (drd)
1
Part No. W10119751 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTW6600TB0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maytag MTW6600TB0

Summary of Contents for Maytag MTW6600TB0

  • Page 1: Top And Cabinet Parts

    TOP AND CABINET PARTS AUTOMATIC WASHER For Models: MTW6600TQ0, MTW6600TB0 (White) (Black) 2−07 Printed In U.S.A. (drd) Part No. W10119751 Rev. A...
  • Page 2 Items 48 & 49) 1157158 Screw, 8−18 x 3/8 12 W10042120 Locator, Top (2) 13 W10078270 Screw, Lid Hinge Mounting (4) Hinge Wire (2) 8563965 (L.H.) 8572974 (R.H.) For Models: MTW6600TQ0, MTW6600TB0 (White) (Black) Illus. Part DESCRIPTION Hinge, Spring Assembly (Glass Lid)

  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Models: MTW6600TQ0, MTW6600TB0 (White) (Black) W10119751...
  • Page 4 CONTROL PANEL PARTS For Models: MTW6600TQ0, MTW6600TB0 (White) Illus. Part DESCRIPTION 1 W10112113 Control Unit Assembly, Machine & Motor 8565260 Gasket, Valve Tray Tray Assembly, Console (Includes Items 2 & 4) 8565304 White 8565305 Black 8565259 Gasket, Console/Tray 5 W10059320 Valve, Log...
  • Page 5 MOTOR, BASKET AND TUB PARTS For Models: MTW6600TQ0, MTW6600TB0 (White) (Black) W10119751...
  • Page 6 MOTOR, BASKET AND TUB PARTS For Models: MTW6600TQ0, MTW6600TB0 (White) Illus. Part DESCRIPTION 1 W10106600 Cap, Impeller 2 W10076270 Screw & Washer Assembly 3 W10076260 Washer 4 W10108430 Tub Ring 8572540 Hose Pressure Switch 6 W10076230 Impeller (Washplate) 8533953 Screw, 8−16 x 1.000 (6)

  • Page 7: Pump Parts

    W10119751 PUMP PARTS For Models: MTW6600TQ0, MTW6600TB0 (White) (Black) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 8571715 Hose, Drain 8543774 Hose, Recirc 4 W10049400 Pump Assembly, Recirc 8534063 Screw, 10−14 x 1.000 370449 Clamp, Hose 8269146 Clamp, Hose 8317496 Clamp, Hose...

  • Page 8: Optional Parts (Not Included)

    OPTIONAL PARTS (NOT INCLUDED) For Models: MTW6600TQ0, MTW6600TB0 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 786020 Black PAINT, BULK (1 qt.) 799344 White (Uncut) 786032 Black (Uncut)

This manual is also suitable for:

Mtw6600tq0

Table of Contents
