Page 1: Top And Cabinet Parts

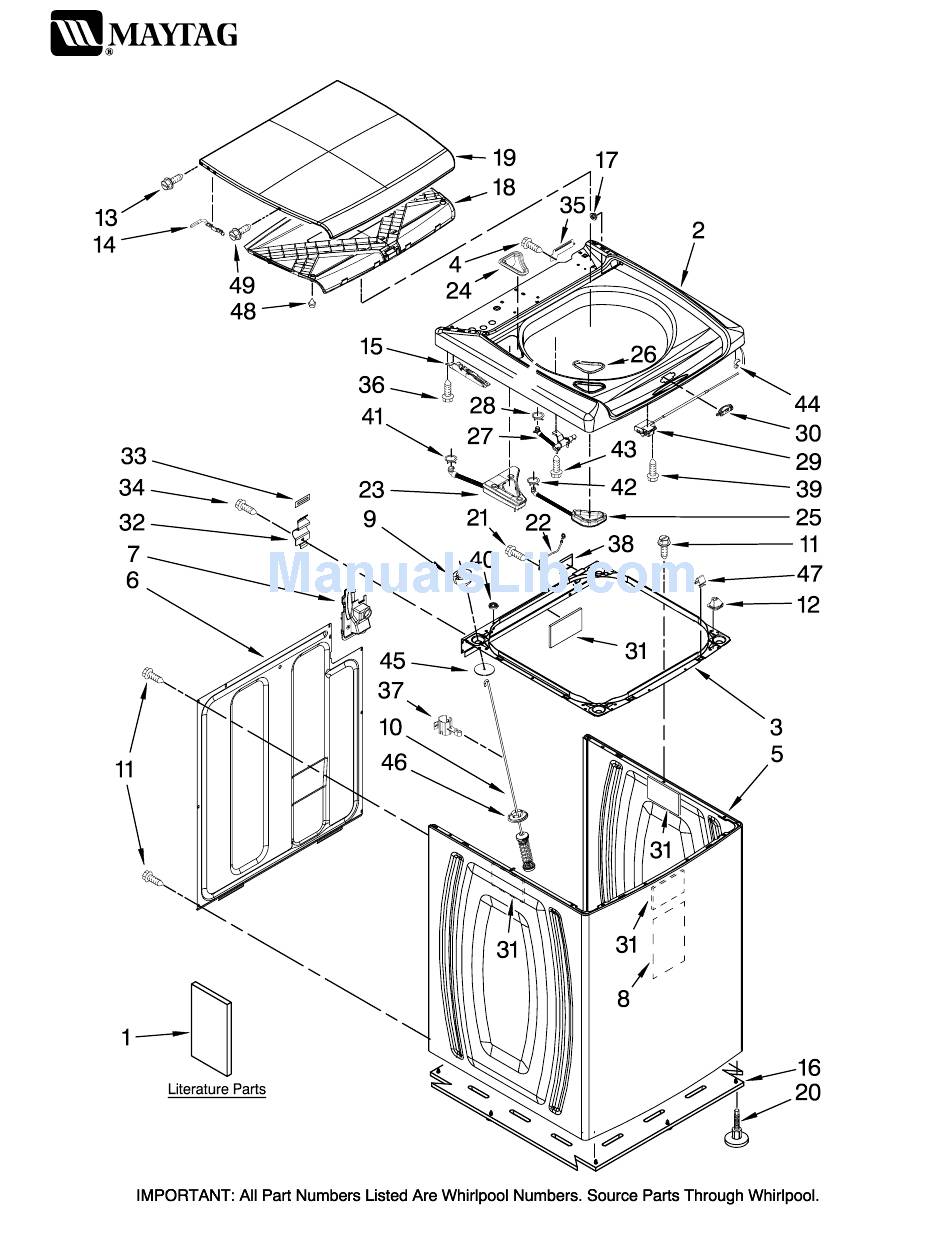

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MTW6300TQ0 (White) 10−07 Litho in U.S.A. (slc) Part No. W10131043 Rev. A... - Page 2 9 W10111536 Ball, Suspension (4) 8564009 Damper Assembly, Tub Suspension (Set Of 4−Includes Items 45 & 46) 1157158 Screw, 8−18 x 3/8 12 W10042120 Locator, Top (2) For Model: MTW6300TQ0 (White) Illus. Part DESCRIPTION 13 W10119828 Screw, Lid Hinge Mounting (4)
-
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Model: MTW6300TQ0 (White) W10131043... - Page 4 CONTROL PANEL PARTS For Model: MTW6300TQ0 (White) Illus. Part DESCRIPTION 1 W10112113 Control Unit Assembly, Machine & Motor 8565260 Gasket, Valve Tray 8565304 Tray Assembly, Console (Includes Items 2 & 4) 8565259 Gasket, Console/Tray 5 W10059310 Valve, Log Assembly 6 W10110196 Knob, Control 7 W10051091 User Interface 8 W10004990 Screw, 6−20 x 1.2...
- Page 5 MOTOR, BASKET AND TUB PARTS For Model: MTW6300TQ0 (White) W10131043...
- Page 6 8578563 Spacer, Thrust−Cam 8577284 Auger, Agitator 8566279 Spacer, Thrust 13 W10076190 Agitator 8533953 Screw, 8−16 X 1.000 (6) 15 W10118114 Hub, Basket−Driven (Includes Item 16) For Model: MTW6300TQ0 (White) Illus. Part DESCRIPTION 8545953 Hub, Basket−Driver (Includes Item 15) 17 W10118180 Basket Assembly (Includes Items 14, 15, &...
-
Page 7: Pump Parts
W10131043 PUMP PARTS For Model: MTW6300TQ0 (White) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 8571715 Hose, Drain 8543774 Hose, Recirc 4 W10049400 Pump Assembly, Recirc 8534063 Screw, 10−14 x 1.000 370449 Clamp, Hose 8269146 Clamp, Hose 8317496 Clamp, Hose... -
Page 8: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: MTW6300TQ0 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) WATER SYSTEM PARTS 285442 Connector Kit, Plastic Drain...
