Summary of Contents for Maytag MTW5600TQ1
-

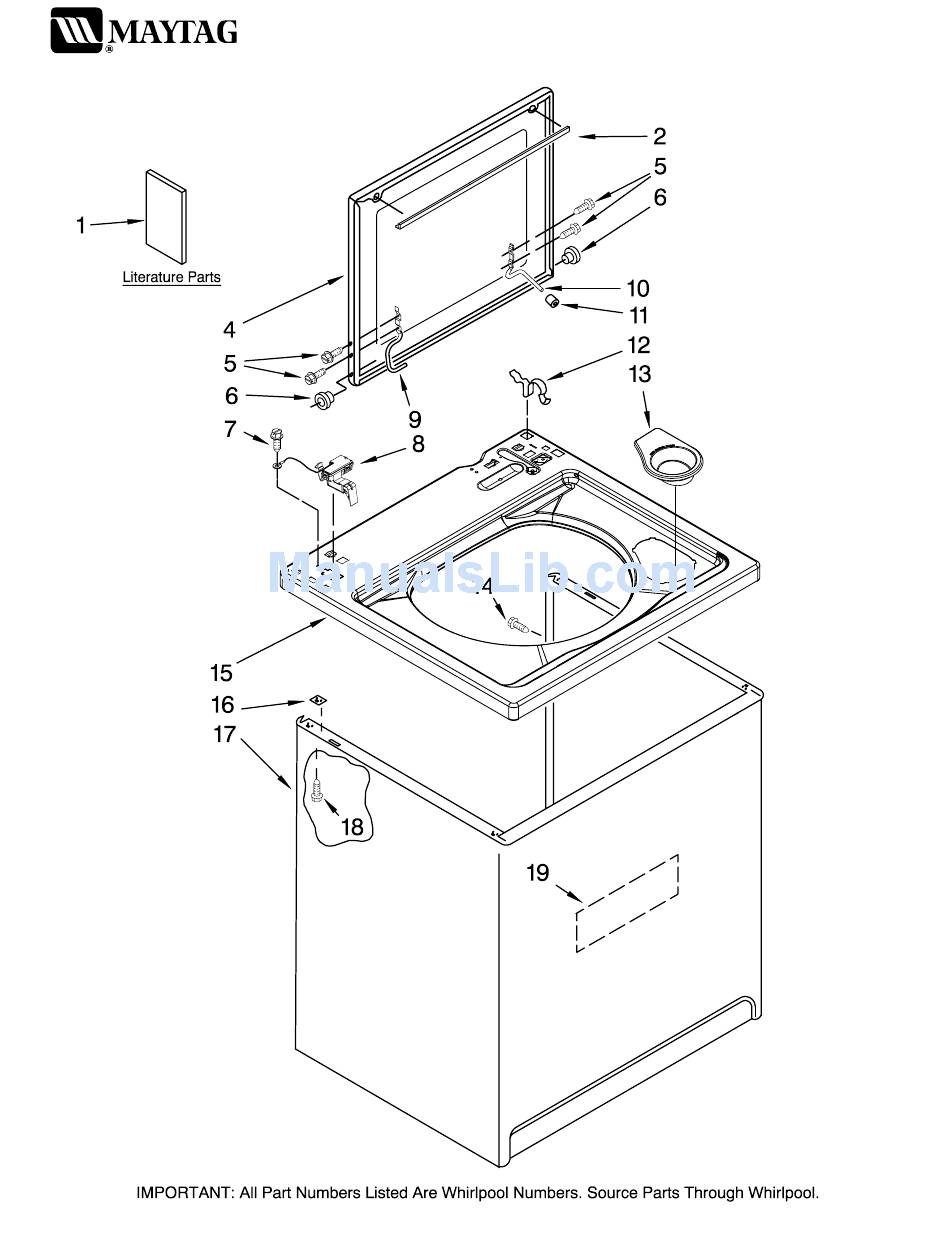

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MTW5600TQ1 (White) 2−07 Litho in U.S.A. (slc) Part No. W10121488 Rev. A... - Page 2 TOP AND CABINET PARTS For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION Literature Parts W10092682 Use & Care Guide W10092688 Feature Sheet W10092706 Energy Guide W10111391 Wiring Diagram 8054939 Seal, Lid 4 W10093719 Lid 355274 Screw, Lid Hinge Mounting (4) 8319539 Bearing, Lid...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: MTW5600TQ1 (White) W10121488... - Page 4 12 W10110029 Knob, Control 13 W10110027 Knob, Timer 14 W10110028 Dial, Timer 8568314 Strap, Console 8578842 Cord, Power 3952821 Strain Relief, Power Cord For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 9740848 Screw, 8−18 x 1/2 3351614 Screw, Ground 3347868 Cable Tie 8577378 U−Bend,...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Model: MTW5600TQ1 (White) W10121488... - Page 6 AGITATOR, BASKET AND TUB PARTS For Model: MTW5600TQ1 Illus. Part 8565968 Dispenser, 3354733 Cap, Barrier 3348855 Seal, Inner Cap 358237 Screw & Washer 3949550 Washer 6 W10093672 Agitator 3363663 Cam, Driven 3366877 Dog, Agitator 3363661 Bearing, 3349019 Clothes Mover 3350389 Spacer, Thrust...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS W10121488 For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 388952 Brake & Drive Tube (Complete) (Refer to Page 11 For Further Breakdown) 63292 Washer, Spin Tube Thrust 62697 Ring, Spin Tube Support 63283 Ring, Retainer 3951311 Clutch (Complete) 3951308 Band &... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 8575214 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) 62597 Spring, Leveling... -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: MTW5600TQ1 (White) W10121488... - Page 10 (Half−Harness) 3390496 Clip, Harness 389379 Retainer, Harness Timer, Block Disconnect 3948614 Natural 352089 Black FOR COMPLETE WIRING HARNESS REFER TO CONTROL AND REAR PANEL PARTS PAGE For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 62889 Receptacle, Terminal (3−Way) 353424 Plug, Terminal (3−Way)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS W10121488 For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) 64035 Ring, Retaining... -
Page 12: Gearcase Parts
GEARCASE PARTS For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion 389387... -
Page 13: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) W10121488 For Model: MTW5600TQ1 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) 350572 Oil, Gearcase (16 Oz.) LUBRICANT...
