Page 1: Top And Cabinet Parts

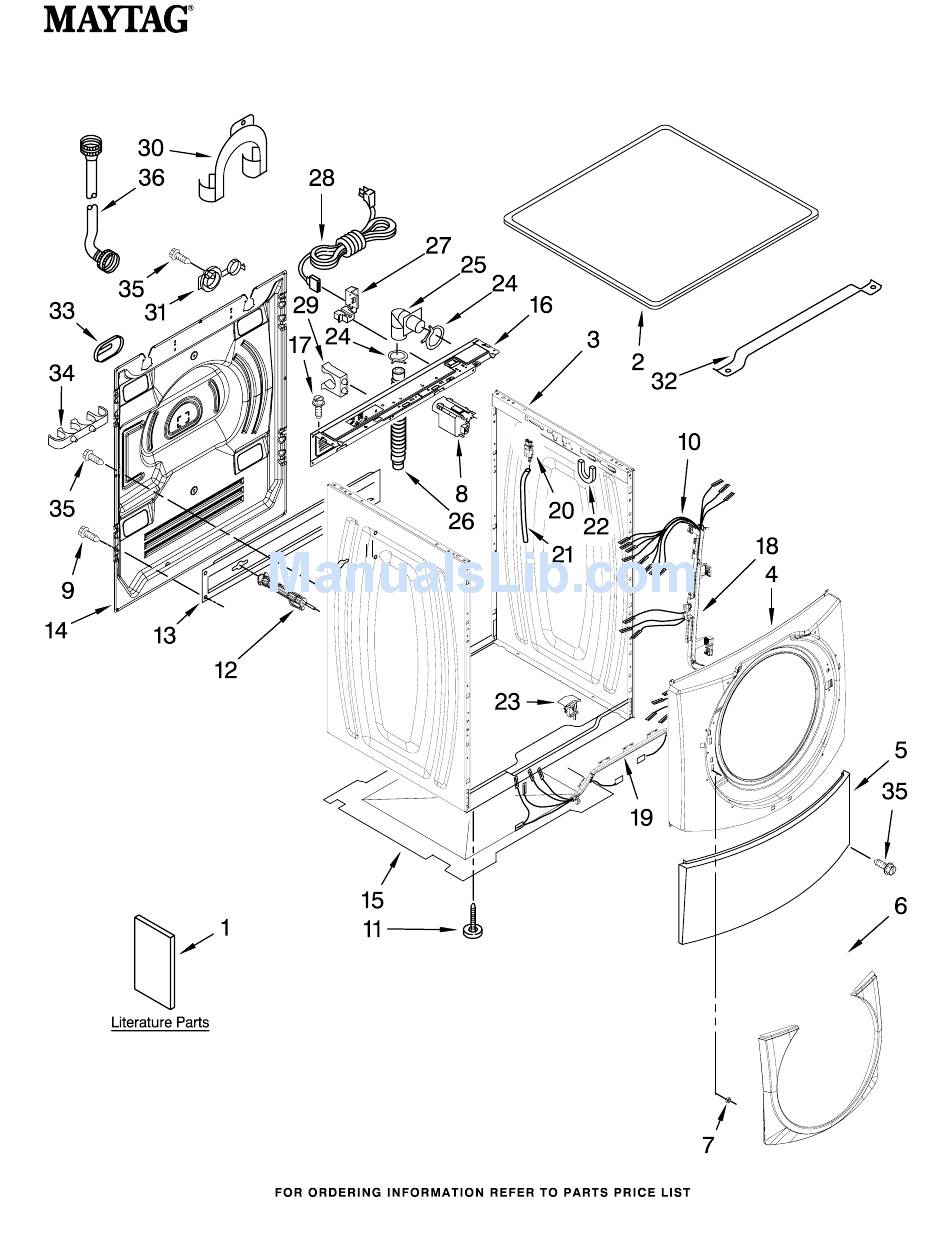

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MHWE950WW00 (White) 12−09 Printed in U.S.A. (drd)(bay) Part No. W10282012 Rev. A... - Page 2 8181922 Filter, Interference 9 W10157885 Screw, 4.2 x 14 10 W10250577 Harness, Wiring (Lower Main) (Includes Items 18, 19 & 23) 8181636 Foot, Leveling For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION Bolt, Shipping W10283353 Upper W10283354 Lower 8182661 Brace, Transport...
-
Page 3: Door And Latch Parts
DOOR AND LATCH PARTS W10282012 For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 8182119 Bellow 8183270 Lock, Door 8182211 Clamp, Bellow To Front Panel 8181760 Screw 8183198 Hook, Door 8181758 Screw 8181661 Screw 8181660 Screw 8183195 Frame, Door... -
Page 4: Control Panel Parts
2 W10248116 Knob, Control (Includes Item 5) 8181758 Screw 4 W10248117 Bushing, Knob 5 W10248122 Light Guide, Cycle 6 W10283516 User Interface 8181661 Screw For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION 8 W10248120 Seal, User Interface 9 W10248121 Light Guide−... -
Page 5: Dispenser Parts
DISPENSER PARTS For Model: MHWE950WW00 (White) W10282012... - Page 6 DISPENSER PARTS For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION 1 W10247306 Valve, Inlet 2 W10275565 Hose, Inlet Valve To Flowmeter (2) 8181751 Clamp, Hose (6) 8183181 Nozzle, Inlet 8181696 Flowmeter 8183183 Lever, Water Distribution 8183184 Cam, Actuator 8 W10161052 Lever, Connection...
- Page 7 TUB AND BASKET PARTS For Model: MHWE950WW00 (White) W10282012...
- Page 8 TUB AND BASKET PARTS For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION 1 W10283361 Nut, Pulley 8182650 Pulley 3 W10248068 Belt 4 W10283362 Fan, Active Ventilation 5 W10283265 Pipe, Ventilation 6 W10208156 Clamp 8181743 Hose, Exhaust 8 W10283358 Tub, Rear (Includes Items 10, 22, 23 &...
- Page 9 2 W10121657 Ball 8181734 Clamp 8181732 Hose, Tub to Pump 8181753 Clamp 8181752 Clamp 8182821 Pump (Complete) 8182820 Grommet, Damper (Rear) W10282012 For Model: MHWE950WW00 (White) Illus. Part DESCRIPTION 8182816 Grommet, Damper (Front) 8181736 Seal, Filter Cap 8183027 Cap, Filter...
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: MHWE950WW00 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 285863 Drain Extension 4396899 Rear Guard...
