Page 1: Top And Cabinet Parts

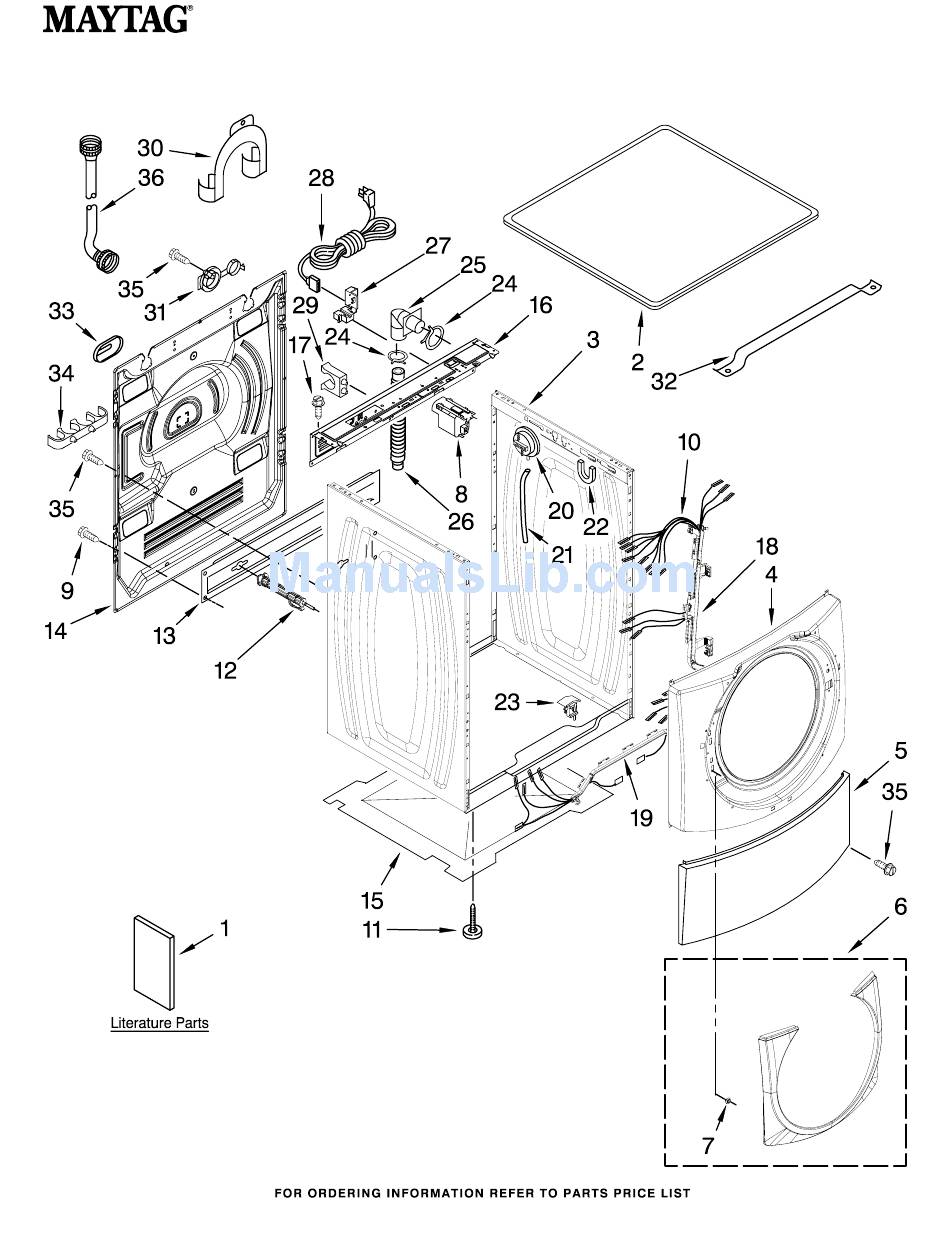

TOP AND CABINET PARTS AUTOMATIC WASHER For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) (Red) (Oxide) 4−10 Printed in U.S.A. (drd)(bay) Part No. W10326931 Rev. A... - Page 2 TOP AND CABINET PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 Illus. Part DESCRIPTION Literature Parts W10286177 Use & Care Guide W10250503 Tech Sheet 8183017 Quick Start Guide W10289390 Energy Guide 8181799 White W10289411 Red W10289394 Oxide Cabinet W10288155 White W10288157 Red...
-
Page 3: Door And Latch Parts
DOOR AND LATCH PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 W10326931 (White) (Red) (Oxide) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 8182119 Bellow 8183270 Lock, Door 8182211 Clamp, Bellow To Front Panel 5 W10313165 Screw 6 W10217552 Hook, Door 8181758 Screw... -
Page 4: Control Panel Parts
CONTROL PANEL PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 Illus. Part DESCRIPTION Panel−Control W10283496 White W10283497 Red W10283499 Oxide 2 W10248116 Knob, Control (Includes Item 5) 8181758 Screw 4 W10248117 Bushing, Knob 5 W10248122 Light Guide, Cycle (White) (Red) Illus. Part... -
Page 5: Dispenser Parts
DISPENSER PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) (Red) (Oxide) W10326931... - Page 6 DISPENSER PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) Illus. Part DESCRIPTION 1 W10289387 Valve, Inlet 2 W10291582 Hose, Inlet Valve To Dispenser 8181751 Clamp, Hose 8183181 Nozzle, Inlet 8181718 Tube, Dispenser To Bellow 8183183 Lever, Water Distribution 8183184 Cam, Actuator...
- Page 7 TUB AND BASKET PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) (Red) (Oxide) W10326931...
- Page 8 TUB AND BASKET PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) Illus. Part DESCRIPTION 1 W10283361 Nut, Pulley 8182650 Pulley 3 W10248068 Belt 4 W10283362 Fan, Active Ventilation 5 W10283513 Pipe, Ventilation 6 W10208156 Clamp 8181743 Hose, Exhaust 8 W10283358 Tub, Rear (Includes Items 10, 22, 23 &...
- Page 9 PUMP AND MOTOR PARTS For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 Illus. Part DESCRIPTION 8183196 Motor Control Unit 2 W10121657 Ball 8181734 Clamp 8181732 Hose, Tub to Pump 8181753 Clamp 8181752 Clamp 8182821 Pump (Complete) W10326931 (White) (Red) Illus. Part DESCRIPTION 8182820 Grommet, Damper...
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: MHWE450WW01, MHWE450WR01, MHWE450WJ01 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White W10218245 Red W10202939 Oxide PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS...
