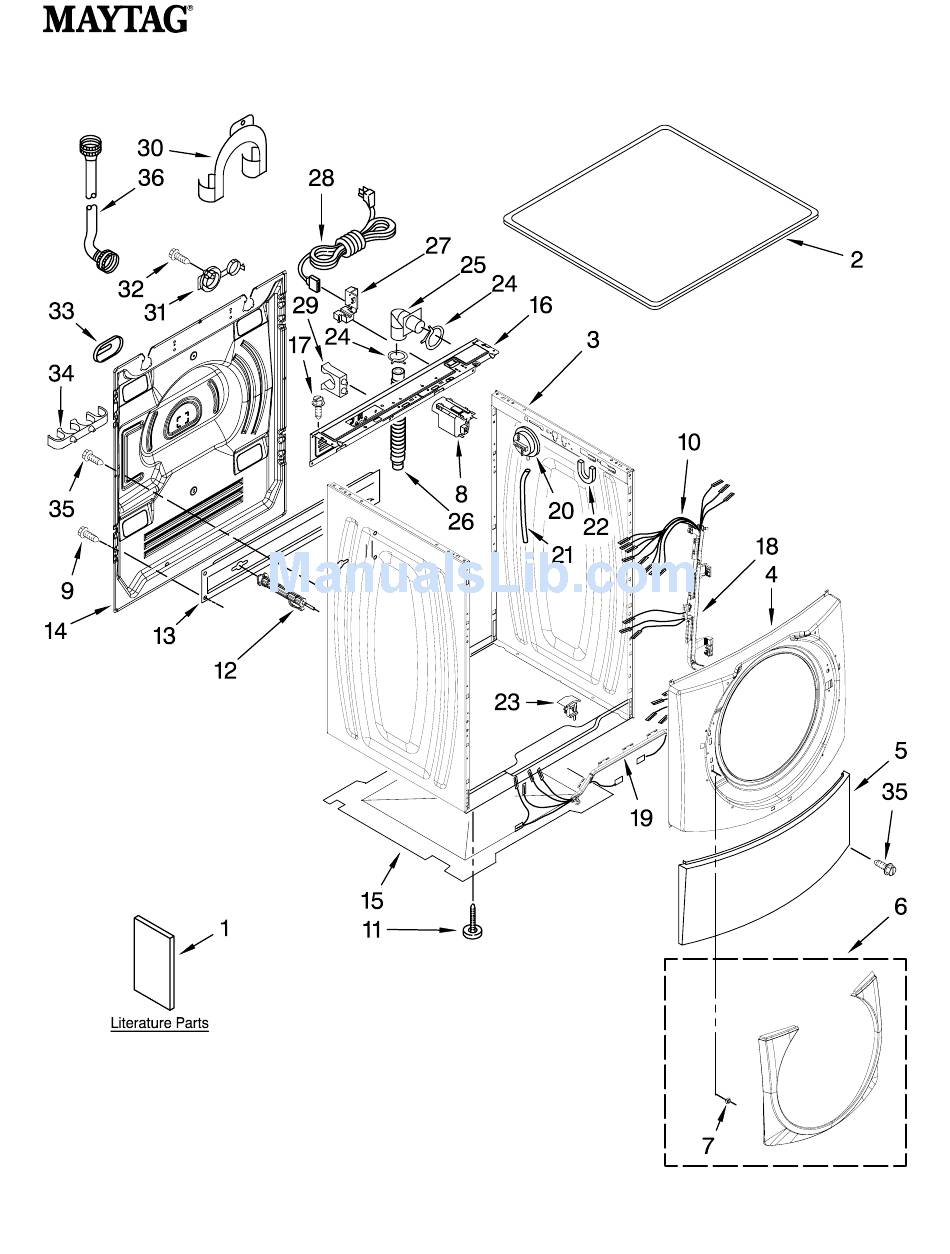

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MHWE300VW12 (White) Part No. W10270384 Rev. A 4−09 Printed in U.S.A. (drd)(bay) - Page 2 TOP AND CABINET PARTS For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION Literature Parts W10248061 Use & Care Guide W10250503 Tech Sheet 8183017 Quick Start Guide W10248060 Energy Guide 8181799 Top 3 W10250656 Cabinet 4 W10248114 Panel, Front 8181643 Toe Panel...
-
Page 3: Door And Latch Parts
DOOR AND LATCH PARTS W10270384 For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 8182119 Bellow 8183270 Lock, Door 8182211 Clamp, Bellow To Front Panel 8181760 Screw 8183198 Hook, Door 8181758 Screw 8181661 Screw 8181660 Screw 8183195 Frame, Door... -
Page 4: Control Panel Parts
2 W10248116 Knob, Control (Includes Item 5) 8181758 Screw 4 W10248117 Bushing, Knob 5 W10248122 Light Guide, Cycle 6 W10271608 User Interface 8181661 Screw For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION 8 W10248120 Seal, User Interface 9 W10248121 Light Guide−... -
Page 5: Dispenser Parts
DISPENSER PARTS For Model: MHWE300VW12 (White) W10270384... - Page 6 DISPENSER PARTS For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION 8182862 Valve, Inlet 2 W10168480 Hose, Inlet Valve To Dispenser 8181754 Clamp, Hose 8181751 Clamp, Hose 8183181 Nozzle, Inlet 8183183 Lever, Water Distribution 8183184 Cam, Actuator 8 W10161052 Lever, Connection 8181661 Screw...
- Page 7 TUB AND BASKET PARTS For Model: MHWE300VW12 (White) W10270384...
- Page 8 TUB AND BASKET PARTS For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION 8182132 Nut, Pulley 8182650 Pulley 3 W10248068 Belt 8181645 Counterweight, Front (2) 5 W10253670 Pipe, Ventilation 6 W10208156 Clamp 8181743 Hose, Exhaust 8 W10253855 Tub, Rear (Includes Items 10, 22, 23 & 24)
- Page 9 8183196 Motor Control Unit 2 W10121657 Ball 8181734 Clamp 8181732 Hose, Tub to Pump 8181753 Clamp 8181752 Clamp 8182821 Pump (Complete) W10270384 For Model: MHWE300VW12 (White) Illus. Part DESCRIPTION 8182820 Grommet, Damper (Rear) 8182816 Grommet, Damper (Front) 8181736 Seal, Filter Cap...
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: MHWE300VW12 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 285863 Drain Extension 4396899 Rear Guard...
