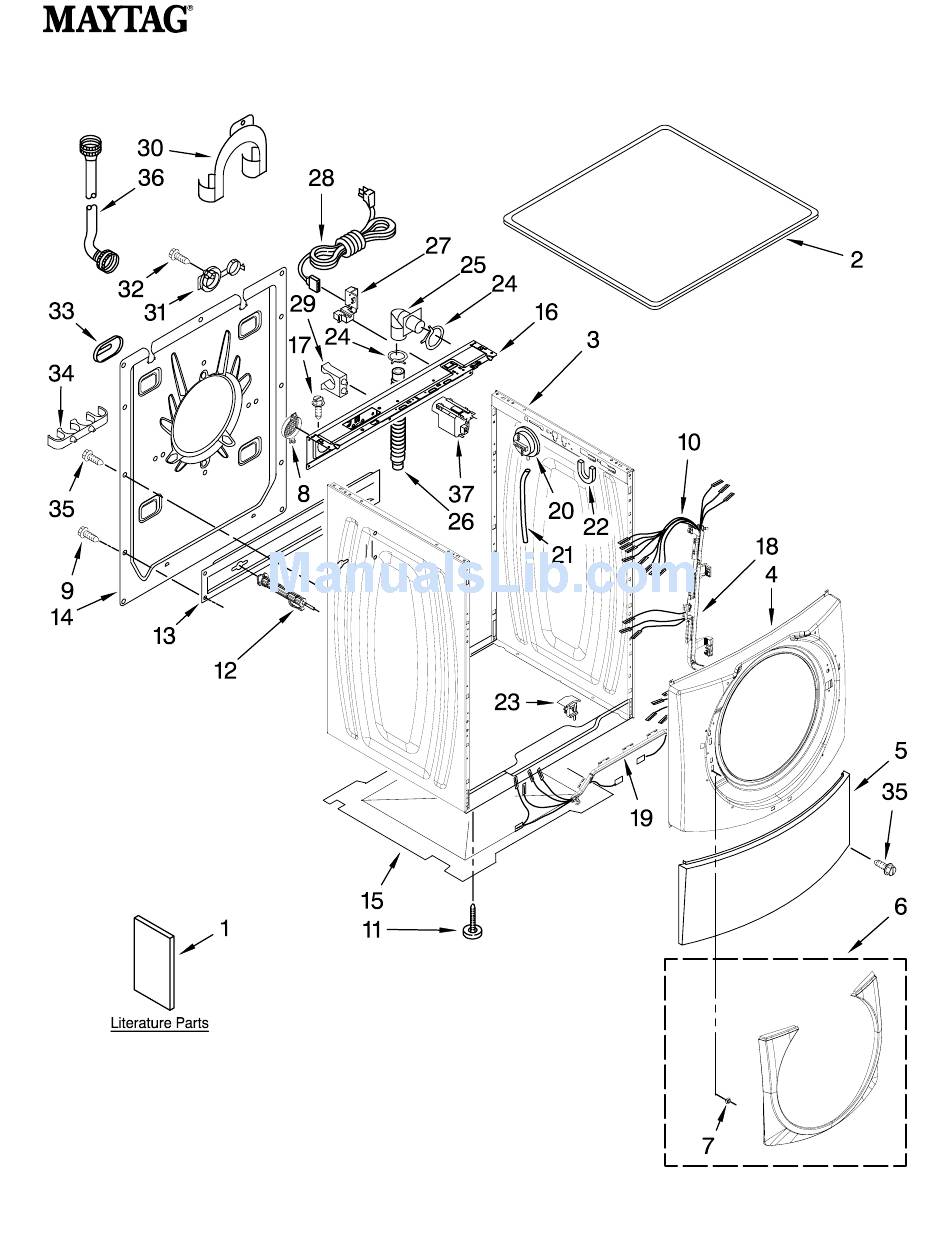

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: MHWE300VW10 (White) Part No. W10233434 Rev. A 01−09 Printed in U.S.A. (drd) (eeb) - Page 2 8183210 Clip, Trim 8183030 Grid, Ventilation 9 W10157885 Screw, 4.2 x 14 8183189 Harness, Wiring (Lower Main) (Includes Items 18, 19 & 23) 8181636 Foot, Leveling For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION Bolt, Shipping 8182797 Upper 8182798 Lower 8182661 Brace, Transport...
-
Page 3: Door And Latch Parts
DOOR AND LATCH PARTS W10233434 For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 8182119 Bellow 8183270 Lock, Door 8182211 Clamp, Bellow To Front Panel 8181760 Screw 8183198 Hook, Door 8181758 Screw 8181661 Screw 8181660 Screw 8183195 Frame, Door... -
Page 4: Control Panel Parts
2 W10248116 Knob, Control (Includes Item 5) 8181758 Screw 4 W10248117 Bushing, Knob 5 W10248122 Light Guide, Cycle 6 W10248064 User Interface 8181661 Screw For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION 8 W10248120 Seal, User Interface 9 W10248121 Light Guide−... -
Page 5: Dispenser Parts
DISPENSER PARTS For Model: MHWE300VW10 (White) W10233434... - Page 6 DISPENSER PARTS For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION 8182862 Valve, Inlet 2 W10168480 Hose, Inlet Valve To Dispenser 8181754 Clamp, Hose 8181751 Clamp, Hose 8183181 Nozzle, Inlet 8183183 Lever, Water Distribution 8183184 Cam, Actuator 8 W10161052 Lever, Connection 8181661 Screw, Actuator...
- Page 7 TUB AND BASKET PARTS For Model: MHWE300VW10 (White) W10233434...
- Page 8 TUB AND BASKET PARTS For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION 8182132 Nut, Pulley 8182650 Pulley 3 W10248068 Belt 8181645 Counterweight, Front (2) 8181744 Pipe, Ventilation 6 W10208156 Clamp 8181743 Hose, Exhaust 8182284 Tub, Rear (Includes Items 10, 22, 23 & 24)
- Page 9 Part DESCRIPTION 8183196 Motor Control Unit 2 W10121657 Ball 8181734 Clamp 8181732 Hose, Tub to Pump 8181753 Clamp 8181752 Clamp W10233434 For Model: MHWE300VW10 (White) Illus. Part DESCRIPTION 8182821 Pump (Complete) 8182820 Grommet, Damper (Rear) 8182816 Grommet, Damper (Front) 8181736 Seal, Filter Cap...
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: MHWE300VW10 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 285863 Drain Extension 4396899 Rear Guard...
