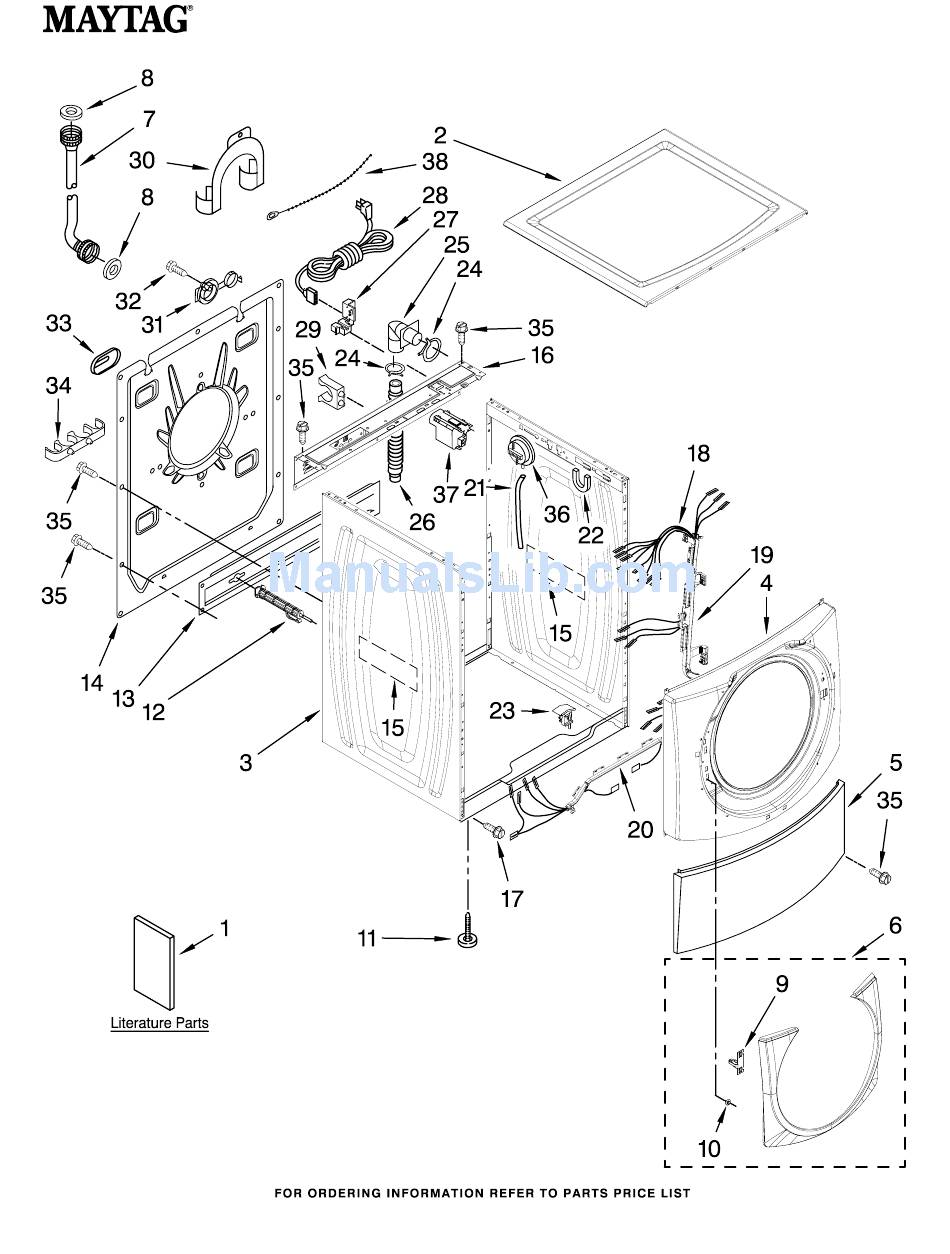

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) 3−10 Printed in U.S.A. (drd) (psw) Part No. W10208574 Rev. A... - Page 2 Toe Panel W10003640 White W10176919 Red Ring, Trim W10182998 White W10190645 Red Hose, Water Inlet 8571377 Blue Coupler 8571378 Red Coupler For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 16123 Washer, Water Inlet Hose (4) 9 W10112671 Clip, Trim−Metal...
- Page 3 DOOR AND LATCH PARTS W10208574 For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 2 W10003800 Bellow 8540772 Lock, Door 4 W10003490 Clamp, Bellow To Front Panel 8540725 Screw 6 W10003390 Hook, Door 8540513 Screw...
-
Page 4: Control Panel Parts
W10176626 White W10176641 Red 2 W10164576 Knob, Control 8540513 Screw 4 W10172298 Bushing, Knob 5 W10164567 Light Guide, Cycle 6 W10164540 User Interface, 8540282 Screw For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 8572039 Seal, User Interface 9 W10170293 Light Guide −... -
Page 5: Dispenser Parts
DISPENSER PARTS For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) W10208574... - Page 6 DISPENSER PARTS For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 8540751 Valve, Inlet 8540065 Hose − Valve/ Dispenser 370450 Clamp 8540042 Nozzle, Inlet 5 W10003830 Lever, Connection 6 W10003190 Cam, Actuator 7 W10003180 Lever, Water Distribution 8 W10163975 Actuator...
- Page 7 TUB AND BASKET PARTS For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) W10208574...
- Page 8 TUB AND BASKET PARTS For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 8533999 Nut, Pulley 2 W10003730 Pulley 3 W10116215 Belt 4 W10008880 Counterweight Front (2) 5 W10003500 Pipe, Ventilation 8540010 Clamp 7 W10004330 Hose, Exhaust 8 W10004170 Tub, Rear (Includes Items 10, 22, 23 &...
- Page 9 1 W10015480 Motor Control Unit 2 W10003330 Ball 8540008 Clamp 4 W10003240 Hose, Tub to Pump 370448 Clamp 356138 Clamp 7 W10117829 Pump (Complete) W10208574 For Models: MHWE300VW00, MHWE300VF00 (White) (Red Metallic) Illus. Part DESCRIPTION 8 W10034820 Foot, Rubber (Slider) 9 W10034830 Foot, Rubber...
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: MHWE300VW00, MHWE300VF00 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White W10218247 Red ACCESSORY PARTS 285863 Drain Extension 4396899 Rear Guard 38005 Stack Kit W10135699 Affresh Odor Remover (Red Metallic) W10208574...
