CABINET PARTS
REFRIGERATOR
For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00
(White)
(Black)
(Stainless Steel)
Part No. W10180448 Rev.A
1−08 Litho In U.S.A. (rrm)
1

Advertisement

loading

  Summary of Contents for Maytag MTB1954EEB00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) (Black) (Stainless Steel) Part No. W10180448 Rev.A 1−08 Litho In U.S.A. (rrm)
  • Page 2: Cabinet Parts

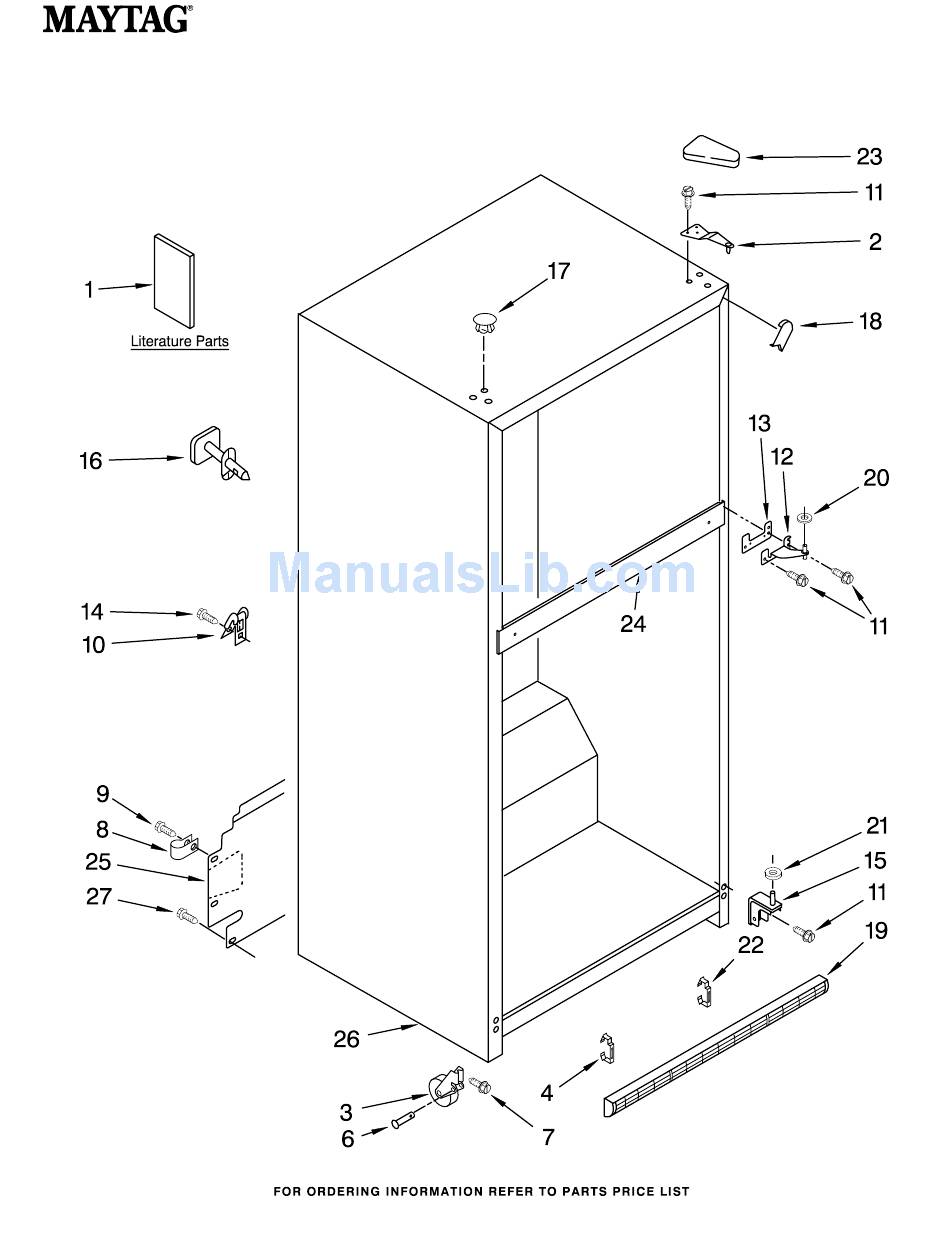

    For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 Illus. Part DESCRIPTION Literature Parts W10142143 Service & Wiring Sheet W10178140 Energy Label Use & Care Guide W10131413 Bilingual W10131421 Trilingual Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual Ref./Fzr. 2189410 Hinge (Top)
  • Page 3 LINER PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) (Black) (Stainless Steel) W10180448...
  • Page 4 For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254359 Gasket, Evaporator Cover (2) 2304099 Timer, Defrost 2212485 Thermostat Tube Barrier 8534009 Screw 2310057 Wire Assembly, Control Box 2162085 Socket, Light 2179858 Damper, Air...
  • Page 5: Shelf Parts

    SHELF PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) (Black) (Stainless Steel) W10180448...
  • Page 6 SHELF PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mounting 2214912 Glass Shelf 489478 Screw 3400065 Screw 2314548 Crisper Cover 2221693 Glass, Crisper Cover 2214892 Slide, Pan...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) (Black) (Stainless Steel) W10180448...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 6 & 8) 2205395 White 2205398 Black 2218280 Stainless Steel 2189202 Bracket, Door Stop 489276 Screw, 8 x 1/2 2183003 Thimble Hole Plug, Hinge Sleeve...
  • Page 9: Unit Parts

    UNIT PARTS For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 (White) (Black) (Stainless Steel) W10180448...
  • Page 10 For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 Illus. Part DESCRIPTION 2320188 Plate, Unit Mounting 2169104 Insulation, Sound Dampening 2214960 Condenser 2315531 Heater, Defrost 2254250 Evaporator Assy. 8533859 Screw 2254294 Drain Pan 2176301 Bracket, Heater 2319835 Grommet−Cond(4) 2300638 Extension, Air Baffle 2255113 Strap...
  • Page 11: Freezer Door Parts

    For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 Illus. Part DESCRIPTION Freezer Door (Includes Illus. 4 & 6) 2205399 White 2205402 Black 2212495 Stainless Steel 2189202 Bracket, Door Stop W10180448 FREEZER DOOR PARTS (White) (Black) Illus. Part DESCRIPTION Hole Plug, EndCap 2204837 White...
  • Page 12 OPTIONAL PARTS (NOT INCLUDED) For Models: MTB1954EEW00, MTB1954EEB00, MTB1954EES00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
