- Page 1 CABINET PARTS REFRIGERATOR For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) Part No. W10197413 Rev. A 04−08 Litho In U.S.A. (mat)
-

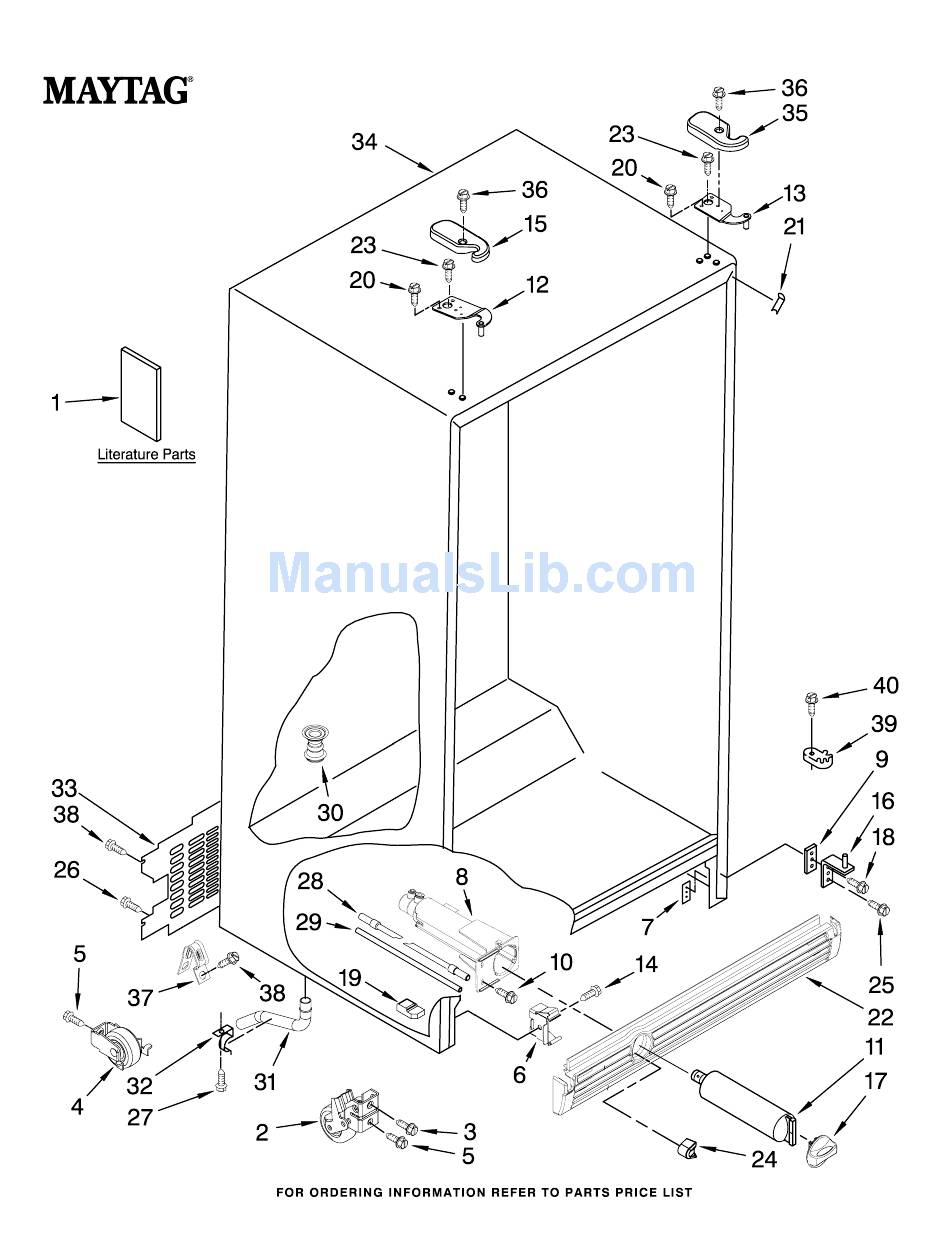

Page 2: Cabinet Parts
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 Illus. Part DESCRIPTION Literature Parts W10153840 Use & Care Guide W10158909 Service & Wiring Sheet W10153841 Energy Label W10154390 Instruction Sheet, Door Removal 628370 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 W10197413 (White) (Black) (Stainless−VCM) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2257741 Louver 2256035 Bracket, Dual Crisper Light 489084 Screw 2311637 Wire Harness, Crisper Light 2311612 Clip, Control... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) Illus. 2309518 Snack Pan 2174150 Glass, Cover 2311726 Cover, Pan 2255593 Trim, Pan 2179259 Glass, Cover 2255592 Trim, Meat Pan 2179342 Slide, Humidity 2188652 Crisper Pan... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 6 FREEZER LINER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part 2163762 Cup, Shelf 2171713 Door, Ice 2309597 Shelf, Wire 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2309757 Freezer Bin 1115373 Switch, Rocker Arm 8281158 Screw (4)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 489355 Screw (2) 2311639 Wiring Assembly, 489399 Screw (6) 2205716 Coupling, Motor 489478 Screw...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 10 REFRIGERATOR DOOR PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part W10153847 White W10159873 Black W10150583 Stainless−VCM W10170585 Stainless Steel 2256101 Door, Compartment 2187172 Door Bin (3) 2309528 Mist Beige 2309529 Black 12743701W White 12743701B Black 2308091 Thimble−Top 13067101 Clip...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 12 FREEZER DOOR PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part W10153844 White W10159876 Black W10170562 Stainless−VCM W10170570 Stainless Steel 12743701W White 12743701B Black 2182181 Thimble−Top 2326016 Screw 2309718 Trivet (4) 3400012 Screw 2309532 Mist Beige 2309533 Black 2209681 Trim, Door Shelf...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 14 DISPENSER FRONT PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism 2205686 Mechanism Delay 2206670W White 2206670B Black 2304317 Water Fitting 2203562W White...
-
Page 15: Unit Parts
UNIT PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 16 For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 Illus. Part DESCRIPTION 12825802 Fan, Blade 2223953 Condenser Assembly 489464 Screw 2208280 Clip, Wire 8533993 Screw 2255199 Clip, Retaining 2161302 Sleeve 4387765 Wire, Capacitor (Service Only) 4387731 Cover, Terminal (Service Only) 2154697 Overload (Service Only)
-
Page 17: Air Flow Parts
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2319914 Bi−Metal, Defrost 2203593 Air Duct Freezer 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) 2176759 Fan Grommet (2) -
Page 18: Control Parts
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 Illus. Part DESCRIPTION 1 W10159858 Control Box 2311611 Mounting Bracket 2219875 Light Switch 2200096 Cover, Light Lens 2303824 Electronic Control 489398 Screw (2) 2213462 Led Assembly 2198202 Thermostat 3196537 Screw 2182195 Cam Assembly CONTROL PARTS... -
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) (Black) (Stainless−VCM) (Stainless Steel) W10197413... - Page 20 ICEMAKER PARTS For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 (White) Illus. Part 489084 Screw 2209774 Chute, Water 628379 Clip, Fuse 2223137 Tube, Water 489478 Screw 2304757 Filter Valve Asm 489385 Tube Clip 2174155 Cover 488649 Screw 628228 Mold & Heater 628356 Cup, Water Fill...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00 Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 80051 Graphite Important: The spray paint is...
