- Page 1 CABINET PARTS REFRIGERATOR For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) 12−09 Litho In U.S.A. (mat) (psw) Part No. W10304456 Rev.A...
-

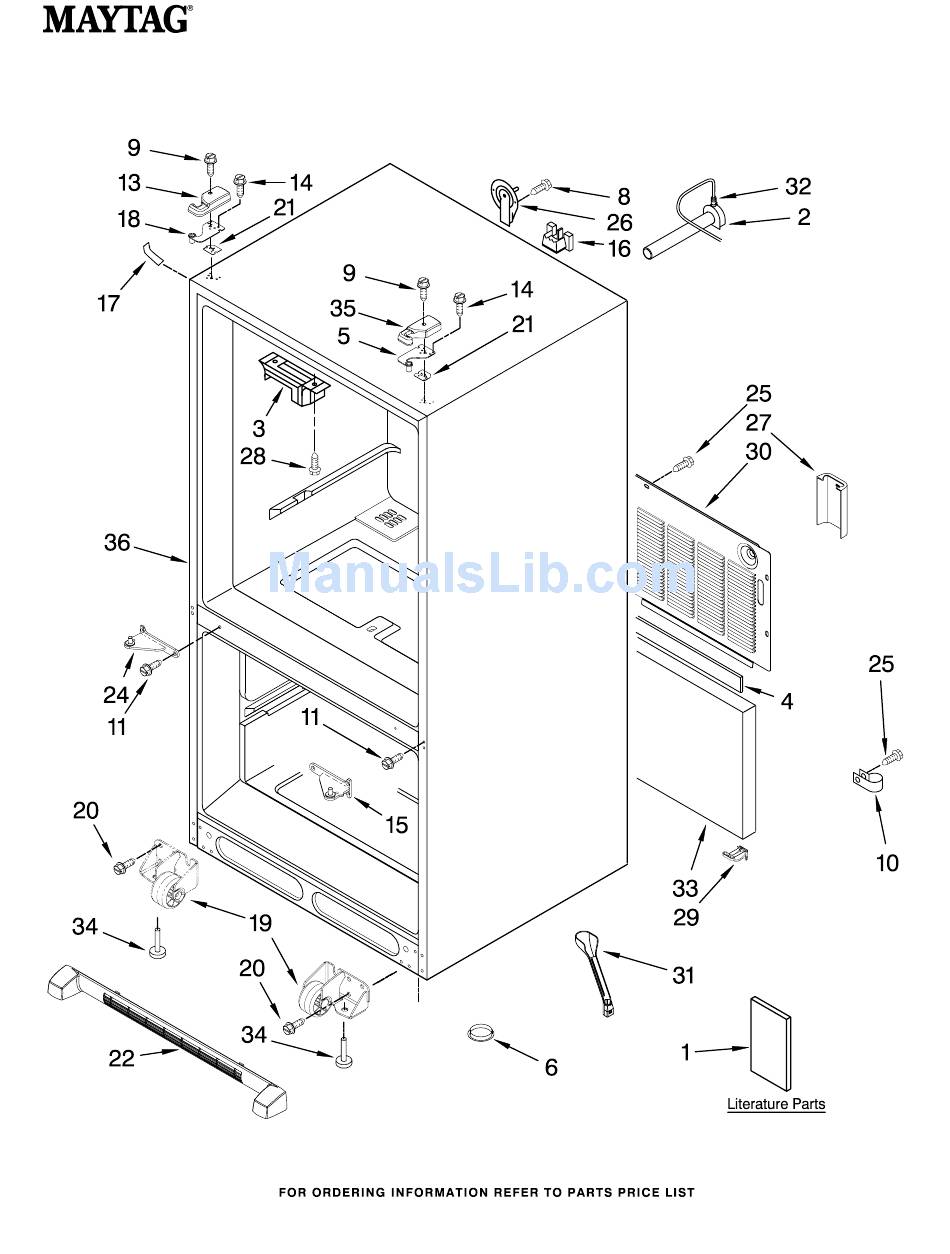

Page 2: Cabinet Parts
12990504 Screw 12992602 Screw 10 M0108107 Clamp, Tube 12992201 Screw (6) Cover, Left Hinge W10217491 White W10217488 Apollo Grey CABINET PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION 12992403 Screw (6) Hinge, Center (RT) 13000002WD White 13000002AP Apollo Grey... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 4 FREEZER LINER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12932103 Guide, Fill Tube 13062901 Motor, Evaporator 12570701V Socket, Light 12815301 Cover, Thermistor 9 W10194422V Bulb, Light 10 W10277466 Foil, Housing...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 6 REFRIGERATOR LINER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806302 Module, Light 3 W10217740 Overlay 12806405 Housing, Control 5 W10217475 Board, Control 6 C3680310V Switch, Light (2) 12806501 Cover, Light 12806601V Housing, Light...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 8 REFRIGERATOR DOOR PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION Door, Left W10199095 White 12978035LQ Satina Door, Right W10199092 White 12978034LQ Satina 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12801904 Bin, Shelf (3) (Medium) Mullion, Door...
-
Page 9: Unit Parts
UNIT PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 10 17 10835903SP Grommet (4) 18 W10135026 Condenser 10547003 Clip, Drier 20 W10292803 Tray, Drip 12990701 Screw 12726403 Evaporator UNIT PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION 12225702 Right Side 12225602 Left Side 24 W10239053 Motor, Fan...
-
Page 11: Shelf Parts
SHELF PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 12 13 12656601SP Glide, Left 13058101V Glide, Drawer(2) 15 12656602SP Glide, Right Endcap, Pantry 12656106 Left 12656019 Right SHELF PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION 12804601 Pan, Crisper (2) 18 12642303WD Brace, Crisper 19 W10231345 Trim, Crisper...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) W10304456... - Page 14 ICEMAKER PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 2 B5705333SP Tubing, Plastic 10526702 Clamp 489276 Screw 12544124 Valve, Water 6 W10202524 Arm, Shutoff 12582501 Cover 8 A3223101SP Insert, Tube 9 W10122527 Mold & Heater...
-
Page 15: Freezer Door Parts
W10304456 FREEZER DOOR PARTS For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION Freezer Door W10199889 White 12977818LQ Satina Handle 13004702W White 13004702L Antique Pewter Gasket, Door W10164040 White W10164042 Apollo Grey 12991703 Screw 13001201 Mount, Handle... - Page 16 Refinishing Material 799340 Enamel, Black (1 Qt. Uncut) 799344 Enamel, White (1 Qt. Uncut) For Models: MFD2562VEW2, MFD2562VEA2 (White) (Monochromatic Satina) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108")
