CABINET PARTS
REFRIGERATOR
For Models: MBL1956KES3, MBR1956KES3
(Stainless−LH) (Stainless−RH)
Part No. W10268088 Rev.A
5−09 Litho In U.S.A. (rrm) (psw)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBL1956KES3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Maytag MBL1956KES3

  • Page 1 CABINET PARTS REFRIGERATOR For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Part No. W10268088 Rev.A 5−09 Litho In U.S.A. (rrm) (psw)
  • Page 2: Cabinet Parts

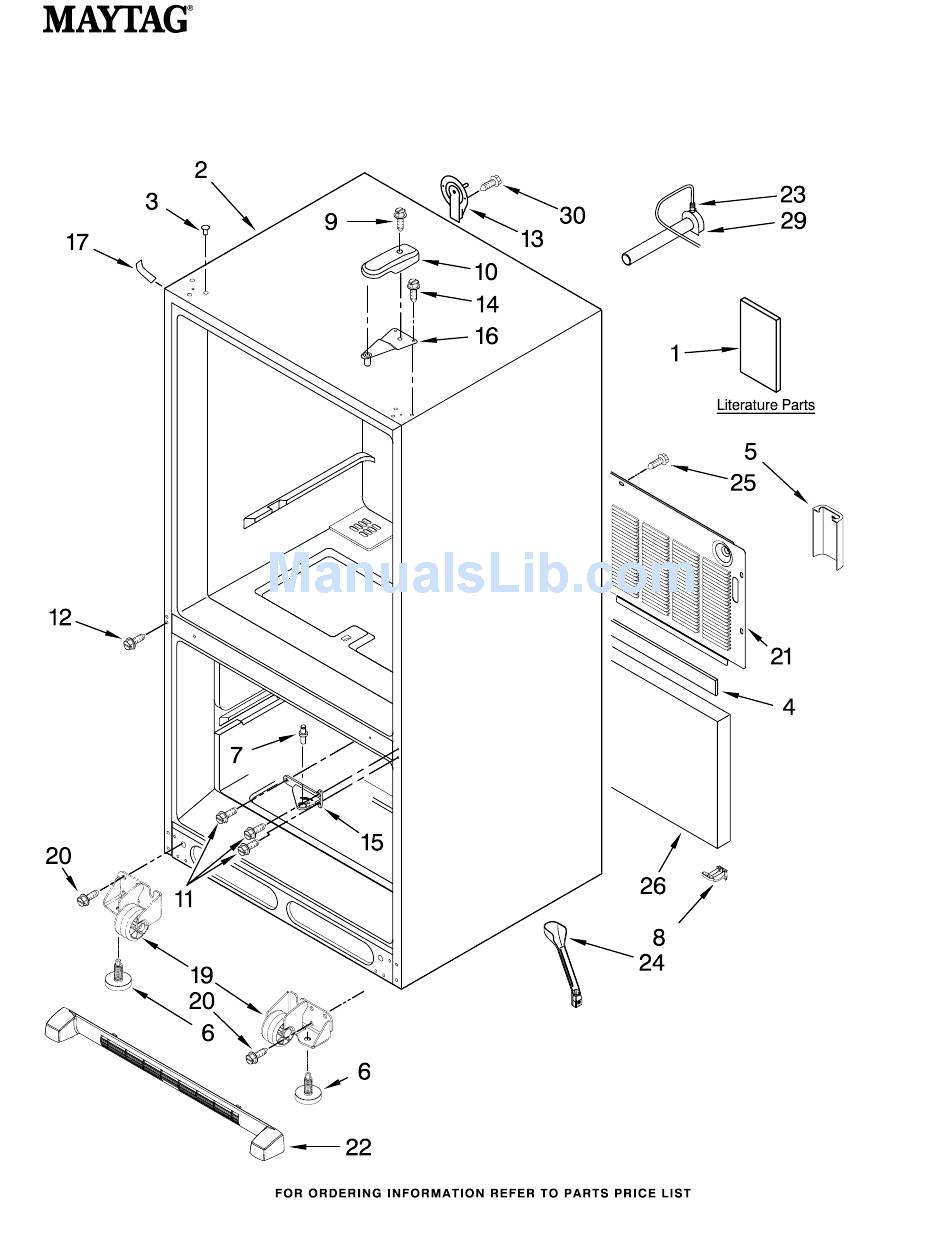

    CABINET PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Literature Parts W10175446 Use & Care Guide W10183293 Energy Guide W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black B5759655 Gasket 5 W10208592 Guard, Water Valve...
  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) W10268088...
  • Page 4 FREEZER LINER PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 12804901 Cover, Light 5 12812902WD Shaft 12570701V Socket, Light 12990521 Screw (8) 9 W10194422V Bulb, Light 12476401V Housing, Frz.
  • Page 5: Freezer Door Parts

    W10268088 FREEZER DOOR PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Door, Freezer 13092206SQ Stainless Steel Handle, Door W10197295 Stainless Gasket, Door W10164033 Black 13001201 Handle−Mount−(2) 12991703 Screw−Flat−(2)
  • Page 6: Refrigerator Liner Parts

    Serviceable Part) 12806301 Bracket, Control and Lights 12816502 Overlay 12806406 Housing, Electronic Control 12868513 Board, Control 6 C3680310V Switch, Light For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION 12806501 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light (2)
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) W10268088...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Door, Refrigerator 13023847SQ Stainless Steel−LH 13023846SQ Stainless Steel−RH Screw 13001201 Handle−Mount−(2) 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12801902V Bucket, Medium (2) 12801901V Bucket−Small (2) Gasket, Door...
  • Page 9: Unit Parts

    UNIT PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) W10268088...
  • Page 10 14 12639324SP Thermostat, Defrost 15 W10206336 Extension, Basepan 17 10835903SP Grommet (4) 18 W10135028 Condenser 19 W10206339 Fastener, Basepan Extension UNIT PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION 20 12225401WD Tray, Drip 12990701 Screw 12726401 Evaporator 12225702 Right Side...
  • Page 11: Shelf Parts

    SHELF PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) W10268088...
  • Page 12 SHELF PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION 12530701 Rail, Center Crisper 2 W10231339 Trim, Crisper 12990601 Screw 12896401 Basket, Freezer (Upper) 5 W10143560 Basket, Freezer (Lower) 12463608 Shelf (4) 12990515 Screw 8 12530805SP Slide, Humidity Control...
  • Page 13: Icemaker Parts

    ICEMAKER PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) W10268088...
  • Page 14 ICEMAKER PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 2 B5705333SP Tube, Plastic 10526702 Clamp 489276 Screw 5 W10219716 Valve−Inlet 12868001 Arm−Shut Off 12582501 Cover, Front 8 A3223101SP Insert, Tube 9 W10122527 Mold & Heater...
  • Page 15: Optional Parts

    4392901 Biscuit Important: The spray paint is not to be used where the paint may make contact with the door gaskets. W10268088 OPTIONAL PARTS For Models: MBL1956KES3, MBR1956KES3 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION PAINT, BULK (1 qt.) 799344 White (Uncut)
