Maytag MBF2256KEB11 Cabinet Parts

Maytag MBF2256KEB11 Cabinet Parts

Maytag refrigerator parts list
Hide thumbs

Advertisement

Table of Contents

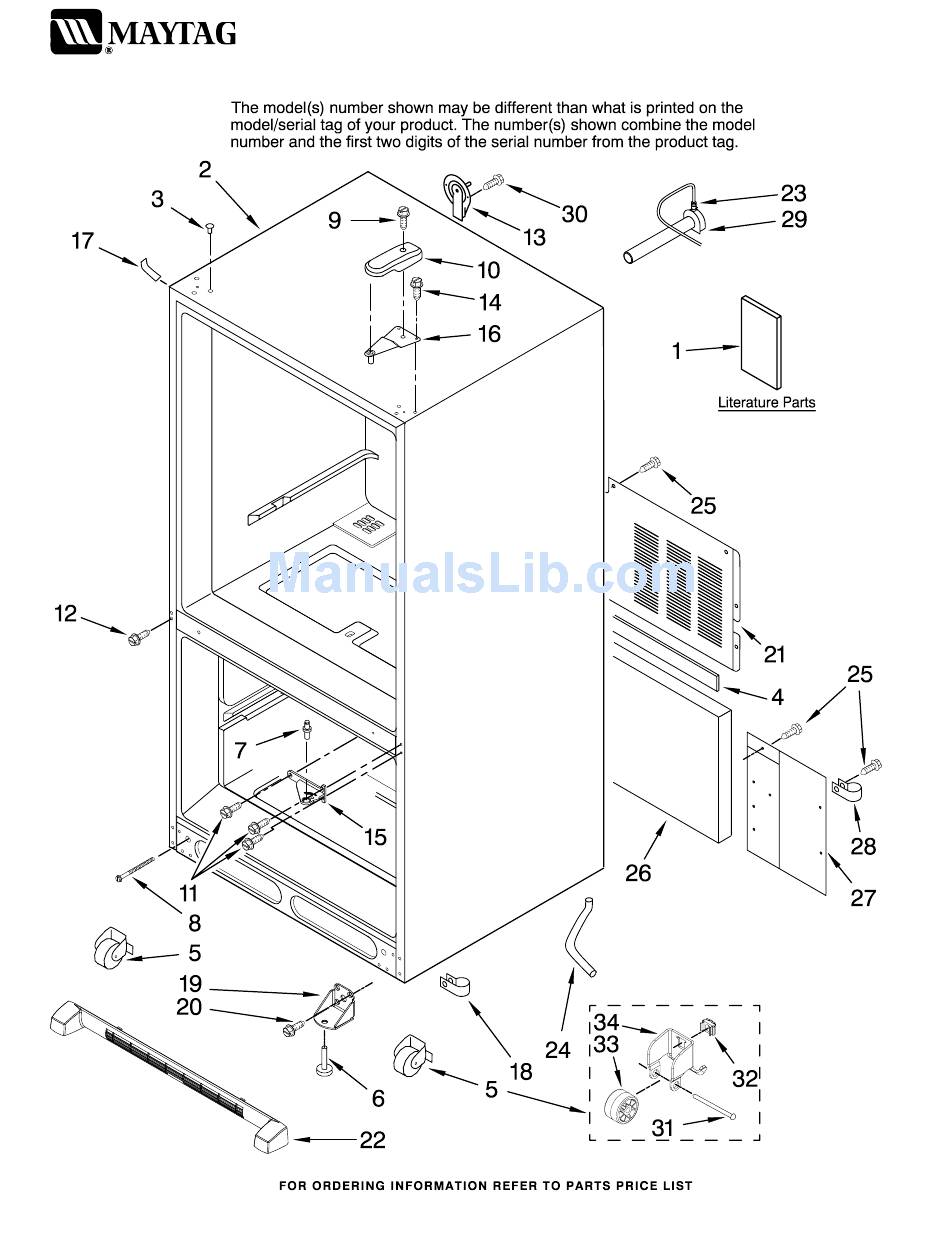

CABINET PARTS
REFRIGERATOR
For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11
(Black)
(Bisque)
(White)
11−07 Litho In U.S.A. (pl)
1
Part No. W10173927 Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBF2256KEB11 and is the answer not in the manual?

Questions and answers

Related Manuals for Maytag MBF2256KEB11

Summary of Contents for Maytag MBF2256KEB11

  • Page 1 CABINET PARTS REFRIGERATOR For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) 11−07 Litho In U.S.A. (pl) Part No. W10173927 Rev.A...

  • Page 2: Cabinet Parts

    For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 Illus. Part DESCRIPTION Literature Parts W10137641 Use & Care Guide W10123455 Energy Guide W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310729 White M0310731 Black M0310738 Bisque B5759649 Gasket 67006118 Roller AssY. (2)

  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) W10173927...
  • Page 4 FREEZER LINER PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67003905 Cover, Light 67003636 Motor, Evaporator Y12570701 Socket, Light 12002355 Thermistor 67003924 Cover, Thermistor A0282812 Bulb, Light...

  • Page 5: Freezer Door Parts

    For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 Illus. Part DESCRIPTION Door, Freezer W10170997 White W10170998 Black W10170999 Bisque W10173927 FREEZER DOOR PARTS (Black) (Bisque) Illus. Part DESCRIPTION Handle, Door W10119651 White W10119653 Black W10119652 Bisque Gasket, Door W10130894 White W10130587 Black (White) Illus.

  • Page 6: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Module, Light 67004058 Overlay 67003898 Module, Control 5 W10165748 Board, Control (Incl Instr Sheet) C3680310 Switch, Light 67003897 Cover, Light (Black) (Bisque) Illus.

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) W10173927...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) Illus. Part DESCRIPTION Door, Refrigerator 67004363 White 67004329 Black 67004361 Bisque Screw (4) 67006668 White 67006806 Black 67004707 Bisque 67003637 Door, Dairy 67001279 Tray, Dairy 67004040 Bucket, Medium (4) Screw (4)

  • Page 9: Unit Parts

    UNIT PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) W10173927...
  • Page 10 For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 67005744 Basepan 67006425 Screw 67005491 Block, Condenser 6 W10167036 Tube, Discharge 7 W10119856 Harness, Evap. Heater 67004713 Drain Pan 61004743 Grommet (3) 67001794 Heater, Defrost 11 W10136415 Clip, Capacitor...

  • Page 11: Shelf Parts

    SHELF PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) W10173927...
  • Page 12 SHELF PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67004369 Trim, Crisper 67006608 Screw 67004986 Basket, Freezer (Upper) 67006024 Basket, Freezer (Lower) 67004368 Shelf (4) 67006360 Screw 67005864 Slide, Humidity Control 67004127 Divider, Basket...

  • Page 13: Icemaker Parts

    ICEMAKER PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) (White) W10173927...
  • Page 14 ICEMAKER PARTS For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 (Black) (Bisque) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67003753 Valve−Inlet 67004028 Arm−Shut Off 67004710 Cover, Front A3223101 Inert, Tube 9 W10122527 Mold & Heater Assembly (Also...

  • Page 15: Optional Parts

    For Models: MBF2256KEB11, MBF2256KEQ11, MBF2256KEW11 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392901 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black 4392901 Biscuit Important: The spray paint is not to be used where the paint may make contact with the door gaskets.

This manual is also suitable for:

Mbf2256keq11Mbf2256kew11Mbf2256kew - bottom freezer refridgerator
