- Page 1 CABINET PARTS REFRIGERATOR For Model: MBB1952HEW14 (White) 4−08 Litho In U.S.A. (pl) (eeb) Part No. W10201417 Rev. A...
-
Page 2: Cabinet Parts

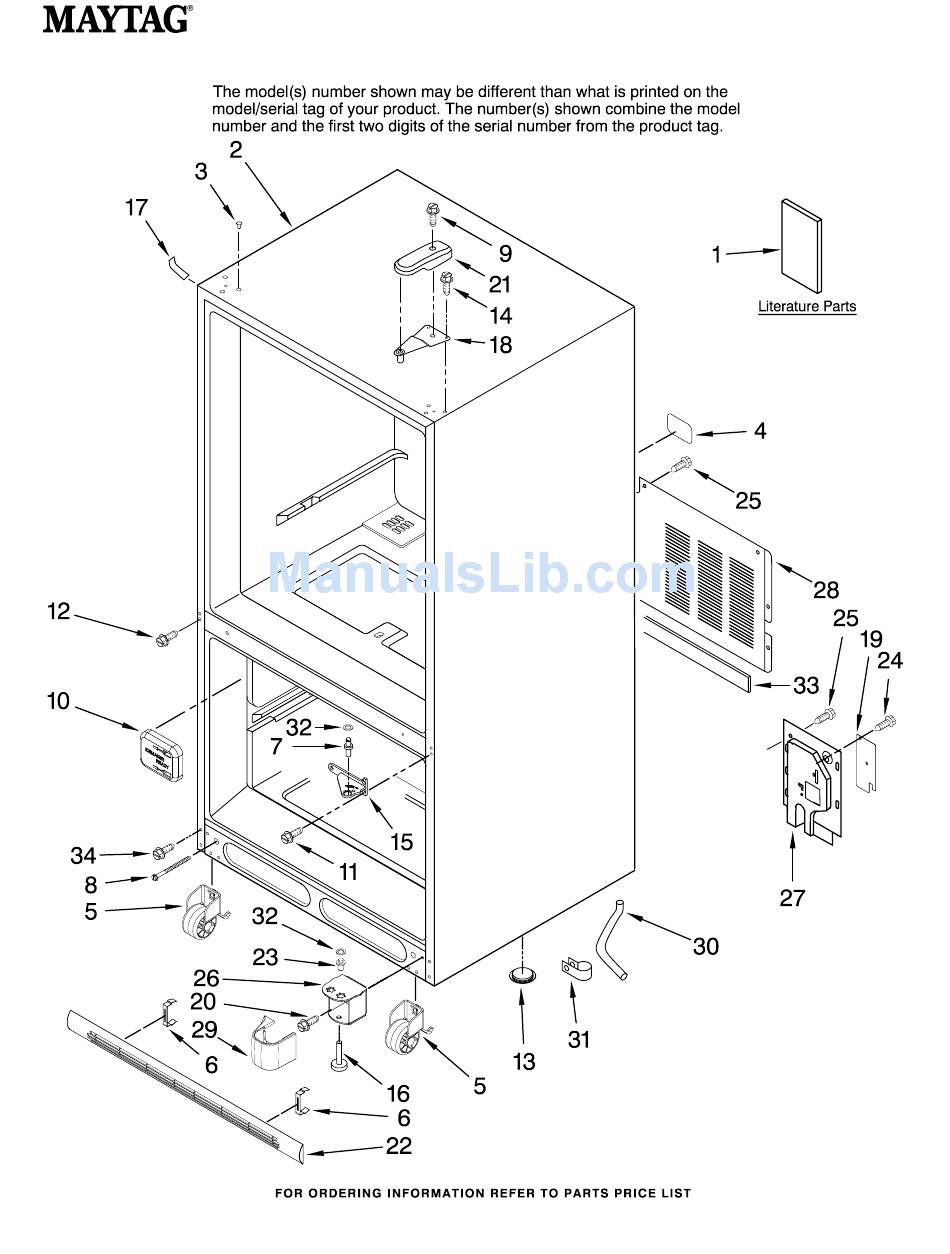

67005064 Label, Fill Tube 67006118 Roller Assy. (2) 12627302 Clip, Grille 67006744 Pin, Center Hinge 67006611 Bolt, Adjusting (Front Roller) 67006521 Screw CABINET PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION 67001098 Cover, Fill Tube 67006380 Screw 67005822 Screw A3076901 Plug−Button... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 4 FREEZER LINER PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67001285 Cover, Light 67003636 Motor, Evaporator Y12570701 Socket, Light 67001045 Panel Control 67001046 Control,FZ Temp. A0282812 Bulb, Light...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 6 FREEZER DOOR PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION Door, Freezer W10176974 White Handle, Door 67005140 White Gasket, Door W10130150 White 67006831 Screw, Handle Plug, Button (2) 10712401 White Plug−Handle Hole 12246601 White 67004977 Bushing (4) Stop, Door 67003779 White...
-
Page 7: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 8 REFRIGERATOR LINER PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67002083 Module, Light 67001040 Belt, Damper 67001034 Tensioner, Belt 67001036 Timer, Defrost C3680310 Switch, Light 67002512 Knob, Front 67001035 Housing, Light A0282812 Bulb, Light (2)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 10 REFRIGERATOR DOOR PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION Door, Refrigerator 67001138 White 67006682 Screw−Handle (2) 67003637 Door, Dairy 67001279 Tray, Dairy Bucket, Door 67001141 Small (2) 67001021 Medium (2) Plug−Handle Hole 12246601 White Plug, Button (2) 10712401 White...
-
Page 11: Unit Parts
UNIT PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 12 Defrost 67005680 Grommet (2) 67006573 Screw 17 W10169124 Grommet (4) 67006133 Condenser 67006432 Screw 67001133 Tray, Drip 67006737 Screw UNIT PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION 12002051 Evaporator Kit (Incl. Evap., Heat Shield, & Instr. Sheet) 67001084 Right Side...
-
Page 13: Shelf Parts
SHELF PARTS For Model: MBB1952HEW14 (White) W10201417... - Page 14 SHELF PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67003879 Trim, Crisper 67006608 Screw 67006231 Shelf−Freezer 12754803 Basket, Freezer (Lower) 12204808 Glass Shelf 67006360 Screw 67005864 Slide, Humidity Control 67004127 Divider, Basket (Upper) 67003400 Frame, Shelf...
-
Page 15: Optional Parts
4392901 Biscuit Important: The spray paint is not to be used where the paint may make contact with the door gaskets. W10201417 OPTIONAL PARTS For Model: MBB1952HEW14 (White) Illus. Part DESCRIPTION PAINT, BULK (1 qt.) 799344 White (Uncut) 799344 Black (Uncut)
