- Page 1 REFRIGERATOR CABINET PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) (Black) (Stainless Steel) (Biscuit) 12−09 Litho In U.S.A. (mjb)(bay) Part No. W10305562 Rev.A...
-
Page 2: Cabinet Parts

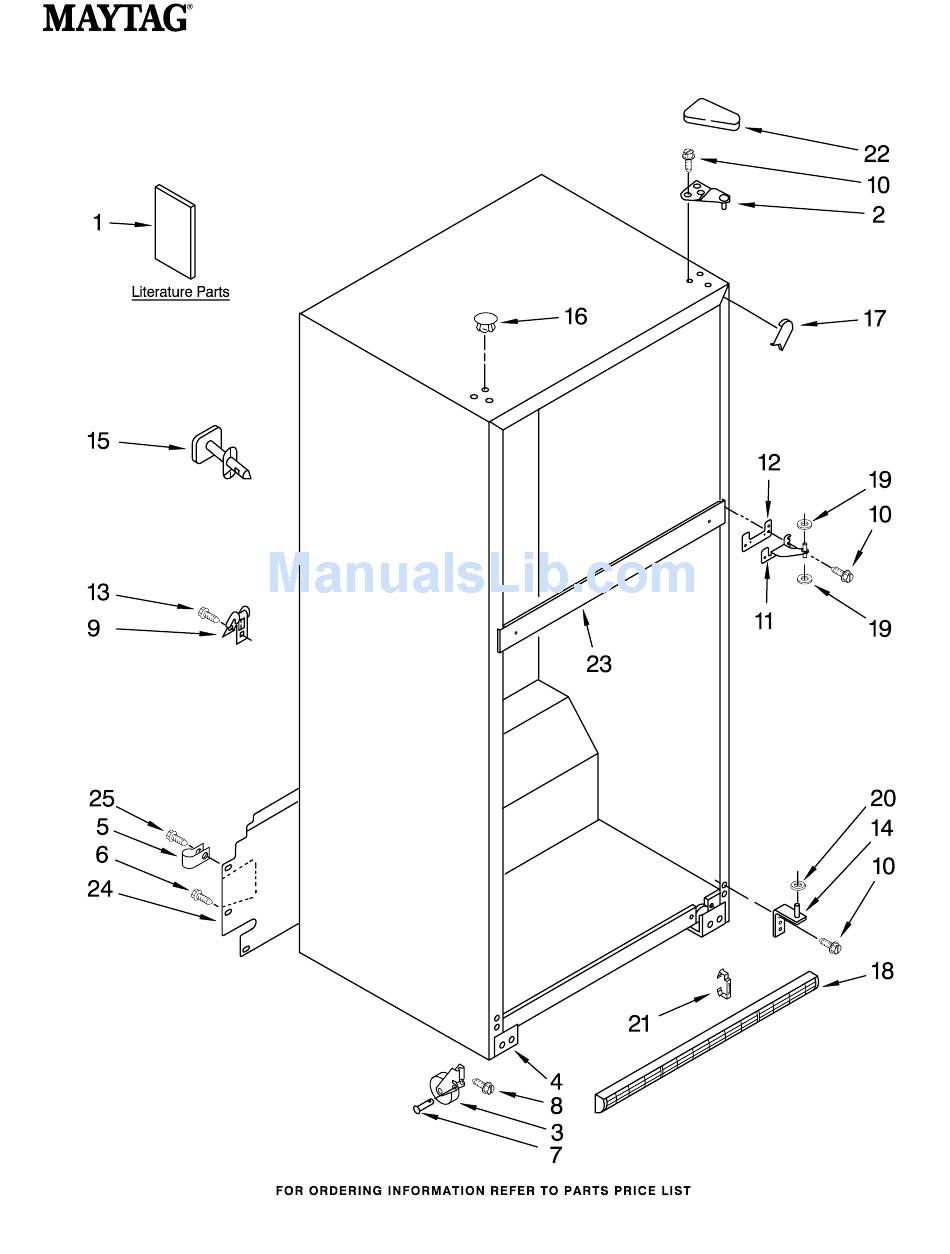

For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 Illus. Part DESCRIPTION Literature Parts W10142143 Service & Wiring Sheet W10251542 Energy Label Use & Care Guide W10249206 Bilingual W10249207 Trilingual 2225623 Modular Icemaker Service Sheet Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual Ref./Frz. -
Page 3: Door Parts
DOOR PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) (Black) (Stainless Steel) (Biscuit) W10305562... - Page 4 For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 6 & 14) 2183920 White 2200714 Black W10271883 Stainless Steel 2205284 Biscuit Handle, Trim 2193143W White 2193143B Black 2193143T Biscuit Handle, Refrigerator 2254533W White 2254533B Black 2254533T Biscuit...
- Page 5 LINER PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) (Black) (Stainless Steel) (Biscuit) W10305562...
- Page 6 LINER PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) Illus. Part 2197380 Grommet (2) 2254360 Gasket, Evaporator 2304099 Defrost Timer 2212485 Thermostat Tube 488208 Screw 2310057 Wire Assembly, 2162085 Socket, Light 2179858 Damper, Air 10 W10208121 Fan Motor 2163777 Fan Blade 2212982 Control Box 13 W10225856 Thermostat Assy.
-
Page 7: Unit Parts
UNIT PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) (Black) (Stainless Steel) (Biscuit) W10305562... - Page 8 For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 Illus. Part DESCRIPTION 2320187 Plate, Unit Mounting 2214857 Insulation 3 W10268878 Condenser 4 W10140847 Heater, Defrost 2254249 Evaporator Assy. 8533961 Screw 2254295 Drain Pan 2319835 Grommet−Cond−(4) 2176301 Bracket, Heater 2300638 Extension, Air Baffle 11 W10174384 Strap...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) (Black) (Stainless Steel) (Biscuit) W10305562... - Page 10 ICEMAKER PARTS For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 (White) Illus. Part 488878 Clamp, Tube 2210495 Clip, Water Valve 2181939 Insert, Tube 628379 Clip, Fuse 2181943 Tube Water 2315576 Valve Solenoid 79191001 Cover 8281265 Screw 10 W10122527 Mold & Heater 628515 Cup, Water Fill...
-
Page 11: Shelf Parts
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 W10305562 SHELF PARTS (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mtg. 2188691 Trim,Shelf Front 489478 Screw 2176222 Slide, Humidity Control 2212446 Body, Humidity... -
Page 12: Optional Parts
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Miscellaneous 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
