Freestanding Gas Range
PRODUCT MODEL NUMBERS
MGR6751BD
MGR6875AD
MGR6775BD
Gas supply: Installation of this range must
conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI
Z223.1 - latest edition. In Canada the range must
be installed in accordance with the current CGA
Standard CAN/CGA-B149 - Installation Codes for
Gas Burning Appliances and Equipment and/or
local codes.
In The Commonwealth Of Massachusetts
This product must be installed by a licensed
plumber or gas fitter when installed within the
Commonwealth of Massachusetts. A "T" handle
type manual gas valve must be installed in the gas
supply line to this appliance. A flexible gas
connector, when used, must not exceed a length of
3 ft / 36".
Electrical Supply Connection
The range requires 120 volts, 60 cycle alternating
current from a dedicated grounded outlet with a
15 amp circuit breaker. See serial plate for rating,
located on flip-up plate at the rear of upper left-
hand corner of backguard. User may experience
occasional circuit tripping if Ground Fault Circuit
Interrupter (GFCI) outlet or breaker is in use.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

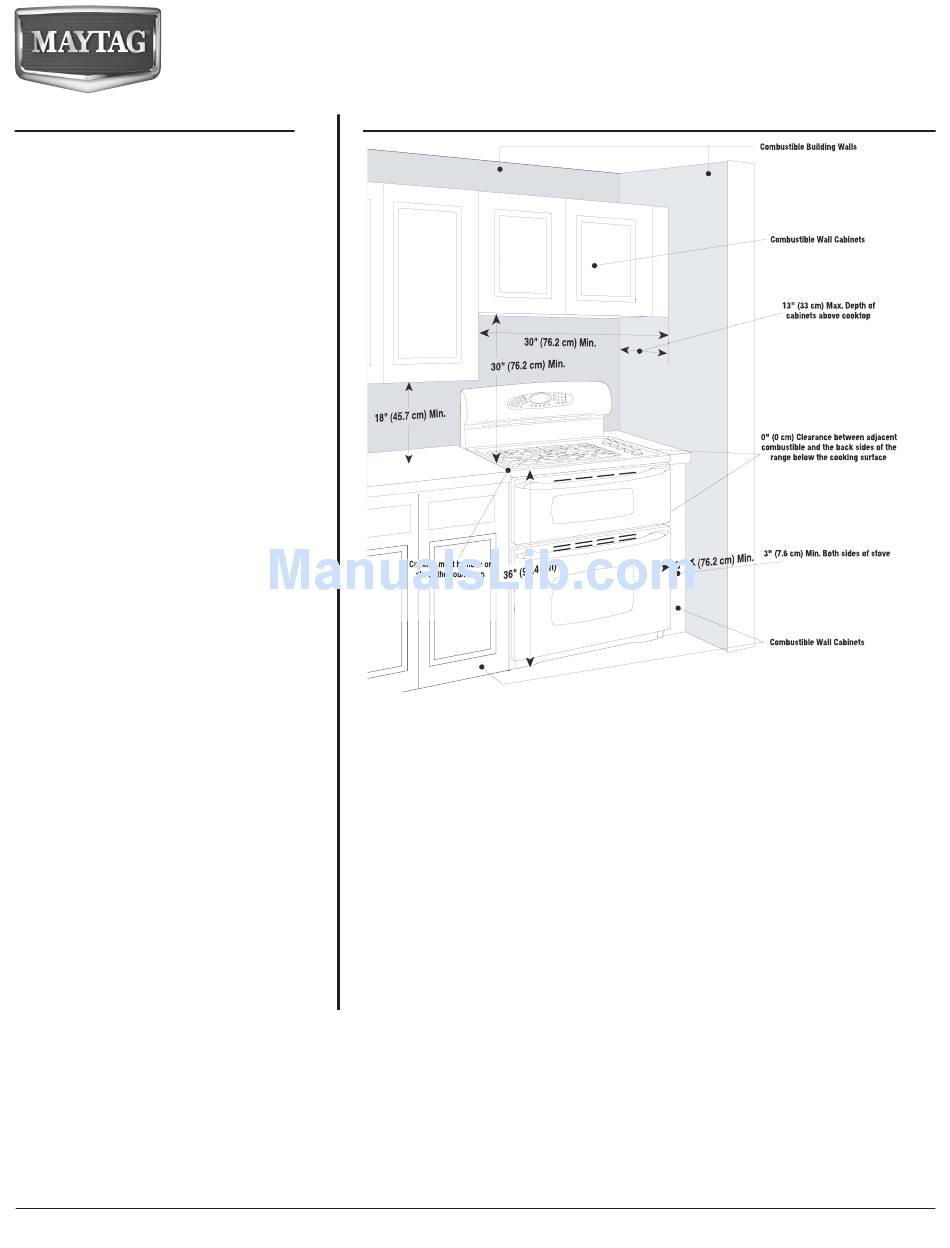

CLEARANCE DIMENSIONS
Range may be installed with zero inches clearance adjacent to (against) combustible
construction at the rear and on the sides below the cooktop. For complete information in regard
to the installation of wall cabinets above the range and clearances to combustible wall above the
cooking top see the installation drawings. For SAFETY CONSIDERATIONS do not install a range
in any combustible cabinetry which is not in accord with the installation drawings.
*NOTE: 30" (76.2 cm) dimension between cooking top and wall cabinet shown on illustration
does not apply to ranges with an elevated oven or microwave. The installation instructions of
the elevated oven will specify the minimum acceptable dimension between the cooktop and
elevated oven. The 30" (76.2 cm) dimension may be reduced to not less than 24" (61 cm) when
the wall cabinets in a domestic home are protected with fireproof materials in accordance with
American National Standards - National Fuel Gas Code or in mobile homes when they are
protected with fireproof materials in accordance with the Federal Standard for Mobile Home
Construction and Safety.
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage
space located above the surface units should be avoided. If cabinet storage is to be provided,
the risk can be reduced by installing a range hood that projects horizontally a minimum of 5"
(13 cm) beyond the bottom of the cabinets
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Page 1 of 2
Ref. 8101P623-60
11/16/09
