Maytag MER8875WB1 Parts List
Maytag 30" free standing electric convection range parts list
Hide thumbs
Also See for MER8875WB1:
- Installation instructions manual (12 pages) ,
- User instructions (16 pages)
Advertisement
Quick Links
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10239459 Use & Care Guide
W10239465 Wiring Diagram
W10258095 Installation
Instructions
9762761 Brochure, Safe Tip
4−10 Litho in U.S.A. (ll) (psw)

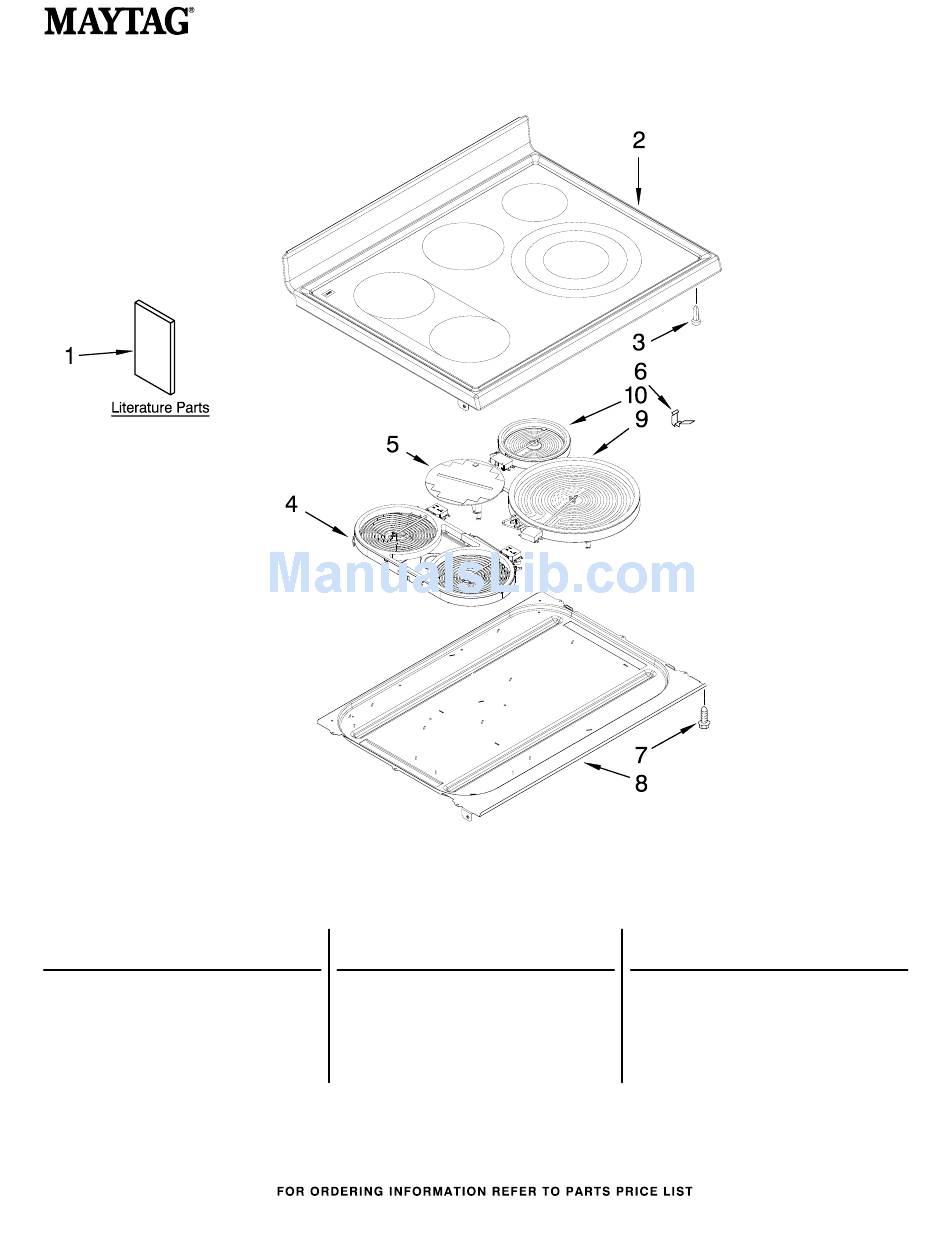

COOKTOP PARTS
For Models: MER8875WW1, MER8875WB1, MER8875WS1
(White)
Illus.
Part
No.
No.
2
W10106413 White
W10106414 Black
3
8010P149−60 Spacer Snap−In (4)
4
8285848 Element, Bridge
5
9762851 Element, Warm
(Black)
(Stainless)
Illus.
DESCRIPTION
No.
Cooktop
10
1
30" FREE STANDING
ELECTRIC RANGE
CONVECTION
Part
No.
DESCRIPTION
6
7803P087−60 Spring, Element
7
3196165 Screw
8 W10170717 Bottom, Burner Box
9 W10162041 Triple (RF)
8273994 Element (RR)
Part No. W10307329 Rev. B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maytag MER8875WB1
Summary of Contents for Maytag MER8875WB1
- Page 1 For Models: MER8875WW1, MER8875WB1, MER8875WS1 Illus. Part DESCRIPTION Literature Parts W10239459 Use & Care Guide W10239465 Wiring Diagram W10258095 Installation Instructions 9762761 Brochure, Safe Tip 4−10 Litho in U.S.A. (ll) (psw) COOKTOP PARTS (White) (Black) Illus. Part DESCRIPTION Cooktop W10106413 White W10106414 Black 8010P149−60 Spacer Snap−In (4)
- Page 2 For Models: MER8875WW1, MER8875WB1, MER8875WS1 Illus. Part DESCRIPTION Panel, Backguard W10097280 Black W10097270 White W10097310 Stainless Steel 3400882 Screw, Switch Switch, Infinte W10169580 Triple (RF) 3148951 (RR) W10149355 Dual (LF) 3148953 (LR) CONTROL PANEL PARTS (White) (Black) Illus. Part DESCRIPTION...
- Page 3 CHASSIS PARTS For Models: MER8875WW1, MER8875WB1, MER8875WS1 (White) (Black) (Stainless) W10307329...
- Page 4 For Models: MER8875WW1, MER8875WB1, MER8875WS1 Illus. Part DESCRIPTION Panel, Side 2618F172−58 White 2618F172−69 Black 3196560 Screw 3601F380−51 Retainer, Side 8002P104−60 Latch Assembly 5 W10243046 Main Back 6 W10205618 Cover, Main Wire 3196178 Screw 7003P145−60 Insulator, Cord 10 W10243045 Cover, Wire (LWR) 4005P704−51 Panel, Access...
-
Page 5: Door Parts
For Models: MER8875WW1, MER8875WB1, MER8875WS1 Illus. Part DESCRIPTION 3823F017−45 Spacer, Handle 2 W10181725 Door, Glass Oven 7106P124−60 Hinge, Door (2) 3601F380−51 Baffel, Retainer 3196178 Screw 8AB 1/2 7902P436−60 Glass, Inner 3801F886−51 Frame, Glass Inner W10307329 DOOR PARTS (White) (Black) Illus. - Page 6 DRAWER AND RACK PARTS For Models: MER8875WW1, MER8875WB1, MER8875WS1 (White) (Black) Illus. Part DESCRIPTION 3605P337−51 Plate, Panel MTG. 3196165 Screw (2) 3405F037−80 Drawer, Storage 7103P082−60 Nut, Lock 5 W10268578 Rack, Oven 7118P032−60 Shaft, Roller 3196165 Screw 7103P082−60 Nut Panel, Drawer...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) For Models: MER8875WW1, MER8875WB1, MER8875WS1 Illus. Part DESCRIPTION REFINISHING MATERIAL 242756 Touch−Up Self−Clean(1/2 Pt) INSULATION 261514 Insulation, Fiberglass (1−1/2" x 24" x 120") 240132 Insulation, Fiberglass (2−1/2" x 22" x 120") PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit (2 Oz.)
