CW-C180ES / CW-C240ES / CW-A180ES / CW-A240ES / CW-SC180ES

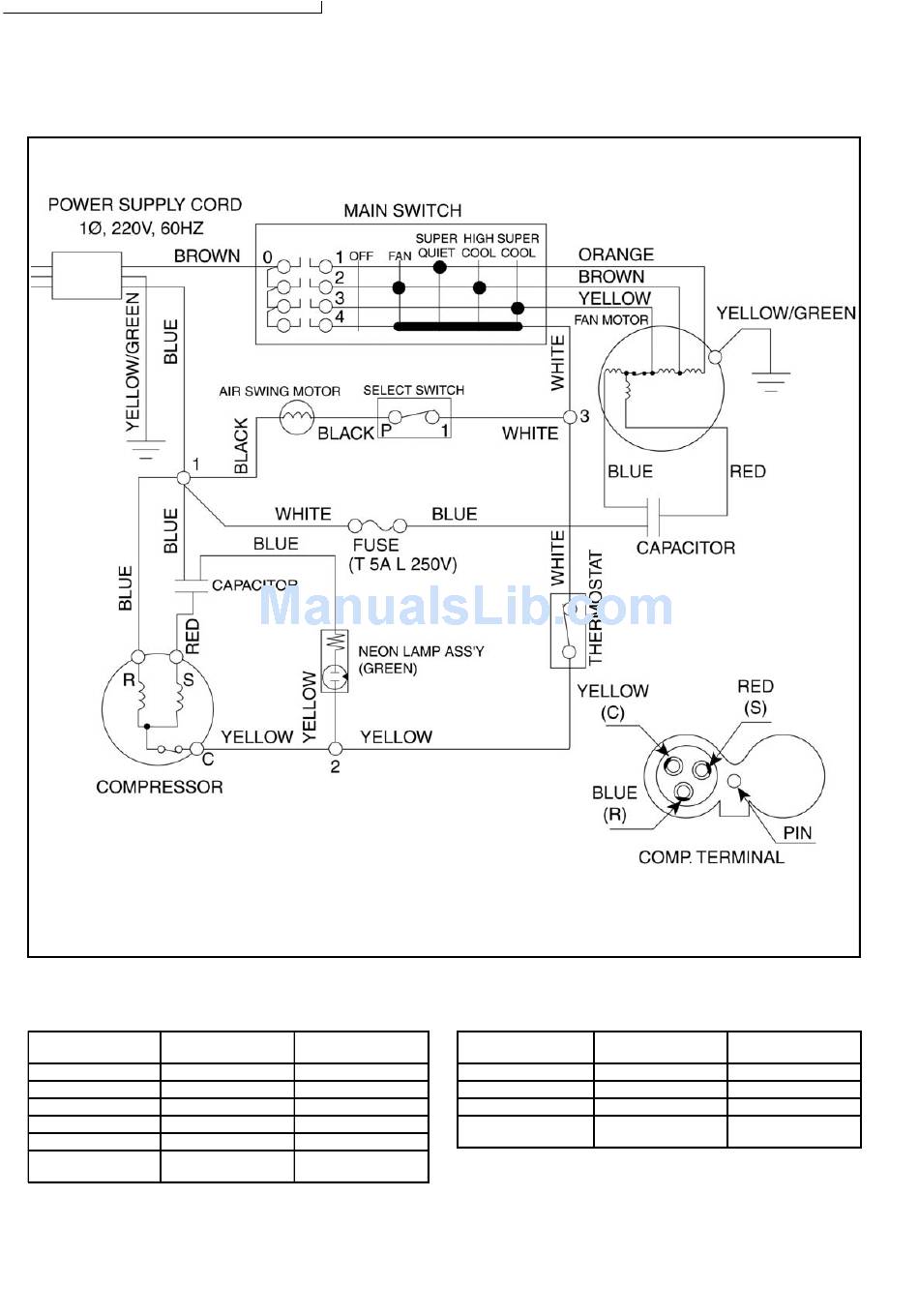

3 Wiring Diagram

3.1. CW-C180ES, CW-C240ES & CW-SC180ES.
3.1.1. Resistance of Fan Motor windings
and the rated Capacitor.
Connection
Blue - Yellow
Yellow - Brown
Brown - Orange
Red - Yellow
Capacitor
CW-C180ES CW-C240ES
CW-SC180ES
CWA951053 CWA951069
34.1 Ω 22.25 Ω
6.5 Ω 4.04 Ω
6.2 Ω 2.97 Ω
41.1 Ω 27.13 Ω
CWA312048 CWA312052
(5µF, 440VAC) (8µF, 440VAC)
3.1.2. Resistance of Compressor
windings and the rated Capacitor.
Connection 2KS282H6CA02
C-R
C-S
Capacitor
(50µF, 370VAC)
Note: Resistance at 20°C of Ambient Temperature.
4
CW-C180ES CW-C240ES
CW-SC180ES
2JS350H4CA02
1.239 Ω 0.934 Ω
1.721 Ω 1.558 Ω
CWA31507 CWA31507
(50µF, 370VAC)
