CW-C180ES / CW-C240ES / CW-A180ES / CW-A240ES / CW-SC180ES
11 Service Information

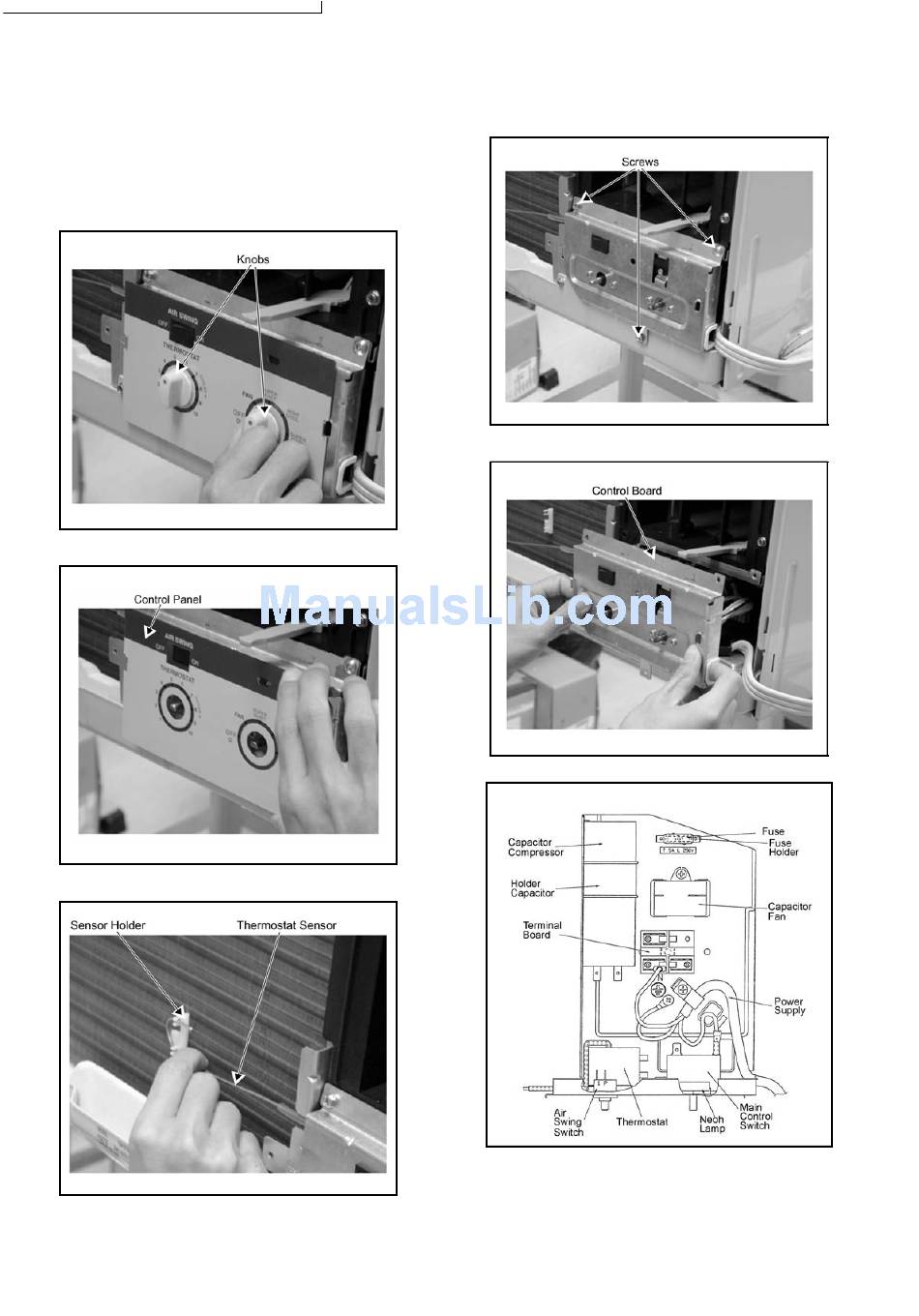

11.1. Removal of the Control Board
1. Remove the Front Intake Grille (refer to page 15).
2. Remove the Air Filter (refer to page 15).
3. Remove the Front Grille (refer to page 15).
4. Remove the 2 knobs.
5. Take off the Control Panel.
6. Release the thermostat sensor from the sensor holder.
7. Loosen the 3 screws of the Control Board.
8. Slide the Control Board out from the chassis.
Control Board Part Location
20
