8 How to Install

8.1. Before installing the air conditioner, please read the following:
8.1.1.

Electrical Work.

• Always use at the rated voltage and with a specific air conditioning circuit.
• Power supply point shall be the place where there is ease for the power disconnection in case of emergency.
• Some installation locations may require installation of a short-circuit breaker.
• Time delay fuse or circuit breaker rating is 16 Amp. for CW-C180ES/CW-A180ES/CW-SC180ES and 25 Amp. for CW-
C240ES/CW-A240ES.
• Nominal cross sectional area of power supply wire must be 3 core x 3.5 mm
• The power supply must be from an independent circuit.
• All electrical installations must be made in accordance with local wiring and safety regulations wherever applicable.
• There must be a double pole switch with minimum of 3 mm contact gap in the fixed installation circuit (Applicable for models
without power supply plug only).
8.1.2.

Select the Best Location.

• Install the unit at the nearest power outlet.
• The air conditioner should be installed in a dry place where there are no draughts.
• Condensation from the air conditioner must be drained into an appropriate location.
• Do not install in a location where flammable gas leaks is a possibility.
• Usage in locations where the air is salty such as coastal areas or near hot spas, or where sulphurous gas is generated, may
lead to a malfunction.
• Do not install this appliance in a laundry room or other locations where water may drip from the ceiling, etc.
• Select an installation location which is rigid and strong enough to support or hold the unit and select a location for easy
maintenance.
8.2.

Preparation for Installation.

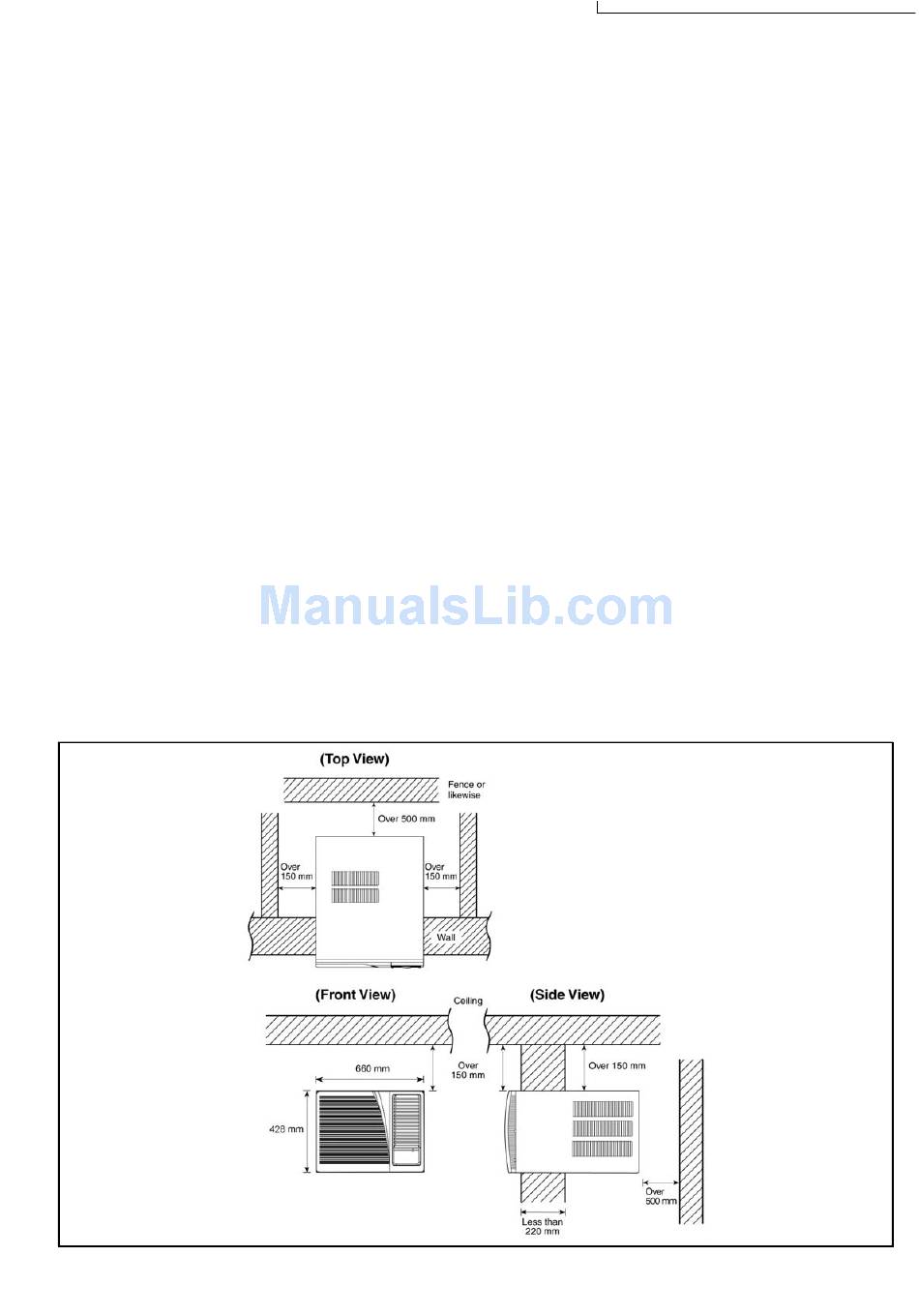

• There should not be any obstacles surrounding the unit.
• Prepare an installation hole that is only slightly bigger than the cabinet size.
CW-C180ES / CW-C240ES / CW-A180ES / CW-A240ES / CW-SC180ES
2
or above.
13
