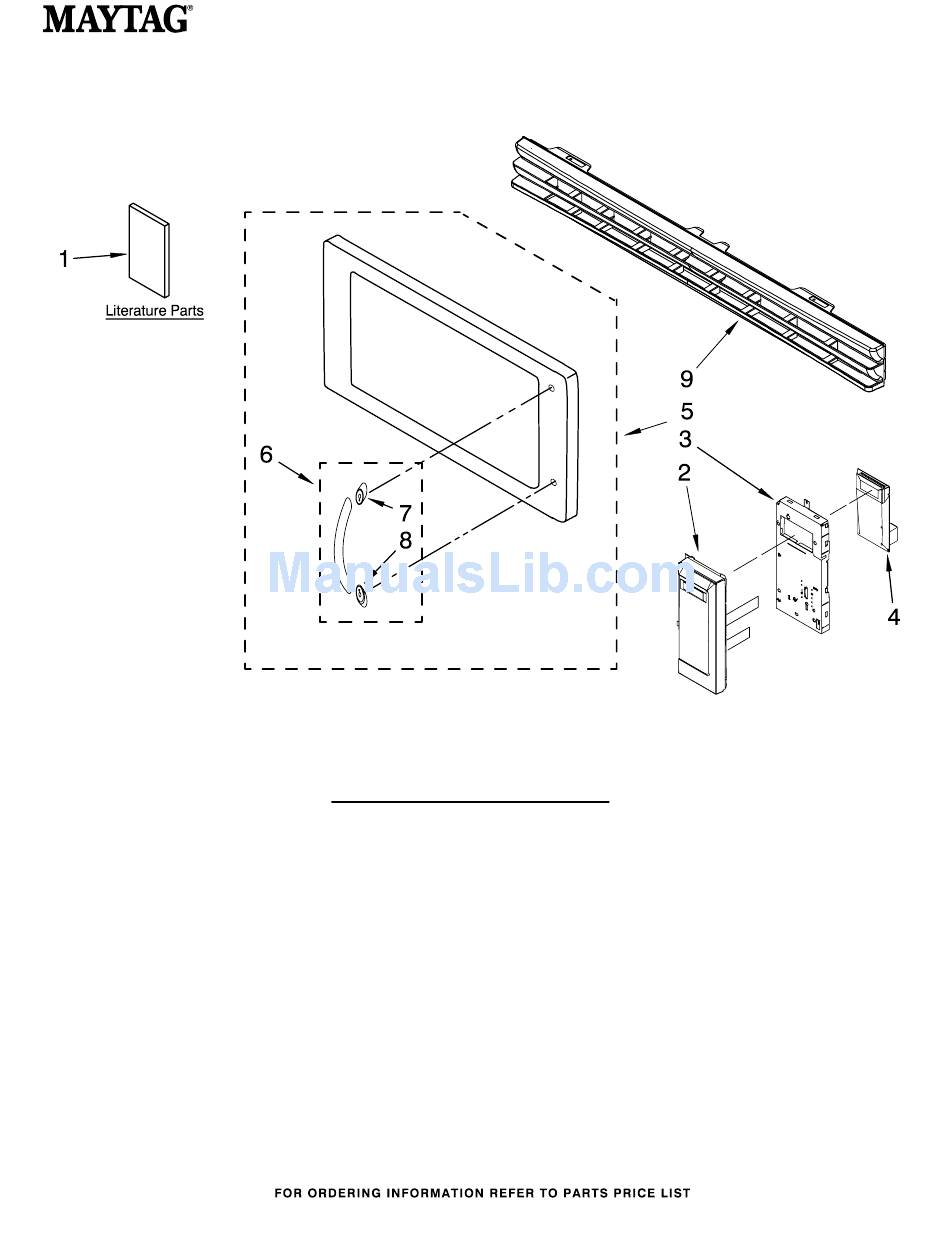

CONTROL PANEL PARTS
For Models: MMV5207BAW15
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10177934 U & C Guide
W10182043 Tech Sheet, Slim
2
Panel Asy, Control
Membrane, Lens and
Bracket
DE94−01386K White
3 W10181469 Bracket, Control
4 W10198000 Microcomputer
5
Complete Door
W10197621 White
6 W10189509 Handle, Door
7 W10189545 Handle, Base Upper
8 W10189546 Handle, Base Lower
9
Grille Assembly
DE64−01454B White
(White)
1
Microwave Oven/Hood
2.0 Cu. Ft.
Part No. W10197408 Rev. A
