Maytag MMV4203DB00 Parts List

Maytag microwave oven/hood parts list
Hide thumbs


Advertisement

For Models: MMV4203DW00, MMV4203DB00, MMV4203DS00, MMV4203DQ00
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10188231 U & C Guide
W10188234 Tech Sheet, Slim
W10188232 Label, Cook Guide
W10188238 Install, Instruct
2
Panel Asy, Control
Membrane, Lens and
Bracket
W10258188 Black
W10258189 White
W10258190 Stainless
W10258191 Bisque
4−09 Litho in U.S.A. (rek) (eeb)

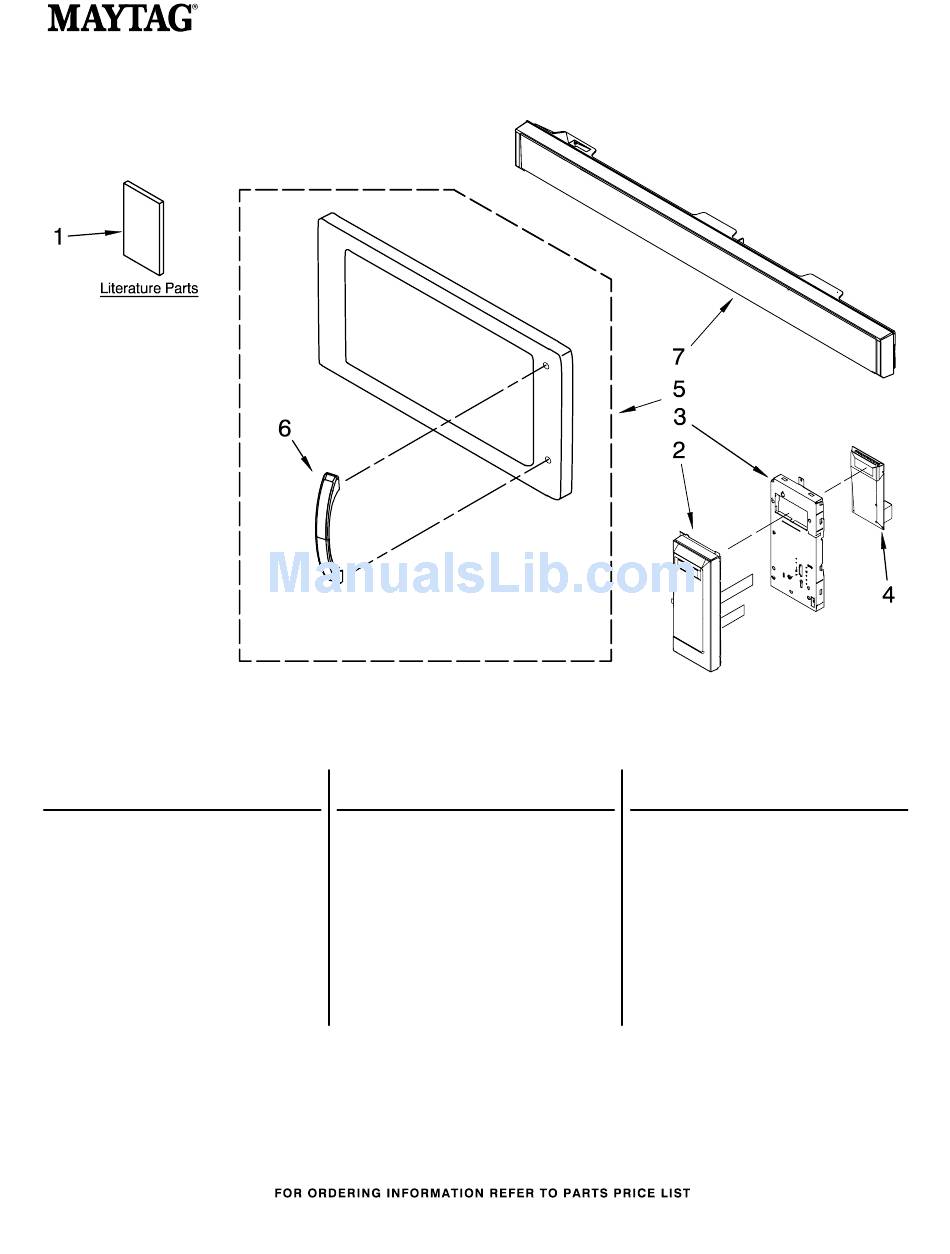

CONTROL PANEL PARTS

(White)
(Black)
Illus.
Part
No.
No.
DESCRIPTION
3 W10258165 Bracket, Control
4 W10258171 Microcomputer
5
Complete Door
W10258192 Black
W10258193 White
W10258194 Stainless
W10258196 Bisque
(Stainless)
Illus.
No.
6
7
1
(Bisque)
MICROWAVE OVEN/HOOD
2.0 Cu. Ft.
Part
No.
DESCRIPTION
Handle, Door
W10258181 Black
W10258184 White
W10258185 Stainless
W10258196 Bisque
Grille Assembly
W10258215 Black
W10258216 White
W10258217 Stainless
W10258218 Bisque
Part No. W10270436 Rev. A
