For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
W10184365 Energy Guide
Y6920186 Guide, Use & Care
2
Bracket, Hinge
W10163109 Left
W10163108 Right
5−08 Litho In U.S.A. (CJJ) (eeb)

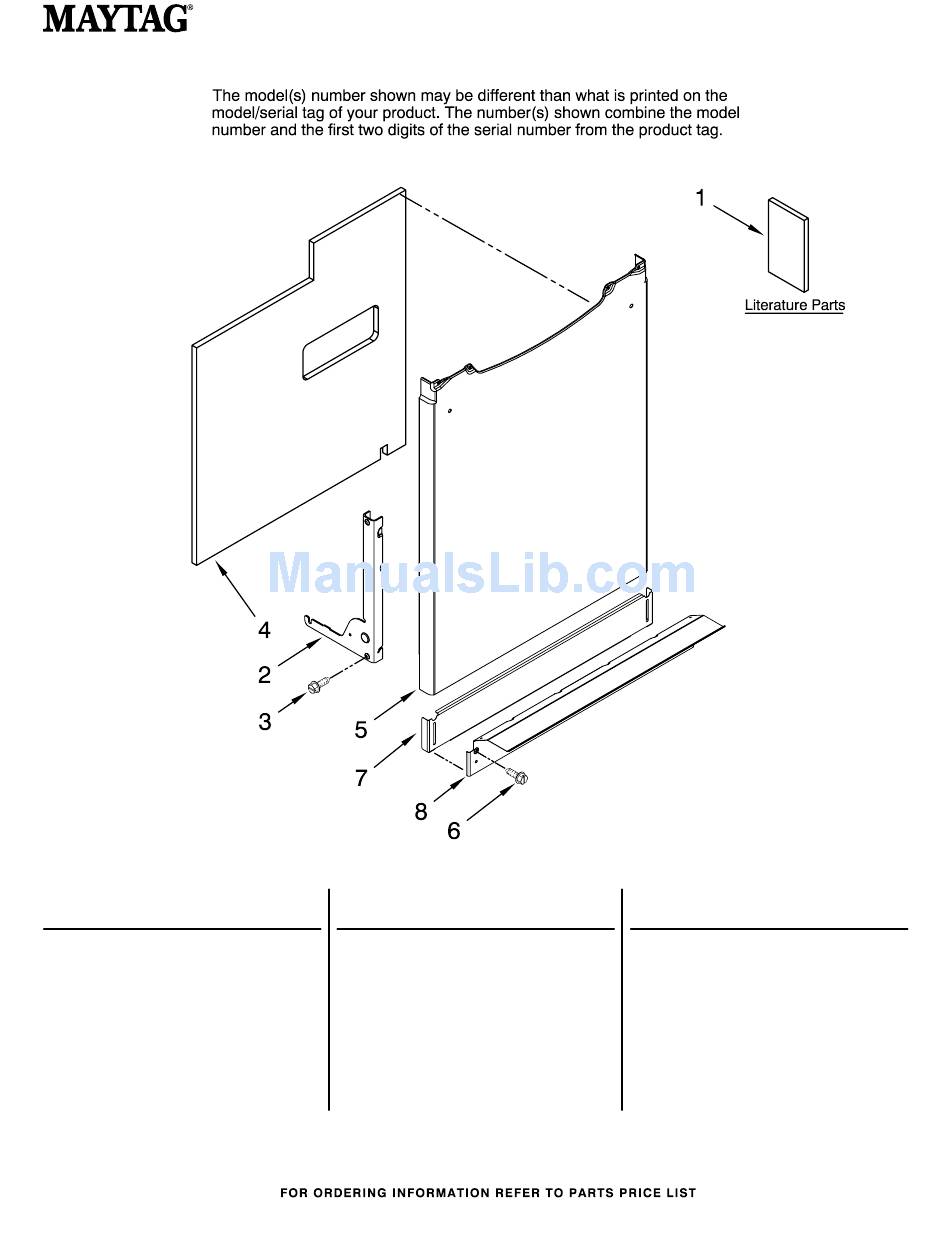

DOOR AND PANEL PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
3
99001075 Screw
4
Y99002587 Pad, Foam
5
Panel, Front
99002768 Black
99002770 White
99002769 Bisque
99002771 Stainless
6
Screw
912366 Black
99001194 White
(Bisque)
Illus.
No.
7
8
1
(Stainless)
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Panel, Toe
99002765 Black
99002766 White
99002767 Bisque
Support, Front
99003152 Black
99003153 White
Part No. W10208589 Rev. A
