INSTALLATION
MANUAL
IMPORTANT: Dimensions Shown in Both Inches and Centimeters.
IMPORTANT:
Be sure the appliance being installed is equipped for the gas to be supplied. Refer to serial plate on
underside of burner box for this information. Do not attempt to convert this appliance for use with a gas other than the type
specified.
30² MODEL
36² MODEL
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE, MAINTENANCE
OR USE OF RANGE CAN RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.
SEALED GAS COOKTOPS
Models: MGC5430 & MGC5536
NOTICE TO INSTALLER: Leave these instructions with the appliance.
NOTICE TO CONSUMER: Retain these instructions for future reference.
SPECIAL WARNING:
403 WEST FOURTH STREET, NORTH · NEWTON, IA 50208

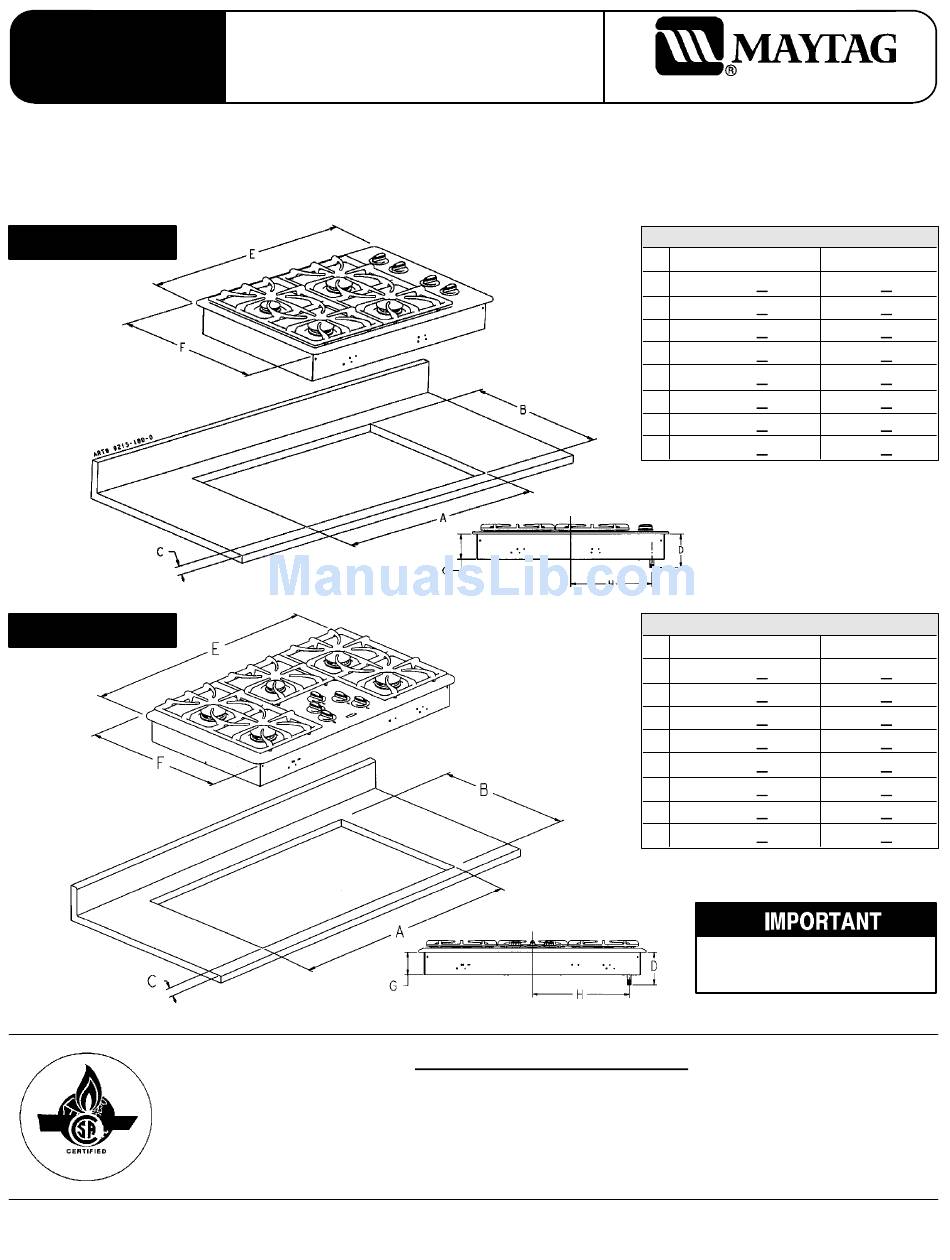

DIMENSIONS
inches
A
28 1/2
+ 1/16
B
19 15/16 + 1/16
C
2 1/8
+ 1/16
D
5 1/4
+ 1/16
E
29 1/2
+ 1/16
F
21 1/2
+ 1/16
G 3 13/16 + 1/16
H
12 1/4
+ 1/16
DIMENSIONS
inches
A
34 1/2
+ 1/16
B
19 15/16 + 1/16
C
2 1/8
+ 1/16
D
5 1/4
+ 1/16
E
36
+ 1/16
F
21
+ 1/16
G 3 13/16 + 1/16
H
15 1/4
+ 1/16
CUTOUT DIMENSIONS
ARE CRITICAL
cm
72.4 + 0.2
50.6 + 0.2
5.4 + 0.2
13.3 + 0.2
74.9 + 0.2
54.6 + 0.2
9.7 + 0.2
31.1 + 0.2
cm
87.6 + 0.2
50.6 + 0.2
5.4 + 0.2
13.3 + 0.2
91.4 + 0.2
53.3 + 0.2
9.7 + 0.2
38.7 + 0.2
