Maytag MGC4430BD Dimension Manual

PRODUCT MODEL NUMBERS
MGC4430BD MGC4436BD
Gas supply: The installation of this appliance must
conform with local codes, or in the absence of local
codes, with the latest edition of the National Fuel Gas
Code ANSI Z223.1 USA or current CAN/CGA-B149
INSTALLATION CODE.
This appliance is designed to operate at a pressure of 5"
of water column (36" models), 4" of water column (30"
models) on natural gas or, if converted for use with LP
gas (propane or butane), 10 " water column. Make sure
this appliance is supplied with and adjusted for the type
of gas for which it is designed.
This appliance was adjusted at the factory for use with
natural gas. If, at any time, this appliance is to be used
with a different type of gas, all of the conversion
adjustments described in the installation instructions
must be made by a qualified service technician before
attempting to operate the cooktop on that gas. Natural
gas should be supplied to the appliance pressure
regulator at a line pressure between 6" – 14" of water
column or, if converted for LP gas, between 11"– 14".
All supply piping, except as noted, should use common
National Pipe Thread (N.P.T.). For all pipe connections
use an approved pipe joint compound resistant to the
action of LP gas.
The supply line must be equipped with a manual shutoff
valve. This valve should be located in the same room but
external to the range. It should be in a location that
allows ease of opening and closing.
Electrical: See page 2.
PRODUCT DIMENSIONS – 36" MODEL
F
C
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

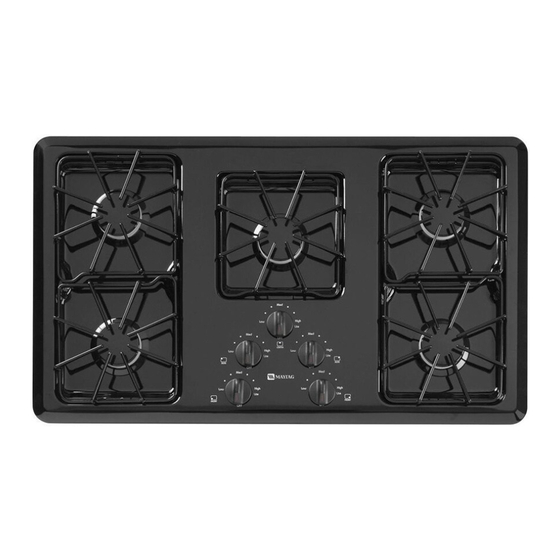

30" (76.2 cm) and 36" (91.4 cm) Sealed Gas Cooktop
E
A
PRODUCT DIMENSIONS – 30" MODEL
F
C
G
G
B
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
E
A
H
Dimensions
"A" 28-1/2" (72.4 cm)
"B" 19-15/16" (50.6 cm)
"C" 2-1/8" (5.4 cm)
"D" 5-1/4" (13.3. cm)
"E" 29-1/2" (74.9 cm)
"F" 21" (53.3 cm)
"G" 3-13/16" (9.7 cm)
"H" 12-1/4" (31.1 cm)
H
Dimensions
"A" 34-1/2" (87.6 cm)
"B" 19-15/16" (50.6 cm)
"C" 2-1/8" (5.4 cm)
"D" 5-1/4" (13.3. cm)
"E" 36" (91.4 cm)
"F" 21" (53.3 cm)
"G" 3-13/16" (9.7 cm)
"H" 15-1/4" (38.7 cm)
B
IMPORTANT: Cutout
dimensions are critical.
Dimensions must be
measured and cut
accurately to within
±1/16" (0.159 cm) to
ensure proper fit.
D
IMPORTANT: Cutout
dimensions are critical.
Dimensions must be
measured and cut
accurately to within
±1/16" (0.159 cm) to
ensure proper fit.
Page 1 of 2
Ref. W10187822
08-07-08
