Asus PRIME X670-P WIFI Manual

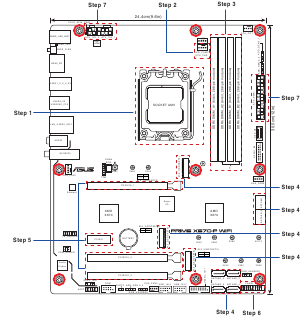

Motherboard Layout

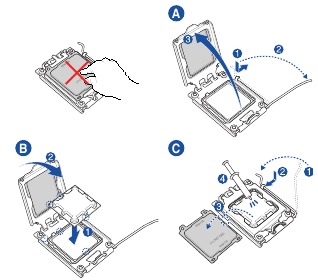

- Install the CPU
![Motherboard Layout - Step 2]( "Asus - PRIME X670-P WIFI - Motherboard Layout - Step 2")

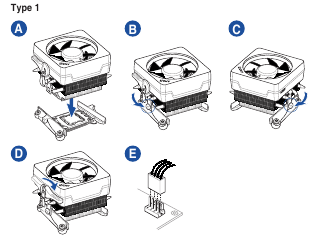

- Install the CPU fan
![Motherboard Layout - Step 3]( "Asus - PRIME X670-P WIFI - Motherboard Layout - Step 3")
- Install memory modules
![]()
- Install storage devices. To install M.2, refer to user guide.
![]()
- Install expansion card(s)
![]()
- Install the system panel connector
![]()

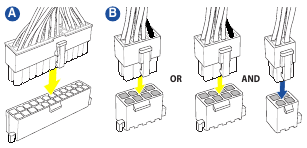

- Install ATX power connectors
![Motherboard Layout - Step 4]( "Asus - PRIME X670-P WIFI - Motherboard Layout - Step 4")

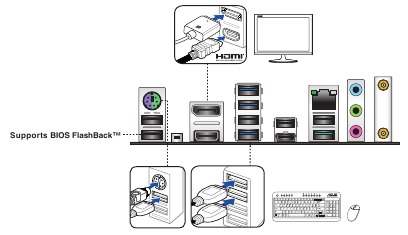

- Connect input/output devices
![Motherboard Layout - Step 5]( "Asus - PRIME X670-P WIFI - Motherboard Layout - Step 5")
- Power on the system and install operating system and drivers
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Asus PRIME X670-P WIFI Manual
