Asus PRIME X670E-PRO WIFI Manual

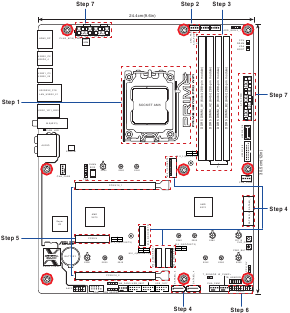

Product Layout
- Install the CPU
- Install the CPU fan
- Install memory modules
- Install storage devices. To install M.2, refer to user guide.
- Install expansion card(s)
- Install the system panel connector
- Install ATX power connectors
Quick Start

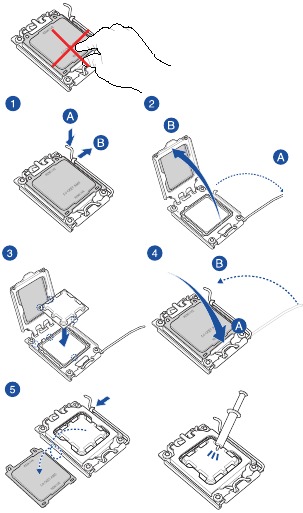

- Install the CPU
![Quick Start - Step 1 - Installing the CPU]( "Asus - PRIME X670E-PRO WIFI - Quick Start - Step 1 - Installing the CPU")
- Install the CPU fan
Type 1
Type 2

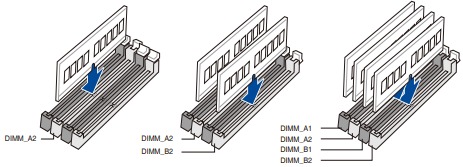

- Install memory modules
![Quick Start - Step 2 - Installing memory modules]( "Asus - PRIME X670E-PRO WIFI - Quick Start - Step 2 - Installing memory modules")
- Install storage devices
To install M.2, refer to user guide. - Install expansion cards
![]()
- Install the system panel connector
![]()

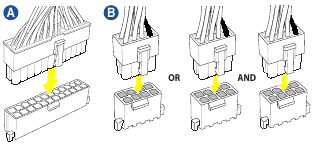

- Install ATX power connectors
![Quick Start - Step 3]( "Asus - PRIME X670E-PRO WIFI - Quick Start - Step 3")

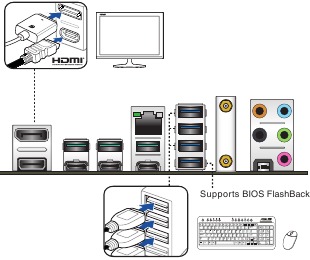

- Connect input/output devices
![Quick Start - Step 4 - Connecting i/o devices]( "Asus - PRIME X670E-PRO WIFI - Quick Start - Step 4 - Connecting i/o devices")
- Power on the system and install operating system and drivers
If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at https://www.asus.com/support/.
