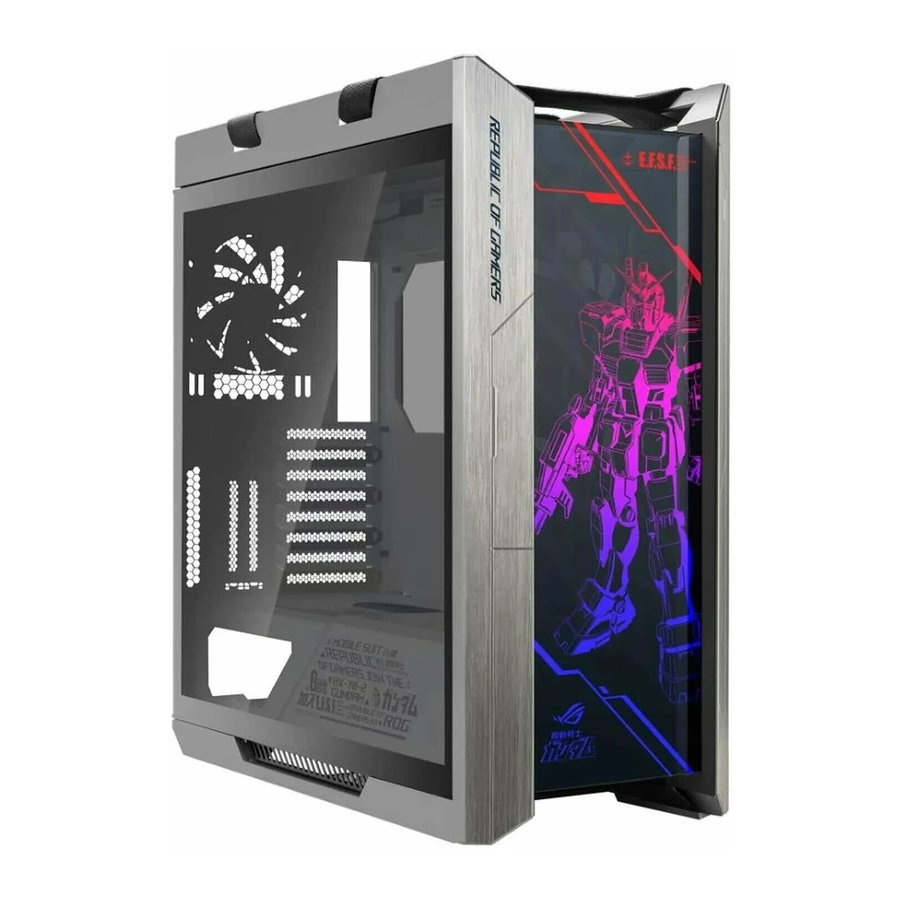

Asus ROG Strix Helios GX601 Gundam Edition Manual

Contents

1 ACCESSORY KIT CONTENTS
2 INSTALLATION GUIDE
3 ADDITIONAL INFORMATION
4 OPTIONAL UPGRADES
5 WARRANTY
6 Download manual
7 In Other Languages

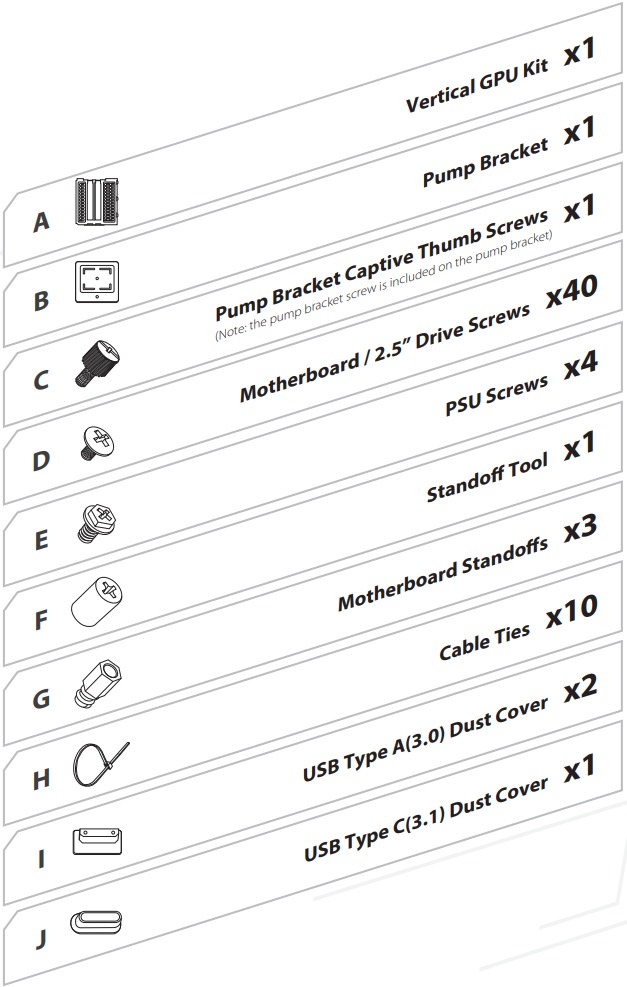

ACCESSORY KIT CONTENTS

INSTALLATION GUIDE

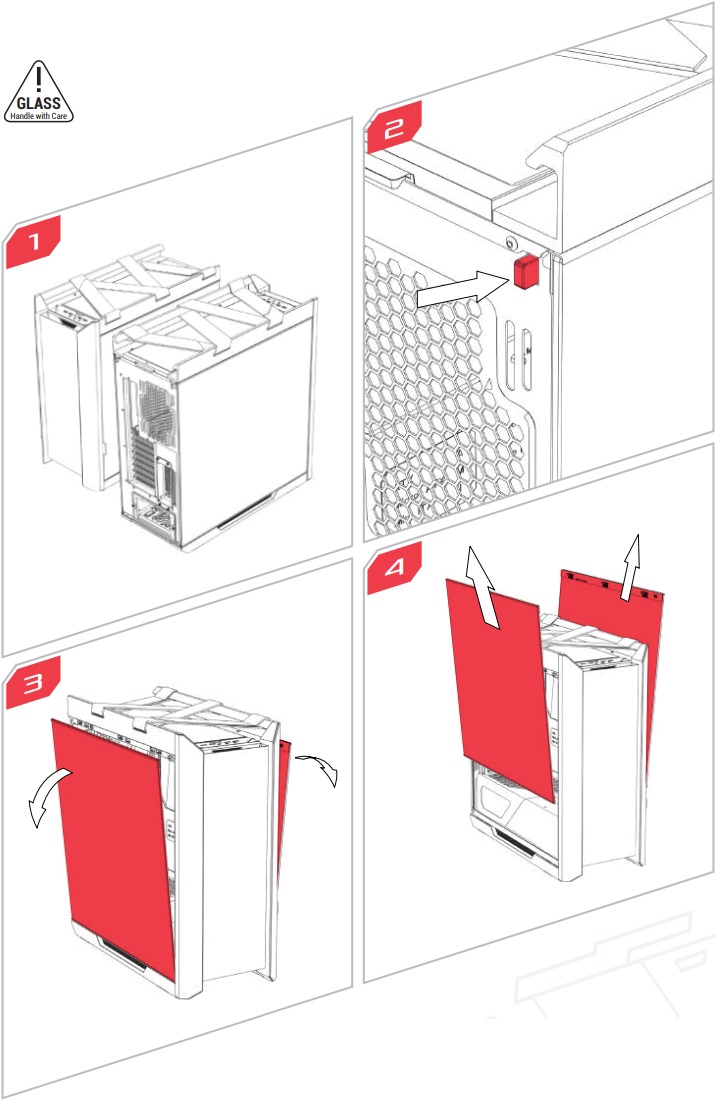

REMOVE THE SIDE PANELS

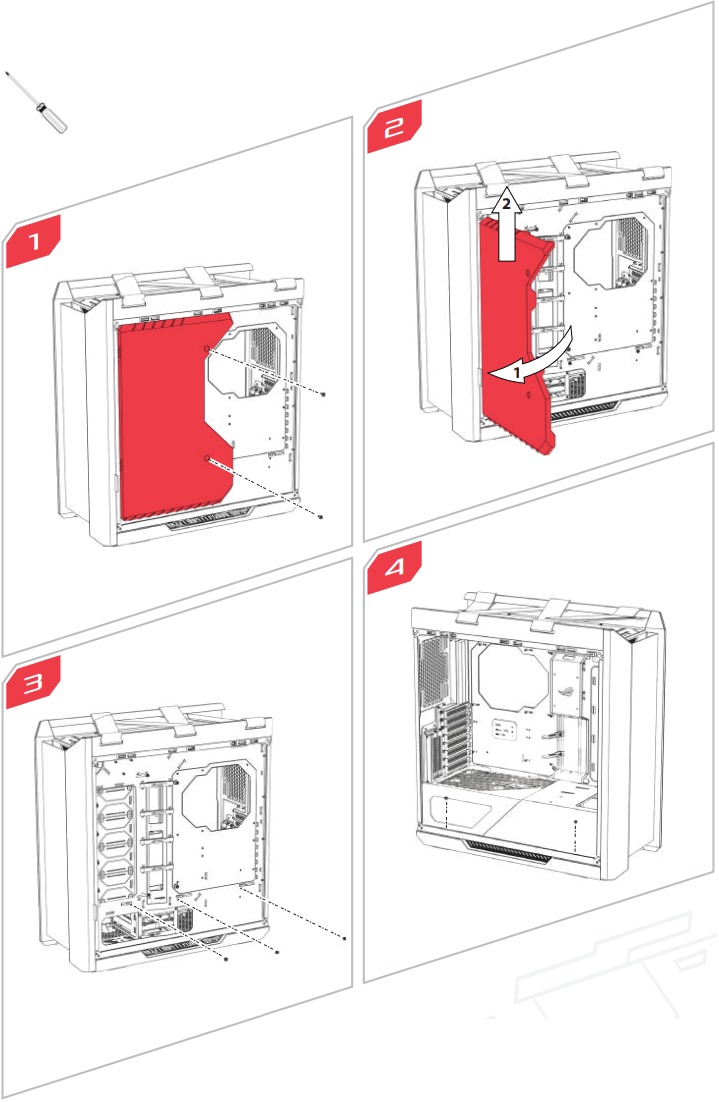

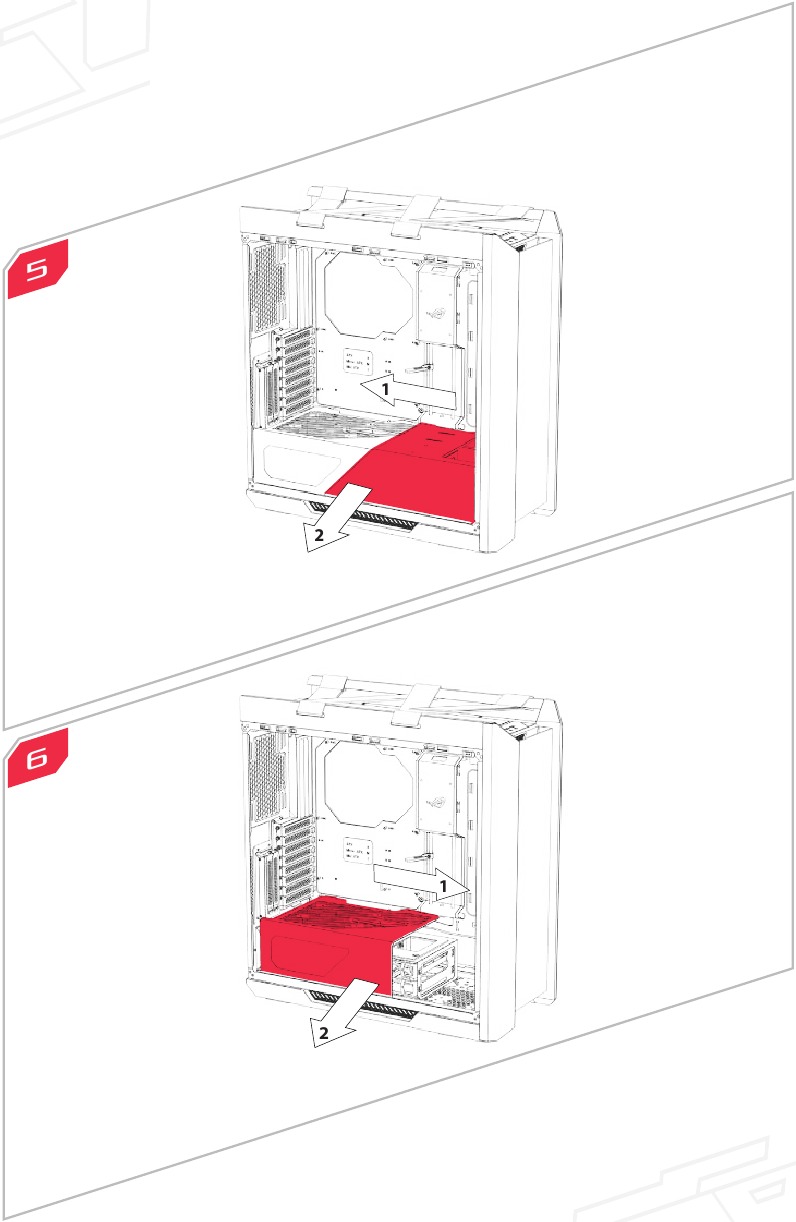

REMOVE THE PSU COVER

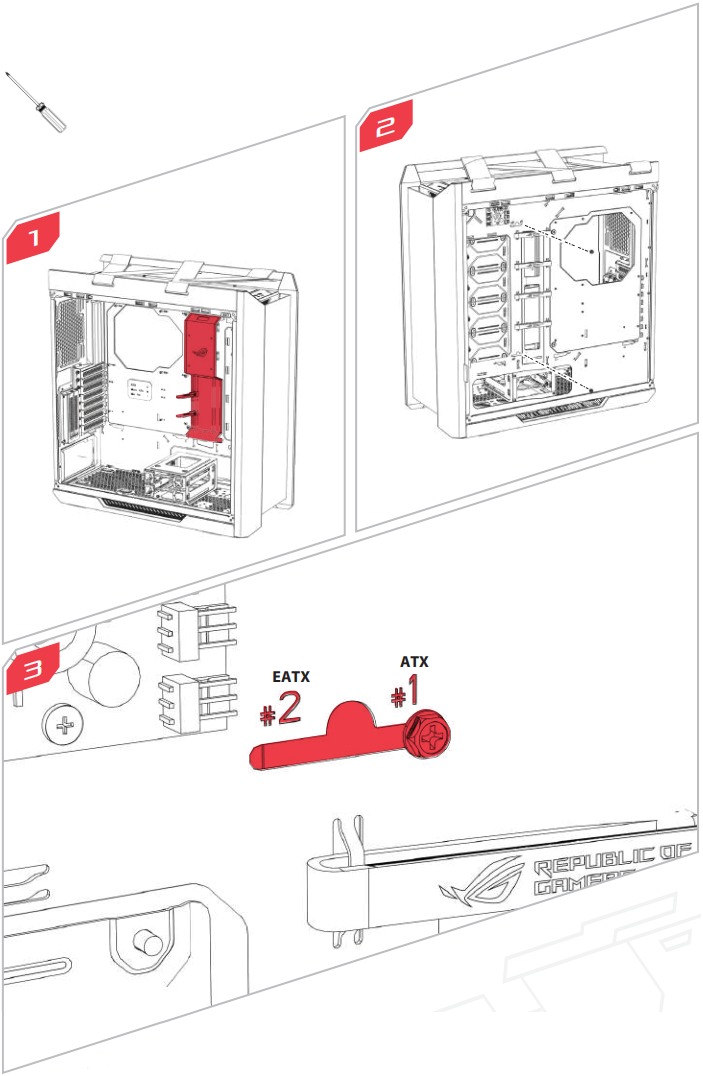

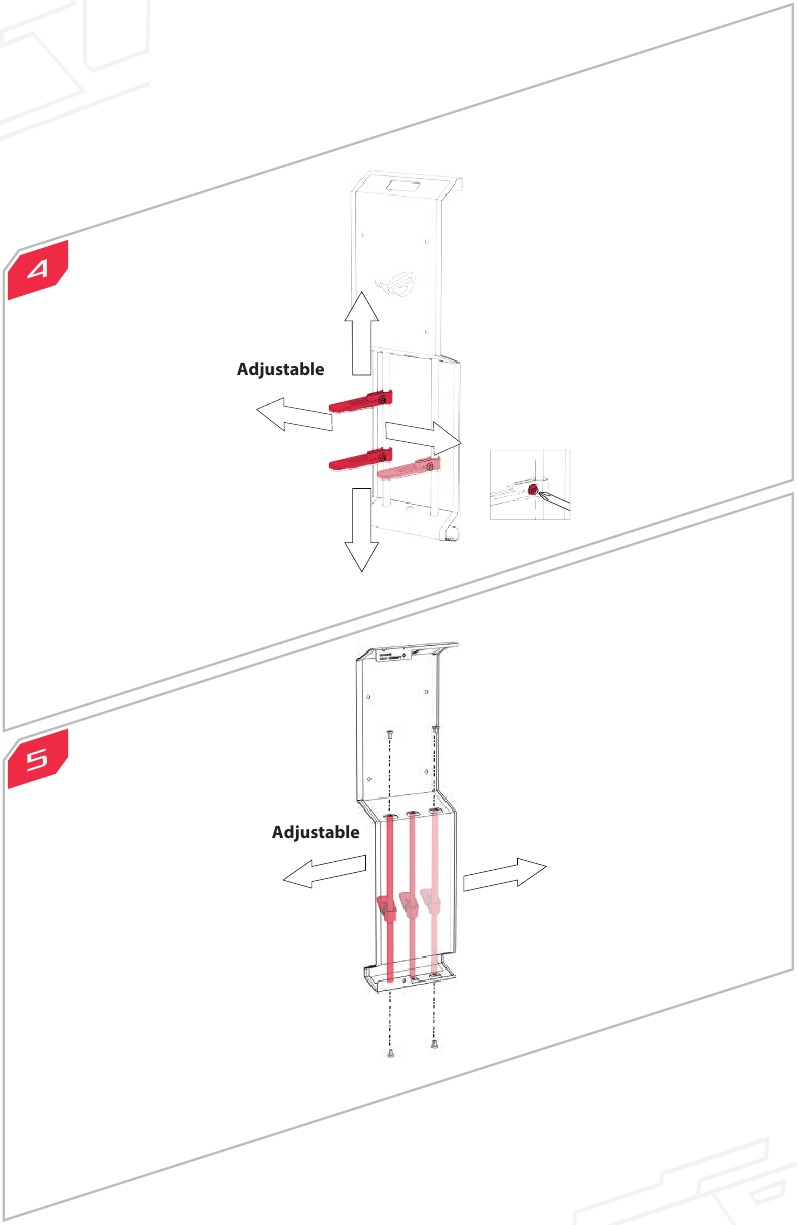

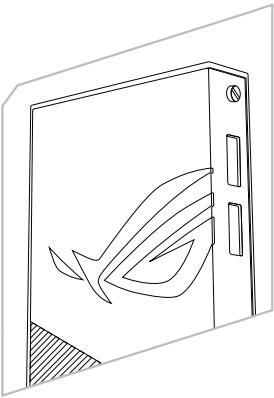

MULTIFUNCTION COVER

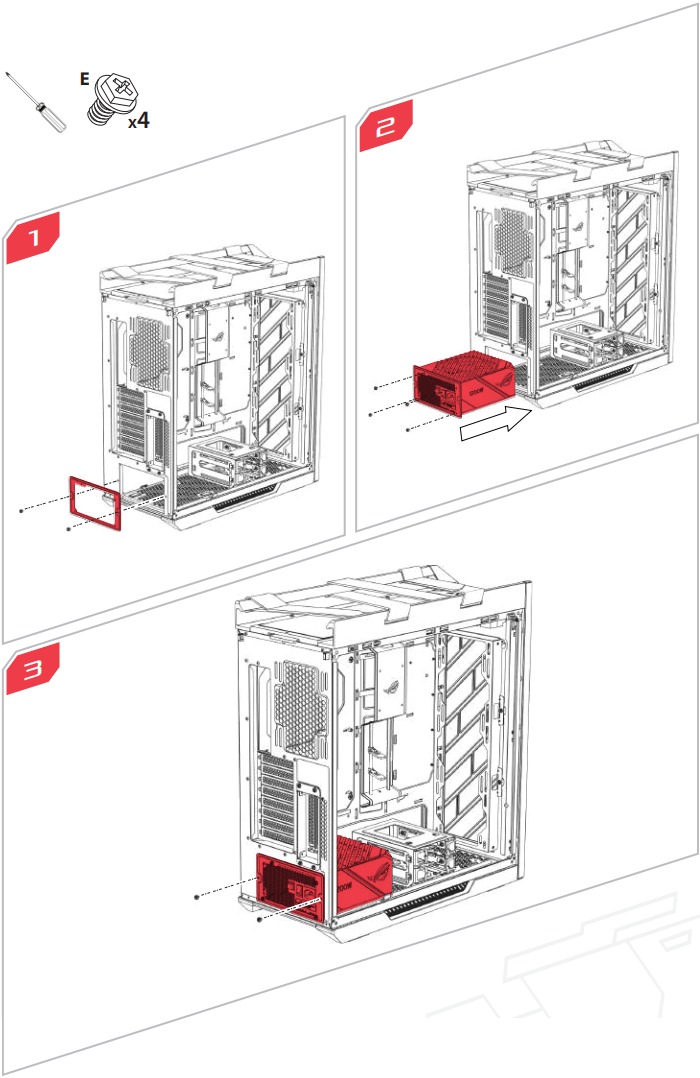

INSTALL THE POWER SUPPLY UNIT

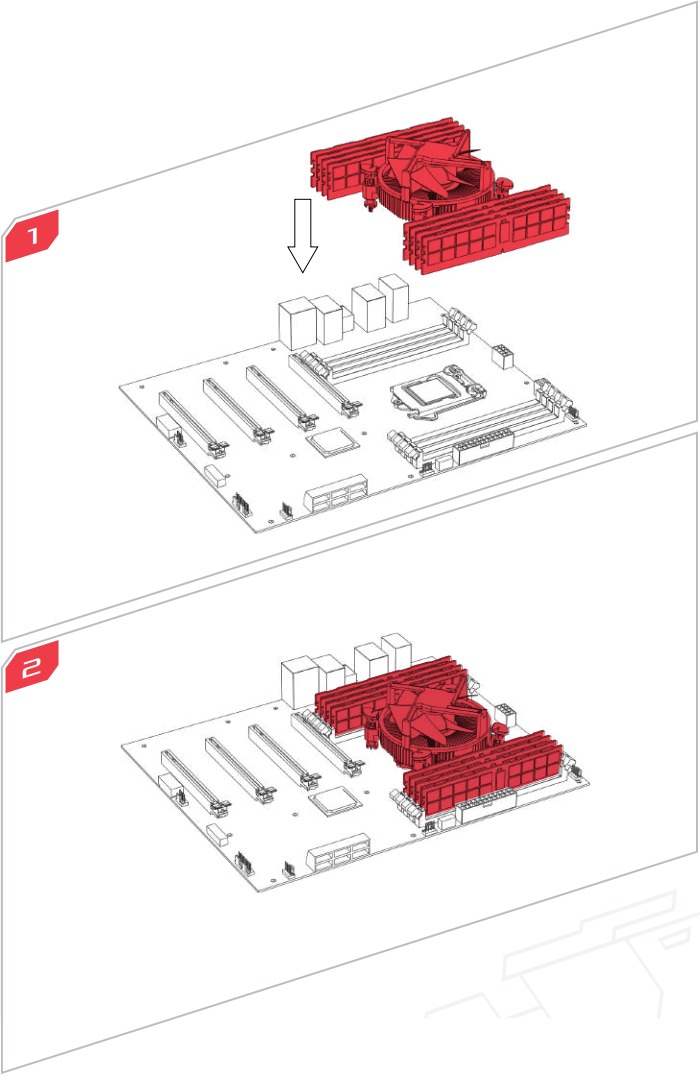

INSTALL THE COOLER & RAM ON THE MOTHERBOARD

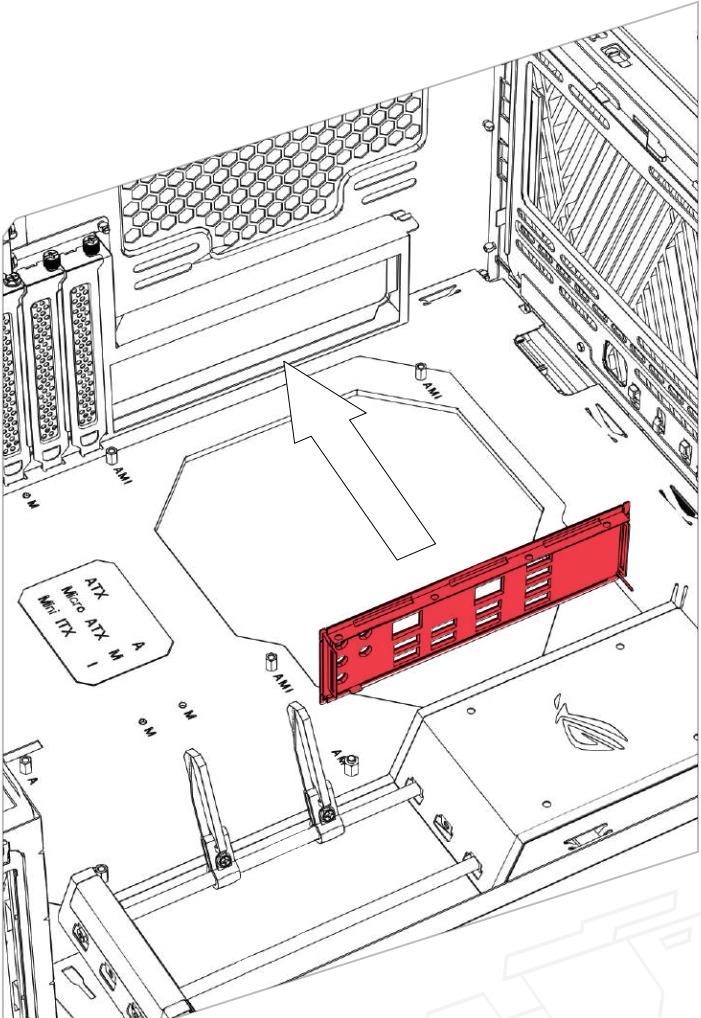

INSTALL THE I/O SHIELD

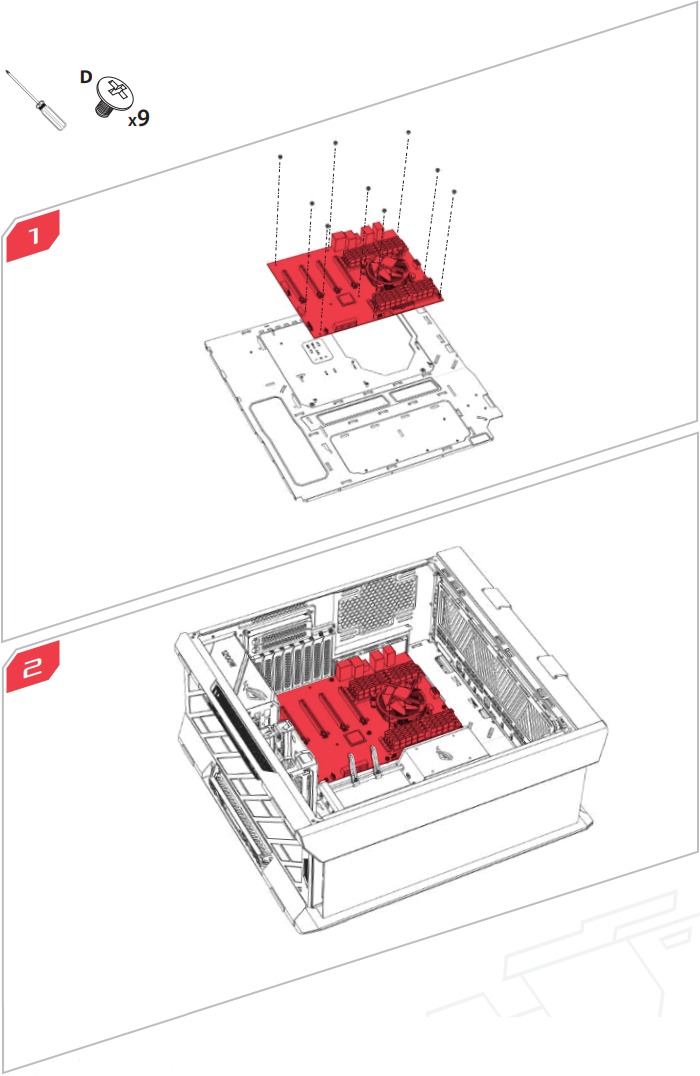

INSTALL THE MOTHERBOARD UNIT

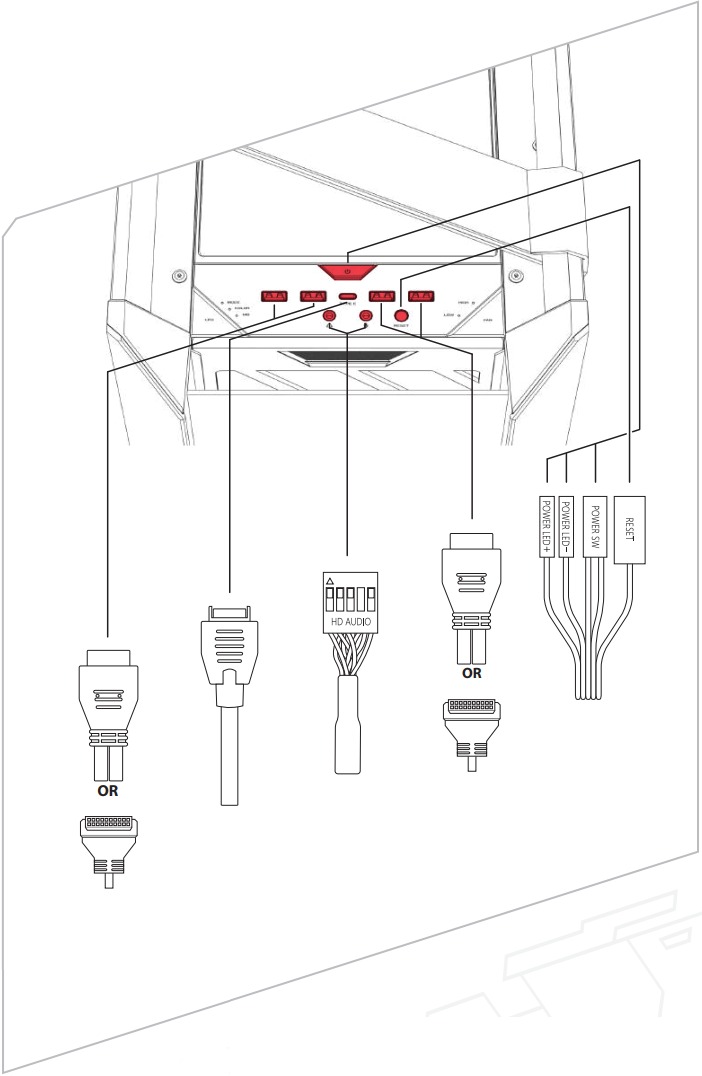

ATTACH THE FRONT I/O CONNECTORS

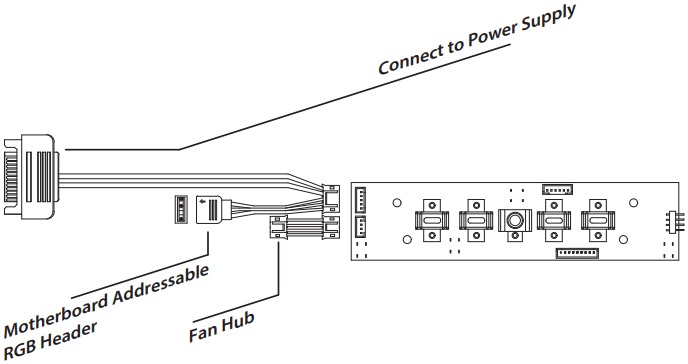

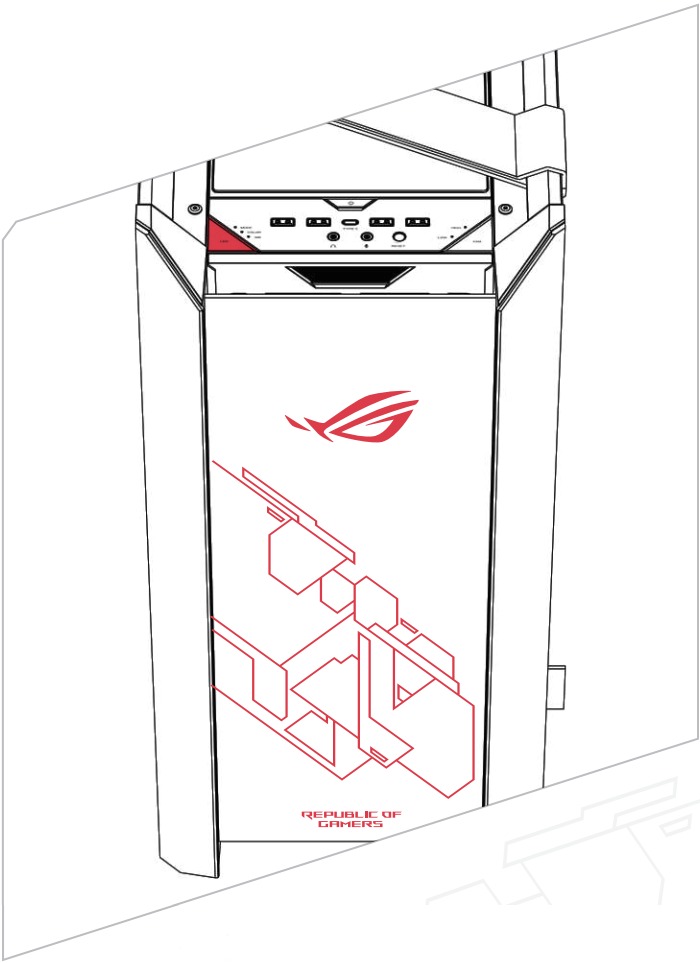

SYNC LIGHTING WITH ADDRESSABLE RGB COMPATIBLE MOTHERBOARDS

Turn On	Press LED button for 6 seconds
Turn Off	Press LED button for 6 seconds
Mode Change	Press LED button for 2 seconds
Back to Default	Press LED button for 4 seconds
MB	Sync up with M/B Lighting
Mode
Color	White/Red/Orange/Yellow/Green/BLue/Cyan/Purple/Rainbow
Default	Mode: Rainbow Color: Rainbow

*MB mode only works when connecting control board to MB Addressable RGB header
*Compatible with ARUA Sync

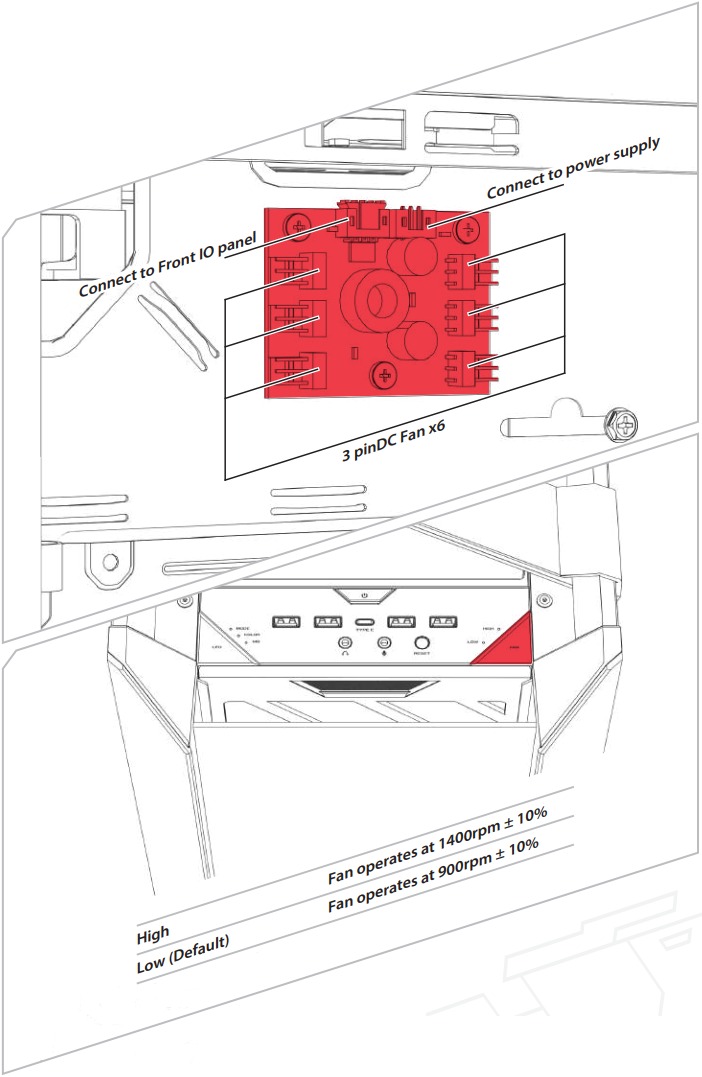

FAN HUB CONNECTIVITY

*The maximum output of Fan connectors is 2.6A

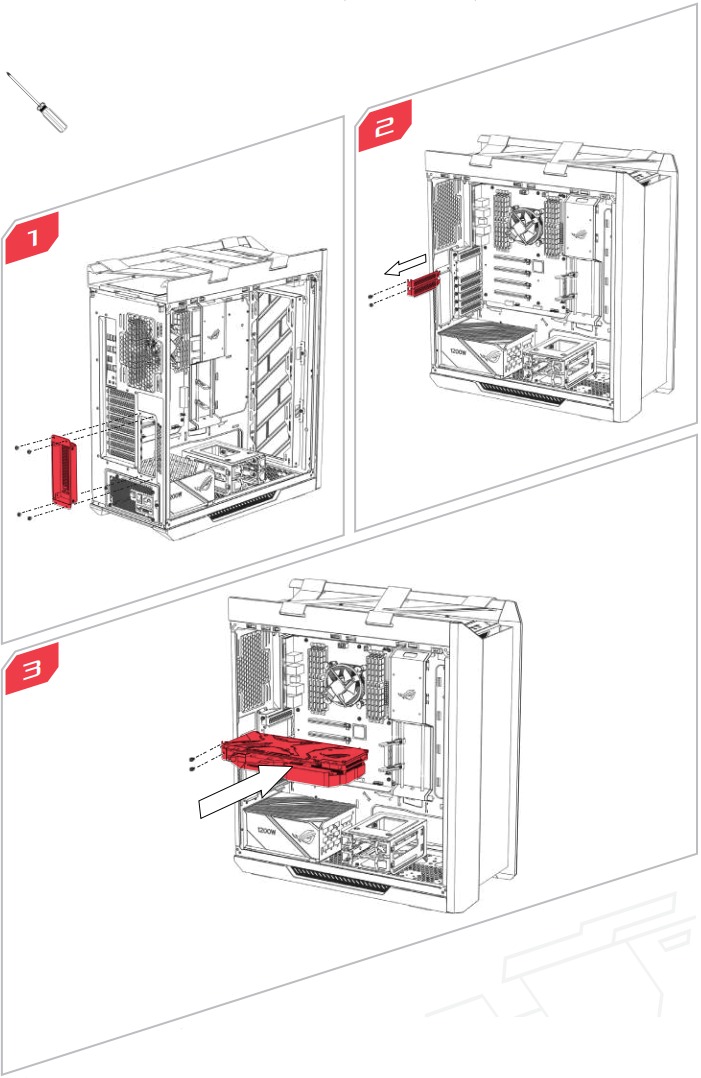

INSTALL THE PCI-E CARD

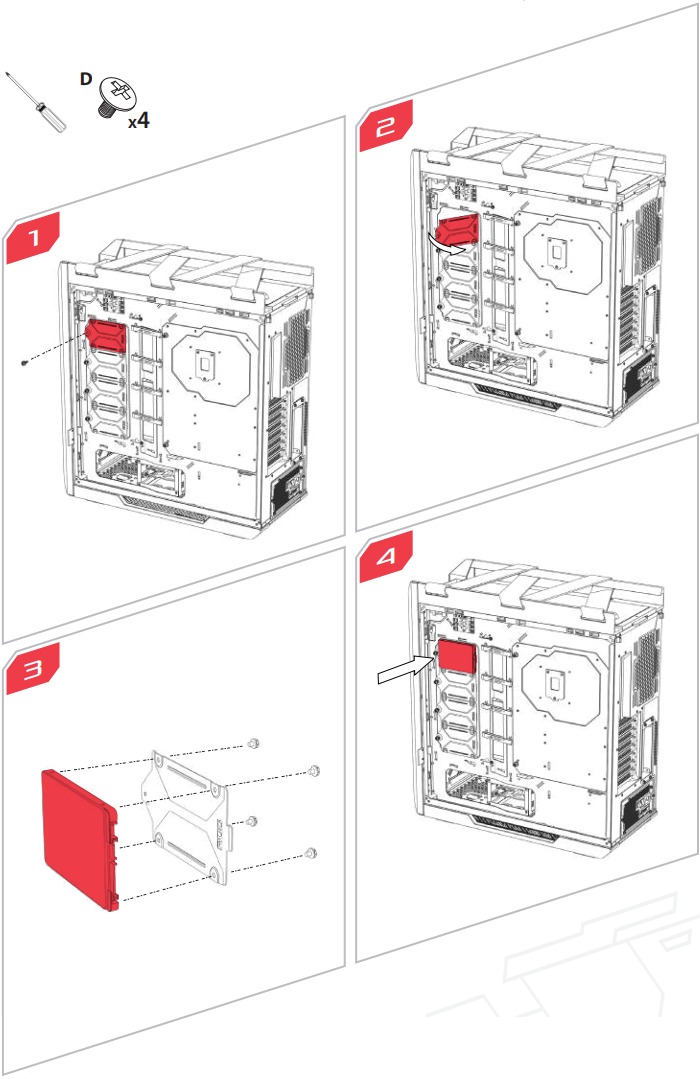

INSTALL THE 2.5 DRIVES

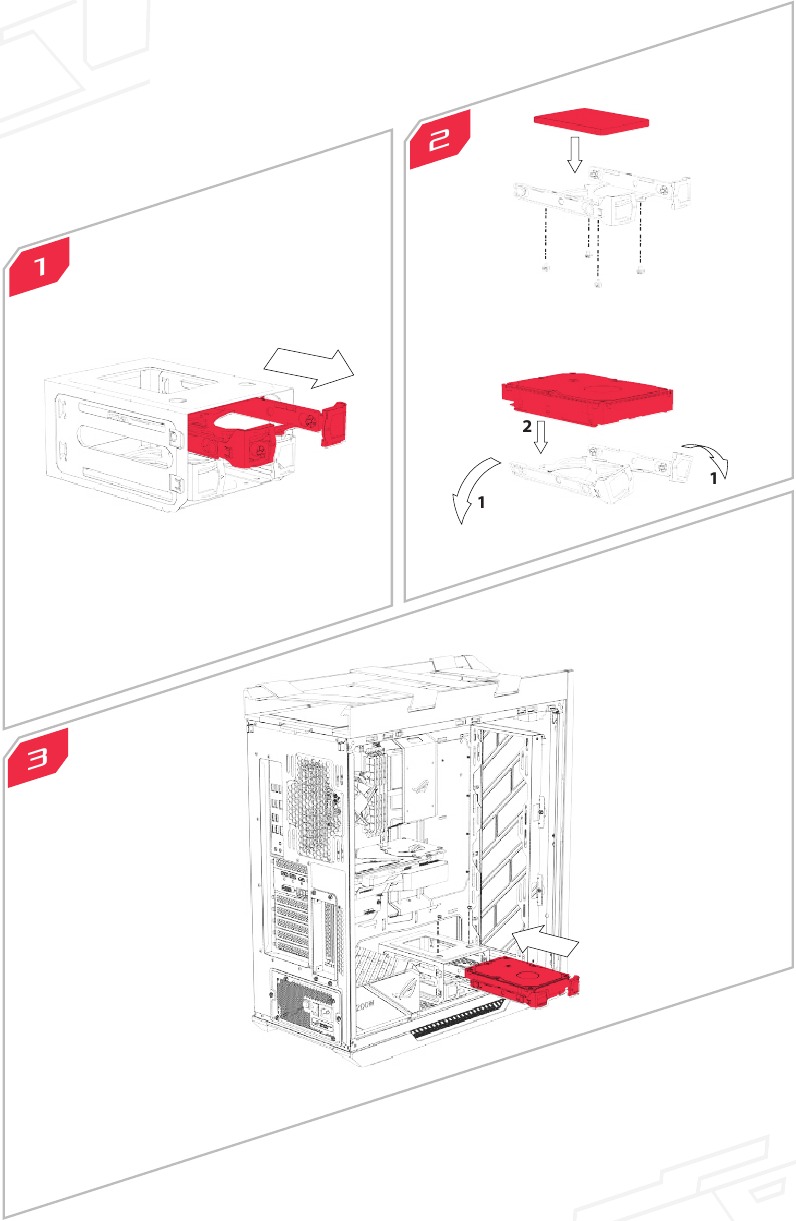

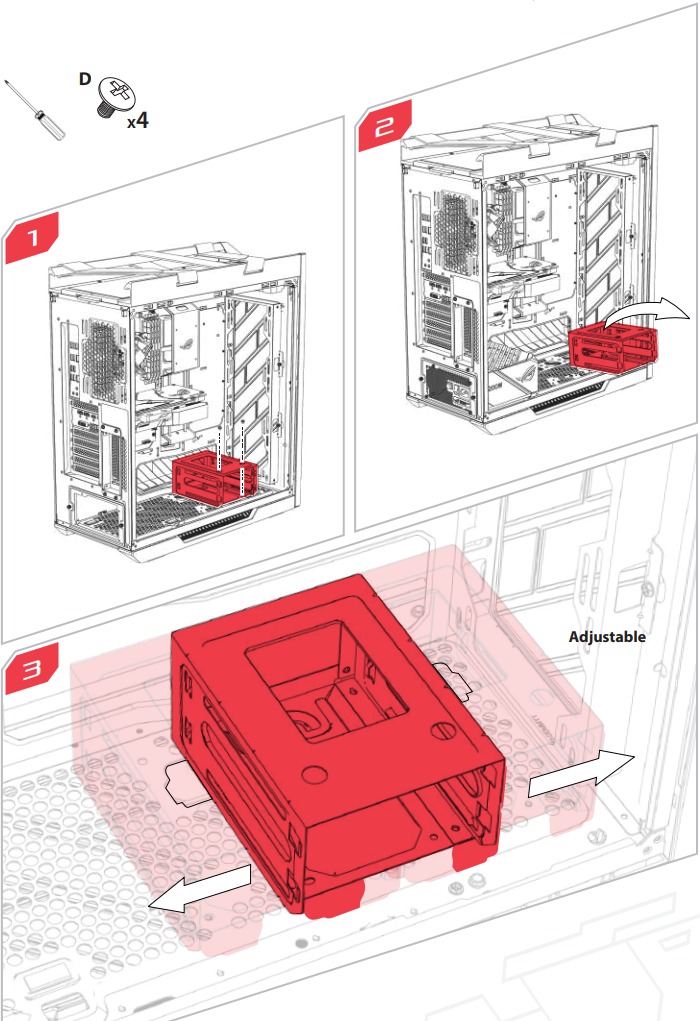

INSTALL THE 3.5/2.5 DRIVES

INSTALLATION AND MAINTENANCE OF THE DUST FILTERS

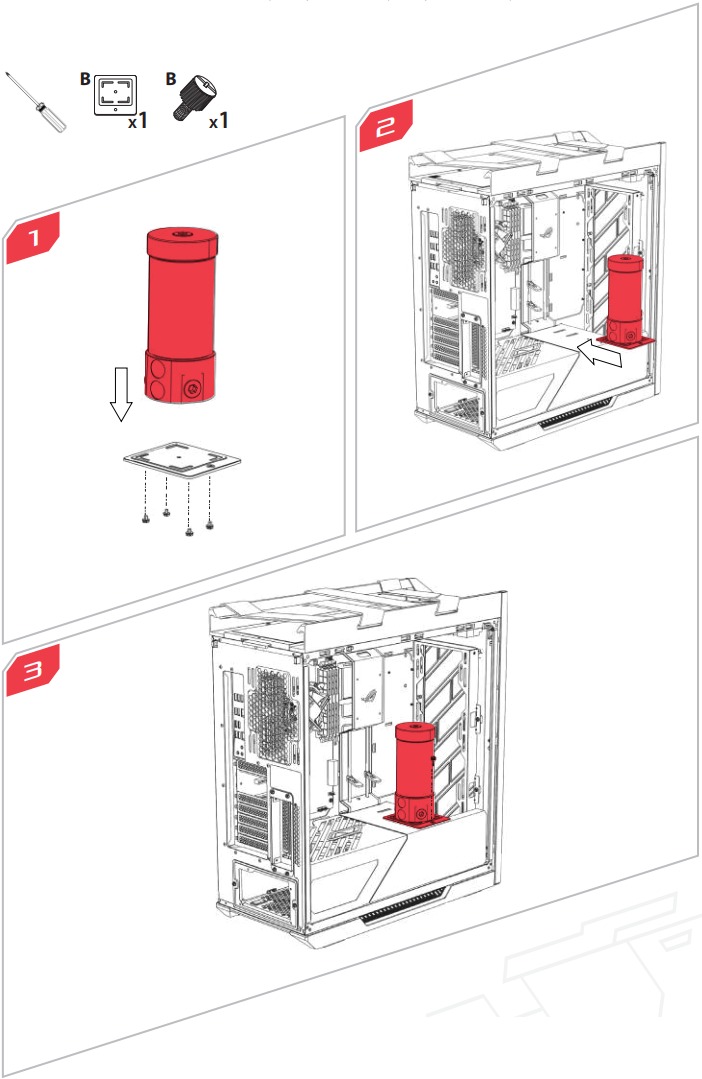

PUMP INSTALLATION

ADDITIONAL INFORMATION

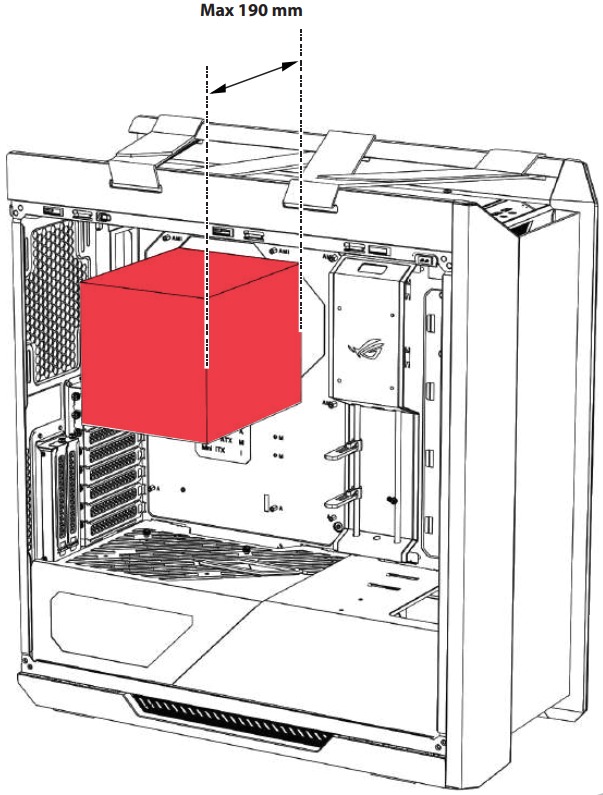

CPU COOLER HEIGHT LIMITATION

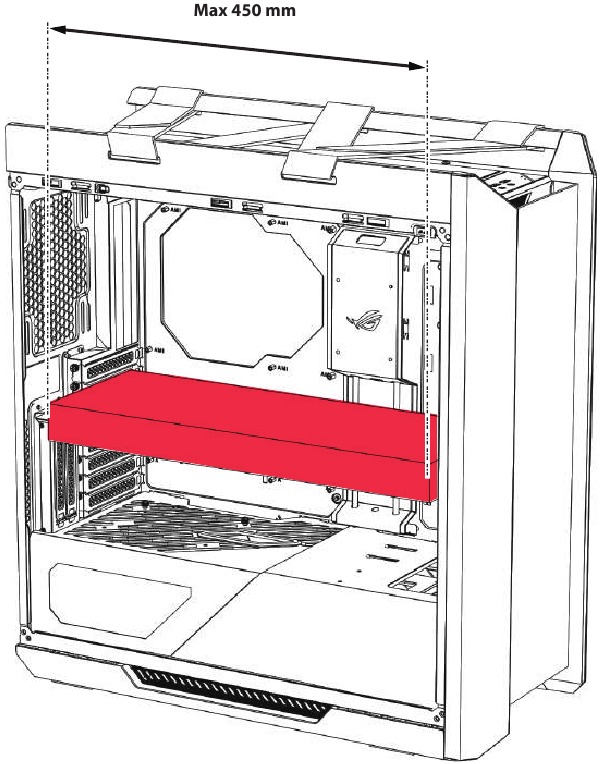

GRAPHICS CARD LIMITATION

GRAPHICS CARD PLACEMENT OPTIONS

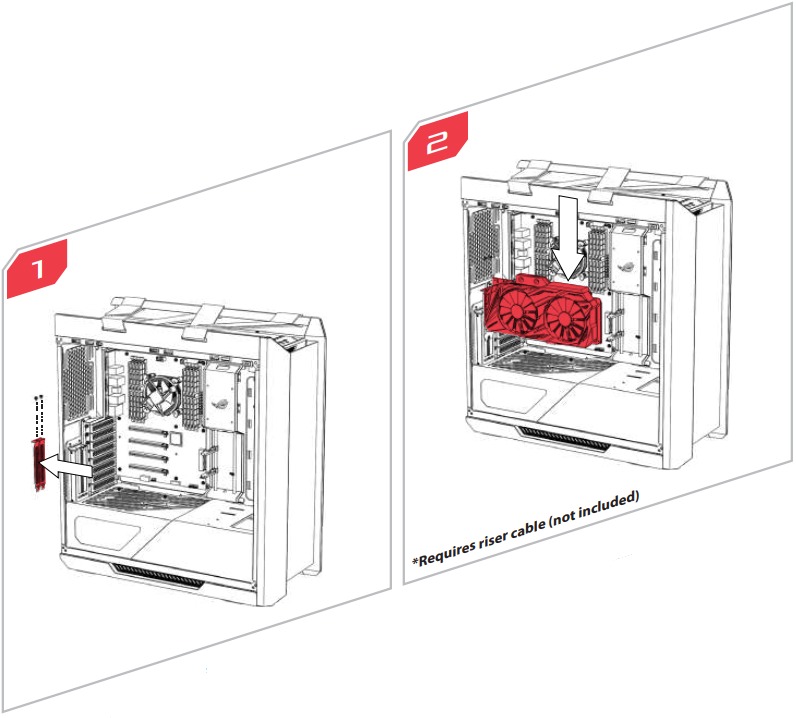

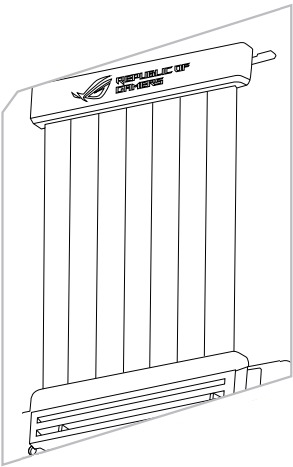

Install a GPU in vertical position

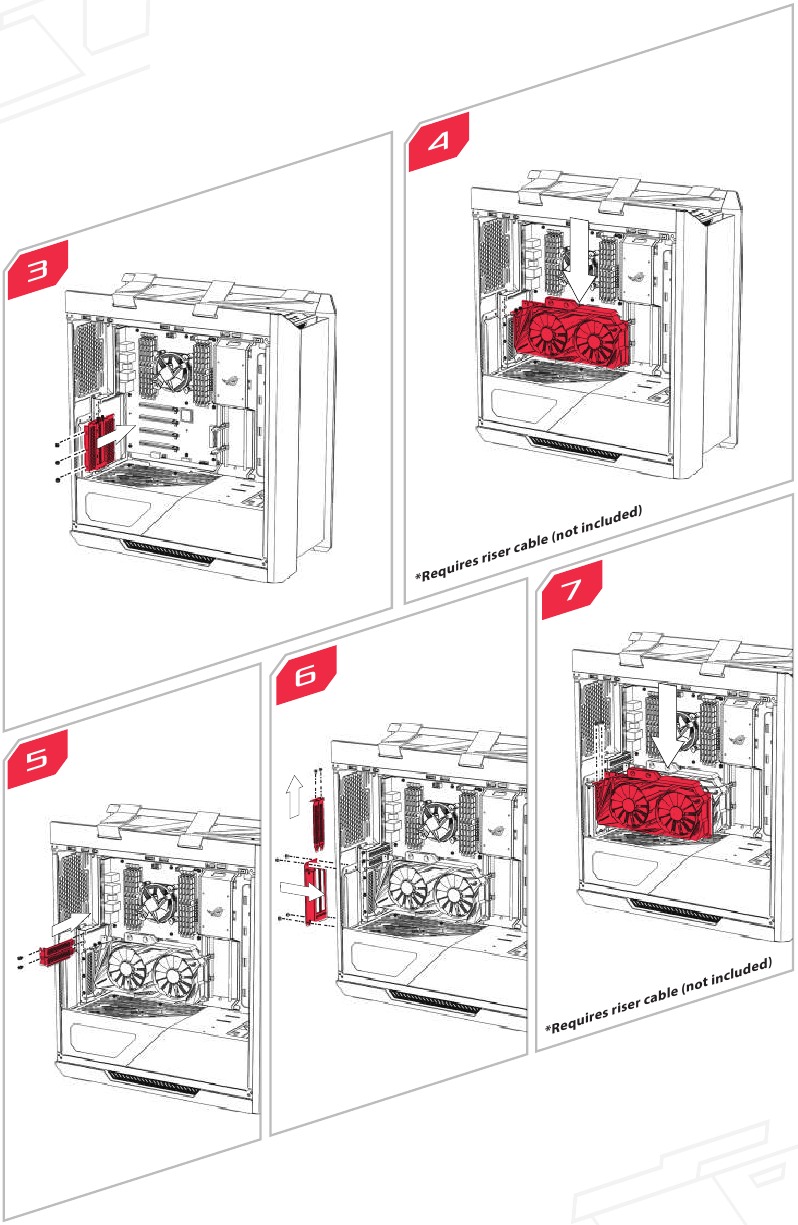

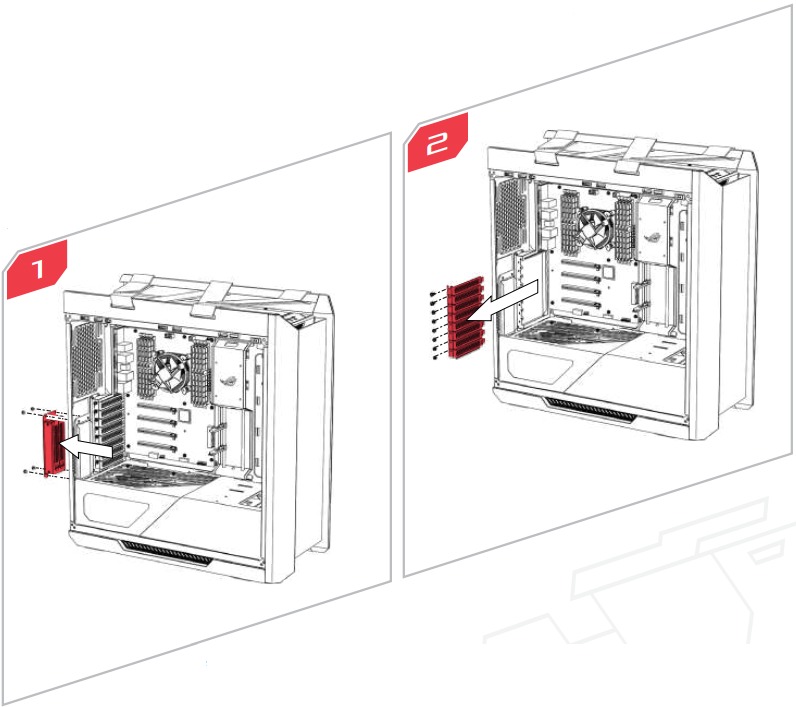

Install Dual Vertical GPUs

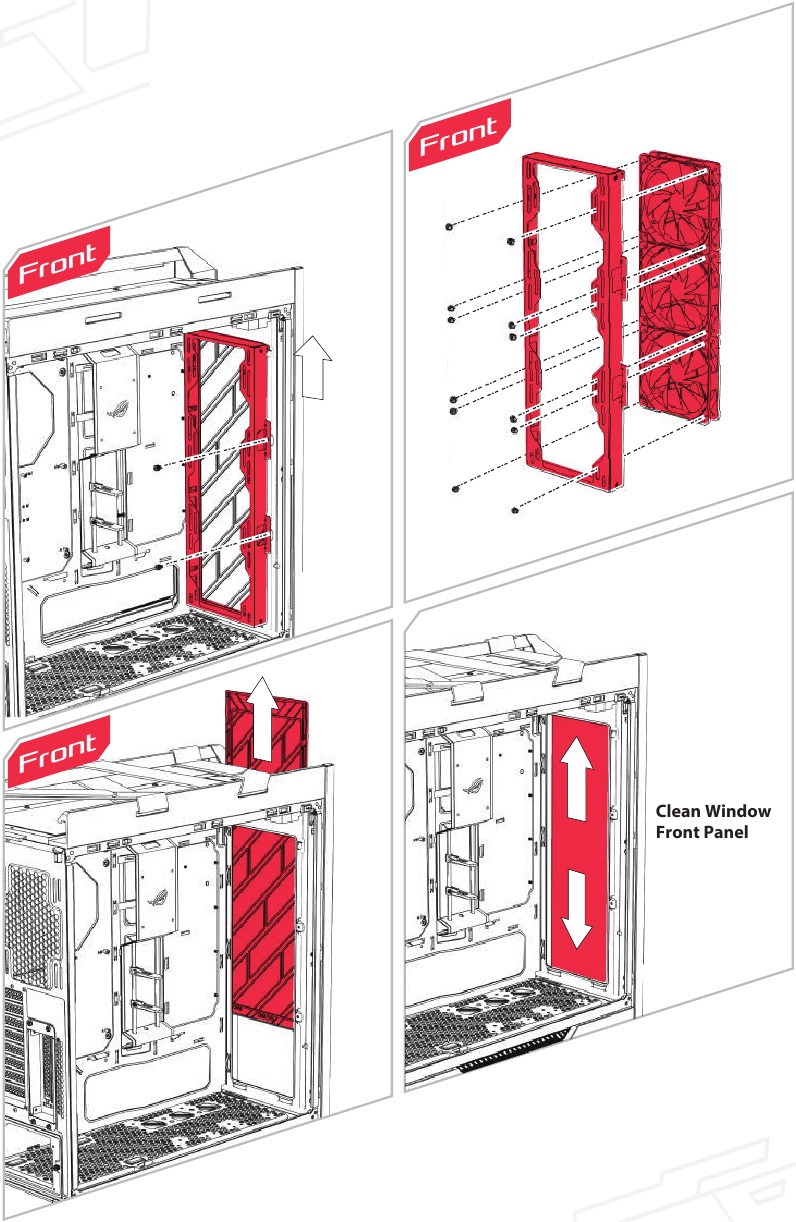

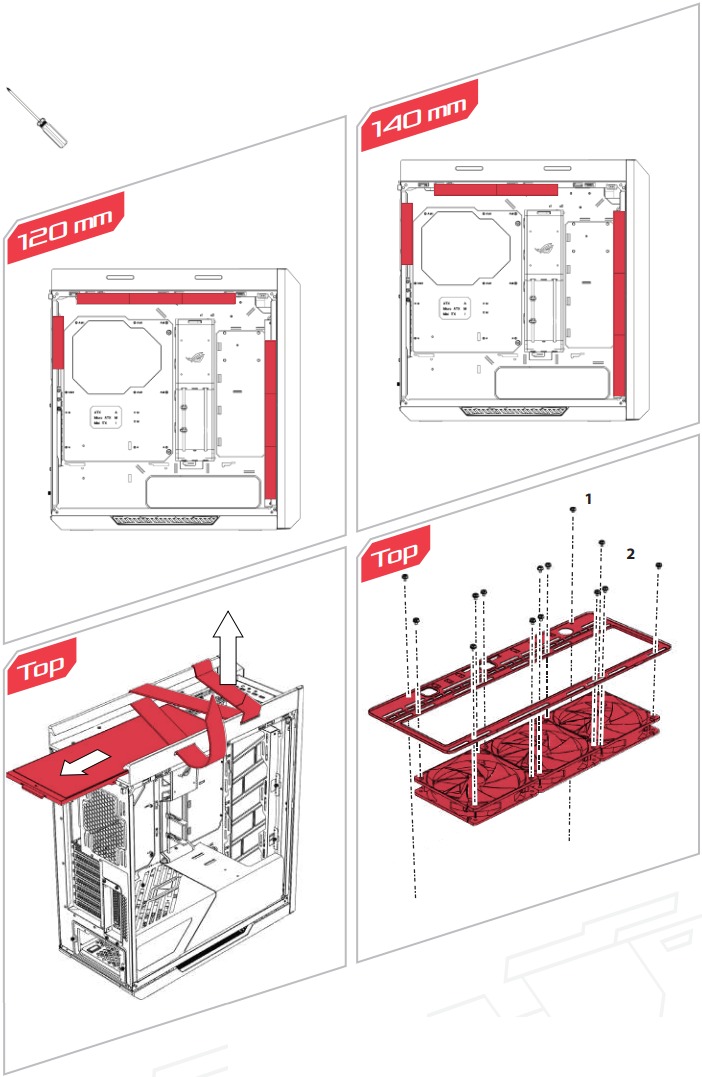

FAN SETUP COMPATIBILITY

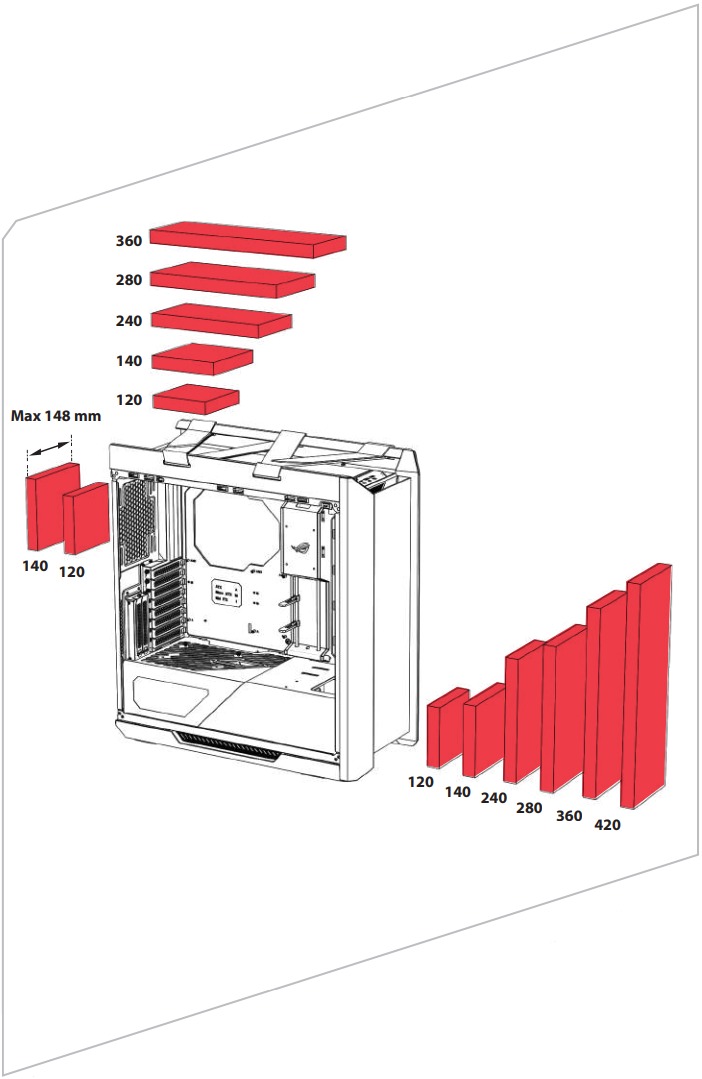

WATER-COOLING RADIATOR OPTIONS

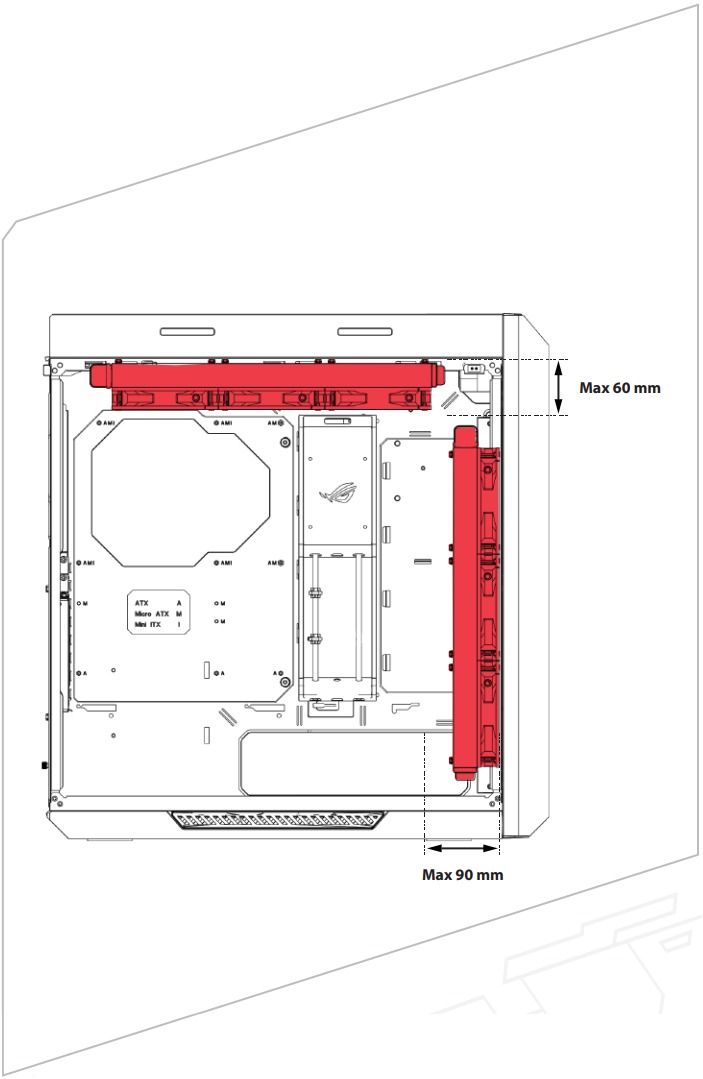

WATER-COOLING SETUP COMPATIBILITY

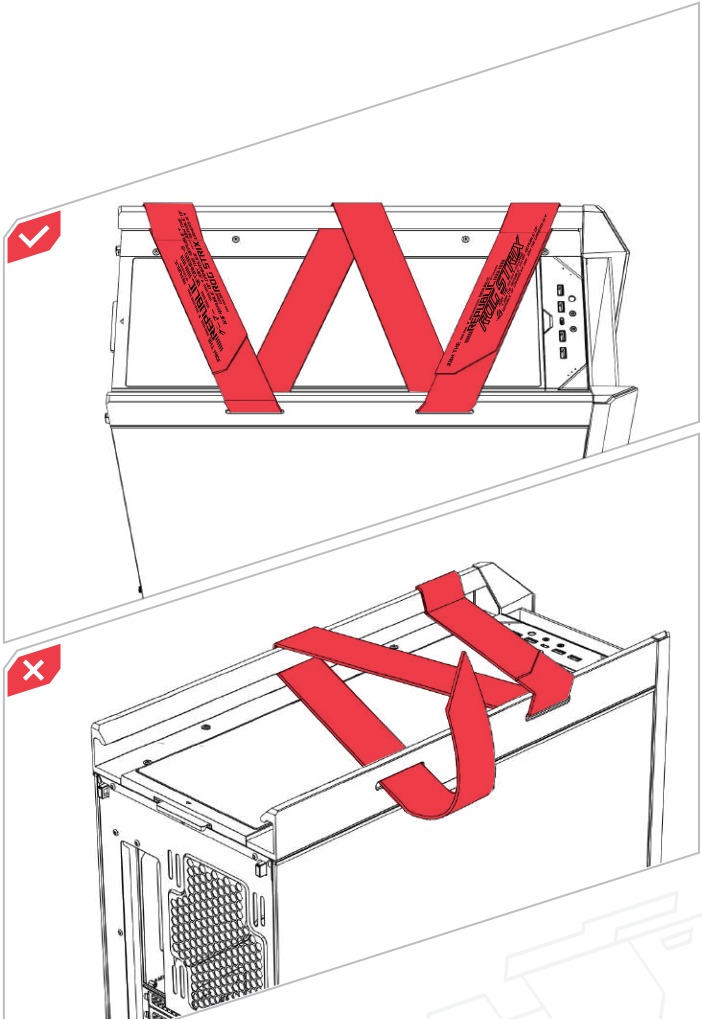

RECOMMENDED HANDLE CONFIGURATION

OPTIONAL UPGRADES

ROG AURA TERMINAL
ASUS ROG Aura Terminal Addressable RGB Controller with four-ports, three magnetic LED strips, Haldo and AURA Sync RGB software
*Compatible with ARUA Sync

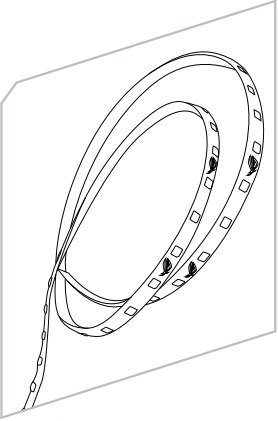

ROG ADDRESSABLE LED STRIP
ASUS ROG Addressable RGB 5050 LED Lighting Strip with Magnetic Backing and Adhesive Strips for use with AURA Sync RGB Lighting Software
*Compatible with ARUA Sync
