Asus X870 MAX GAMING WIFI7 Series Manual

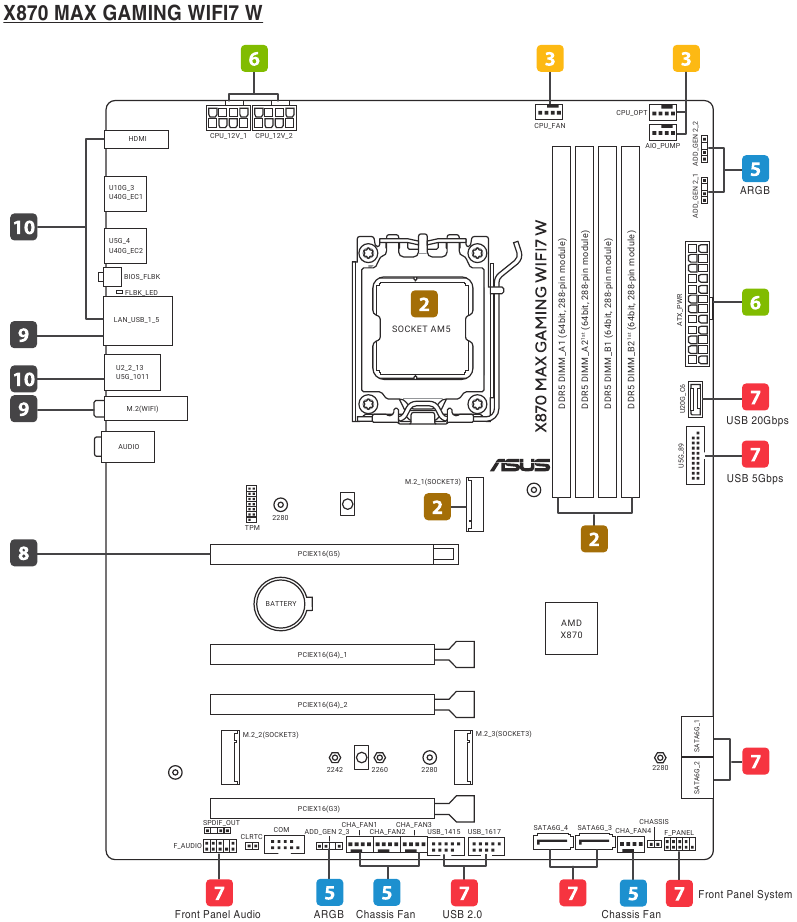

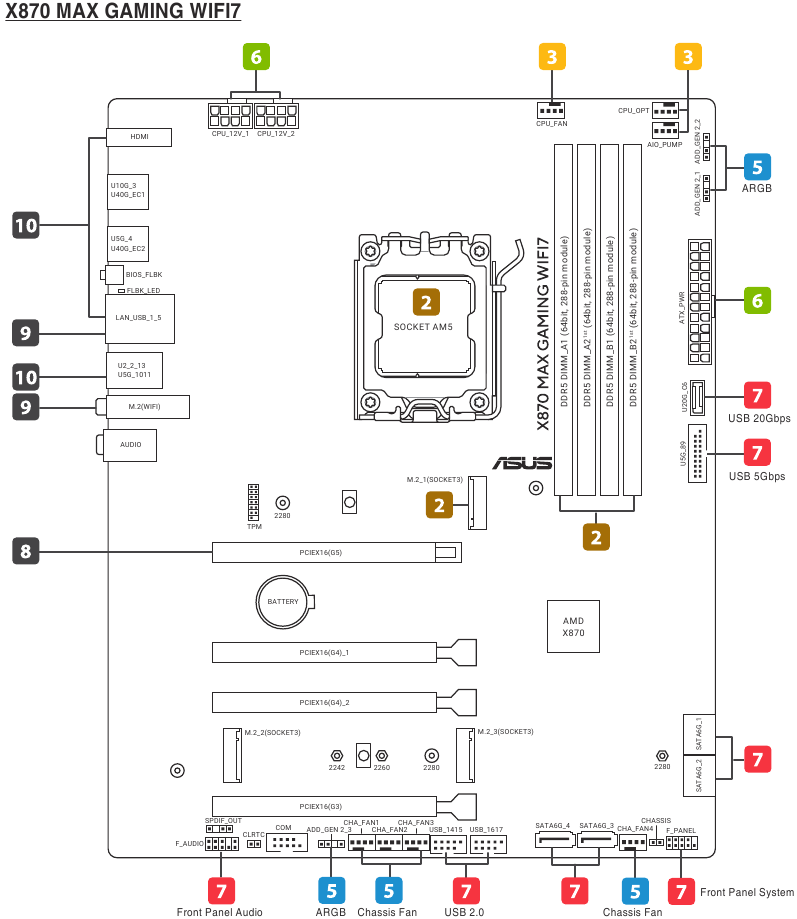

Product Overview

The items labeled below correspond to the installation steps, for steps and more information on the steps, please refer to the rest of the guide.

1. Prepare the components
2. Install key components
3. Install the cooling system
4. Install the motherboard into the chassis
5. Connect to chassis fan and ARGB/RGB headers
6. Install and connect the power supply unit (PSU)
7. Connect everything to the motherboard
8. Install the graphics card
9. Connect to the Internet via Ethernet/Wi-Fi antenna
10. Connect peripherals (monitor, keyboard, mouse, etc.)

SEEKING A SOLUTION?
Scan now for assistance

Support

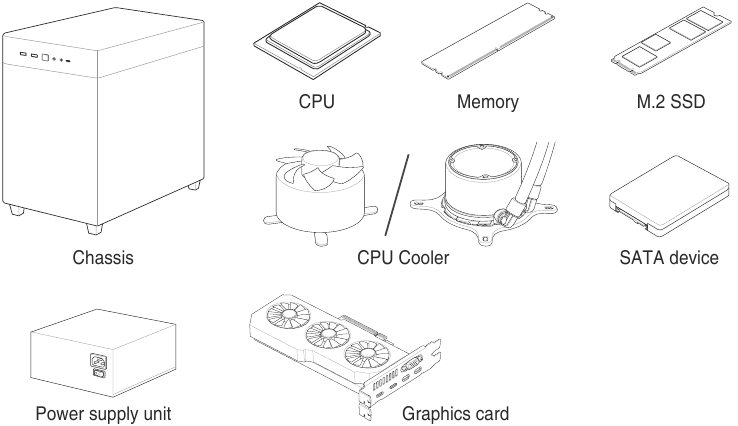

Prepare the components

NOTE: The components listed above are recommendations, please prepare components according to your needs.

Install key components

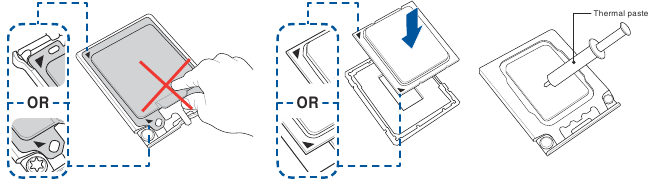

• Install the CPU
  NOTE: Do not remove the PnP cap before the CPU is properly installed.
  Please refer to the manual(s) for more information:


CPU installation

• Install the Memory
  NOTE: Please refer to the manual(s) for more information:


Memory configurations
	DIMM
	A1	A21st	B1	B21st
1 DIMM
2 DIMMs
4 DIMMs

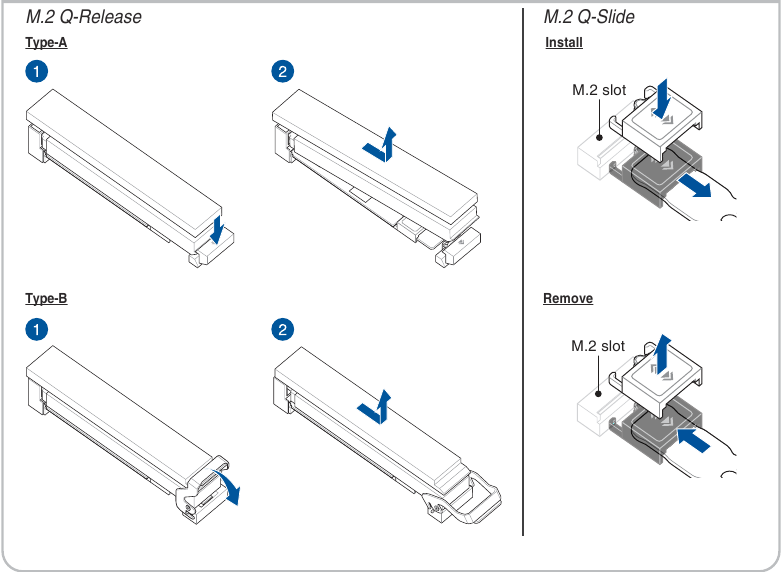

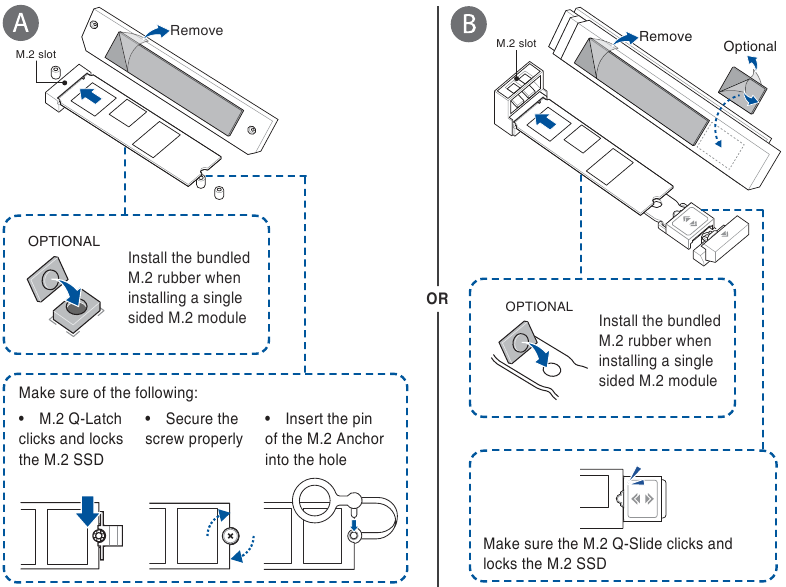

• Install the M.2 SSD


Additional Information (on selected models)

NOTE: Please refer to the manual(s) for more information:

Install the cooling system

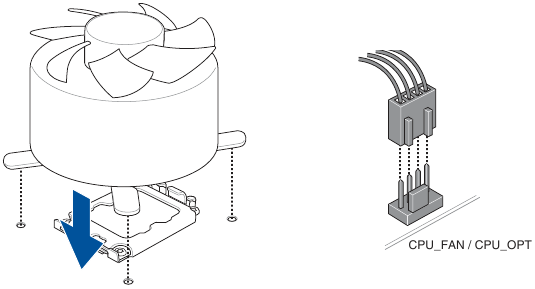

• Air Cooler


OR

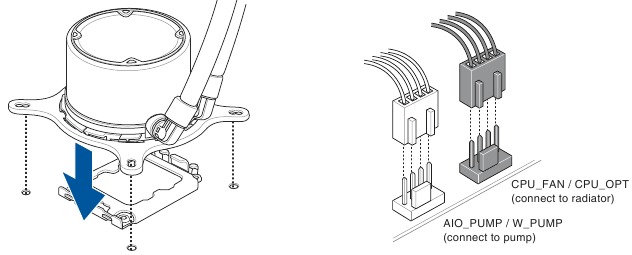

• AIO Cooler


NOTE: Please refer to these manual(s) for more information:

Install the product into the chassis

1. For non pre-mounted I/O shield models only


NOTE: Please refer to the manual(s) for more information:

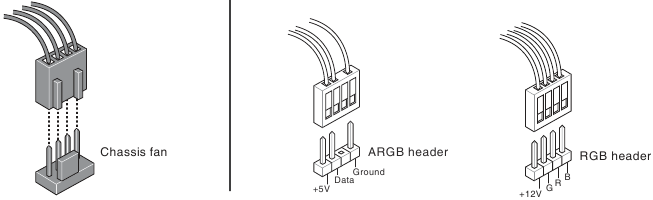

Connect to chassis fan and ARGB/RGB headers

Connect cables from Chassis

NOTE: Please refer to the manual(s) for more information:

Install and connect the power supply unit

Connect cables from Chassis

Make sure the PSU is secured to the chassis using screws, and that the chassis has proper airflow

NOTE: Input: AC 100~240V, 6A/3A, 50/60Hz
Please refer to the manual(s) for more information:

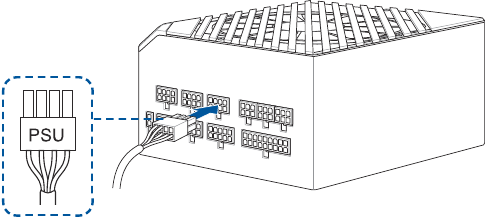

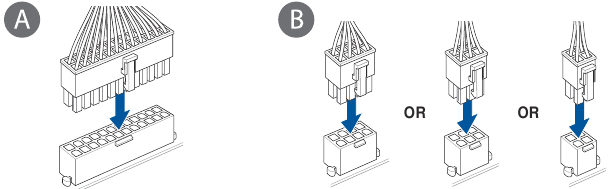

• Connect cables from PSU
  Connect the power cables to the motherboard
  NOTE: Please refer to the manual(s) for more information:


Connect everything to the unit

Connect cables from Chassis

• Front panel system header

• USB connector/header

• Front panel audio header


NOTE: Please refer to the manual(s) for more information:

Connect cables from PSU

• SATA


NOTE: Please refer to the manual(s) for more information:

Install the graphics card

Connect cables from PSU

NOTE: Please note that power connection is required for selected models.
Please refer to the manual(s) for more information:

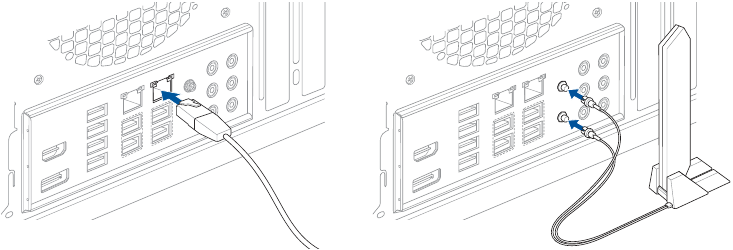

Connect to the Internet via Ethernet/Wi-Fi antenna

NOTE: Please refer to the manual(s) for more information:

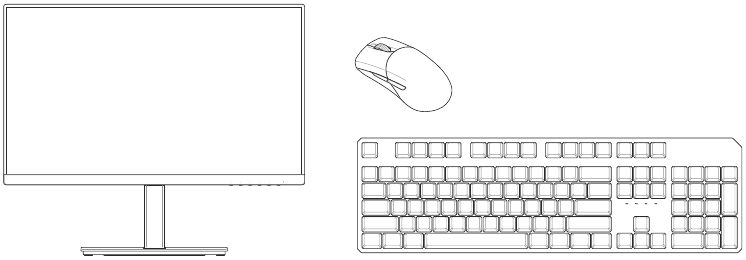

Connect peripherals

Connecting monitor, keyboard, mouse, etc.

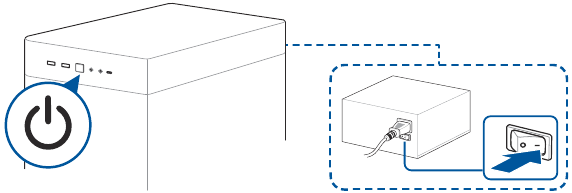

Turn on the PSU and your PC

NOTE: Please check the Q-LEDs or Q-LED Core on selected motherboards when powering on your PC for system status. If an error occurs, check if your CPU Fan header is properly connected; you can also scan the code or refer to the manual(s) for more information:

FAQ

Install the operating system and drivers

Driver and Utilities installation

Electrical safety

•
  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures between 10°C and 35°C.

• INGESTION HAZARD: This product contains a button cell or coin battery.

• DEATH or serious injury can occur if ingested.
•
  A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
