Electrolux ICON Series Manual

Installation

This Use & Care Guide provides general operating instructions for your model. Use the refrigerator only as instructed in this Use & Care Guide. Before starting the refrigerator, follow these important first steps.

Location

• Choose a place that is near a grounded electrical outlet. Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher or other heat sources.
• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.
• Consider water supply availability for models equipped with an automatic ice maker.

DO NOT install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.
DO NOT block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator.

Installation Clearances

• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:
  Sides & Top 3/8"
  Back 1"

NOTE
If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Door Opening
NOTE
The refrigerator doors are designed to shut by themselves within a 20 degree opening.
Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened.

Guidelines for final positioning of your refrigerator:

• All four corners of the cabinet must rest firmly on the floor.
• The cabinet should be level at the front and rear.
• The sides should tilt 1A-inch (6 mm) from front to back (to ensure that doors close and seal properly).
• Doors should align with each other and be level.

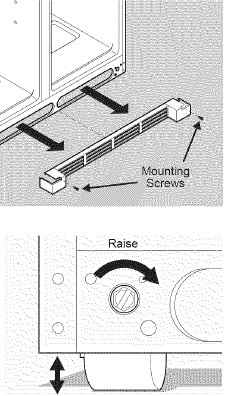

To Level the Cabinet Using the Front Rollers

All of these conditions can be met by raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:

1. Open both doors and remove the toe grille by gently pulling forward (see illustration).
2. Close the doors and use a flat-blade screwdriver or 3/8-inch socket wrench to raise or lower the front rollers.
3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides.

To Level the Doors Using the Lower Hinge

NOTE: Level the unit with the adjustable rollers before leveling the doors.

To level the doors using the adjustable lower hinge (some models):

1. If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning the adjustment screw counterclockwise using a 7/16 inch wrench. (See illustration.)
2. If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw counterclockwise using a 7/16 inch wrench. (See illustration.)

3. After leveling, verify door stop contacts lower hinge and top of door does not contact upper hinge through full movement of door (from fully closed to fully open).

4. Replace the toe grille by fitting it into place.

Removing The Doors

Getting Through Narrow Spaces
If your refrigerator will not fit through an entrance area, you can reduce its size by removing the doors. Check first by measuring the entrance.

Required Tools
You will need the following tools:

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet,
2. Open both doors and remove the toe grille (as explained in the Installation Instructions that came with your appliance).
3. Remove any food from the door shelves.
4. Close the doors.

NOTE
For more information on removing the toe grille, please refer to the Installation Instructions.
To remove the top hinge cover:

1. Remove the three screws from the cover over the top door hinges,
2. Pull the cover forward about a half-inch and lift it off.


To remove the refrigerator door:

1. Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.

2. Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it aside.

3. Remove the two bottom hinge screws and hinge if necessary.
   To reinstall the refrigerator door, reverse the above steps. Once both doors are in place, also replace the top hinge cover
4. Remove the plastic closer and pin from the lower hinge assembly.


Be sure doors are set aside in a secure position where they cannot fall and cause personal injury.

To remove the freezer door:

1. Detach the multi-wire cable connector located above the top hinge. Grasp both sides of the connector firmly and pull apart.

2. Trace lightly around the hinge with a pencil. This makes reinstallation easier.

3. Detach the water tube from the connector located below the freezer door. The connector releases when you press its outer sleeve inward.

4. Remove the screws from the top hinge and pull the multi-wire cable through it. Lift the door off of the bottom hinge.

5. Lay the door on its side to avoid damage to the water tube extending from the bottom hinge.
6. Remove the plastic closer and pin from the lower hinge assembly.

7. Remove the two bottom hinge screws and hinge if necessary.

To reinstall the freezer door, reverse the above steps.
Once both doors are in place, ensure they are aligned with each other and level (Please see To level the doors using the lower hinge in Installation section.), then replace the top hinge cover.

Connecting The Water Supply

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of % inch plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips^™ screwdriver

Access to a household cold water line with water pressure between 30 and 100 psi.

A water supply line made of inch (6.4mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE
Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state building codes, Electrolux recommends for homes with existing valves its Smart Choice^® water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an existing valve, Electrolux recommends its Smart Choice water^® line kit 5305510264 (with a 20 ft. Copper Water Line with self-tapping saddle valve). Please refer to www.electroluxicon.com for more information.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and discard cap.
4. If you use copper tubing - Slide brass compression nut, then ferrule (sleeve) onto water supply line. Push water supply line into water valve inlet as far as it will go (¼ inch/6.4 mm). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

   If you use stainless steel tubing - The nut and ferrule are already assembled on the tubing. Slide compression nut onto valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

5. With steel clamp and screw, secure water supply line (copper tubing only) to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper tubing only), about 2½ turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten any connections that leak.
8. Reconnect refrigerator to electrical power source.
9. To turn ice maker on, lower wire signal arm (side mounted) or set the ice maker's On/Off power switch to the "I" position (rear mounted).

After connecting the water supply, refer to "How to Prime the Water Supply System" for important information about priming an empty water supply system.
Your refrigerator's water supply system includes several tubing lines, a water filter, a water valve, and a water tank. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.

Feature Overview

Understanding Features And Terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. Use the illustration below to familiarize yourself with product features and terminology.
NOTE
Features may vary according to model.

Features not included with your refrigerator can be purchased at www.electroluxicon.com or by calling 1-877-435-3287.

Controls & Settings

Allowing Cooling Time Before Use

To ensure reliable food storage, allow your refrigerator and freezer to operate with the doors closed for 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory.

Setting Cooling Temperatures

Your refrigerator comes with a state-of-the-art electronic digital control system. The system's control panel is located at the top of the fresh food compartment.

The two digital displays on the left half of the control panel indicate the current temperatures of your freezer and fresh food compartments.
To adjust the temperature to a higher or lower setting, press the Up or Down Arrow button closest to the display. The first time you press the button, the display shows the last setting you entered. Each press of the button after that increments the setting by one degree.

The display shows your new setting momentarily, then changes back to the current temperature.

Making Temperature Adjustments
After running your refrigerator for 24 hours, you can adjust temperatures as needed. Make your adjustments small and gradual, allowing time for temperatures to change and stabilize. Refer to the following guidelines for temperature settings.

Temperature Control Range

Choosing Fahrenheit or Centigrade
Depending on which temperature standard you prefer to use, you can set your control panel to display in Fahrenheit or Centigrade. To change between Fahrenheit and Centigrade, press the Mode button (located between the two digital temperature displays).
NOTE
The advanced electronic control system in your refrigerator includes additional display modes that service professionals can use to rapidly diagnose performance issues.

Temperature Adjustment

What To Do If The Temperature Displays Flash
If ever you see both temperature displays continuously flashing, it may indicate that the control system has detected a performance problem. Call your Electrolux service representative, who can interpret the flashing message.

Turning The Cooling System On And Off

You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel.
To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds.
Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops.
To turn the cooling system back on, you must again press and hold the On/Off button for three more seconds.

The On/Off button only controls your refrigerator's cooling system. Power to lights and other electrical components continues unless you unplug the power cord.

Responding to Alarms

(Audible Tones & Indicator Lights)
Your refrigerator's control system can convey the following information through audible tones and the alarm indicator lights.

Alarm Name.	Indicator Light	Audible Tones	Condition	How to Respond
On	(light is off)		Alarm system is not active while Freezer and Fresh Food compartments are cooling toward the current temperature settings.	If Freezer and Fresh Food compartments do not match your temperature settings in three hours, expect the control system to signal other conditions. If cooling down does not stabilize toward your current settings, call 1-877-435-3267 for assistance.
On	Steady Green		Alarm system is active.	No response required.
Door Ajar	Flashing Green		Freezer or Fresh Food door has been open for over five minutes.	Close door to disable and reset alarm.
High Temp	Flashing Amber		Freezer or Fresh Food compartment has been too warm (45°F or higher) for over an hour.	Press Alarm Reset button to turn off alarm. If temperatures do not improve call 1-877-435-3267 for assistance.
Power Failure	Flashing Amber		A power outage was detected.	Press Alarm Reset button to turn off alarm and again to reset. Check if the power failure lasted long enough to affect stored food temperatures.

Using The Alarm Reset Button
You can disable or activate the alarm system by pressing and holding the Alarm Reset button for three seconds. Use it, for example, to turn off audible tones and/or flashing indicator lights.

The alarm system does not automatically reset if you disconnect and reconnect your refrigerator's power cord. It can only be reactivated by pressing the Alarm Reset button.
Once you disable the alarm system, you must again press and hold the Alarm Reset button for three more seconds to reset (activate) the alarm system. The On indicator light remains off while the Freezer and Fresh Food compartments cool toward the current temperature settings. When temperature settings are reached, the On light displays green to indicate an active alarm system.

Checking the Air Filter Status (some models)
Your refrigerator's fresh food air filter needs to be replaced from time to time. You can monitor the need for replacement by pressing and holding the Air Filter On/Off button for three seconds.
To check the air filter status:

1. Press the Air Filter On/Off button. This activates a test cycle, and one of the three filter status lights displays, indicating one of the following:
   Filter OK - Air filter does not need changing.
   Order Filter - Air filter is about 80 percent used. Please order new one.
   Change Filter - Air filter is 100 percent used. Please change now.
2. Press the Air Filter On/Off button to turn off the status light.


Storage Features

Cantilever Shelves

To avoid injury from breakage, handle tempered glass shelves carefully.
You can easily adjust shelf positions in the freezer and fresh food compartments to suit your needs. The shelves have mounting brackets, which attach to slotted supports at the rear of each compartment.

To change the position of a shelf:

1. Before adjusting a shelf, remove all food.
2. Lift the front edge up.
3. Pull the shelf out.
4. Replace by inserting the mounting bracket hooks into the desired support slots.
5. Lower the shelf and lock into position.


NOTE

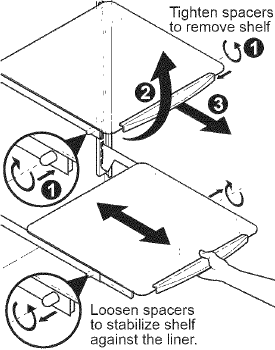

The Cantilever Sliding Glass Shelf has spacers (side screws) on the sides of the brackets to securely hold the shelf in place.
To relocate the shelf to a different location, the spacers must be turned in (clockwise). To secure the shelf in a new location, remember to turn the spacers out (counterclockwise) until they touch the sides of the compartment.
NOTE
Leafy vegetables keep best when stored with the Humidity Control set on Higher Humidity, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and maintains maximum moisture content.

Shelf Features
Your refrigerator includes SpillSafe^® glass shelves, which are designed to catch and hold accidental spills. These shelves slide out for easy access to food and faster cleaning.
Sliding shelves can be pulled forward as far as their built-in stops allow. Sliding shelves cannot be separated from their mounting brackets.

Drawers

Your refrigerator includes a variety of storage drawers. These drawers usually are located in fixed positions at the bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Before storing items in a crisper:

• Wash items in clear water and remove excess water.
• Wrap any items that have strong odors or high moisture content.

Crisper Humidity Control
Crisper drawers include a sliding control for adjusting the humidity inside the crisper. This feature can extend the life of certain fresh vegetables that keep longer in high humidity.

Meat Keeper
Some models are equipped with a meat keeper drawer for short term storage of bulk meat items. This drawer includes a sliding control for adjusting the temperature inside.
Any meat to be kept longer than two days should be frozen. If you store fruits or vegetables in this drawer, set it to a warmer temperature to prevent freezing.

Doors

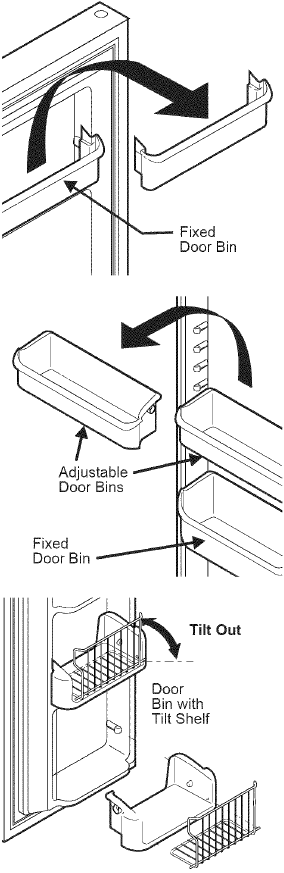

Storage Bins
The doors to your freezer and fresh food compartments use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

To change the position of an adjustable door bin:

1. Before adjusting a bin, remove all food.
2. Grip the bin firmly with both hands and lift it upward.
3. Remove the bin.
4. Place the bin just above desired position.
5. Lower the bin onto supports until locked in place.

Accessories

Tall Bottle Retainer
The tall bottle retainer keeps tall containers in the bin from falling forward when opening or closing Can Rack the refrigerator door, To install, snap the ends of the retainer over the edge of the retainer wall as shown in the illustration.

Special Items Rack
The innovativedesign of the special items rack allows you to store a six-pack of 12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle, or a carton of eggs. To install, slide the special item rack onto the left side of any shelf as shown in the illustration.

Can Rack
The can rack allows you to efficiently and securely store up to six twelve-ounce cans of beverage drink.

Dairy Compartment
Use the dairy compartment, at the top of the fresh food compartment door, for short term storage of cheese, spreads, or butter. The dairy compartment, which includes a lift-up cover, is designed to be warmer than the open storage area to accommodate these types of food.

Ice Cream Shelf
The ice cream shelf attaches to the top of the ice dispenser container, it allows storage of both round and rectangular cartons of your favorite ice cream.

Automatic Ice & Water Dispenser

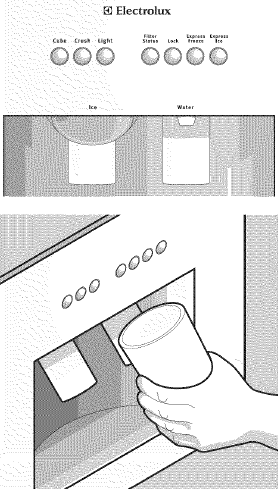

Using The Dispenser

Your automatic ice & water dispenser includes a control panel, a drinking glass bay, and two push paddles for turning on the ice and water supplies.
Using the dispenser control panel is necessary for the ice dispenser but not the water dispenser. The control panel also includes options for lighting, filter monitoring, and increasing the rates of ice making and freezing.

Dispensing Ice
To operate the ice dispenser, press an option for crushed or cubed ice on the control panel. Press a drinking glass against the dispensing paddle (as far up as possible to catch all the ice). To stop, pull the glass away from the dispensing paddle.

Dispensing Water
To operate the water dispenser, press a drinking glass against the dispensing paddle. To stop dispensing water, pull the glass away from the dispensing paddle.
The dispensed water is not cold. For colder water, first add crushed ice or cubes to your drinking glass.

Drip Tray
A drip tray located at the base of the dispenser bay catches small spills and allows them to evaporate. This drip tray is removable for easy cleaning.
NOTE
Please do not pour excess water and ice into the drip tray. It does not have a drain.

Using The Dispenser Control Panel

Priming The Water Supply System

Your refrigerator's water supply system includes several tubing lines, an advanced water filter, a distribution valve bank, and a reserve tank to ensure ample supply to the ice and water dispenser at all times. This system needs to be completely filled with water when first connected to an external supply line.

For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause water filter to malfunction.

To prime the water supply system:

1. Begin filling the tank by pressing and holding a drinking glass against the water dispenser paddle.
2. Keep the glass in this position until water comes out of the dispenser. There will be noticeable spurts and sputters as the system pushes air out through the system and dispenser nozzle. It may take about 1½ minutes.
3. Continue dispensing water for about three minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

NOTE
The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

Pushing the dispensing paddle in for more than four minutes may cause the dispenser motor to overload and stop. The overload protector resets automatically after three to four minutes.

Ice Dispenser Operation & Care

The ice maker, ice bin, and dispenser feeding mechanism are located in the top of the freezer compartment. After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. It can completely fill an ice bin in about two days.
The ice maker produces 4 to 6 pounds of ice every 24 hours depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.

Your ice maker is shipped from the factory with the wire signal arm in the ON position (side mounted) or with the switch turned ON (rear mounted). To ensure proper function of your ice maker, hook up water supply immediately or turn ice maker OFF by turning the On/Off switch to the Off (O) position. If the ice maker is not turned off and the water supply is not connected, the water valve will make a loud chattering noise.

Using The Ice Dispenser After Installation
Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor.

Turning The Ice Dispenser On And Off
Ice production is controlled by the ice maker's On/Off power switch. To gain access to the ice maker, pull the ice cream tray out. Press the switch to the "O" position to turn it Off and press to the "l" position to turn it On.

NOTE
The ice maker also has a built-in wire signal arm, which automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

Small Ice cubes or ice chips jamming in the ice maker may be a sign that your water filter needs changing. If you have a side mounted ice maker you may also experience hollow cubes — partially frozen cubes with water inside. When these cubes are harvested they break open and spill water over the other ice cubes in the ice container, forming a solid mass of ice. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. The ice maker can't fill every cube in the ice maker mold, leading to small cubes or chips that can get caught between the ice ejector blades and the stripper. Remember, if your ice maker is jamming with small ice cubes or it's been six months or longer since you last changed your water filter — replace the water filter with a new one, Poor quality household water may require the filter to be changed more frequently.

Ice Dispenser Tips

• Ice cubes stored too long may develop an odd flavor. Empty the ice container as explained on the next page.
• Occasionally shake the ice container to keep ice separated.
• If your refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker by pressing the On/Off switch.
• If you need a large quantity of ice at one time, it is best to get cubes directly from the ice container.
• The following sounds are normal when the ice maker is operating:
  • Motor running
  • Ice dropping into ice container
  • Water valve opening or closing
  • Ice loosening from tray
  • Running water
• Turn off the ice maker when cleaning the freezer and during vacations.
• If you turn off the ice maker for a long period of time, you should also turn off the water supply valve.

Cleaning The Ice Dispenser

Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is maintained to work properly.
Clean the ice maker and ice bin at regular intervals, particularly before you take a vacation or move.

To clean the ice dispenser:

1. Turn off ice production by pressing the ice maker's Off/On switch.
2. Remove the ice bin by lifting up and out.
3. Empty and carefully clean the ice bin with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners.
4. Allow the ice bin to dry completely before replacing in the freezer.
5. Remove ice chips and clean the ice bin shelf and the freezer door chute.
6. Replace the ice bin. Press the ice maker's Off/On switch to resume ice production.

Remove and empty the ice storage bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice storage bin to melt and freeze together, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

Remove the ice storage bin and shake to loosen the cubes or clean as explained above.

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.

When removing or replacing the ice bin. DO NOT rotate the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 90° turns until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will only dispense Crushed Ice. The freezer door may also not close properly causing warm air to leak into the freezer.

Changing The Filter

Locating The Filters

Your refrigerator is equipped with separate water and air filtering systems. The water filter system filters all dispensed drinking water, as well as the water used to produce ice. The air filter removes odors and impurities from the refrigerator compartment.

Water Filter
The water filter is located at the top of the fresh food compartment, next to the electronic control system panel.

Air Filter (some models)
The air filter is located inside the refrigerator compartment at the top rear corner. See the earlier section in this manual for more information about when to replace the filter.

Replacing The Air Filter

In general, you should change the air filter every six months to ensure optimal filtering of refrigerator odors. You may want to adjust this time period depending on the types and amounts of food you typically store in your refrigerator. To replace your air filter:

1. Push the plastic bubble tab located on the side of the air filter housing. The hinged bottom half drops open.
2. Remove the old filter and discard it.
3. Unpackage the new filter and place it inside the hinged bottom half of the housing.
4. Push the hinged bottom half upward until the tab snaps.
5. Press and hold the Filter Reset button on the electronic control panel for three seconds.
   When the Filter OK light comes on, the status has been reset.
6. Press and hold the Filter Reset button for three seconds again to turn off the filter status system.

NOTE
The electronic control panel, located at the top of the refrigerator compartment includes controls to monitor the status of your air filter. See the previous section for more information about these controls.

Replacing The Water Filter

In general, you should change the water filter every six to nine months to ensure highest possible water quality. The Filter Status light on the dispenser control panel prompts you to replace the filter after a standard amount of water (400 gallons for PureAdvantage^TM) has flowed through the system.
NOTE
Ice jams in the ice maker and/or hollow ice cubes (partially frozen cubed with water inside), may also be a sign that your water filter needs changing.
If your refrigerator has not been used for a period of time (during moving, for example), change the filter before reinstalling the refrigerator.
NOTE
The PureAdvantage^TM ice and water system can operate without filtration if you use a bypass in place of the water filter cartridge. Please contact the Electrolux Customer Care Center at 1-877-435-3287 or visit our web site at www.electroluxicon.com to order the bypass (Part No. 240396701).

More About Your Advanced Water Filter
The PureAdvantage^TM ice and water filter systems is tested and certified by NSF International to NSF/ANSI Standards 42 and 53 for the reduction of claims specified on the performance data sheet.

This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after the filtration system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
NSF Test & Certification Results:

• Rated Capacity - 400 gallons
• Rated service flow -.5 gallons per minute
• Rated Pressure - Min: 30 psi, Max: 100 psi
• Operating Temp. - Min: 33°F, Max: 100°F

To replace your PureAdvantage^TM water filter:
It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement. The bottom of the filter housing includes two small water drainage holes, so be sure to remove any stored food from the top shelf.
NOTE
The o-rings on a new water filter are lubricated. To ensure a good seal, please do not remove this lubricant.

1. Turn Off the ice maker power switch.
2. Push the filter release button to the right of the cartridge to disconnect it.

3. Slide the old filter cartridge straight out of the housing and discard it.
4. Unpackage the new filter cartridge and slide it gently into the filter housing until it stops against the snap-in connector at the back of the housing.
5. Push firmly until the cartridge snaps into place. When fully engaged, the front of the filter cartridge should be flush with the filter release button.

6. Turn On the ice maker power switch.
7. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing.
8. To prime filter system and purge air from water line, continue flushing. There will be noticeable spurts and sputters as the system pushes air out through the system and out the dispenser nozzle. This is normal.
9. Press and hold the Filter Status button on the Ice & Water Dispenser control panel for 3 seconds. The light flashes red, amber, and green to indicate the Filter Status has been reset.

Ordering Replacement Filters

Order new filters through the dealer where you bought your refrigerator, or contact Electrolux at 1-877-8084195, or go to our web site at www.electroluxicon.com. You may want to consider ordering extra filters when you first install your refrigerator. Here is the product number to request when ordering:
Water Filter
FC-100 PureAdvantage^TM replacement cartridge
Air Filter
Replacement cartridge, part # 241504902

Storing Food & Saving Energy

Ideas For Storing Foods

Fresh Food Storage

• Keep the fresh food compartment between 34°F and 40°F with an optimum temperature of 37°F.
• Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.

Fruits and Vegetables

• Store fruits and vegetables in crisper drawers, where trapped moisture helps preserve food quality for longer time periods.

Meat

• Wrap raw meat and poultry securely so leakage and contamination of other foods or surfaces does not occur.
• Use the meat keeper drawer for short term storage. Any meat to be kept longer than two days should be frozen.

Frozen Food Storage

• Keep the freezer compartment at 0°F or lower.
• A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

• To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.
• Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
• Avoid storing hard-to-freeze foods, such as ice cream and orange juice, on the freezer door shelves. These foods are best stored in the freezer interior where the temperature varies less.

Ideas For Saving Energy

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers. Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.
• Level the refrigerator so that the doors close tightly.

Temperature Settings

• Refer to earlier sections in this Use & Care Manual for recommendations on temperature control settings.

Food Storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.
• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

Normal Operating Sounds & Sights

Understanding The Sounds You May Hear
Your new high-efficiency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.
NOTE
Energy efficient foam in your refrigerator is not a sound insulator.

Following is a list of major components in your refrigerator and the sounds they can cause:

1. Evaporator
   Refrigerant through the evaporator may create a boiling or gurgling sound.
2. Evaporator Fan
   You may hear air being forced through the refrigerator by the evaporator fan.
3. Defrost Heater
   During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.
   NOTE
   During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.
4. Automatic Ice Maker
   When ice has been produced, you will hear ice cubes falling into the ice bin.
5. Cold Control & Automatic Defrost Control
   These parts can produce a snapping or clicking sound when turning the cooling system on and off.
6. Condenser Fan
   You may hear air being forced through the condenser.
7. Compressor
   Modern, high-efficiency compressors run much faster than in the past. The compressor may have a high pitched hum or pulsating sound.
8. Water Valve
   Makes a buzzing sound each time it opens to fill the ice maker.
9. Drain Pan (not removable)
   You may hear water dripping into the drain pan during the defrost cycle.
10. Condenser
    May create minimal sounds from forced air.
11. Motorized Damper
    May produce a light humming during operation.

Care and Cleaning

Protecting Your Investment

Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year.
When cleaning, take the following precautions:

• Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface.
• Never use CHLORIDE to clean stainless steel.
• Do not wash any removable parts in a dishwasher.

NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical components continues until you unplug the power cord from the wall outlet.

• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.
• Do not remove the serial plate.

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

Care & cleaning tips

Vacation & moving tips

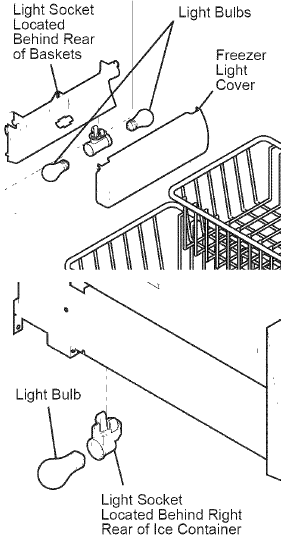

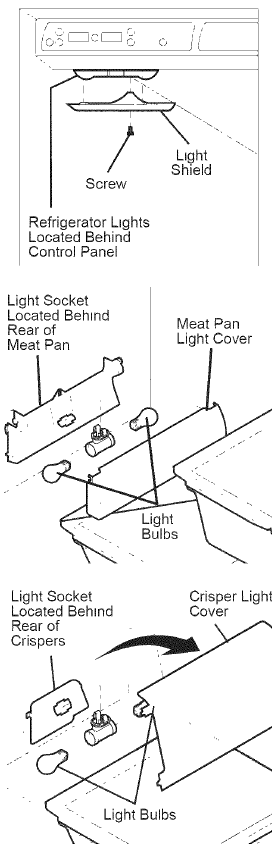

Replacing Light Bulbs

Both the freezer and fresh food compartments of your refrigerator include light bulbs that will need replacing from time to time. Some lights have covers that you will need to remove before replacing the bulbs. Always use bulbs that are designed for appliance lighting.

Wear gloves when replacing light bulbs to avoid getting cut.

To replace light bulbs:

1. Unplug your refrigerator's power cord.
2. Wear gloves as protection against possible broken glass.
3. Remove light cover, if necessary.
4. Unscrew and replace old bulb with an appliance bulb of the same type and wattage (normally 40 watts).
5. Replace light cover, if necessary.
6. Plug in the refrigerator's power cord.

Solutions to Common Problems

Before You Call
If you experience a problem with your refrigerator or notice a product behavior or condition you do not understand, you can usually avoid a call to your service representative by referring to this section for an answer. Beginning with the following table, this information includes common problems, causes, and suggested solutions.

Running Your Refrigerator

Temperatures Are Too Cold

Temperatures Are Too Warm

Water/Moisture/Frost Inside Refrigerator

Perfect Temp Drawer

(some models)

Automatic Ice Maker

Ice Dispenser

Water Dispenser

Odors In Refrigerator

Opening/Closing Of Doors/Drawers

Light Bulb Is Not On

Safety

Please read all safety instructions before using your new refrigerator.

Safety Precautions
Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type.

Definitions
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates installation, operation or maintenance information which is important but not hazard related.

General Safety

• Do not store or use gasoline, or other flammable liquids, near this or any other appliance. Read product labels for warnings regarding flammability and other hazards.
• Do not operate the refrigerator in the presence of explosive fumes.
• Avoid contact with any moving parts of the automatic ice maker.
• Remove all staples from the carton to avoid cut injuries. Staples can also damage finishes if they come in contact with other appliances or furniture.

Child Safety
Packing Materials:

• Packing cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers and can quickly cause suffocation.
• Destroy or recycle the product's carton, plastic bags, and any other exterior wrapping material immediately after the refrigerator is unpacked. Children should never play with these items.

Electrical

You must follow these guidelines to ensure that your refrigerator's safety mechanisms are operating correctly.

• The refrigerator must be plugged into its own dedicated 1 15 Volt, 60 Hz., AC only electric outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be replaced by the manufacturer, service technician or a qualified person to prevent any risk.
• Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.
• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.
• Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.
• Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit.

To turn off power to your refrigerator, unplug the power cord from the wall outlet.

Questions?
For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet production information visit http://wwwelectroluxicon.com
