KitchenAid K150 Series, KUA13AEANA, KUA13APANA, KUA13AVANA Manual

PARTS AND FEATURES

Lid Centre Cap
Lid with Vent Well
Jar (1.4 L capacity)
Glass Jar* (1.4 L capacity)
Interlock
Base
Control Dial

GET STARTED

BLENDER FUNCTION GUIDE

Setting	Description	Blending Time (min: sec)	Suggested Items to Blend
Pulse P	Allows precise control of the duration and frequency of blending.	Manual	Salsa, crumb topping, chopped nuts, fruits or vegetables & more.
Speeds 1 - 3	Manual speeds offer ultimate control of the Blender.	3:00	Fruits, Soups, Sauces, Doughs, Vegetables, Butters, Nuts, Dips, Frozen desserts, Purees.

BLENDER ACCESSORY GUIDE

The Blender features 3 speeds and Ice Crush/Pulse function, allowing you to customise your blend. Recipes can differ significantly and might work best on speed that are not obvious. We encourage you to find the best speed match for your favourite recipes.

Accessories	Capacity	Speed	Suggested items to blend
Blender Jar	1.4 L	Speed 1, 2, 3, and Pulse/Ice crush	Smoothies, Icy drinks, Shakes / Malts, Dips, Spreads and more
Glass Blender Jar	1.4 L	Speed 1, 2, 3, and Pulse/Ice crush

BLENDER USAGE

Before first use, clean all parts and accessories (see Care and Cleaning section). Be sure the countertop beneath the Blender and surrounding areas are dry and clean.

When moving your Blender, always support/lift from the Blender base. The base will become disengaged from Jar if, carried by Blender Jar or Blender Jar handle only.

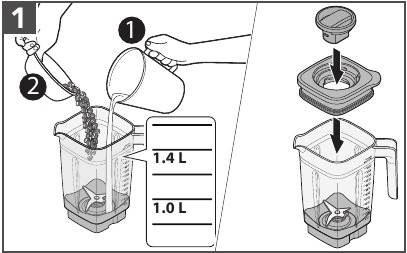

Add ingredients into Blender Jar OR Glass Blender Jar (max. 1.4 L).
Secure the Lid and Lid Centre Cap.

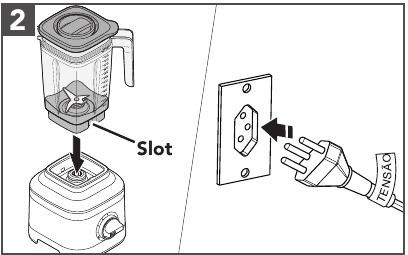

Place the Blender Jar on the base by aligning with the Slot to fit inside the jar pad, so that the handle of the Jar will be towards the Control Dial.
Plug the Blender into an earthed outlet.

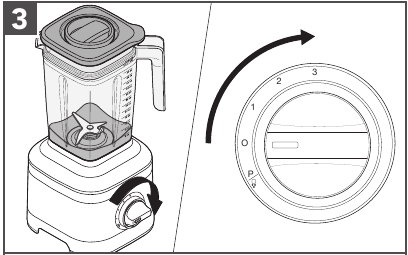

Turn the Control Dial from ( ) to desired speed for constant operation.

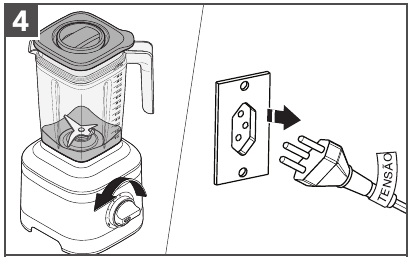

When finished, turn the Blender off by returning the Control Dial to (). Unplug the Blender before removing the Blender Jar.

Allow the Blender to fully stop before removing the Lid, Jar, or pouring out your blended ingredients.

PULSE/ICE CRUSH FUNCTION USAGE

Your Blender offers a "Pulse/Ice Crush ()" function with a soft start to avoid ingredient splatter. In this function, the Blender will operate at optimal speed to crush ice. This function will continue until you release the Control Dial, returning to ().

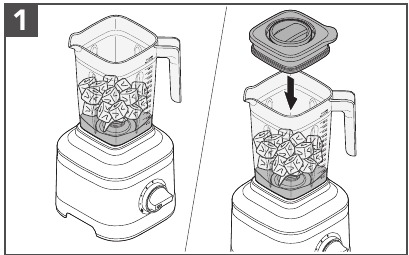

Place ingredients or Ice cubes into the Blender Jar.
Firmly secure the Lid with Lid Centre Cap on Blender Jar.

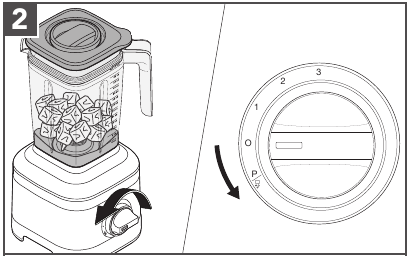

Turn and hold the Control Dial from () to ( ) as per desired interval of time.
When finished, release the Control Dial to stop the Blender.

information TIP: Use half of standard ice cube tray or 7-8 standard ice cubes at a time for blending. The Pulse/Ice Crush () function has been optimised to crush and chop ice without adding any liquid ingredients.

warning NOTE: Blender will not run if jar is not on base.

CARE AND CLEANING

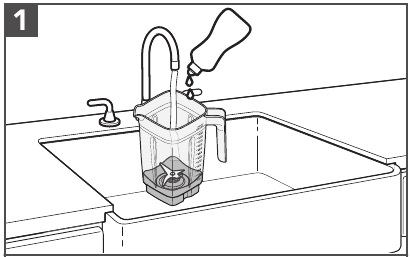

Empty the Jar. Fill half of the Jar with warm water and add 1 or 2 drops of dish-washing liquid.

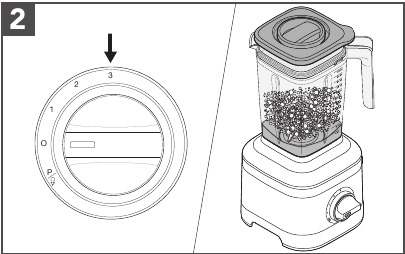

Place the Jar on the base. Secure the Lid and Lid Centre Cap.
Run the Blender for 15-20 seconds on speed 3.
Remove the Jar, empty contents and rinse with warm water and dry thoroughly.

NOTE: To avoid damaging the Blender, do not immerse the Blender base or cord in water. Do not use abrasive cleansers or scouring pads to avoid scratching the Blender.

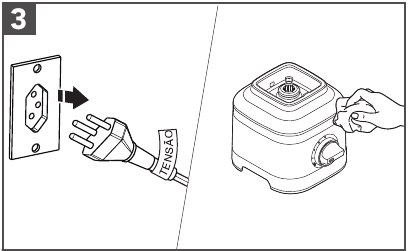

Unplug the Blender before cleaning. Wipe clean the Base and the Power Cord with a warm, damp cloth and dry with a soft cloth.

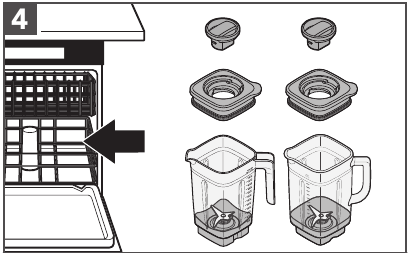

Dishwasher-safe, top rack only: Lids with Vent Well and Lid Centre Caps.
Blender Jar and Glass Blender Jar can be washed in the bottom rack.

TROUBLESHOOTING GUIDE

Problem	Solution
If Blender fails to start:	Check to see if the Blender is securely plugged into an earthed electrical outlet.
If Blender fails to start:	If you have a circuit breaker box, make sure the circuit is closed. Try unplugging the Blender, then plug it back into an earthed electrical outlet.
If Blender stops while blending:	The Blender becomes overloaded or jammed. It will automatically shut off to prevent damage to the motor. Unplug the power cord. Remove the Blender Jar from the base and use a spatula to rearrange ingredients in the Blender Jar.
If Blender stops while blending:	The Blender is overloaded, divide contents into smaller batches. For certain recipes, adding liquid to the Blender Jar may also reduce the load on the Blender.
If the problem cannot be corrected:	See the "Warranty and Service" sections. Contact an Authorised Service Centre for assistance. Do not return the Blender to the retailer – retailers do not provide service.

RECIPE

Ingredients	Operating Time
1 - 1½ cups water 1 large carrot, roughly chopped 1 red or yellow beet, peeled and roughly chopped 1 tart-sweet apple, cored and peeled and roughly chopped 1 slice fresh ginger, 1/2 inch thick, peeled and roughly chopped 6 ice cubes	1 minute

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

warning This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER?" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions. Misuse of appliance may result in personal injury.
To protect against risk of electrical shock do not put the Stand Blender Base in water or other liquid.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair or adjustment.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the Blender. A scraper may be used but must be used only when the Blender is not running.
Blades are sharp. Care should be taken when handling the sharp cutting blades, emptying the jar and during cleaning.
Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to sudden steaming.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Refer to the "Care and Cleaning" section for instructions on cleaning the surfaces in contact with food.
Always operate the Blender with cover in place.
When blending hot liquids or ingredients, Lid Centre Cap should remain in place over the lid opening. Always start on lowest speed and slowly ramp to desired speed when blending hot liquids or ingredients.
The use of attachments, including canning jars, not recommended or sold by the manufacturer may cause a risk of injury to persons.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices, or other working environments;
- farmhouses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
