Dell Vostro 5620, P117F, NOT21648 Manual

Set up your Vostro 5620

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

1. Connect the power adapter and press the power button.
   NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.


2. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User's Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/ support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

Views of Vostro 5620

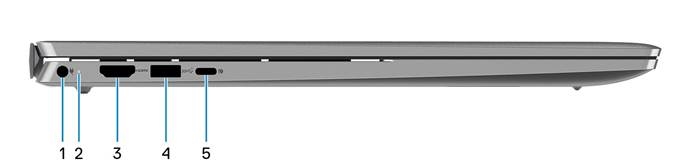

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer and charge the battery.
2. Power and battery-status light
   Indicates the power state and battery state of the computer.
   Solid white—Power adapter is connected and the battery is charging.
   Solid amber—Battery charge is low or critical.
   Off—Battery is fully charged.
   NOTE: On certain computer models, the power and battery-status light are also used for diagnostics. For more information, see the Troubleshooting section in your computer's Service Manual.
3. HDMI 1.4 port
   Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
5. USB 3.2 Gen 2 (Type-C) port with DisplayPort and Power Delivery
   Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps.
   Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that enables faster charging.
   Supports DisplayPort 1.4 and also enables you to connect an external display using a display adapter.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

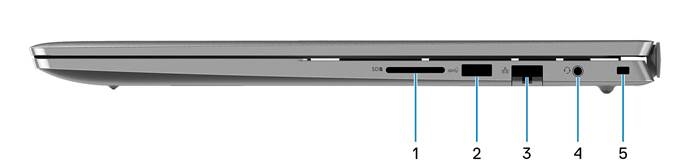

Right

1. SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:
   • Secure Digital (SD)
   • Secure Digital High Capacity (SDHC)
   • Secure Digital Extended Capacity (SDXC)
2. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. Network port
   Connect an Ethernet (RJ-45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.
4. Headset jack
   Connect headphones or a headset (headphone and microphone combo).
5. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

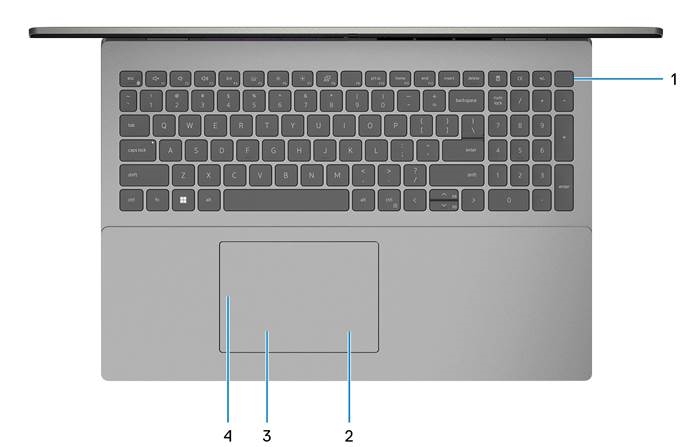

Top

1. 1. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for four seconds to force shut-down the computer.
   If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: The highlighted area indicates the actual active fingerprint reader area and the image is for illustration purposes only.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell.

2. Right-click area Press to right-click.
   NOTE: The right-click area is enabled when you touch the touchpad.
3. Left-click area
   Press to left-click.
   NOTE: The left-click area is enabled when you touch the touchpad.
4. Precision touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

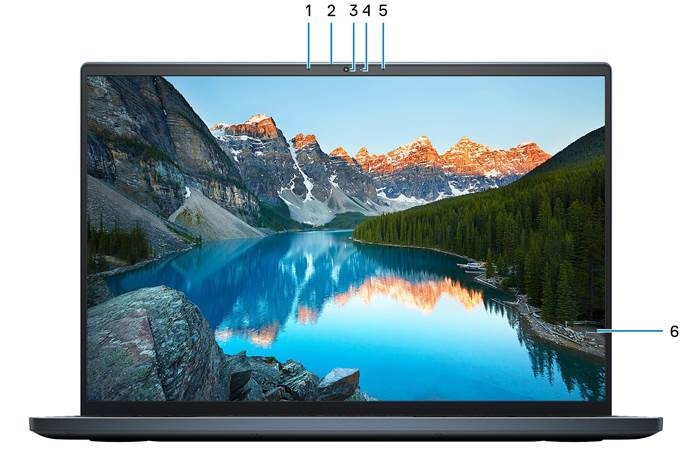

Front

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Privacy shutter
   Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
3. Camera
   Enables you to video chat, capture photos, and record videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Right microphone
   Provides digital sound input for audio recording and voice calls.
6. LCD panel
   Provides visual output to the user.

Bottom

1. Speakers
   Provide audio output.
2. Service Tag and regulatory labels
3. The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. The regulatory label contains regulatory information of your computer.

Specifications of Vostro 5620

Dimensions and weight
The following table lists the height, width, depth, and weight of your Vostro 5620.

Table 2. Dimensions and weight

Description	Values
Height:
Front height	15.67 mm (0.62 in.)
Rear height	17.95 mm (0.71 in.)
Width	356.78 mm (14.05 in.)
Depth	251.90 mm (9.92 in.)
Weight NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.	1.91 kg (4.21 lb), minimum

Processor
The following table lists the details of the processors supported by your Vostro 5620.

Table 3. Processor

Chipset
The following table lists the details of the chipset supported by your Vostro 5620.

Table 4. Chipset

Operating system
Your Vostro 5620 supports the following operating systems:

• Windows 11 Pro, 64-bit
• Windows 11 Pro National Education, 64-bit
• Windows 11 Home, 64-bit
• Windows 11 Home in S-mode, 32-bit

Memory
The following table lists the memory specifications of your Vostro 5620.

Table 5. Memory specifications

External ports
The following table lists the external ports of your Vostro 5620.

Table 6. External ports

Description	Values
Network port	One RJ45 ethernet port
USB ports	Two USB 3.2 Gen 1 ports One USB 3.2 Gen 2 Type-C port with DisplayPort and Power Delivery
Audio port	One headset jack
Video port	One HDMI 1.4 port One USB 3.2 Gen 2 Type-C port with DisplayPort and Power Delivery NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect to a DisplayPort device.
Media-card reader	One SD-card slot
Power-adapter port	One 4.50 mm x 2.90 mm DC-in
Security-cable slot	One security cable slot (wedge-shaped)

Internal slots
The following table lists the internal slots of your Vostro 5620.

Table 7. Internal slots

Description	Values
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2230 slot for solid-state drive One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Communications
Ethernet
Table 8. Ethernet specifications

Wireless module
Table 9. Wireless module specifications

Audio
The following table lists the audio specifications of your Vostro 5620.

Table 10. Audio specifications

Storage
This section lists the storage options on your Vostro 5620.
Vostro 5620 supports one of the following storage configurations:

• One M.2 2230/2280 solid-state drive

The primary drive of your Vostro 5620 is the M.2 drive where your operating system is installed.

Table 11. Storage specifications

Media-card reader
The following table lists the media cards supported by your Vostro 5620.

Table 12. Media-card reader specifications

Description	Values
Media-card type	One SD card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard
The following table lists the keyboard specifications of your Vostro 5620.

Table 13. Keyboard specifications

Description	Values
Keyboard type	Standard keyboard Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 99 keys United Kingdom: 100 keys Japan: 103 keys
Keyboard size	X=18.70 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts.

Camera
The following table lists the camera specifications of your Vostro 5620.

Table 14. Camera specifications

Touchpad
The following table lists the touchpad specifications of your Vostro 5620.

Table 15. Touchpad specifications

Power adapter
The following table lists the power adapter specifications of your Vostro 5620.

Table 16. Power adapter specifications

Description	Values
Type	65 W AC adapter
Connector dimensions:
External diameter	4.50 mm
Internal diameter	2.90 mm
Power-adapter dimensions:
Height	28 mm (1.10 in.)
Width	108 mm (4.25 in.)
Depth	47 mm (1.85 in.)
Power-adapter weight (maximum)	0.29 kg (0.64 lbs)
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.6 A/1.7
Output current (continuous)	3.34 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery
The following table lists the battery specifications of your Vostro 5620.

Table 17. Battery specifications

Description		Option one	Option two
Battery dimensions:
	Height	206.40 mm (8.13 in.)	271.90 mm (10.70 in.)
	Width	82.00 mm (3.23 in.)	82.00 mm (3.23 in.)
	Depth	5.75 mm (0.23 in.)	5.75 mm (0.23 in.)
Temperature range:
	Operating	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)
	Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.		2 hour (express), when the computer is off 3 hour (standard), when the computer is off	2 hour (express), when the computer is off 3 hour (standard), when the computer is off
Coin-cell battery		CR2032	CR2032
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Display
The following table lists the display specifications of your Vostro 5620.

Table 18. Display specifications

Fingerprint reader (optional)
The following table lists the specifications of the optional fingerprint-reader of your Vostro 5620.

Table 19. Fingerprint reader specifications

GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Vostro 5620.

Table 20. GPU—Integrated

Controller	Memory size	Processor
Intel UHD Graphics	Shared system memory	12th Generation Intel Core i5U/i5P/i7U/i7P
Intel Iris Xe Graphics NOTE: Intel Iris Xe Graphics will default to Intel UHD Graphics on computers with single-channel memory configuration.	Shared system memory	12th Generation Intel Core i5U/i5P/i7U/i7P

GPU—Discrete
The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Vostro 5620.

Table 21. GPU—Discrete

Operating and storage environment
This table lists the operating and storage specifications of your Vostro 5620.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 22. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse.

Dell ComfortView

Prolonged exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Blue light is a color in the white light spectrum which has a short wavelength and high frequency. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and change our body's Circadian rhythm. Using the computer for an extended period may also cause fatigue in other body parts such as the neck, arm, back, and shoulder.
Dell low blue light displays optimize eye comfort with a flicker-free screen. The ComfortView feature reduces the amount of blue light emitted from the monitor to optimize eye comfort. ComfortView mode can be enabled and configured using the Dell CinemaColor (DCC) application. Dell ComfortView is certified by TÜV.

Dell CinemaColor
Dell CinemaColor (DCC) combines the hardware and software to deliver clear visuals that appear every bit as vibrant as the world around you. The DCC has four color profiles that optimize these settings depending on the content and your surroundings.
When you open DCC, you can choose Movie (default), ComfortView, Sports, or Animation from the list. The ComfortView Profile optimizes eye comfort with a Low Blue Light software solution that meets TÜV standards to reduce harmful blue light emissions to make extended screen time easy on your eyes compared to standard digital panels while still retaining the vibrant colors.
ComfortView mode is certified by TÜV for the effective reduction of hazardous blue light by adjusting display parameters. You can adjust the Saturation, Temperature, and Contrast values to create your custom setting in the ComfortView mode.
NOTE: For more information on DellCinema components see KB article 000178241 at https://www.dell.com/support.

ComfortView Plus
ComfortView Plus is a built-in, always-on, and virtually unnoticeable low blue light solution for Dell displays. ComfortView Plus employs a hardware-based design that allows for a wider blue spectrum, with a much lower peak and reduced intensity. Dell ComfortView Plus is certified by TÜV certified - low blue light hardware solution.
NOTE: ComfortView Plus is an optional hardware feature to be configured at the point of sale.
To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 in. to 28 in. (50 cm and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 23. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 24. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:

Table 25. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go to www.dell.com/support. On the menu bar at the top of the Support page, select Support > Knowledge Base. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.
