Asus GR701 Manual
- 1 90DC00F0-B0000C Left side door
- 2 90DC00F0-B0001C Right side door
- 3 90DC00F0-B0014C FIO module
- 4 90DC00F0-B0005C Front panel
- 5 90DC00F0-B0015C X-type aluminum component
- 6 90DC00F0-B0025C Upper right aluminum handle
- 7 90DC00F0-B0035C Upper left aluminum handle
- 8 90DC00F0-B0045C Lower right aluminum footstand
- 9 90DC00F0-B0055C Lower left aluminum footstand
- 10 90DC00F0-B000EC Top filter
- 11 90DC00F0-B001EC Front and bottom filters
- 12 90DC00F0-B0003C 140mm PWM fan
- 13 90DC00F0-B002LC Fan bracket
- 14 90DC00F0-B0006C Fan hub
- 15 90DC00F0-B000JC Cable cover panel
- 16 90DC00F0-B0017C Light panel
- 17 90DC00F0-B0009C VGA holder
- 18 90DC00F0-B0027C Hidden drawer
- 19 90DC00F0-B001JC PSU cover
- 20 90DC00F0-B000LC Repair kits
- 21 90DC00F0-B001LC HDD tray
- 22 90DC00F0-B0007C Accessory box
- 23 90DC00F0-B000CC Color box
- 24 FAQ
- 25 Download manual
- 26 In Other Languages

90DC00F0-B0000C Left side door
GR701 LEFT SIDE DOOR/CSC|Left side door
Contents: Left side glass*1, Warning sticker*1, Front rubber gaskets*2, Rear rubber gaskets*2

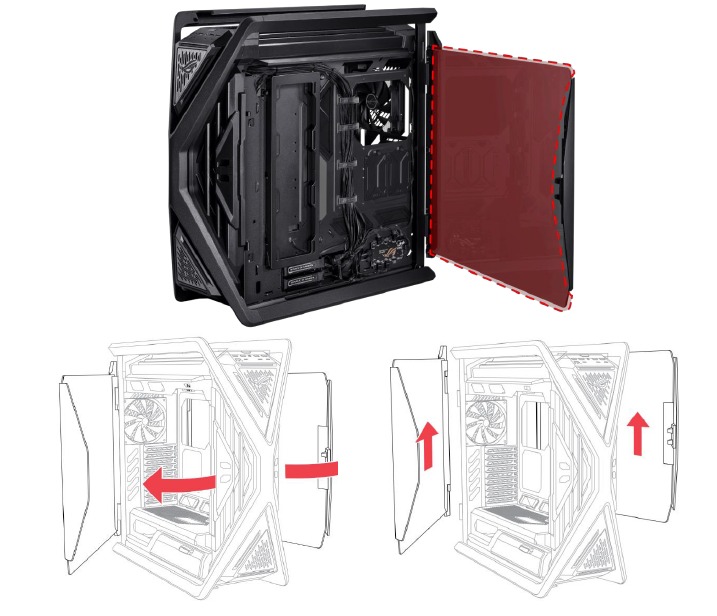

90DC00F0-B0001C Right side door
GR701 RIGHT SIDE DOOR/CSC|Right side door
Contents: Right side glass*1, Warning sticker*1, Front rubber gaskets*2, Rear rubber gaskets*2

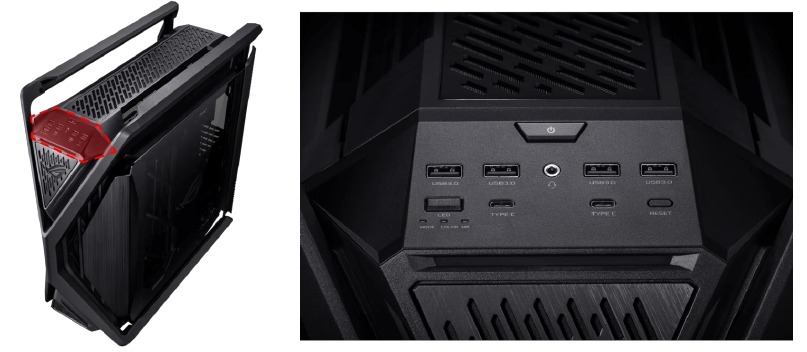

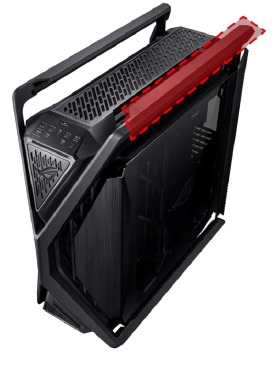

90DC00F0-B0014C FIO module
GR701 FIO MODULE WW/CSC|FIO module
Fully-assembled. (Consists of FIO module*1, FIO panel*1, Flat round head M3 chassis screws*2)
Disassembly method: Remove the top filter, then unscrew the screws.
FAQ: FIO buttons and ports not working, Case lighting not working

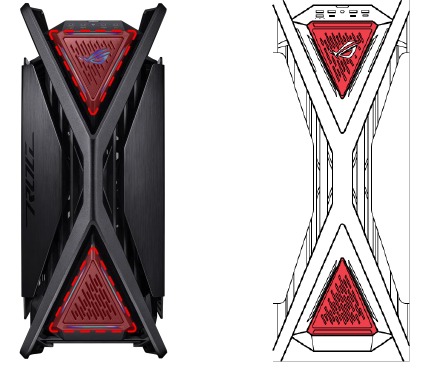

90DC00F0-B0005C Front panel
GR701 FRONT PANEL/CSC|Front panel
Fully-assembled. (Consists of Upward triangular light guide panels*1, Downward triangular light guide panels*1, Upward light board*1, Downward light board*1, T3*4 self-tapping screws*2)
Disassembly method: Remove the top filter, FIO module and front side fans, then unscrew the screws.
FAQ: Case lighting not working

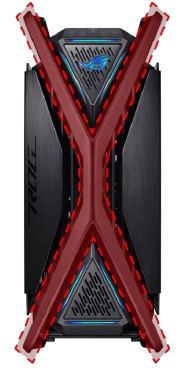

90DC00F0-B0015C X-type aluminum component
GR701 AL X/CSC|X-type aluminum component
Disassembly method: Unscrew the screws.

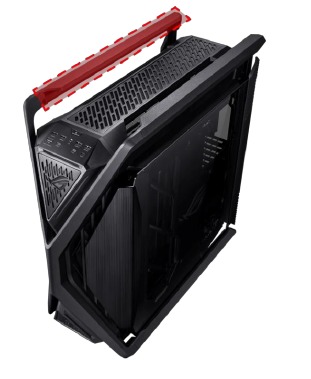

90DC00F0-B0025C Upper right aluminum handle
GR701 AL RIGHT UP/CSC|Upper right aluminum handle
Disassembly method: Unscrew the screws.

90DC00F0-B0035C Upper left aluminum handle
GR701 AL LEFT UP/CSC|Upper left aluminum handle
Disassembly method: Unscrew the screws.

90DC00F0-B0045C Lower right aluminum footstand
GR701 AL RIGHT LOW/CSC|Lower right aluminum footstand
Disassembly method: Unscrew the screws.

90DC00F0-B0055C Lower left aluminum footstand
GR701 AL LEFT LOW/CSC|Lower left aluminum footstand
Disassembly method: Unscrew the screws.

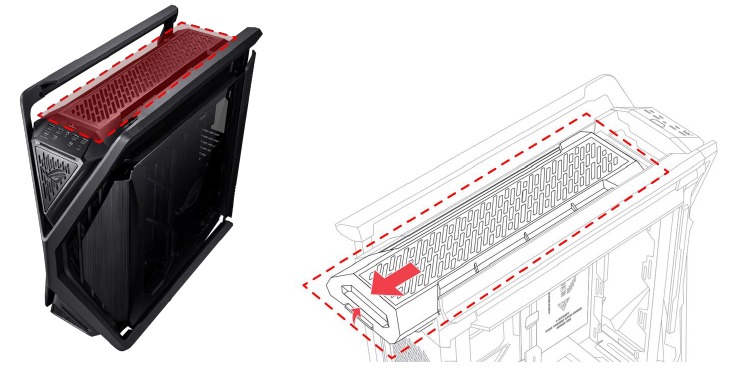

90DC00F0-B000EC Top filter
GR701 TOP FILTER/CSC|Top filter
Fully-assembled. (Consists of Upper cover base*1, Upper cover latch*1, Upper cover mesh*2,
Top cover decorative panel*1, Aluminum rivets for top cover decorative panel*6, Upper filter*1, T3 self-tapping screws for latch*2, T3*4 self-tapping screw (Pan head) for mesh*12,
Flat round head M3 chassis screws for top cover decorative panel*6)
Disassembly method: Press the rear side tab upward and pull it backward to remove.

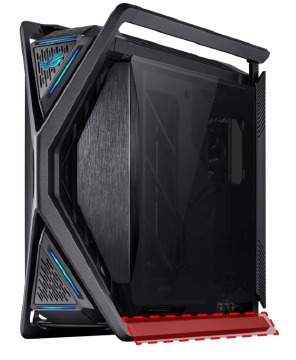

90DC00F0-B001EC Front and bottom filters
GR701 FRONT LOW FILTER/CSC|Front and bottom filters
Disassembly method: Simply pull them out. They have a specific orientation, so make sure not to install them upside down.

Contents:
- Front side filters left*1, right*1
- Bottom filter*1

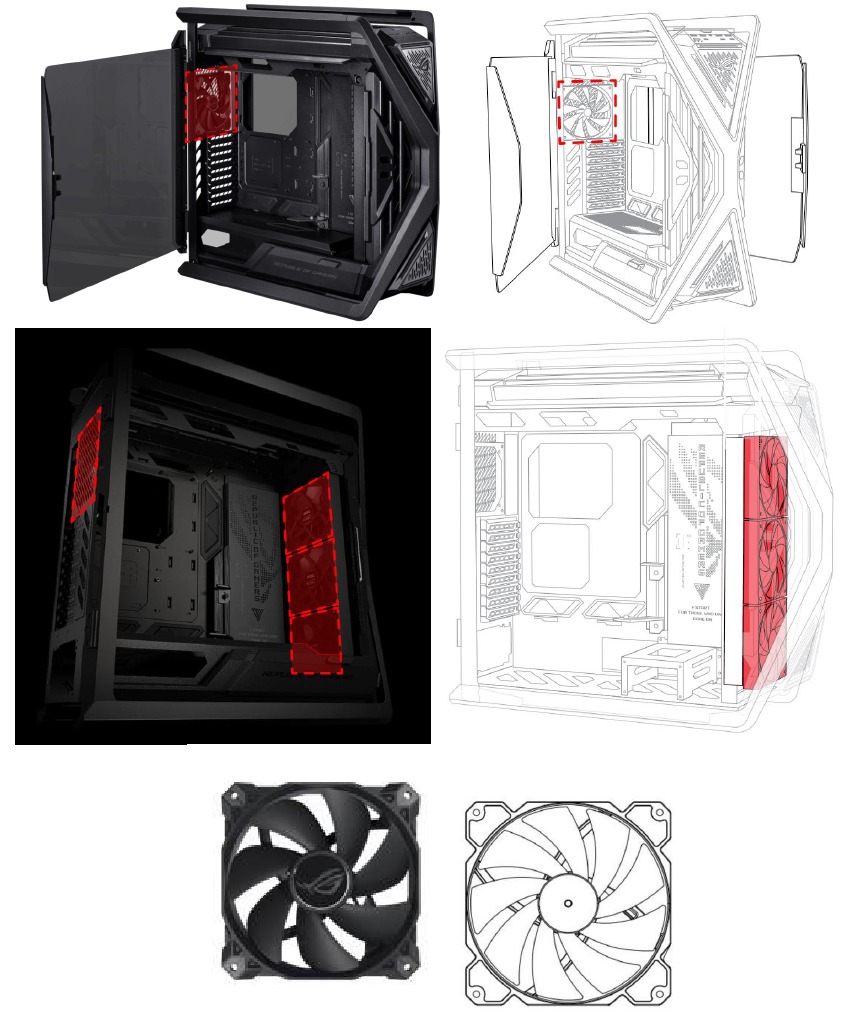

90DC00F0-B0003C 140mm PWM fan
GR701 PWM FAN/CSC|140mm PWM fan
Disassembly method: Unscrew the four corner screws to remove it.
FAQ: Case fan not spinning, Fan noise

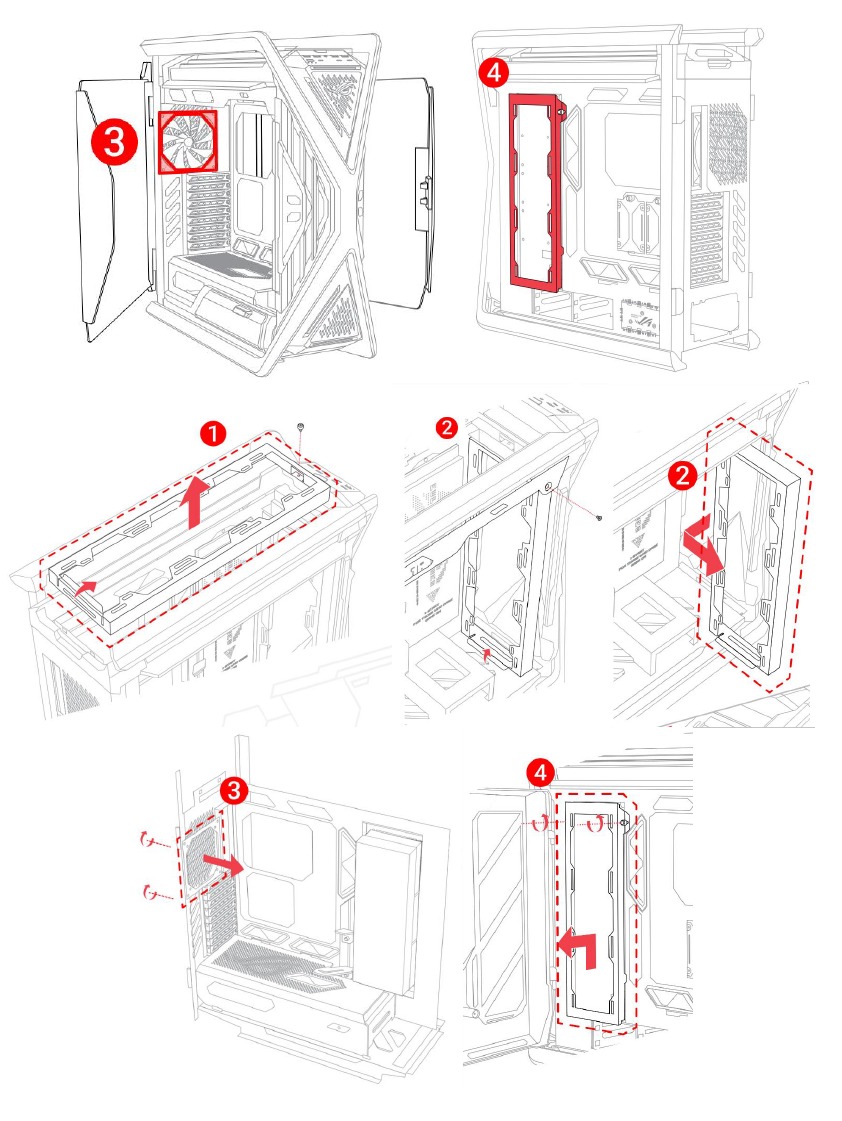

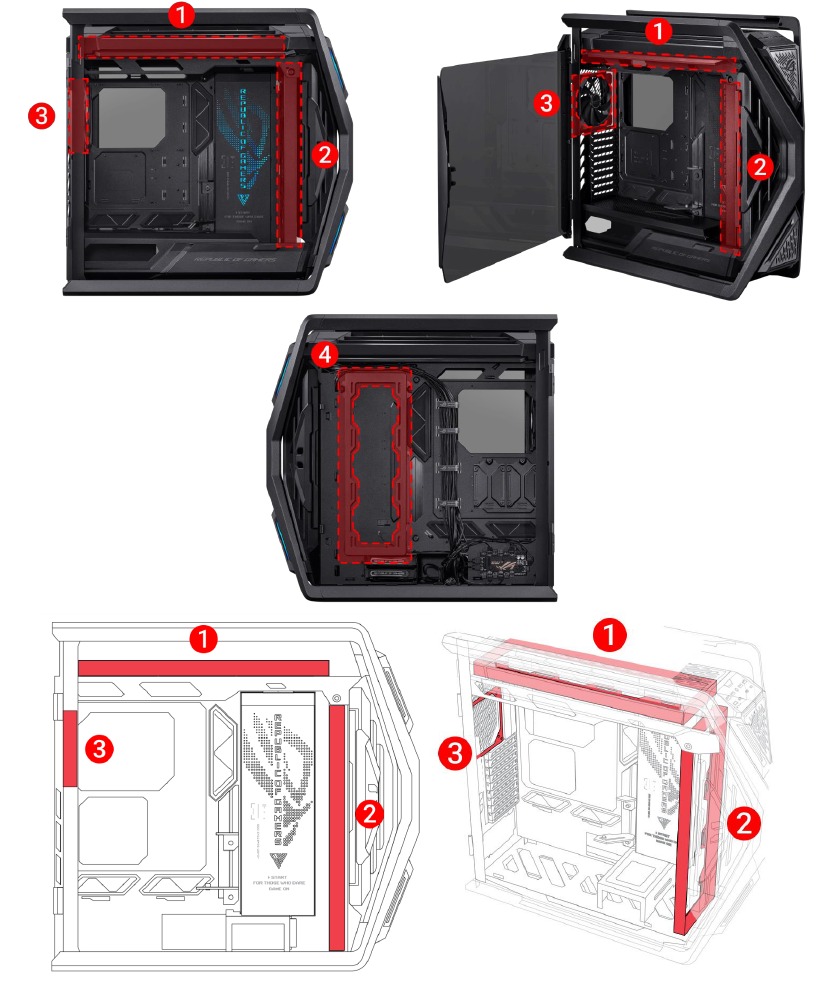

90DC00F0-B002LC Fan bracket
GR701 MISC FAN BRACKET/CSC|Fan bracket


Contents:
- Top water-cooling radiator bracket
- Front window water-cooling radiator bracket
- Rear fan bracket ④Motherboard water-cooling radiator bracket
90DC00F0-B0006C Fan hub
GR701 FAN HUB/CSC|Fan hub
Contents: Fan hub, FIO-USB ARGB cable, Power supply cable + signal input cable
Disassembly method: Unscrew the three screws to remove it.
FAQ: Case fan not spinning

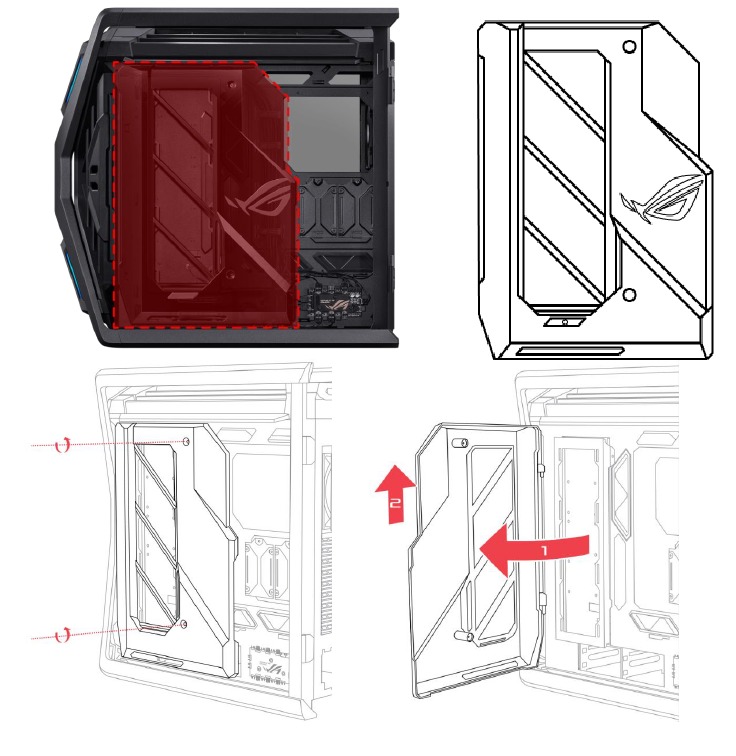

90DC00F0-B000JC Cable cover panel
GR701 HIDE/CSC|Cable cover panel
Contents: Plastic panel*1, Suspension screws*2

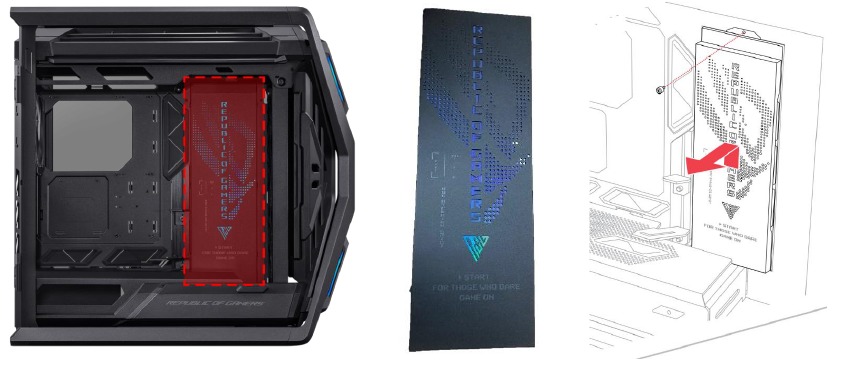

90DC00F0-B0017C Light panel
GR701 ACCY LIGHT PANEL/CSC|Light panel
Fully-assembled. (Consists of Light panel*1, Light panel base*1, M3 screws*5, Light panel footstand*2, Rubber foot pads*2, Glass light guide panel*1, Control board*1, ARGB cable*1, Light strip*1, Flat round head M3 chassis screws*5, Insulation sheet *1)
FAQ: Case lighting not working

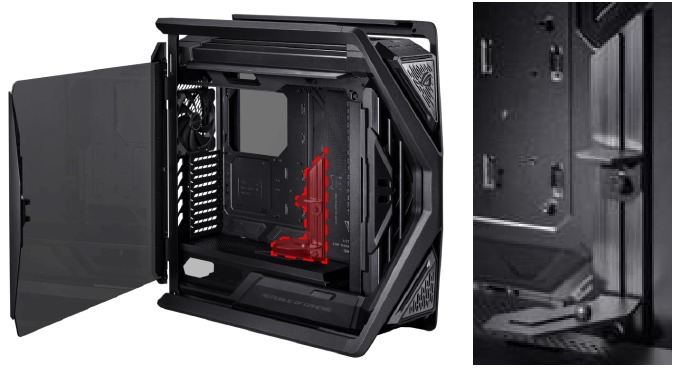

90DC00F0-B0009C VGA holder
GR701 VGA HOLDER/CSC|VGA holder
Fully-assembled. (Consists of Graphics card bracket base*1, Short bracket*1, Long bracket*1,
Support nuts*2, Bracket screws*2, Rubber pad*1, Rubber plug*1, Graphics card riser*1)
Disassembly method: Unscrew the screws on the rear side.

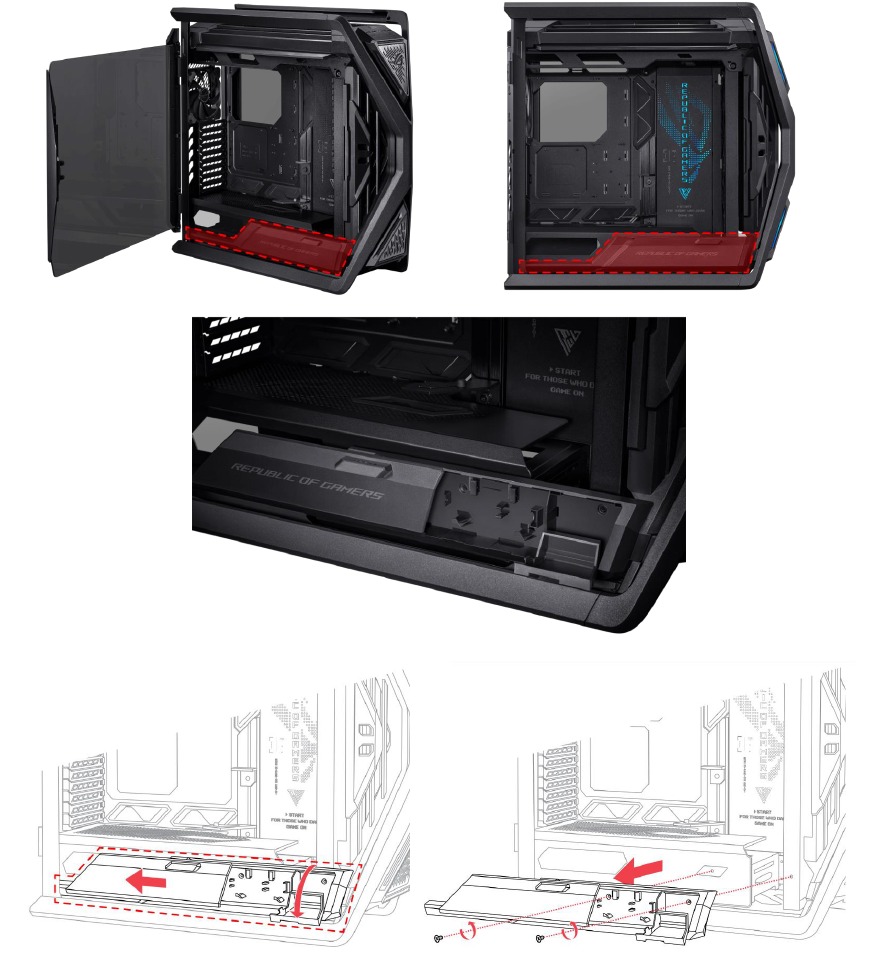

90DC00F0-B0027C Hidden drawer
GR701 ACCY HOUSING/CSC|Hidden drawer
Fully-assembled. (Consists of Drawer base*1, Sliding cover*1, Screw cover*1, Cushion pad*1)

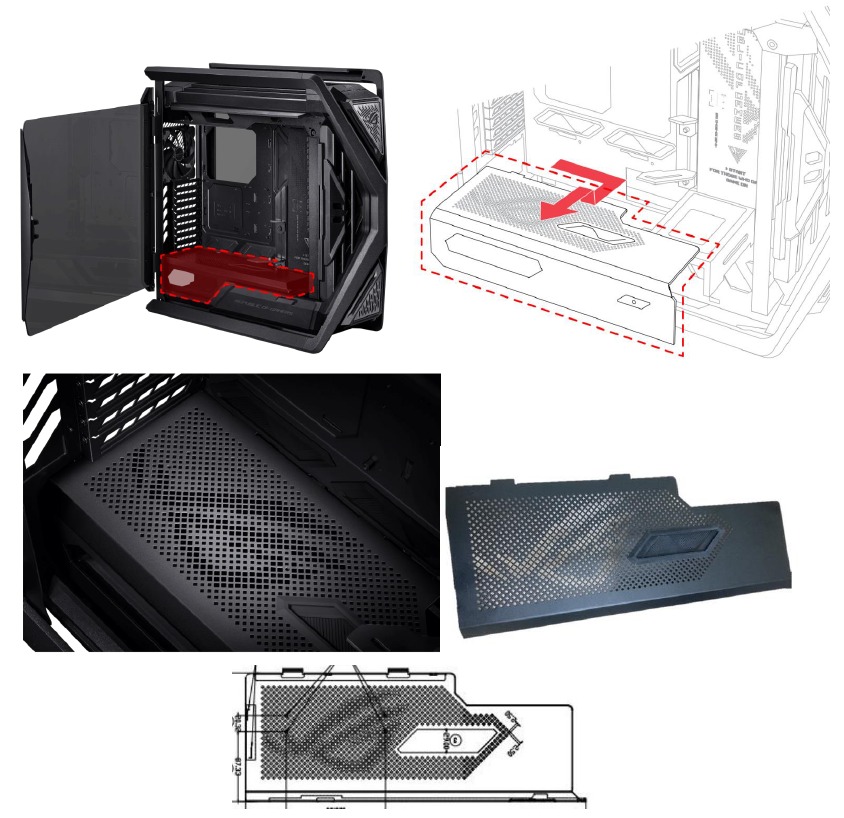

90DC00F0-B001JC PSU cover
GR701 PSU COVER/CSC|PSU cover
Fully-assembled. (Consists of Cover plate*1, Rubber pad*1, Transparent side cover*1, Cable outlet*1)

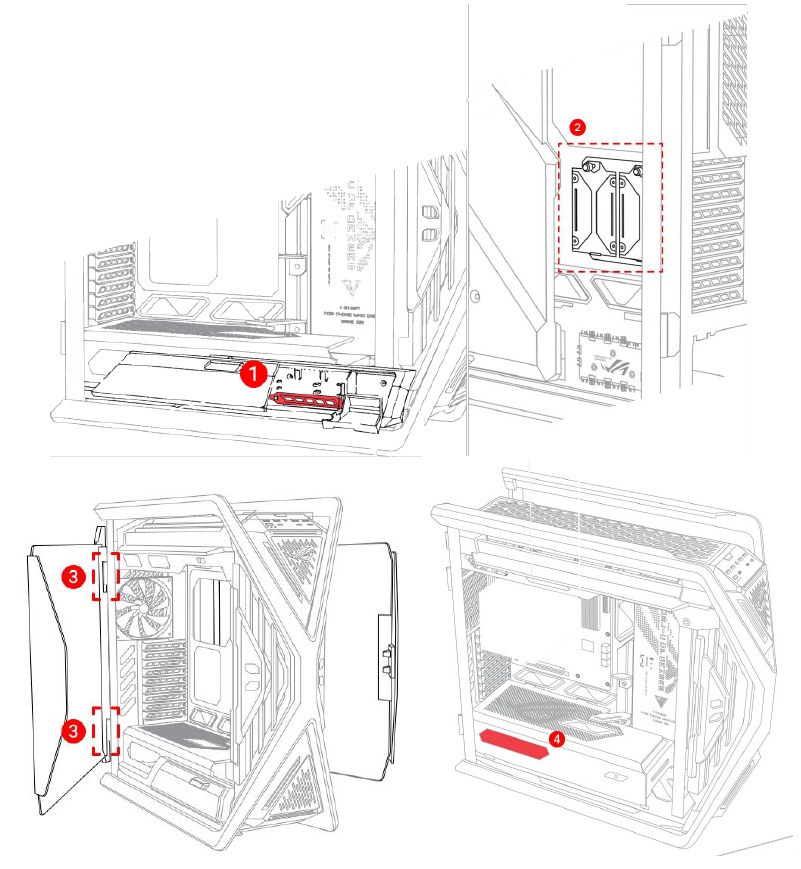

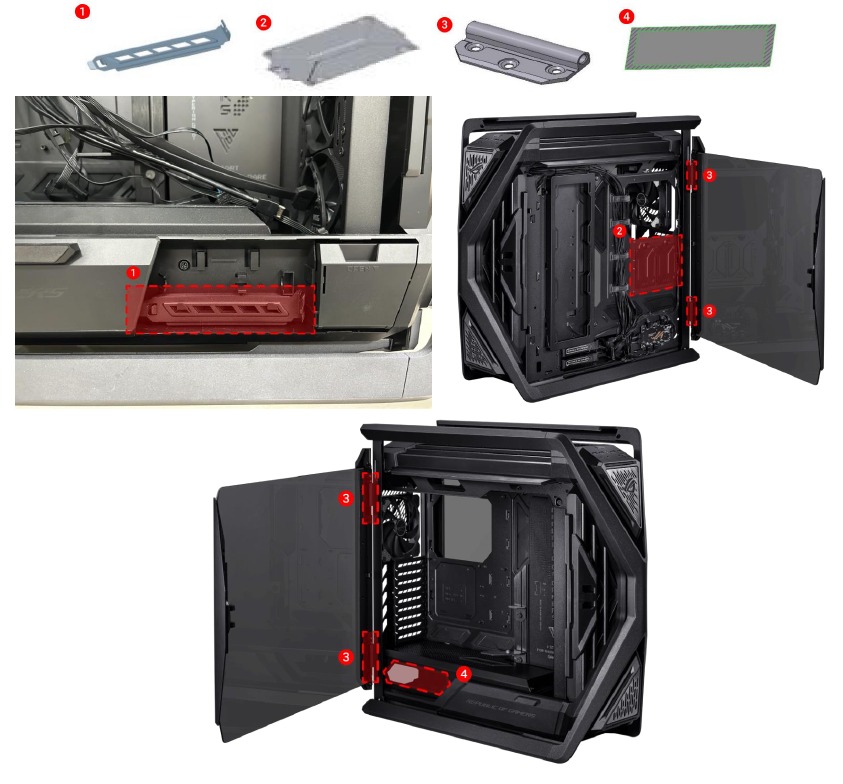

90DC00F0-B000LC Repair kits
GR701 MISC A/CSC|Repair kits
Left chassis foot pad*1, Right chassis foot pad*1, Back cover*4 (upper left, lower left, upper right, lower right), M5 countersunk head hexagon socket screw*2, Nylok screws*8, HDD screws*16, Thumb suspension screws*2, Suspension screws for cable cover panel*2, Flat round head M3 chassis screws*8, Thumb screws*2, M3*6 flat round head screw*10, M3*5 countersunk screws*4, KM6-32*6 countersunk screws*4, Screws for side glasses*6, Fan screws*8, Motherboard standoffs*4, Motherboard pillars*2


Contents:
- PCI slot cover
- 2.5" HDD bracket
- Side door hinge
- Transparent side cover for power supply

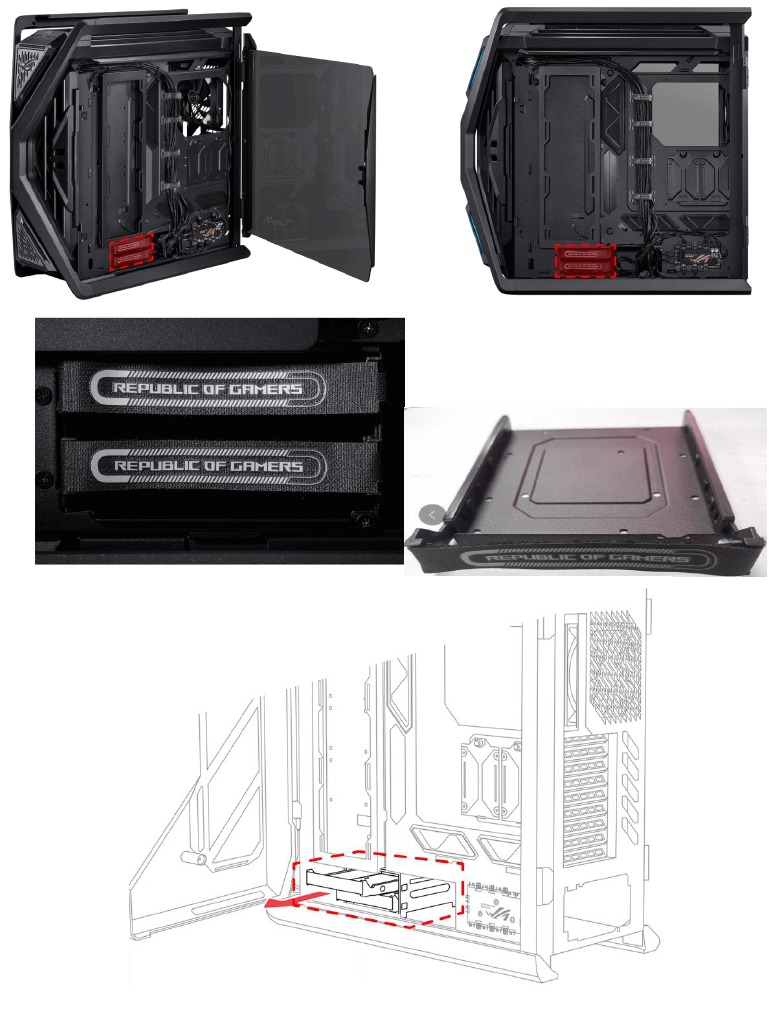

90DC00F0-B001LC HDD tray
GR701 MISC 3.5 HDD/CSC|HDD tray
Contents: Tray*2, Tray bracket*1

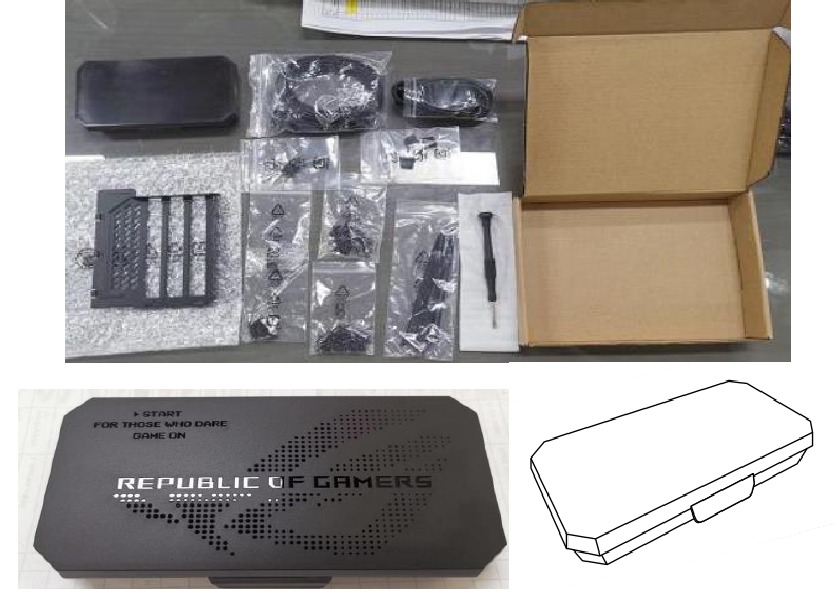

90DC00F0-B0007C Accessory box
GR701 ACCY BOX/CSC|Accessory box
Contents: HDD screws*20, Flat round head M3 chassis screws*40, Hex socket*1, Motherboard standoffs*6, Cable ties*10, USB Type-A dust covers*4, USB Type-C dust covers*2, Phillips screwdriver*1, Vertical graphics card mount*1, CPU 8-pin extension cable*2, Q-connector*1

90DC00F0-B000CC Color box
GR701 COLOR BOX/CSC|Color box

FAQ
Fan not spinning
Related components: PWM fan, Fan hub
- Dust and debris can accumulate on the fan blades over time, causing it to stop spinning. Check for any physical obstructions that may be blocking the fan's movement and remove them. Please remove the fan from the fan hub and directly connect it to the fan header on the motherboard. If the fan still doesn't work, please replace the fan.
- Make sure that the fan is properly connected to the fan hub. The fan has a 4-pin connector, ensure that the cable is securely plugged into the motherboard or the fan hub.
- If it is confirmed that the fan can work, it means the fan hub is damaged, please replace it.
Fan noise
Related components: PWM fan
- Over time, dust can accumulate on the fan blades, causing them to become unbalanced and produce noise. Turn off your computer and carefully clean the fan blades using compressed air or a soft brush to remove any dust or debris.
- Adjust the fan speed settings in the computer's BIOS or through software provided by the motherboard manufacturer. Lowering the fan speed can help reduce the noise level. However, be cautious not to set the fan speed too low, as it could lead to overheating.
FIO buttons and ports not working
Related components: FIO module
- Ensure that the cables connecting the FIO buttons and ports to the motherboard are properly connected. Sometimes, these cables can come loose or get disconnected, leading to functionality issues.
- Reconnecting the cables can resolve poor connections. Gently disconnect all the cables, wait for a while, and then plug them back into the corresponding headers on the motherboard.
- If reconnecting the cables does not solve the issue, please replace the FIO module.
Case lighting not working
Related components: FIO module, Front panel, Light panel
- Ensure that the case lighting cables are properly connected to the power source. Test the case lighting with a different PSU, connect the case lighting to a known working PSU to determine if the lighting functions properly.
- Verify if the RGB light panel controller is correctly connected. Make sure that the connecting cable of the controller is correctly connected with the RGB header of the motherboard.
- Two types of lighting control of GR701 (1) Self-control (2) Sync up with MB Lighting If the LED button on the FIO panel is unable to switch the lighting control, please replace the FIO module.
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Need help?
Do you have a question about the GR701 and is the answer not in the manual?
