SPECIFICATIONS

MODEL NO.	AWR-460DB
VOLTAGE:	110~120V
CURRENT:	1.2A
FREQUENCY:	60Hz
POWER CONSUMPTION:	140W
STORAGE CAPACITY:	5.3 Cu. Ft.
TEMPERATURE RANGE:	40°F - 50°F (upper zone) 50°F - 66°F (lower zone)
NET WEIGHT:	104.5 lbs
UNIT SIZE (W X D X H):	22.50"D (24.00" w/handle) x 23.50"W x 33.00"H

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:

Service and Support
Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications
Stay up to date for safety, system updates and recall notifications

Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less than 2 minutes to complete: newair.com/register

PARTS LIST

When you receive your unit, carefully remove the exterior and interior packaging. It is recommended that you retain the packaging for future use. Check to make sure the following parts are included:

5 Shelves
Door handle and 2 screws
1 instruction manual

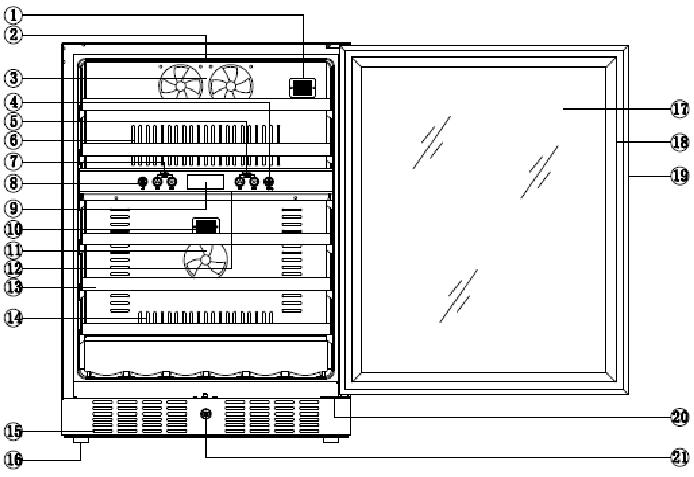

PARTS DIAGRAM

Upper zone NTC point
Upper zone Light
Upper zone Fan
Light switch
Lower zone temperature controls
Exhaust window
Upper zone temperature controls
Temperature switch
Temperature display
Lower zone NTC point
Lower zone Fan
Lower zone Light
Shelf
Exhaust window
Exhaust window
Leveling Foot
Glass
Door seal
Handle
Lower Hinge
Lock

ASSEMBLY & INSTALLATION

HANDLE ASSEMBLY

Tools Required for Assembly: Phillips screwdriver (not included)
Estimated Assembly Time: 5 minutes
Before installation, attach the handle to the front of the unit with the included screws. It may be necessary to push aside the rubber seal on the inside of the door to reveal the screw holes.

Avoid over-tightening the screws, or you may cause damage to the unit.

INSTALLATION

warning Before connecting the appliance to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
This appliance can either stand alone or be built in. The front grille must be unobstructed.
Before operating your wine cooler for the first time, follow these steps:

Clean the interior surface of the unit with lukewarm water and a soft cloth.
Place the cooler on a level surface that will be strong enough to support the unit when it is fully loaded. To level your cooler, adjust the front feet located at the bottom of the unit.
Install the cooler away from direct sunlight and heat sources such as stoves, heaters, or radiators. Direct sunlight may affect the unit's acrylic coating, and nearby heat sources can increase electrical consumption. Extreme cold or hot ambient temperatures may also prevent proper performance.

REVERSING THE DOOR SWING

The door hinge is on the left side by default. If you wish to reverse the swing so that the door opens from the right, it is important to have at least one other person to help. It is dangerous to try to reverse the door swing by yourself.

Unscrew the upper door hinge while the second person supports the door.
Remove the upper hinge and carefully lift the door off the bottom hinge.
Unscrew the bottom hinge and install it on the left side of the unit.
Flip the door around so that the handle is on the right side and slip the door over the bottom hinge.
Reattach the door by screwing the top hinge into the holes provided on the upper left surface of the unit. Make adjustments as necessary to be sure the door is aligned properly.

OPERATING INSTRUCTIONS

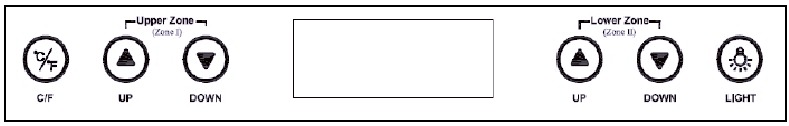

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

Select Celsius or Fahrenheit temperature scale.

Turn the light on and off.

Raise the desired temperature. *

Lower the desired temperature. *

* To set the upper zone temperature, press the UP or DOWN button on the left side of the control panel. The interior temperature of the upper zone can be adjusted in increments of 1 degree between 40°F and 50°F (5° - 10°C).
* To set the lower zone temperature, press the UP or DOWN button on the right side of the control panel. The interior temperature of the lower zone can be adjusted in increments of 1 degree between 50°F and 66°F (10° - 18°C).

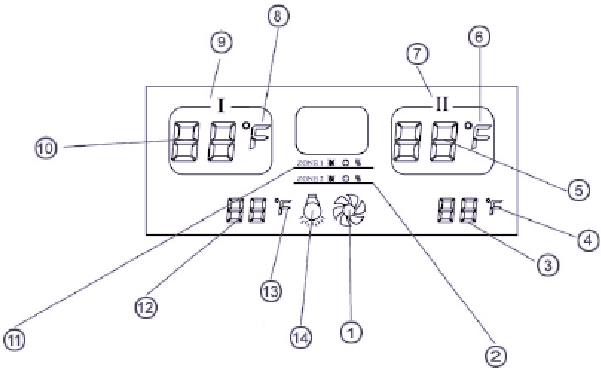

THE DISPLAY SCREEN

Indicates the working status of the entire unit
Indicates the working status of the lower zone
Shows set temperature of the lower zone
Shows Celsius or Fahrenheit degrees
Actual temperature of the lower zone
Shows Celsius or Fahrenheit degrees
Lower Zone
Celsius or Fahrenheit degrees
Upper Zone
Actual temperature of the upper zone
Indicates the working status of the upper zone
Shows set temperature of the upper zone
Celsius or Fahrenheit degrees
Indicates status of the internal light (on/off)

Working Status Icons:

Cooling
Maintaining current temperature
Heating

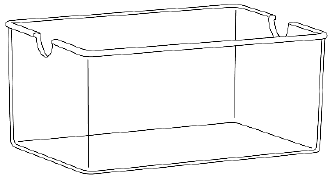

HOW TO USE YOUR MOISTURE TRAY

Your unit comes with a small water tray to help moisturize corks and or wooden shelves so they don't dry out. Fill the tray halfway and place it on the middle shelf— horizontally and towards the back —so moisture is evenly distributed throughout the inside of the cabinet. Refill the tray when it is a quarter of the way empty and exercise caution when removing or restocking bottles so water does not spill out.

CLEANING & MAINTENANCE

CLEANING YOUR COOLER

To clean your cooler:

Unplug the cooler and remove anything inside.
Wash the inside of the unit with a solution made of warm water and baking soda solution (2 tablespoons of baking soda to one quart of water).
Unscrew the water reservoir at the bottom of the unit and rinse with water.
To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR COOLER

To move your cooler:

Remove anything stored inside.
Securely tape down all loose parts located inside the unit.
Turn the leveling feet up to the base in order to avoid damage.
Tape the door shut.

Be sure the cooler stays in an upright position during transportation.

WINE STORAGE GUIDE

The ideal temperature for storing red or white wines is 55°F, with humidity between 60% and 75% RH.
Store corked bottles on their sides, to keep the cork from drying out and allowing air into the bottle.
UV rays make wine age faster, so keep bottles out of direct sunlight.
Avoid heavy vibrations from motors, etc.
Store wine separately from strong odors that might contaminate the flavor of the wine.

HOW LONG SHOULD I STORE MY WINE

While most wines today are meant to be drunk "young" (within a few years of production) some fine wines are best served by proper aging. But aging too long can decrease the flavor of the wine. Generally speaking, red wines can age longer than white wines, but here is a storage guide for some popular vintages.

Cabernet Sauvignon: 7-10 years
Pinot Noir: 5 years
Merlot: 3-5 years
Zinfandel: 2-5 years
Beaujolais: Drink now
Chardonnay: 2-3 years
Riesling: 3-5 years
Sauvignon Blanc: 18 months – 2 years
Pinot Gris: 1-2 years
Champagne: Ready to drink

TROUBLESHOOTING

Problem	Possible Causes	Solution
Wine cellar does not operate.	The unit may be plugged in using a different voltage.	Check if using the wrong voltage.
Wine cellar does not operate.	The circuit breaker may be tripped or there is a blown fuse.	Reset the circuit breaker or check for a broken fuse
Wine cellar is not cold enough.	The external environment may require a higher setting.	Lower the temperature of the cooler.
	The door may be opened too frequently.	Open the door less frequently.
	The door is not closed completely.	Make sure the door is closed securely.
	The door seal does not seal properly.	Replace the seal on the door. Replacements can be acquired from the manufacturer.
	The front grille is obstructed.	Make sure nothing is blocking the front grille.
The light does not work.	There may be a problem with the display board.	Contact the manufacturer.
The cooler vibrates while operating.	The unit is not sitting on a level floor, or the unit's feet are not correctly installed.	Make sure the unit's feet are in the proper position and tightened securely.
The cooler produces a lot of noise.	The unit is not leveled.	See above.
The cooler produces a lot of noise.	The fan may be obstructed	Check the fan to make sure there is no debris or obstruction. If not, contact the manufacturer.
The door will not close properly.	The unit is not leveled.	See above.
	The door is not properly installed.	Check the door hinges to make sure they are properly installed.
	The seal is weak.	Replace the seal on the door. Replacements can be acquired from the manufacturer.
	The shelves are out of position.	Make sure the shelves slide all the way into the unit.
The LED display does not work.	There may be a problem with the main control board.	Contact the manufacturer.
The LED display does not work.	There is a problem with the plug.	Contact the manufacturer.
There is an LED display error, or the LED displays "LO".	The cooling kit is no longer working properly.	Contact the manufacturer.
	The PC Board is faulty.	Contact the manufacturer.
The buttons do not function.	The temperature control panel may be damaged.	Contact the manufacturer.

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:
caution Attention: To avoid the risk of child entrapment, do not allow children to operate, play with, or crawl inside the unit. If the unit will not be used for an extended period of time, remove the door and leave the shelves in place so that children cannot crawl inside. Also remove the door when disposing of the unit.

Shock Hazard – Electrical Grounding Required

Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.
Altering or cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire, and loss of property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Avoid operating this wine cooler in excessively moist or humid environments.

warning Important Precautions:

Do not lift unit by door handle.
Never install or operate the unit inside cabinets or without proper clearances.
Failure to clean the condenser every six months can cause the unit to malfunction.
Allow unit temperature to stabilize for 24 hours before use.
Do not block any internal fans.
Keep the wine cooler away from hazardous materials or combustible/flammable substances.
Use only genuine supplier's replacement parts. Imitation parts can damage the unit, affect its operation or performance, and may void the warranty.
