Samsung UBD-M7500 - Blu-ray Player Manual

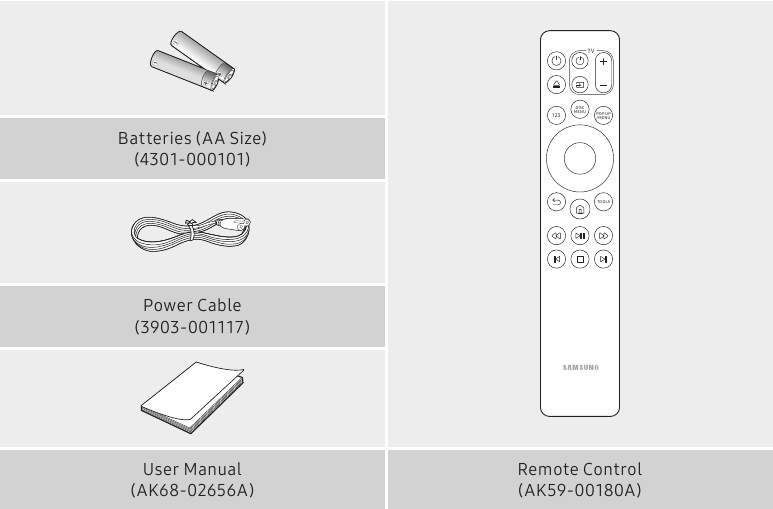

Accessories

Check for the supplied accessories shown above.

For further instructions, refer to the UBD-M7500 Web Manual.

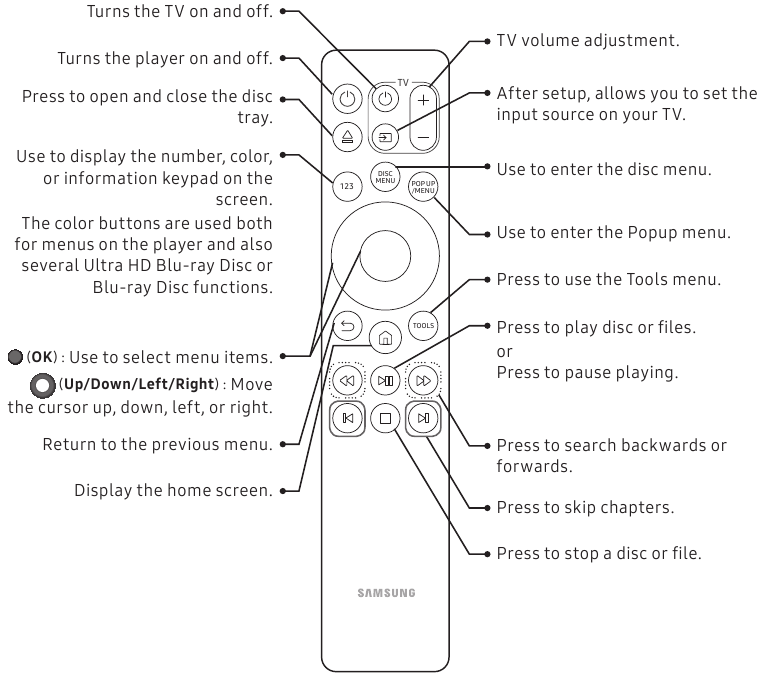

Remote Control

The TV volume, source, and on/off buttons inside the TV section on the remote only work with Samsung TVs. To use these buttons with another TV brand, enter the appropriate TV Control Code from the list below.

When the player displays an Ultra HD Blu-ray or standard Blu-ray Disc's menu, you cannot start the movie by pressing the button on the remote or the player. To play the movie, you must select Play Movie or Start in the disc's menu, and then press the (OK) button on the remote control.

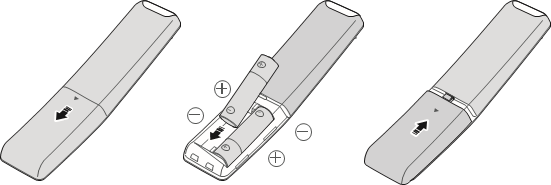

Inserting Batteries

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) in the correct +/- polarity configuration. Slide the battery cover back into position

Using Remote Control Buttons to Enter TV Codes

1. Press and hold the (TV Power) button.
2. While holding the (TV Power) button, press the buttons on the remote that correspond to a two-digit TV Code from the list below. Use the illustration to the right as a guide.
   For example: To enter 01, press the TOOLS button and then press the 123 button. Note that some TV brands have more than one 2-digit code. If the first code does not work, try the next.


TV Control Codes

Front Panel and Rear Panel

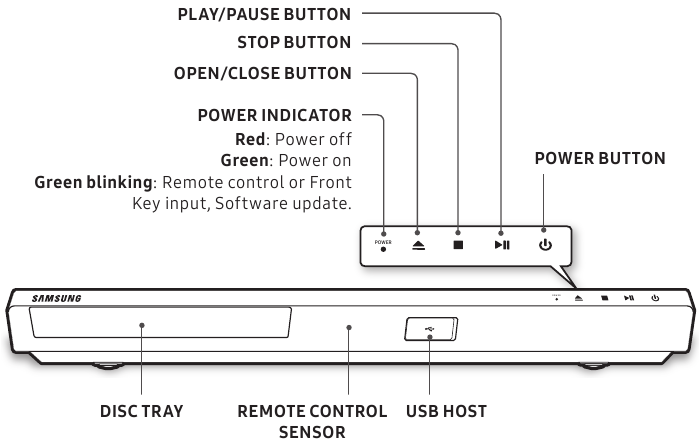

Front Panel

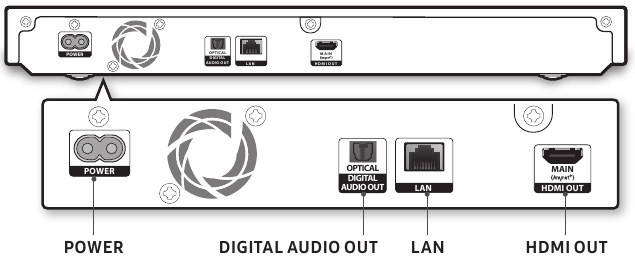

Rear Panel

Connections

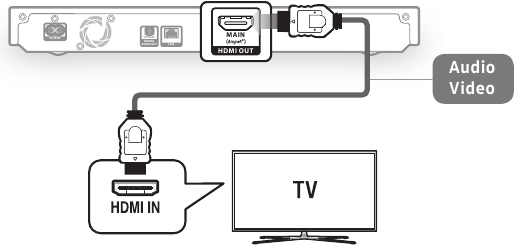

Connecting to a TV

UHD TVs support only the HDMI OUT port.
To view video in the HDMI 720p, 1080p, or 2160p output mode, you must use a high speed (category 2) HDMI cable.

Connecting to an Audio Device

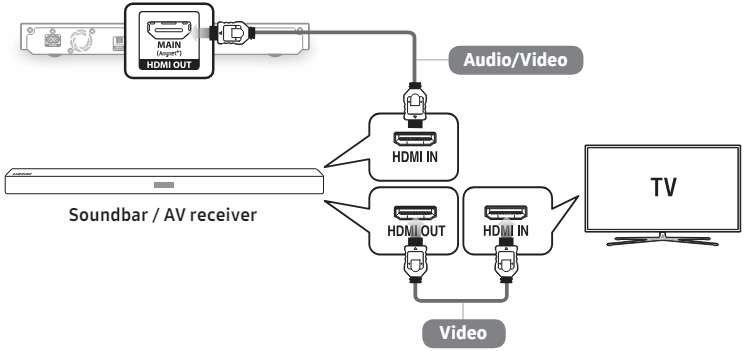

Connecting to an HDMI (HDR) compatible Soundbar / AV receiver that supports pass through

Your receiver must have 4K pass through capability to pass through UHD video content.

You must set up HDMI UHD Color to enable HDR on your Samsung TV manually if your player is not directly connected to the TV. (For example, through a Soundbar or AV receiver.)

HDR : High Dynamic Range is a technique used to reproduce a greater dynamic range of luminosity than is possible with conventional imaging devices.

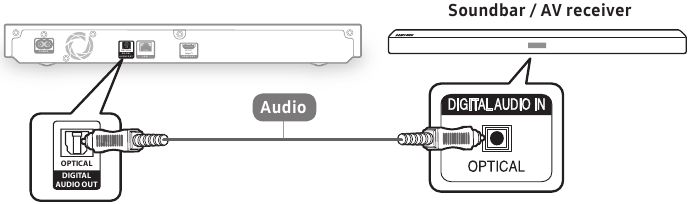

Connecting to a Soundbar / AV receiver with a Digital Optical cable

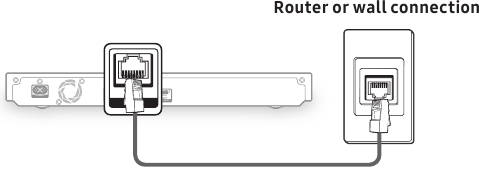

Connecting to a Wired Network

Use Cat 7 (*STP Type) cable for the connection. (* Shielded Twisted Pair)

The Initial Settings Procedure

1. Plug in the Ultra HD Blu-ray Player, turn on your TV, and then turn on the Ultra HD Blu-ray Player by pressing the (Power) button on the remote.
2. Follow the directions for the initial setup displayed on the screen.

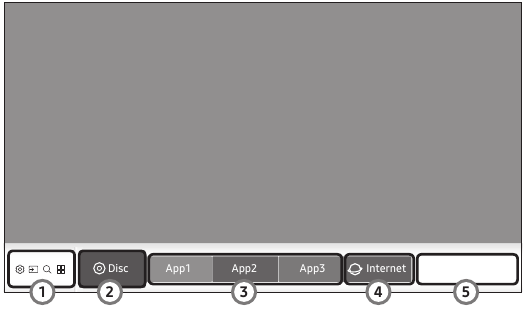

Home Screen

(Functions)	Settings : Press the (OK) button to open the product's menu. In the menu, you can set various functions to suit your personal preferences. With the Settings menu displayed, press the Up button on the remote control to display the Quick Settings menu items. Use the Left/Right buttons on the remote control to jump to the desired menu and configure settings with ease. Source : Select an inserted disc or USB storage device, or a connected network device. Search : Lets you search for content in Apps and YouTube by entering corresponding search words. APPS : Access various for pay or free-of-charge applications.
Disc	Displays the selected source.	Downloaded Apps	Displays downloaded apps. Apps displayed here can be deleted, edited, or rearranged, if necessary.
Internet	You can access the Internet.		Use the Add to Home option to add frequently used menu items to the bottom of the Home screen.

Playing Media Content

Playing a Commercial Disc

Select HOME > Source > Disc.

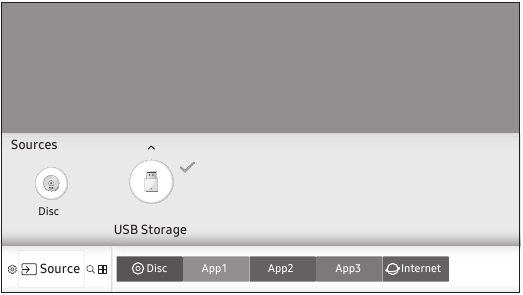

Playing Media Contents Saved on a USB Memory Device

Select HOME > Source > USB Storage.

When connected to a USB device, the screen displays a message at the top.

Additional Functions

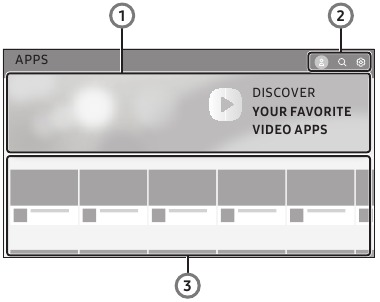

APPS

You can download applications from the Internet, and access various applications and view them on your TV. To access some applications, you need to have a Samsung account.

	Download a video app to play video.
		Log in with your Samsung account. Use a variety of Samsungprovided functions. If you do not have a Samsung account, create one here.
		Enter the name of a specific app to search for it.
		Configure settings for a downloaded app.
	Available apps are displayed at the bottom. Use the Up/Down/Left/Right buttons to download or use a desired app.

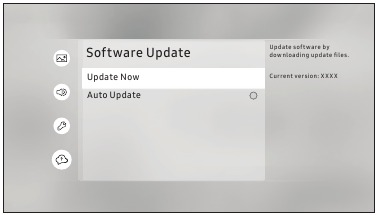

Upgrading Software

1. Select HOME > Settings > Support > Software Update > Update Now.

2. The product searches on line for the latest software version.
3. If it finds a new version, the Update Request pop-up appears. Select (OK).

Never turn the product off or back on manually during the update process.

Make sure there is no disc in the player before you start the update process.

You can set the Auto Update function so that the product downloads new update software automatically.

You can also download the latest firmware file from the Samsung website, copy the files from the PC to a USB memory stick, insert the stick into the front USB port, and then select Update Now.

Specifications

• Network speeds equal to or below 10Mbps are not supported.
• Design and specifications are subject to change without prior notice.
• For power supply and power consumption information, refer to the label attached to the product.
• Weight and dimensions are approximate.

Supported Formats

Disc types and contents your product can play

Supported Video Formats

The DivX codec is not supported by models made for the U.S. or Canada.

Supported Subtitle File Formats

Supported Music File Formats

Supported Picture File Formats

Region Code

Both products and discs are coded by region. These regional codes must match for a disc to play.
If the codes do not match, the disc will not play.
The region number for this product is displayed on the rear panel of the product.

Disc Type	Region Code	Area
Blu-ray Disc		North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.
		Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
		India, China, Russia, Central and South Asia.
DVD-VIDEO		The U.S., U.S. territories and Canada
		Europe, Japan, the Middle East, Egypt, Africa, Greenland
		Taiwan, Korea, the Philippines, Indonesia, Hong Kong
		Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
		Russia, Eastern Europe, India, North Korea, Mongolia
		China

Safety Information

Warning

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.

	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product comes with important literature concerning operation and maintenance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required.
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.
  • Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.
  • Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
  •
    Do not place vessels (vases etc.) containing water on this apparatus. A water spill can cause a fire or electric shock.
• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized Samsung dealer or service center immediately.
• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
•
  Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.
• Route power-supply cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at the plug end, at wall outlets, and the point where they exit from the apparatus.
• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.
• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.
• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.
• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
• Make sure to plug the power cord in until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug by pulling on the power cord. Do not touch the power cord with wet hands.
• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized Samsung dealer or service center.
• Maintenance of Cabinet.
  • Before connecting other components to this product, be sure to turn them off.
  • If you move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.
• Be sure to pull the power plug out of the outlet if the product is to remain unused or if you are leaving the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house).
  •
    Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or the insulation to deteriorate.
• Contact an authorized service center for information if you intend to install your product in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failing to do so may lead to serious damage to your product.
• Use only a properly grounded plug and wall outlet.
  • An improper ground may cause electric shock or equipment damage. (Class 1 Equipment only)
• To turn this apparatus off completely, you must disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.
• Do not allow children to hang on the product.
• Store the accessories (battery, etc.) in a location safely out of the reach of children.
• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.
• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service center.
• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air fresheners, lubricants, or detergent. These chemicals can damage the appearance of the product or erase the printing on the product.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• Do not dispose of batteries in a fire.
• Do not plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire.
• There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.
•
  TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• • This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CLASS 1 LASER product
This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

•
  VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. (IEC 60825-1)
• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN THE COVER. DO NOT REPAIR THE PRODUCT YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

If the Region number of a Ultra HD Blu-ray Disc/Blu-ray Disc/DVDs does not correspond to the Region number of this product, the product cannot play the disc.

Precautions

Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The party responsible for product compliance:
Samsung Electronics Co., LTD.
America QA lab of Samsung
19 Chapin Rd. Building D,
Pine Brook, New Jersey 07058

QUESTIONS OR COMMENTS?

accessibility contact information in U.S.A. : accessibility@sea.samsung.com
