iclever BTH03 - Wireless Headphones Manual
Contents

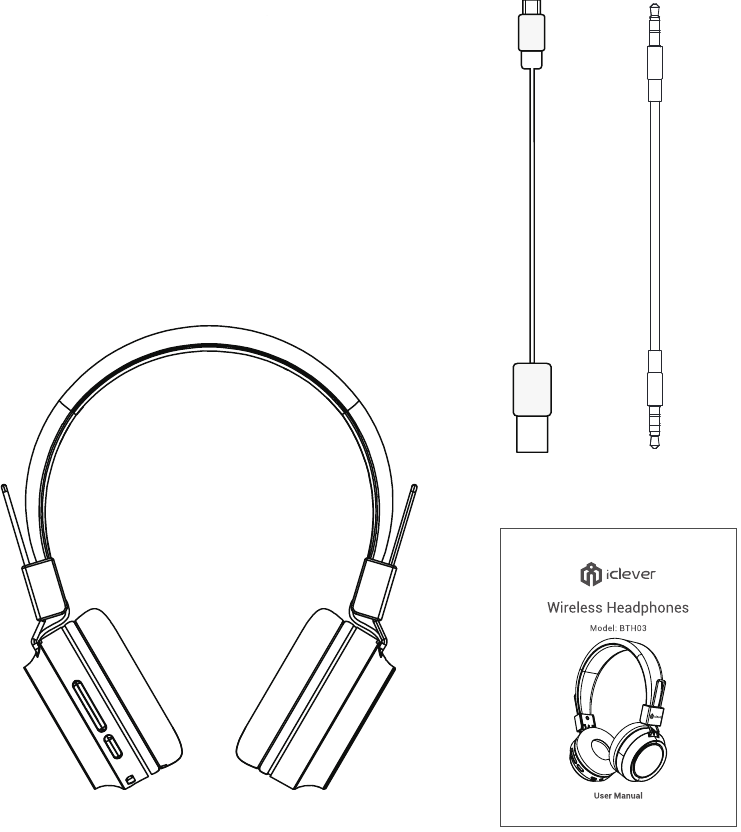

What's in the box
- 1 x iClever BTH03 Headphones
- 1 x Charging Cable
- 1 x 3.5mm Audio Cable
- 1 x User Manual
Overview

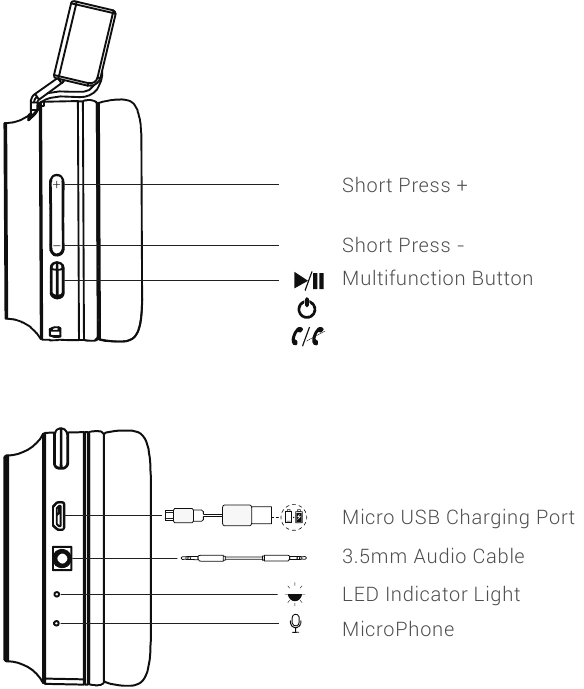

Illustration
LED Indicator Instruction
| Headphones Status | LED Indicator |
| Power on | Blue indicator flashes 4 times |
| Power off | Red indicator glows for 1s and goes off |
| BT Pairing | The indicator flashes red and blue alternately |
| BT Connected | Blue indicator flashes once every 7 seconds |
| Low Battery | Red indicator flashes twice every 2 seconds |
| In charging process | Red indicator lights up sturdily |
| Fully Charged | The LED indicator light will turn blue |
Bluetooth Connection

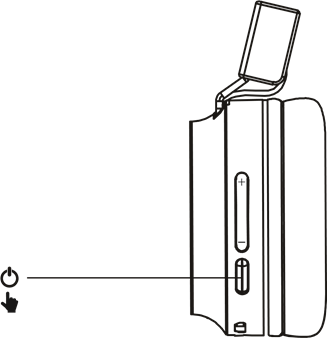

Turn On The Headphones
Note: The headphones will automatically enter pairing mode when being switched on for the first time.

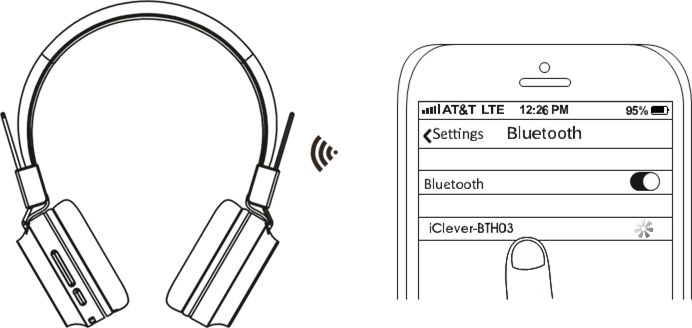

Connect to Bluetooth Device

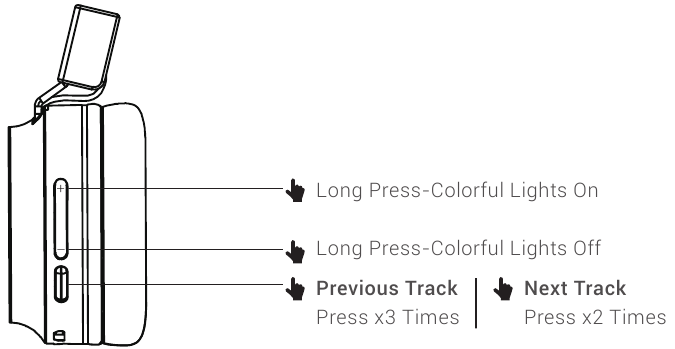

Music Control

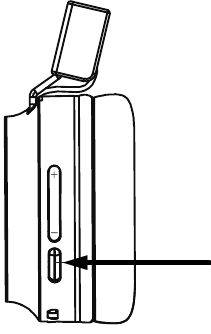

Phone Call
Answer
Press x1 Times
End Call
Press x1 Times
Reject
Long Press 3S
Specifications
- Premium 40mm Dynamic Driver
- Frequency Respense:20Hz - 20KHz
- Support: BT5.0 A2DP v1.2, AVRCP v1.5, HFPv1.5,HSPv1.2
- Bluetooth transmitter frequency range: 2.402-2.480GHz
- Bluetooth transmitter power <4dBm
- Bluetooth transmitter modulation:GFSKπ/4 DQPSK,8DPSK
- Battery type: Lithium-ion Polymer(3.7V,500 mAH)
- Battery charge time <2hrs
- Music play time 25hrs
- Weight: 0.16kg
- Frequency band:2 402GHz- 2.480GHz
- Maximum transmission powe r≤8dBm
