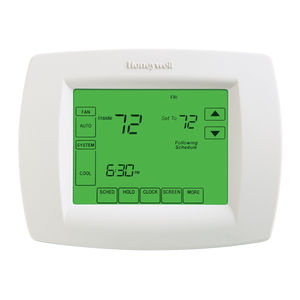

Honeywell VisionPRO TH8000 - Touchscreen Programmable Thermostat Operating Manual

Introduction

BE CAREFUL! Never use sharp instruments, such as a pencil or pen, to press touchscreen keys. To prevent damage to the thermostat, always press keys with your fingertip.

This manual covers the following models
TH8110U: For 1 Heat/1 Cool systems
TH8320U: For up to 3 Heat/2 Cool systems
TH8321U: For up to 3 Heat/2 Cool systems with dehumidification
(Pull thermostat from wallplate and turn over to find model number)

This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate

Need Help?
For assistance with this product please visit http://yourhome.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502

Read and save these instructions.

EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not operate cooling system when outdoor temperature is below 50˚F (10˚C).

Features

• 7-day program schedules maximize comfort and economy.
• Armchair programming: Just pull thermostat from the wall to set schedules.
• Energy-saving settings for maximum cost savings.
• One-touch temp control overrides program schedule at any time.
• Precise comfort control keeps temperature within 1°F of the level you set.
• Change/check reminders let you know when to service or replace filters, batteries and other critical components.
• Large touchscreen display with backlight is easy to read—even in the dark.
• Select models display and control summer humidity.
• Select models accommodate optional outdoor or indoor remote sensors.

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually adjust the temperature.

Quick reference to controls

Other display messages:

• Cool On: Cooling system is activated
• Heat On: Heating system is activated
• Aux Heat On: Auxiliary heating system is activated

Clock setting

To set the current time display, press CLOCK, then press or to adjust the time. Press and hold or to advance the time more quickly.

Press DONE to save & exit (or press CANCEL to exit without changing the time).

Note: The real-time clock should never require adjustment since it automatically updates for daylight savings time, and stores all date/time information.

Note: To change the current week day display, see

Fan setting

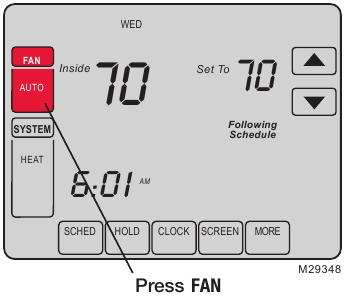

Press FAN to select fan operation, then press DONE.

• On: Fan is always on.
• Auto: Fan runs only when the heating or cooling system is on.
• Circ: Fan runs randomly, about 35% of the time, not counting any run time with the heating or cooling system.

You can press FAN to override the fan settings you've programmed for different time periods. If you select On or Circ, the setting you select will remain active until you press FAN again to select Auto.

Note: If a fan schedule is programmed, "Auto" will run the fan schedule.

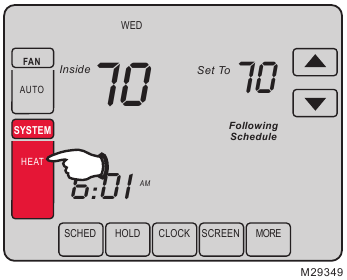

System setting

Press the SYSTEM button to select, then press DONE.

• Heat: Thermostat controls only the heating system.
• Cool: Thermostat controls only the cooling system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects heating or cooling depending on the indoor temperature.**
• Em Heat (only for heat pumps with auxiliary heat): Thermostat controls Emergency and Auxiliary Heat. Compressor is locked out.**

** Select models only

Save money by setting program schedules

It's easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for weekdays and weekends.

	Set to the time you awaken and the temperature you want during the morning, until you leave for the day.
	Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
	Set to the time you return home and the temperature you want during the evening, until bedtime.
	Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).

Energy-saving settings for maximum cost savings

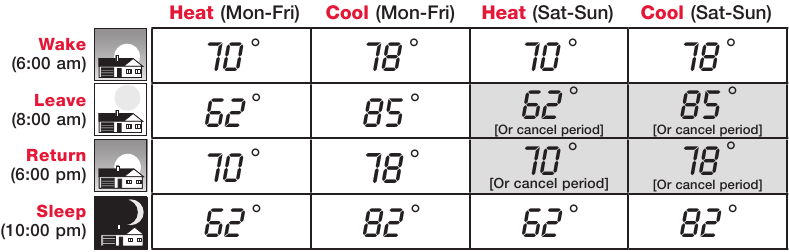

This thermostat is pre-set with energy-saving program settings. We recommend these settings, since they can reduce your heating/cooling expenses by as much as 33%. (See below to adjust times and temperatures of each time period.)

To adjust program schedules

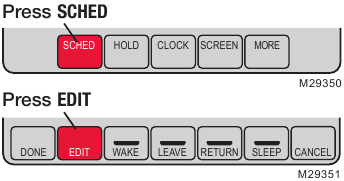

1. Press SCHED, then EDIT.

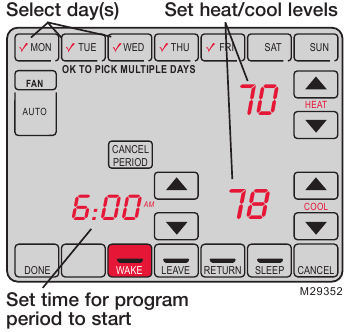

2. Press day buttons (MON-SUN) to select day(s).

3. Press or to set Wake time for selected day(s).
4. Press or to set Heat and Cool temperature for this time period.
5. Press other time periods (LEAVE, RETURN, SLEEP) to set time and temperatures for each.
6. Press DONE to save & exit (or press CANCEL to exit without saving changes).

Note: You can press CANCEL PERIOD to eliminate any unwanted time period.

Note: Press FAN to customize fan settings for any time period.

Program schedule override

Temporary

Press or to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.

The new temperature will be maintained only until the time you set. When the timer expires, the program schedule will resume and set the temperature to the level you've programmed for the current time period.

To cancel the temporary setting at any time, press CANCEL (or SCHED). The program schedule will resume.

Permanent

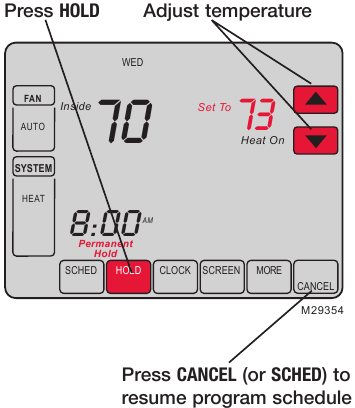

Press HOLD to permanently adjust the temperature. This will turn off the program schedule.
Whatever temperature you set will be maintained 24 hours a day until you manually change it or press CANCEL (or SCHED) to cancel "Hold" and resume the program schedule.

Vacation hold

This feature can suspend the program schedule for extended periods of time.

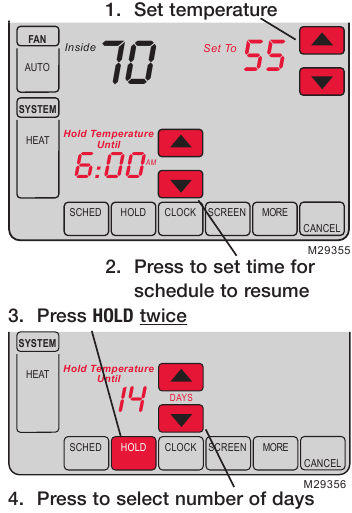

Press or to set the temperature you want, then press or to set the time of day you want the schedule to resume when you return.
Press HOLD twice, then press or to select the number of days.

Whatever temperature you set will be maintained 24 hours a day for the number of days you select. After this number of days have elapsed, the previously programmed schedule will resume at the time you set.

If you return earlier than expected, press CANCEL (or SCHED) to cancel "Hold" and resume the program schedule.

Special features

Auto Changeover: When set to Auto, the thermostat automatically selects heating or cooling depending on the indoor temperature.

Adaptive Intelligent Recovery: This feature allows the thermostat to "learn" how long the furnace and air conditioner take to reach programmed temperature settings, so the temperature is reached at the time you set. For example: Set the Wake time to 6 am, and the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by the time you wake at 6. The message "Recovery" is displayed when the system is activated before a scheduled time period.

Compressor Protection: This feature forces the compressor to wait a few minutes before restarting, to prevent equipment damage. During the wait time, the message "Wait" is displayed on screen.

Screen lock

To prevent tampering, the screen can be partially or fully locked.

When partially locked, the screen displays SCREEN LOCKED for several seconds if a locked key is pressed. To unlock the screen, press any unlocked key while SCREEN LOCKED appears on the screen.

When the screen is fully locked, no keys function. To lock or unlock the screen, see advanced function 0670.

Screen cleaning

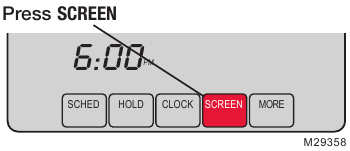

Press SCREEN to lock the screen for cleaning.

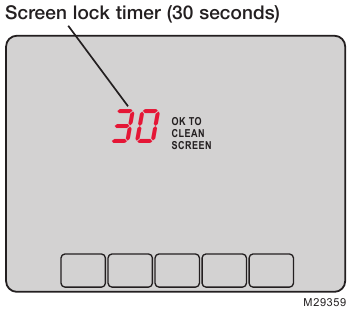

The screen will remain locked for 30 seconds so you can clean the screen without changing any settings.

After 30 seconds, press DONE to resume normal operation, or press SCREEN again if you require more time for cleaning.

Note: Do not spray any liquid directly on the thermostat. Spray liquids onto a cloth, then use the damp cloth to clean the screen. Use water or household glass cleaner. Avoid abrasive cleansers.

Humidity level display (select models)

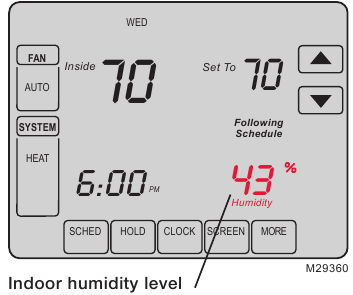

Select models can display the current indoor humidity level.
(If an optional outdoor sensor is installed, the outdoor temperature is shown instead of the humidity level. Press MORE to display the humidity level.)

Dehumidification control (select models)

Select models allow you to decrease summer humidity.
The thermostat monitors humidity. When humidity increases, the thermostat runs the air conditioner longer to reduce humidity (up to 3°F below your cooling temperature setting).

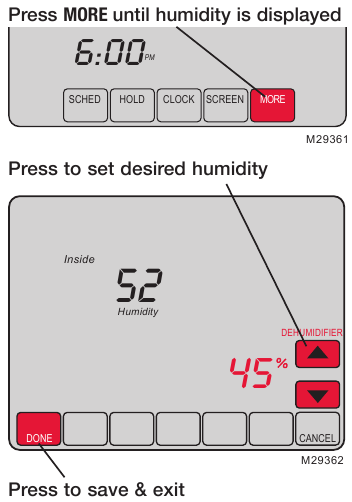

Press MORE until the humidity screen is displayed, then press or to set the desired humidity level.
Press DONE to save and exit, or press CANCEL to exit without saving changes.

Battery replacement

Batteries are optional (to provide backup power) if your thermostat was wired to run on AC power when installed.

Grasp thermostat and pull to remove fom wallplate

Install fresh batteries immediately when the L0 BATT warning begins flashing. The warning flashes about 30 days before batteries are depleted.
Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than a month.

Advanced functions

1. Press SYSTEM.

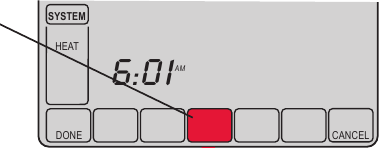

2. Press and hold blank center key until the display changes.

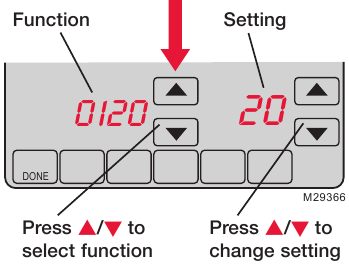

3. Change settings as required.

4. Press DONE to exit & save changes.

Year setting (first two digits)
Function 0120	Press / to change the first two digits of the year:
Options:	20 = Year 20xx 21 = Year 21xx
Year setting (second two digits)
Function 0130	Press / to change the last two digits of the year:
Options:	01 - 99 (i.e., 2001 - 2099)
Month setting
Function 0140	Press / to change the current month:
Options:	1 - 12 (i.e., January - December)
Date setting
Function 0150	Press / to change the current date:
Options:	1 - 31
Program schedule on/off
Function 0160	Press / to turn the program schedule on or off:
Options:	0 Program schedule is off. Thermostat is non-programmable. 4 Program schedule is on (7-day programmable).
Temperature format (°F/°C)
Function 0320	Press / to set the temperature display format:
Options:	0 Fahrenheit 1 Celsius
Daylight savings time on/off
Function 0330	The thermostat is pre-programmed to automatically adjust to daylight savings time. Press / to select an option:
Options:	0 Off: No adjustment for daylight savings time 1 On: Auto-change to daylight savings time (through 2006, and for areas that do not use the new 2007 DST calendar) 2 On: Auto-change to daylight savings time (2007 and beyond, for areas that use the new 2007 DST calendar)
Furnace filter change reminder
Function 0500	This feature displays an alert to remind you to change the furnace filter. Press / to set the desired reminder interval:
Options:	0 Off (no reminder to change furnace filter) 1 Reminder after 10-day run time (about 1 month) 2 Reminder after 30-day run time (about 3 months) 3 Reminder after 60-day run time (about 6 months) 4 Reminder after 90-day run time (about 9 months) 5 Reminder after 120-day run time (about 1 year) 6 Reminder after 365-day run time (about 3 years) Note: Press RESET to cancel the alert
Humidifier pad change reminder
Function 0510	This feature displays an alert to remind you to change the humidifier pad. Press / to set the desired interval:
Options:	0 Off (no reminder to change humidifier pad) 1 Reminder after 3 months 2 Reminder after 6 months 3 Reminder after 1 year Note: Press RESET to cancel the alert
UV lamp change reminder
Function 0520	This feature displays an alert to remind you to change the ultraviolet lamp. Press / to set the desired interval:
Options:	0 Off (no reminder to change UV lamp) 1 Reminder after 1 year Note: Press RESET to cancel the alert
Program schedule periods
Function 0540	Press / to set the number of program periods:
Options:	2 Two program periods (Wake, Sleep) 4 Four program periods (Wake, Leave, Return, Sleep)
Clock format
Function 0640	Press / to set the clock display format:
Options:	12 12-hour clock (i.e., "3:30 pm") 24 24-hour clock (i.e., "15:30")
Screen lock
Function 0670	Press / to choose a screen lock setting:
Options:	0 Screen is unlocked (fully functional) 1 All functions locked except temperature controls and CANCEL key 2 Screen is fully locked

In case of difficulty

If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.

Optional remote sensors (select models)

If an outdoor sensor is installed, the current outdoor temperature is displayed.

If an indoor remote sensor is installed, the display shows the indoor temperature at the location of the sensor. (The internal sensor in the thermostat is disabled.)

If more than one indoor sensor is installed, the display shows an average of temperature readings from all sensors.

5-year limited warranty

Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of five (5) years from the date of purchase by the consumer.

If the product is defective,

1. return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
2. call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com

Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Toronto, Ontario M1V 4Z9

® U.S. Registered Trademark.
© 2011 Honeywell International Inc.
US Patent No. 6595430, D509151; other patents pending
69-1894EFS—03 M.S. Rev. 03-11
