Midland X-tra Talk LXT500/535/591/XT29/ALR5MO/ALR5R/GX20/22/25/27 Series Manual

Features

• 22 GMRS/FRS Channel
• Call Alert
• Scan Function
• Roger Beep Tone
• Silent Operation
• Keypad Lock
• Power HI/LO Settings
• Auto Squelch
• Speaker / Microphone Jacks
• Battery Life Extender
• Battery Low Indicator

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device does not cause harmful interference,
   and
2. This radio must accept any interference that may cause undesired operation.

To maintain compliance with FCC's RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

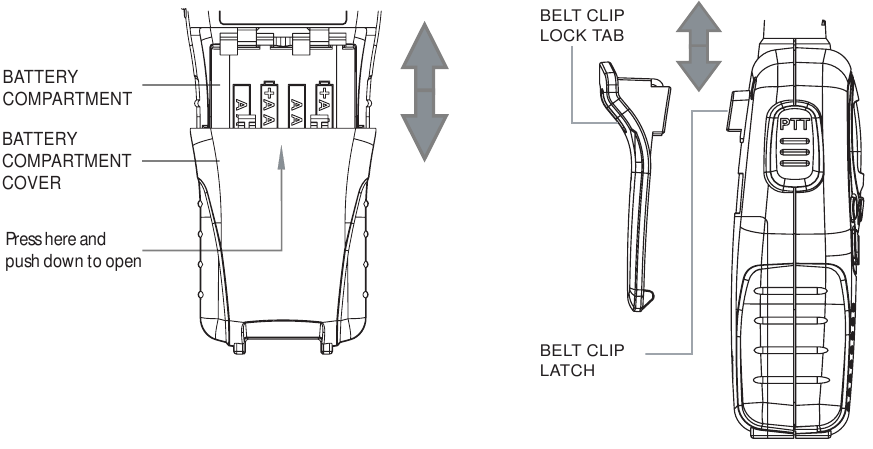

INSTALLING THE BELT CLIP

To install the BELT CLIP, slide the clip up into the slot on the back of the radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the LOCK TAB up, then gently pull the belt clip down toward the bottom of the radio.

CHARGING THE BATTERY PACK

Your radio is equipped to use a rechargeable NiMH battery pack which can be recharged with the optional desktop charger (as described below). The radio can also be charged by inserting the AC adapter into the radio charge jack. Initial charge time is 24 hours.
Charge time is about 12 hours thereafter. For maximum battery life, we recommend charging the battery pack when the low battery icon comes on. Remove the radios from the charger when the charge time expires.

To charge using a Desktop Charger:

1. Place the rechargeable battery packs in the radios.
2. Connect the AC adapter into an AC wall outlet.
3. Insert the AC adapter plug (or DC Cigarette Lighter adapter if charging in vehicle) into the desktop charger jack.
4. Place the units into the desktop charger slot and note that the LED indicator with RED color will light up, indicating charging function.

Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians.

In order to ensure that the battery pack is fully charged, it is recommended that the battery pack be charged for at least 12 hours with the radio turned OFF.

1. Only use our NiMH battery pack and AC adapter.
2. Do not attempt to charge alkaline batteries or any batteries or battery packs other than the one indicated in the manual. This may cause leakage and damage to the radio.
3. For long term storage of the radio, turn the radio OFF and remove the batteries from the radio.

LOW BATTERY LEVEL INDICATOR

Your radio has a LOW BATTERY ICON which will only appear on the LCD display if the battery voltage level is low. At this point, the battery needs to be charged for at least 12 hrs.

OPERATING YOUR RADIO

POWER ON/OFF AND VOLUME

Press the POWER/MENU button for at least 3 seconds to turn the radio on/off. During Power On, the radio will beep 3 times with different tones, the LCD will display all icons for 1 second and the LCD display will indicate the last channel selected.

To increase/decrease the volume level, press the \ buttons during RX or STANDBY mode.

TRANSMITTING AND RECEIVING A CALL

To communicate, all radios in your group must be set to the same channel.

1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.
2. Press and hold the PTT button and speak in a normal voice into the microphone. The TX icon will appear continuously on the LCD display while transmitting.
3. To receive a call, release the PTT button. The RX icon will appear on the display when your radio is receiving a transmission.

LCD DISPLAY

1. LOW BATTERY ICON – Indicates the battery level is low.
2. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal.
3. CHANNEL NUMBER – Changes from 1~22 on GMRS/FRS band.
4. KEY LOCK ICON – Indicates KEY LOCK mode is on.
5. RECEIVE (RX) ICON – Indicates radio is receiving a transmission.
6. TRANSMIT POWER LEVEL ICON – Indicates TX Power setting (H/L)

CONTROLS

7. PTT Button – Press and hold to transmit voice communication.
8. CALL/LOCK Button – Press to send a CALL Alert signal. Press and hold to turn KEY LOCK on/off.
9. MIC – Built-in microphone.
10. SPEAKER – Built-in speaker.
11. ANTENNA

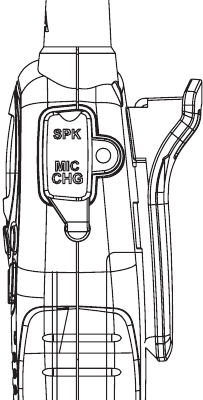

12. EXTERNAL SPEAKER/MIC/CHG. JACK
13. POWER / MENU Button – Press and hold for at least 3 seconds to turn the radio on/off. Press momentarily to access Menu mode.
14. SCAN Button – Press to enter SCAN mode.
15. UP and DOWN Buttons – Make adjustments in MENU mode.

BATTERY INSTALLATION

Your radio operates with either a NiMH battery pack or optional 4 AAA alkaline batteries. The belt clip should be removed to ease installation or removal of the batteries.

To install the batteries:

1. With the back of the radio facing you, remove the belt clip (see diagram on the next page) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio.
2. Insert 4 AAA batteries observing the polarity as shown. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place.

ABOUT RANGE

Your LXT Series radios are designed to give you maximum range under optimum conditions.

Optimum Conditions are:

• Over water
• Open rural areas without obstructions l Flat areas where you can see the other person

To ensure you get maximum range:

• Be sure to use fresh or fully charged batteries - low batteries will cause low power conditions.
• Be sure you are on a GMRS channel - FRS channels are restricted by the FCC to low power.
• Be sure to set your radio to use Hi power.

LXT Series QUICK REFERENCE CHART

SCAN

Your radios can scan all 22 channels for activity. To enter, quickly press the SCAN button. Repeat the same procedure to exit. Your radio will rapidly scan each of the 22 channels and stop on any active channel for 4 seconds before resuming scan.

When you press the PTT button to transmit on an active channel, the scanning function will stop and remain on the active channel. To resume scanning, quickly press the SCAN button.

CALL ALERT

Your radios can transmit a call alert for a fixed length of time. To send a call alert, press the CALL button. The TX icon will appear while transmitting a call alert and a tone can be heard on the speaker for confirmation.

KEYPAD LOCK

To avoid accidentally changing the radio setting, press the LOCK button for 4 seconds. The KEY LOCK icon will appear on the display. PTT and CALL will still be active. Repeat the same procedure to unlock the keypad.

CHANNEL SELECTION (GMRS/FRS BAND)

Press the MENU button once, and then the s\t buttons to select one of the 22 GMRS/FRS channels. To confirm the selection, press the PTT button or press the MENU button again to move to the next feature setting.

Note: To communicate between two radios, all radios in your group must be set to the same channel.

TRANSMIT (TX) POWER LEVEL SELECTION

Your radio has 2 power level settings. To select the power level on channels 1~7 and 15~22, press the MENU button until a "Pr" icon appears blinking on the display. Then press the \ buttons to select TRANSMIT POWER LEVEL icon (H: Hi/L: Lo). To confirm, press the PTT button or press the MENU button again to move to the next feature setting.

Note: You cannot adjust the power setting on the FRS channels (8~14). They are set to Lo power per FCC regulations.

ROGER BEEP (end of transmission) TONE

When the PTT button is released, the radio will beep to confirm to other users that your transmission has finished.

To turn the ROGER BEEP tone on, press the MENU button until the display shows a "rb" icon while on the right of the "rb" display, an "oF" icon appears. Select "on" by pressing the \ buttons and push the PTT key, or press the MENU button to move to the next feature setting.

To turn the ROGER BEEP tone off, press the MENU button until the display shows a "rb" icon while on the right of the "rb" display, an "on" icon appears. Select "oF" by pressing the \ buttons and push the PTT key, or press the MENU button to move to the next feature setting.

SILENT OPERATION

Your radio has a SILENT OPERATION mode. In this mode, all "beeps" and "tones" are disabled.

To turn the SILENT OPERATION mode on, press the MENU button until the display shows a "bP" icon while on the right of the "bP" display, an "on" icon appears. Select "oF" by pressing the \ buttons and push the PTT key or the MENU button.

To turn the SILENT OPERATION mode off, press the MENU button until the display shows a "bP" icon while on the right of the "bP" display, an "oF" icon appears. Select "on" by pressing the \ buttons and push the PTT key or the MENU button.

EXTERNAL SPEAKER/MICROPHONE JACK

Your radio can be used with an optional external speaker/microphone or headset, freeing your hands for other tasks. To use an optional speaker/ microphone or headset:

• Insert the plug(s) into the SPK/MIC jacks.
• Place the earbud into your ear, and adjust the mic into your desired position.


Note: You can charge a rechargeable NiMH battery pack thru the CHG Jack

TROUBLESHOOTING GUIDE

USE AND CARE

1. Use a soft damp cloth to clean the radio
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with a dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term storage.

If you have a problem which you believe requires service, please call first and speak with a service technician at 816-241-8500. Many problems can be remedied over the phone without returning the unit for service.

SPECIFICATIONS

Channels 22 GMRS/FRS Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz
Power Source 4 AAA Alkaline or 4.8V Rechargeable NiMH battery pack

GMRS/FRS FREQUENCY CHART (MHz)

*Channels 8~14 are low-power FRS license free channels

Check out these and other great products at midlandusa.com

LIMITED WARRANTY

Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within three years following the initial consumer purchase.

For Product Purchased in the USA:
Performance of any obligation under this warranty may be obtained by returning the defective product, prepaid freight, along with proof of purchase to:

Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120

For Product Purchased in Canada:
Performance of any obligation under this warranty may be obtained by returning the warranted product, along with proof of purchase, to your dealer in Canada.

ACCESSORIES

Accessories can be purchased at midlandusa.com or by filling in the form on the following page and mailing it to the address on the form.

AVP-1

• 2 Over the Ear Mic. Headsets w/ PTT
• $19.99

AVP-H 1

• 1 Open Face Helmet Microphone Kit
• $49.99

AVP-H 2

• 1 Closed Face Helmet Microphone Kit
• $49.99

AVP-H 3

• 2 Surveillance Headsets
• $39.99

AVP-H 4

• 2 Ear Wrap Headsets
• $39.99

AVP-H 5

• 2 Behind the Head Headsets
• $39.99

AVP-H 7

• 2 Mossy Oak Around the Ear Headsets with Boom Mic
• $39.99

AVP-H 8

• 1 Action Throat Mic with Acoustic Ear Tube
• $39.99

TACTICAL HEADSETS

TH1

• Earphone Mic with Boom
• $39.99

TH2

• Tactical Action Boom Mic with Tactical PTT
• $99.99

TH3

• Earphone Mic with PTT
• $29.99

TH4

• Action Throat Mic with Tactical PTT and Pneumatic Earphone
• $109.99

AVP-6

• 1 Dual Desk Charger
• 2 Rechargeable Battery Packs
• 1 AC Adapter
• 1 DC Cigarette Lighter Adapter
• $39.99

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,
   and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

MIDLAND RADIO CORPORATION
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500

We'd love to hear from you! Let us know what you think of your new Midland product on

or by visiting us at midlandusa.com

Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging.
