Motorola MBP48, MBP48-2, MBP48-3, MBP48-4 - Baby Monitor Quick Start

For a full explanation of all features and instructions, please refer to the User's Guide (available for download from www.motorolastore.com).

Setting up your Digital Video Baby Monitor

Connecting the power supply for the Baby Unit

• Connect the small plug of the power adapter to the Baby Unit and the other end to a suitable mains power socket.
• Only use the enclosed adapter (5V DC/1000mA).
• Ensure the ON/OFF switch is at the "ON" position.

Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1 metre away).
Never use extension cords with AC Adapters. Only use the AC Adapters provided.

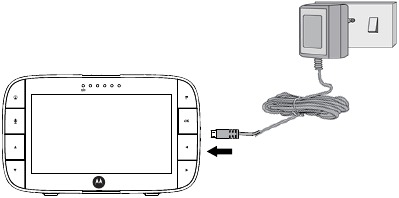

Connecting the power supply for the Parent Unit

• Connect the micro USB plug of the power adapter to the parent unit and the other end to a suitable mains power socket.
• Only use the enclosed adapter (5V DC/1000mA).
• A rechargeable battery inside the Parent Unit allows you to move it without losing the link and picture from the Baby Unit. The battery gives up to 5 hours operation for the Parent Unit. We recommend you charge it for at least 16 hours before first use, or when the Parent Unit indicates the battery is low.
• Press and hold the POWER button on the top of the Parent Unit to turn it ON.

NOTE
When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a colour image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with a icon showing, due to the infra-red illumination by the Baby Unit.

Basic operation of the keys

Parent Unit
	ON/OFF button	Press and hold to switch the Parent Unit ON/OFF.
	UP/DOWN buttons	While viewing a zoomed image, press and hold to move the image upward or downward. Press to adjust menu settings.
	LEFT/RIGHT buttons	While viewing a zoomed image, press and hold to move the image leftward or rightward. Press to access different menu options.
	MENU button	Press to open menu options or exit the menu.
OK	OK button	Press to confirm a selection.
	VIDEO button	Press to turn the LCD screen ON/OFF.
	TALK button	Press and hold to talk to your baby.
	Volume buttons	Press -/+ to select volume level of the parent unit.
	RESET button	Press and hold with a small pin to reset the unit.
Baby Unit
ON/OFF switch		Slide the power switch to the left to switch on the Unit. Slide the power switch to the right to switch off the Unit.
